Method for forming composite structures

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
MARTIN MARIETTA CORP
Original source
US-5403537-A, the United States Patent and Trademark Office, 4 April 1995
Document SHA-256
98538d5c1b3c9713ba90029cf7c0624da42d06b3fabd7cf7607216ff70bc6c1a

A method for producing advanced composite structures includes the assembly of a number of layers of fibrous reinforcements into a desired configuration. A vacuum is applied to the reinforcement in order to evacuate any air therefrom and to consolidate the plurality of fibrous reinforcements. Resin is introduced to the reinforcement by using a flow path therethrough having entry and exit points. The vacuum is used to transmit the resin through the reinforcement between the entry and exit points. The resin flows into the reinforcement due to the pressure differential between the evacuated reinforcement and the hydrostatic pressure on the resin as well as the capillary effect on the reinforcement.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6

Abstract

A method for producing advanced composite structures includes the assembly of a number of layers of fibrous reinforcements into a desired configuration. A vacuum is applied to the reinforcement in order to evacuate any air therefrom and to consolidate the plurality of fibrous reinforcements. Resin is introduced to the reinforcement by using a flow path therethrough having entry and exit points. The vacuum is used to transmit the resin through the reinforcement between the entry and exit points. The resin flows into the reinforcement due to the pressure differential between the evacuated reinforcement and the hydrostatic pressure on the resin as well as the capillary effect on the reinforcement.

1. Drawings

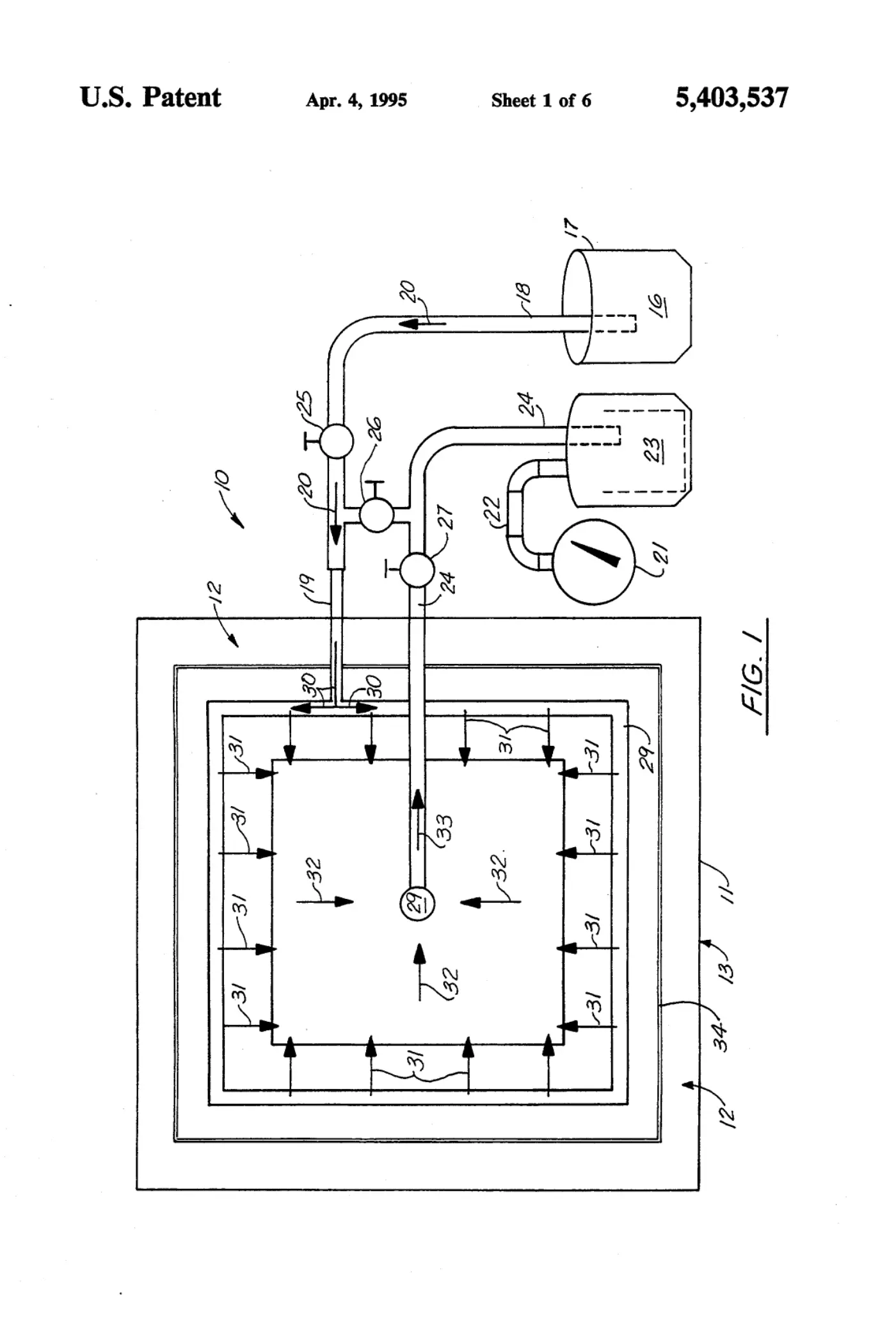

[0001]Sheet 1.

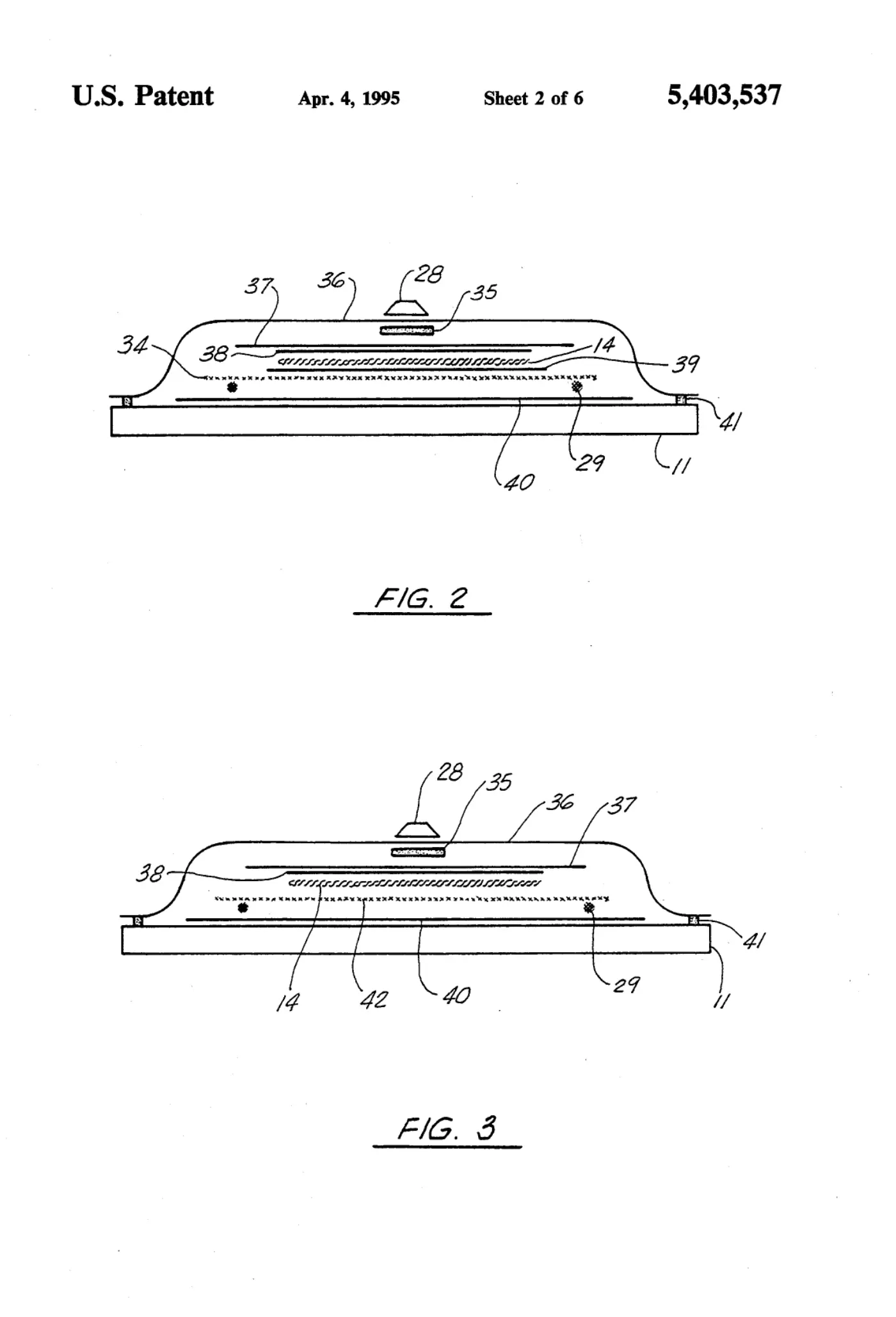

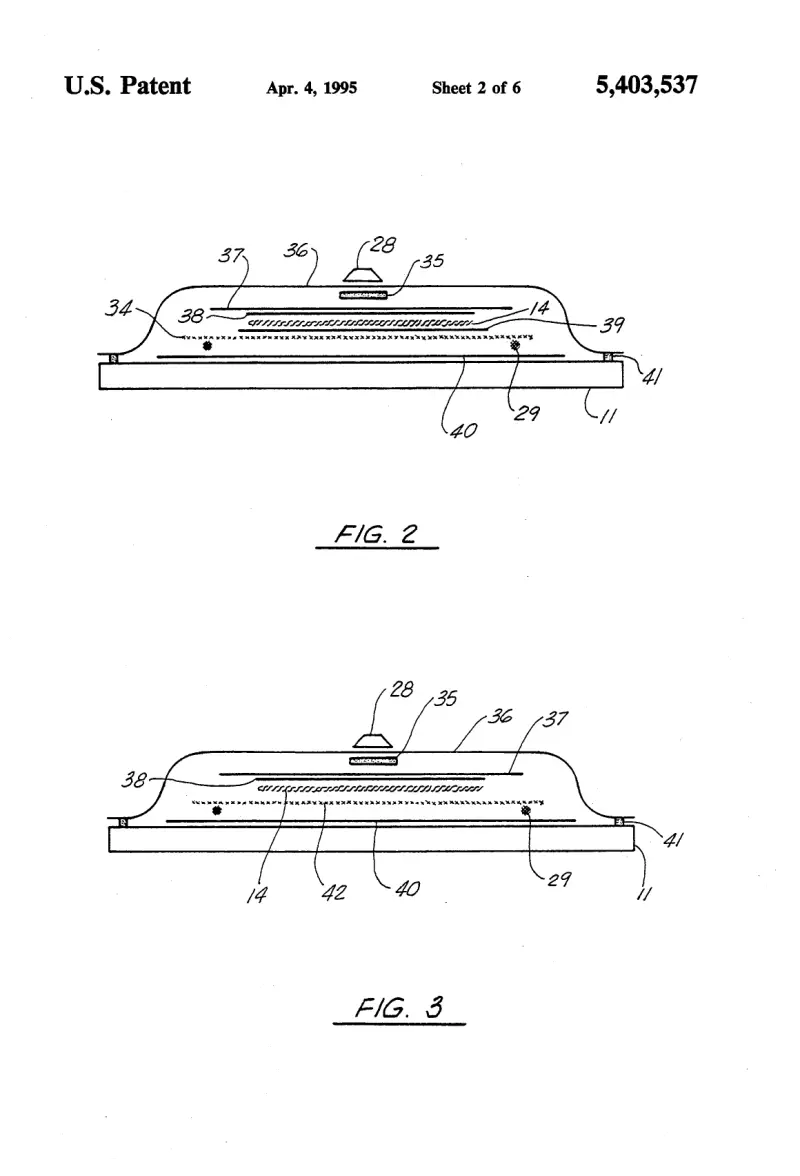

[0002]Sheet 2.

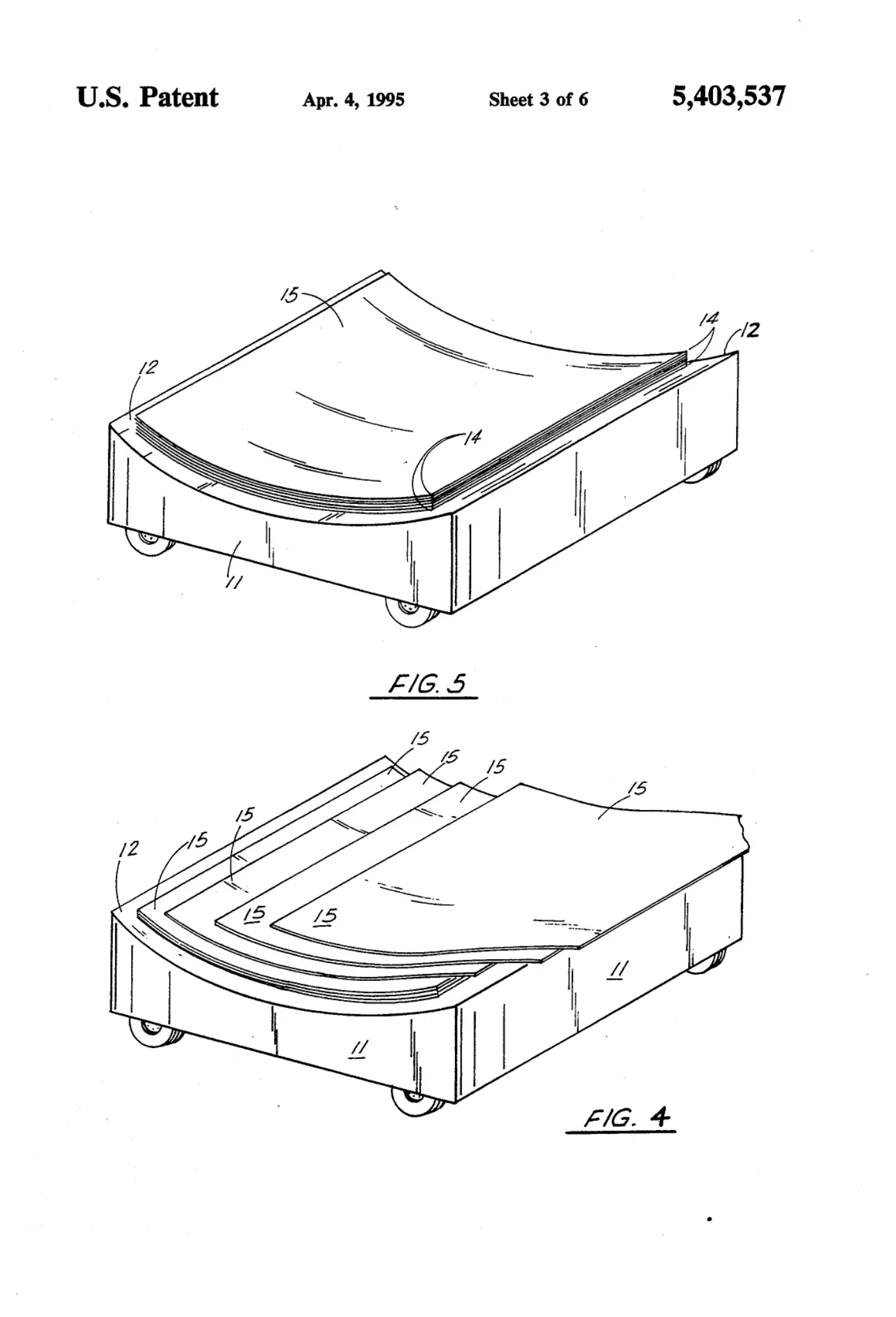

[0003]Sheet 3.

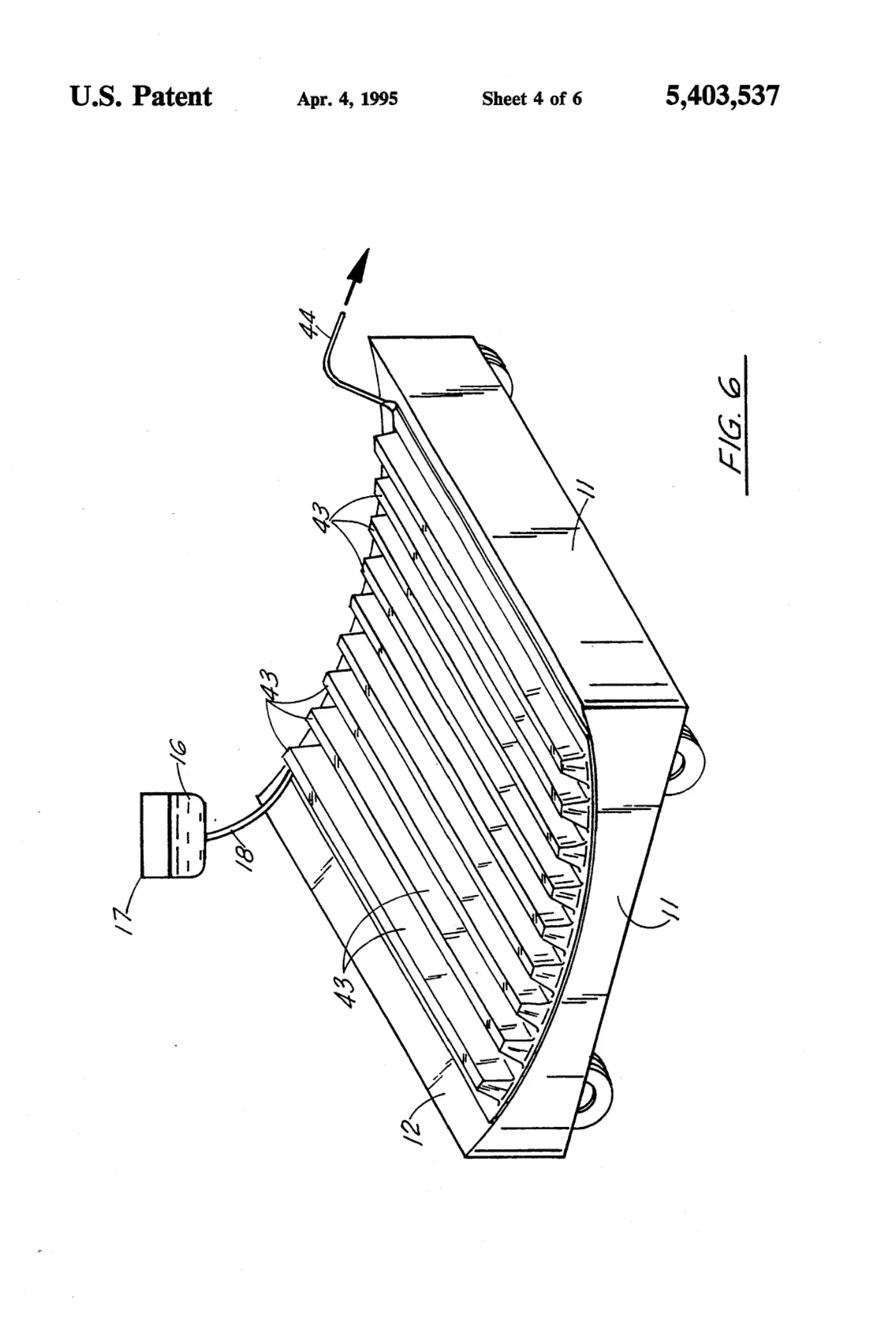

[0004]Sheet 4.

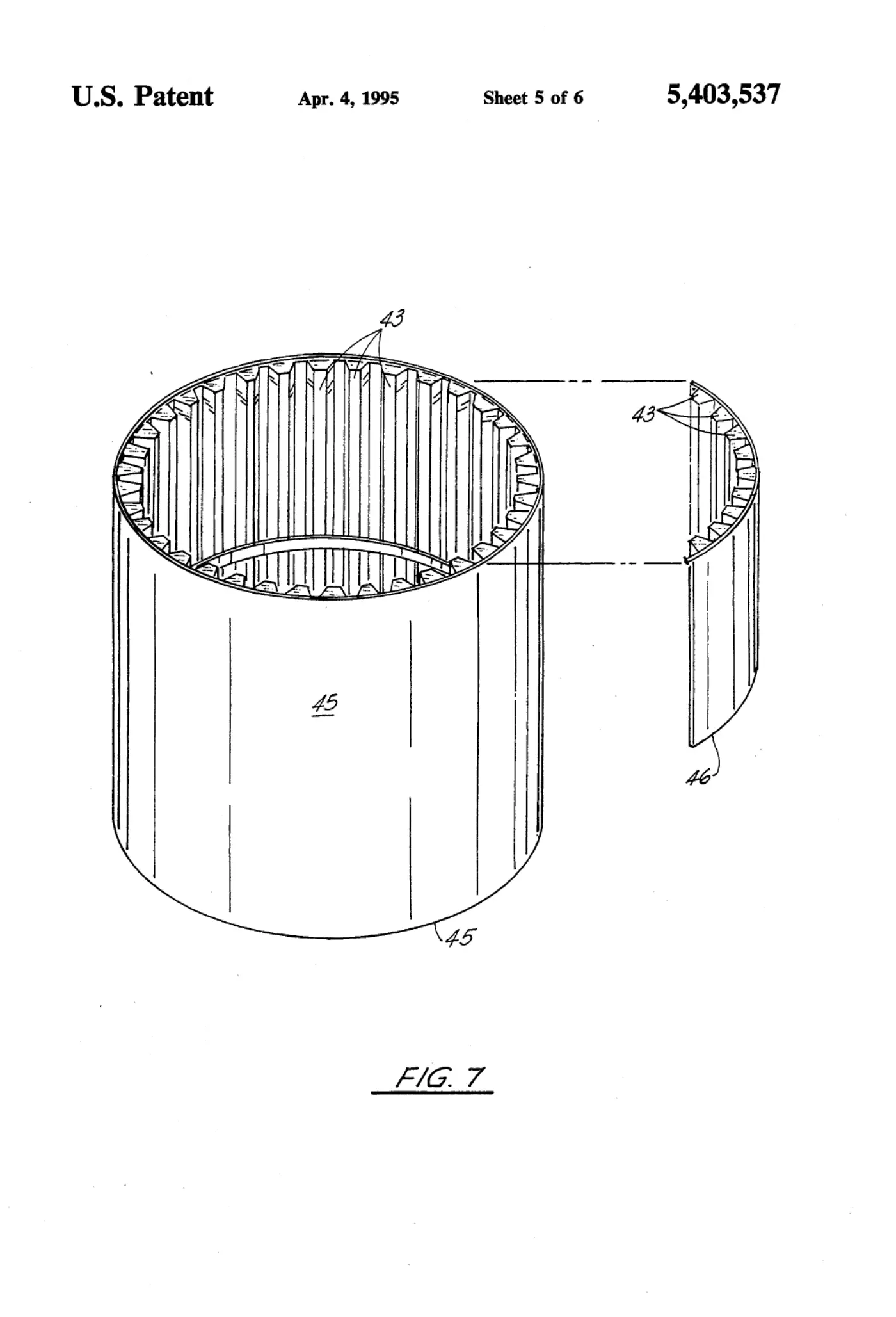

[0005]Sheet 5.

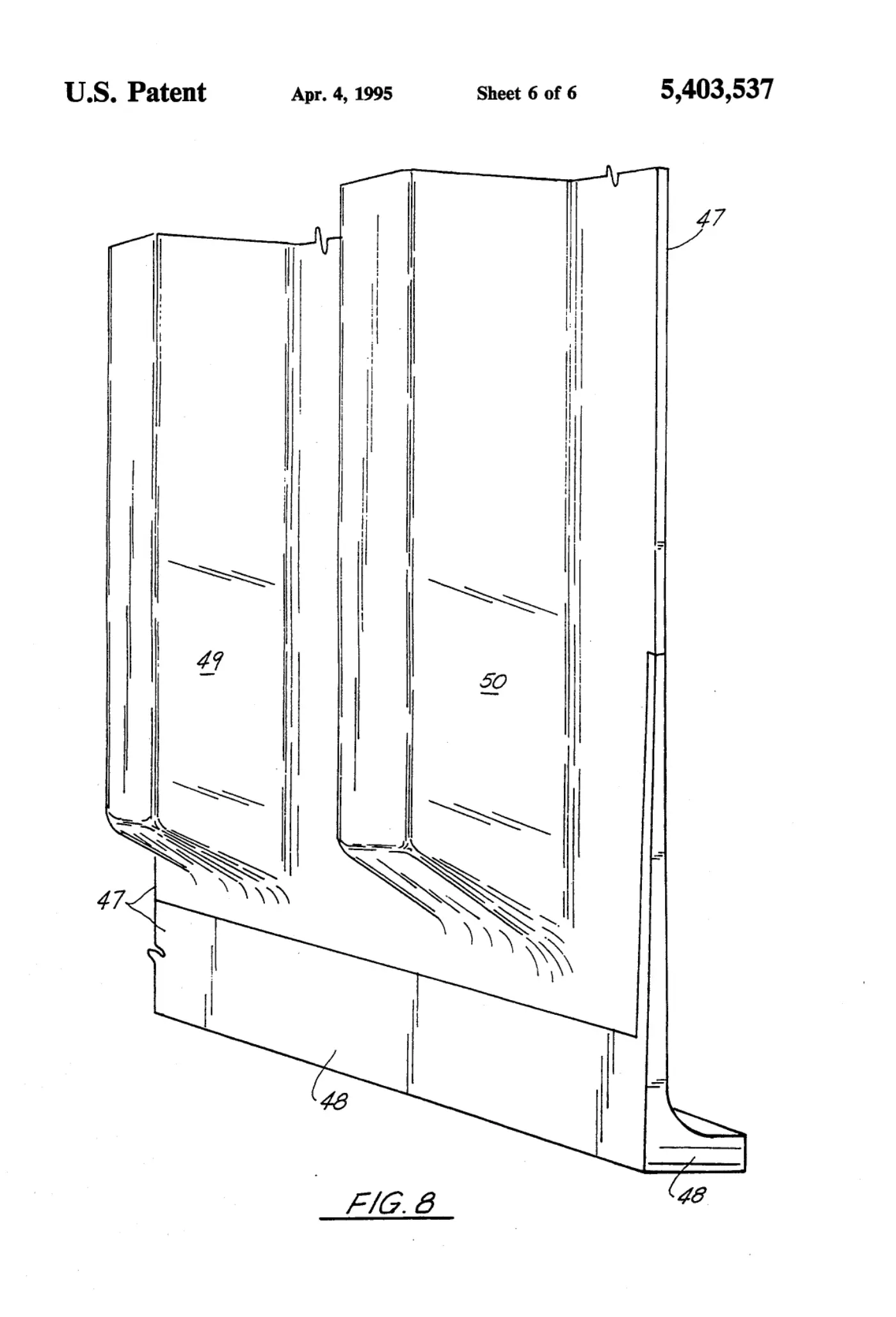

[0006]Sheet 6.
