Implant for an osteosynthesis device, particular for the spine

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
SOFAMOR
Original source
US-5385583-A, the United States Patent and Trademark Office, 31 January 1995
Document SHA-256
2d2f5155ac9921f9fb06cabc6ea2bb38411e454fd510123c35ac6d629bf1f9d4

The implant comprises a part (2) for anchorage in the bone and a body (3) for fixing on a rod (4), the body comprising two lateral branches (5) defining a passageway (6) which is open on each side of the body for receiving the rod, and a screw-threaded plug (8) adapted to be screwed between the branches; a strip (14), interposed between the plug and the rod, is fixed to a ring (15) with which it constitutes a pellet (16). The strip (14) is curved and defines a concave surface (14a) adapted to be applied against the surface of the rod. The curvature of the strip (14) permits clamping the rod (4) in position with a relatively small clamping pressure in that the forces are distributed, which improves resistance to alternating bending of the rod in the body (3) and resistance to fatigue.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

The implant comprises a part (2) for anchorage in the bone and a body (3) for fixing on a rod (4), the body comprising two lateral branches (5) defining a passageway (6) which is open on each side of the body for receiving the rod, and a screw-threaded plug (8) adapted to be screwed between the branches; a strip (14), interposed between the plug and the rod, is fixed to a ring (15) with which it constitutes a pellet (16). The strip (14) is curved and defines a concave surface (14a) adapted to be applied against the surface of the rod. The curvature of the strip (14) permits clamping the rod (4) in position with a relatively small clamping pressure in that the forces are distributed, which improves resistance to alternating bending of the rod in the body (3) and resistance to fatigue.

1. Drawings

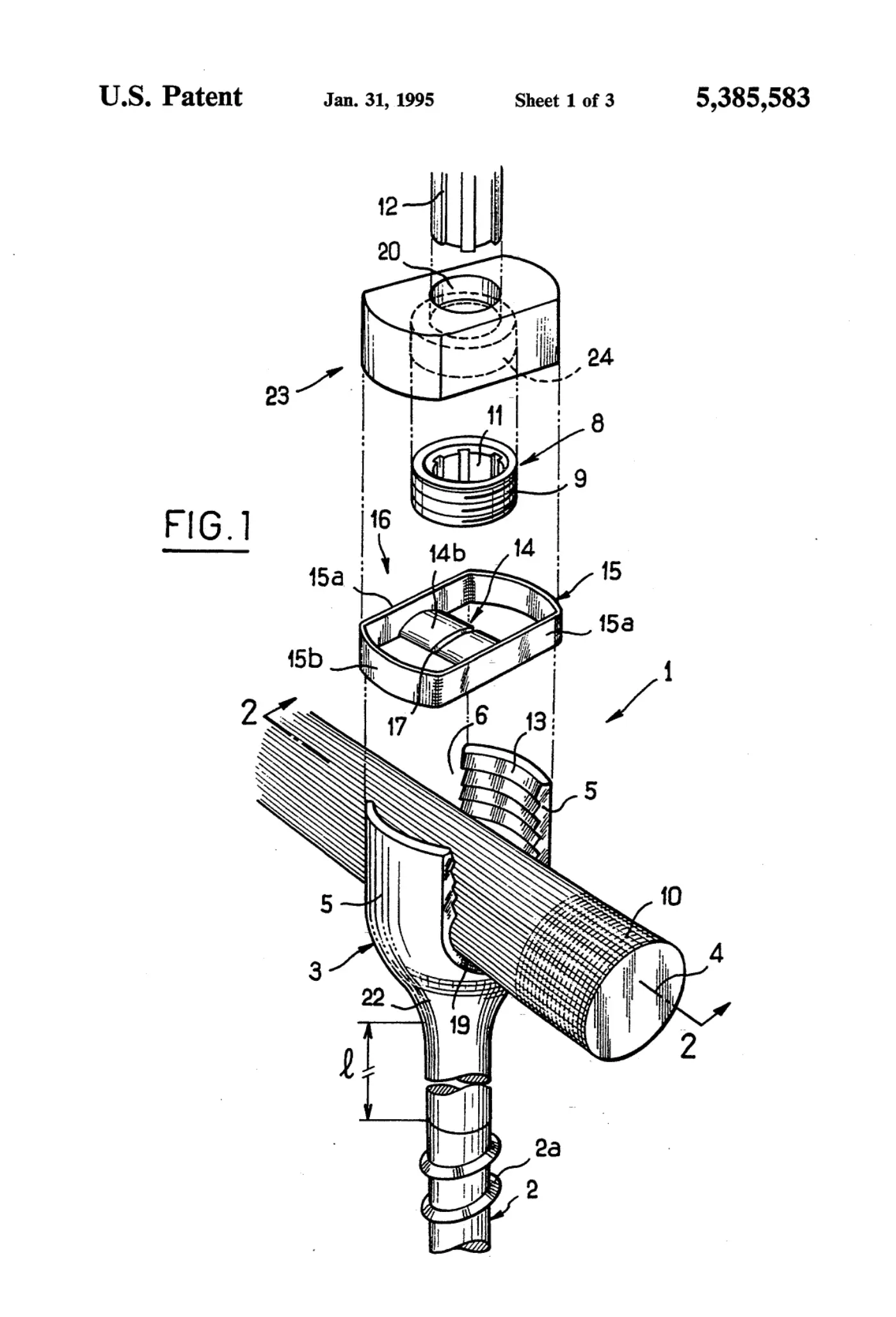

[0001]Sheet 1.

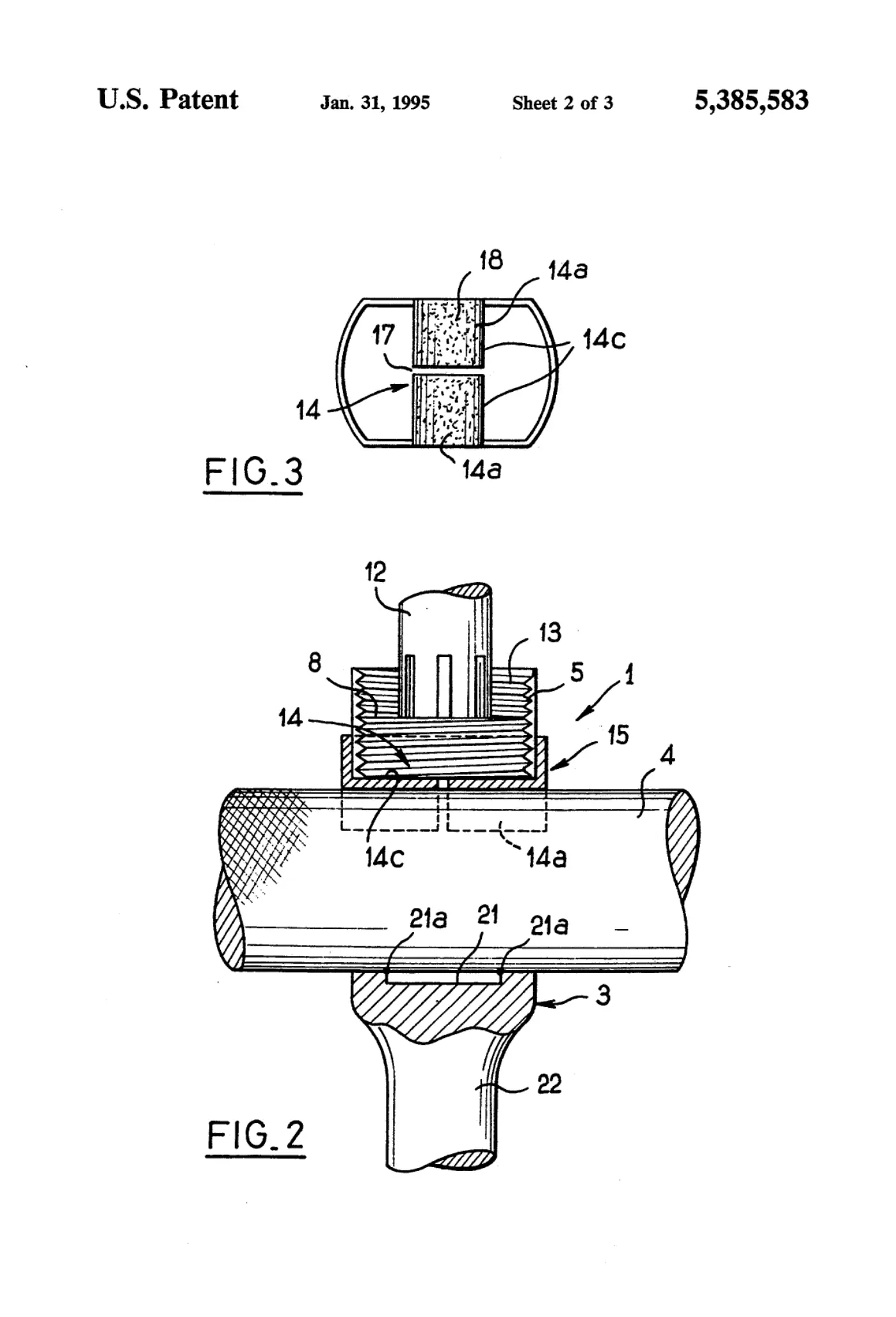

[0002]Sheet 2.

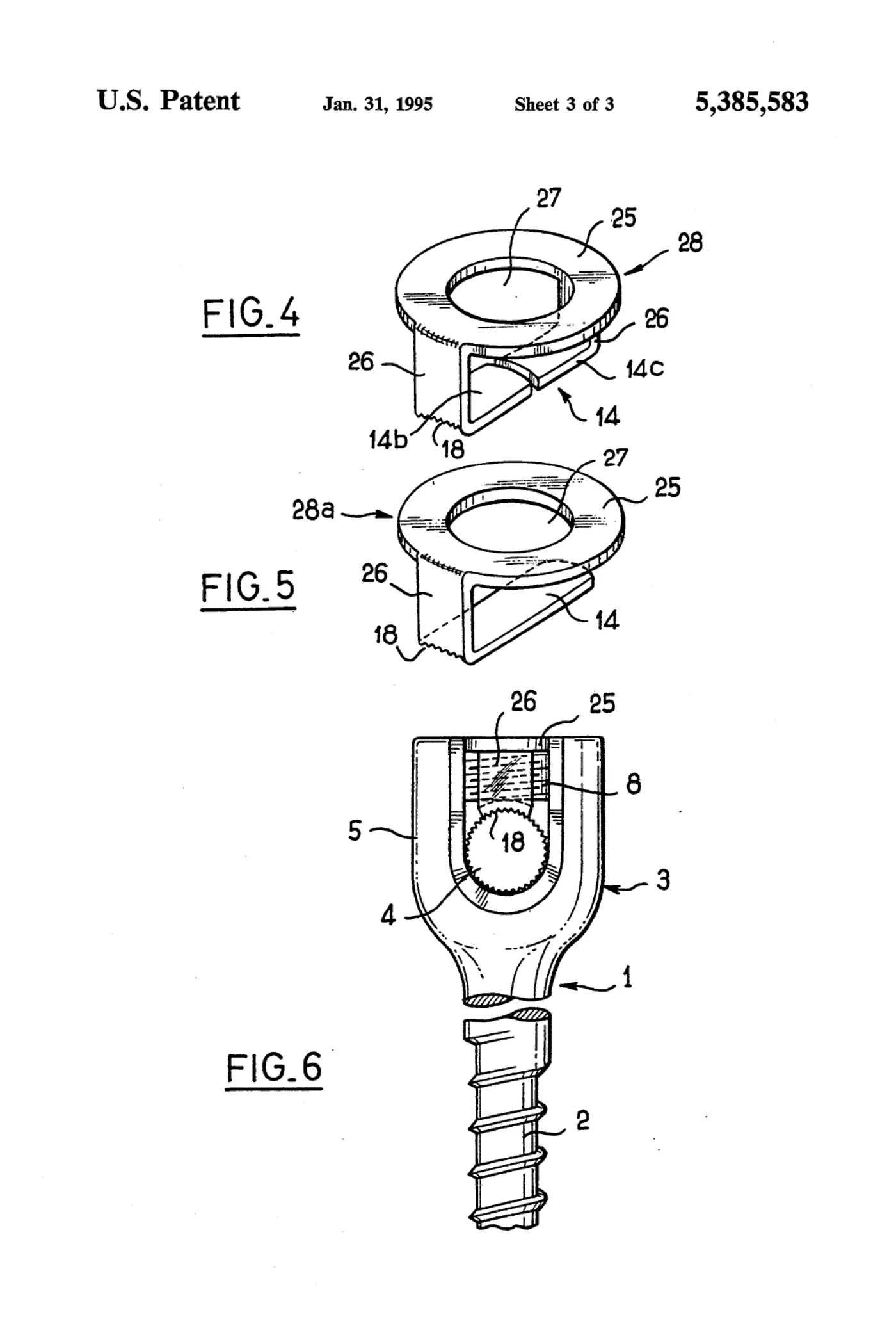

[0003]Sheet 3.
