Ball transfer rail for table saw

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Inventors
BIEHL ROY
Original source
US-5375679-A, the United States Patent and Trademark Office, 27 December 1994
Document SHA-256
b229d0a48fdfacf9493ceb3177b6314150652c0fede08374c219b88f645e6463

A ball transfer assembly includes a steel ball that rotates within a housing having a collar for centering the ball within the housing and a removable plug that forms a seat for the ball and retains the ball and collar within the housing. The plug has a snap lock arrangement with the housing that permits it to be removable allowing the assembly to be taken apart and cleaned. A gasket also aids in preventing the accumulation of dust and wood fibers within the housing. A series of ball transfer assemblies may be aligned in an extruded metal rail to form a long beam with equally spaced in-line ball supports each capable of 360° movement. This ball rail can be set adjacent a table saw. moulder, shaper, or band saw to provide control over the movement of sheet material being cut or moved.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A ball transfer assembly includes a steel ball that rotates within a housing having a collar for centering the ball within the housing and a removable plug that forms a seat for the ball and retains the ball and collar within the housing. The plug has a snap lock arrangement with the housing that permits it to be removable allowing the assembly to be taken apart and cleaned. A gasket also aids in preventing the accumulation of dust and wood fibers within the housing. A series of ball transfer assemblies may be aligned in an extruded metal rail to form a long beam with equally spaced in-line ball supports each capable of 360° movement. This ball rail can be set adjacent a table saw. moulder, shaper, or band saw to provide control over the movement of sheet material being cut or moved.

1. Drawings

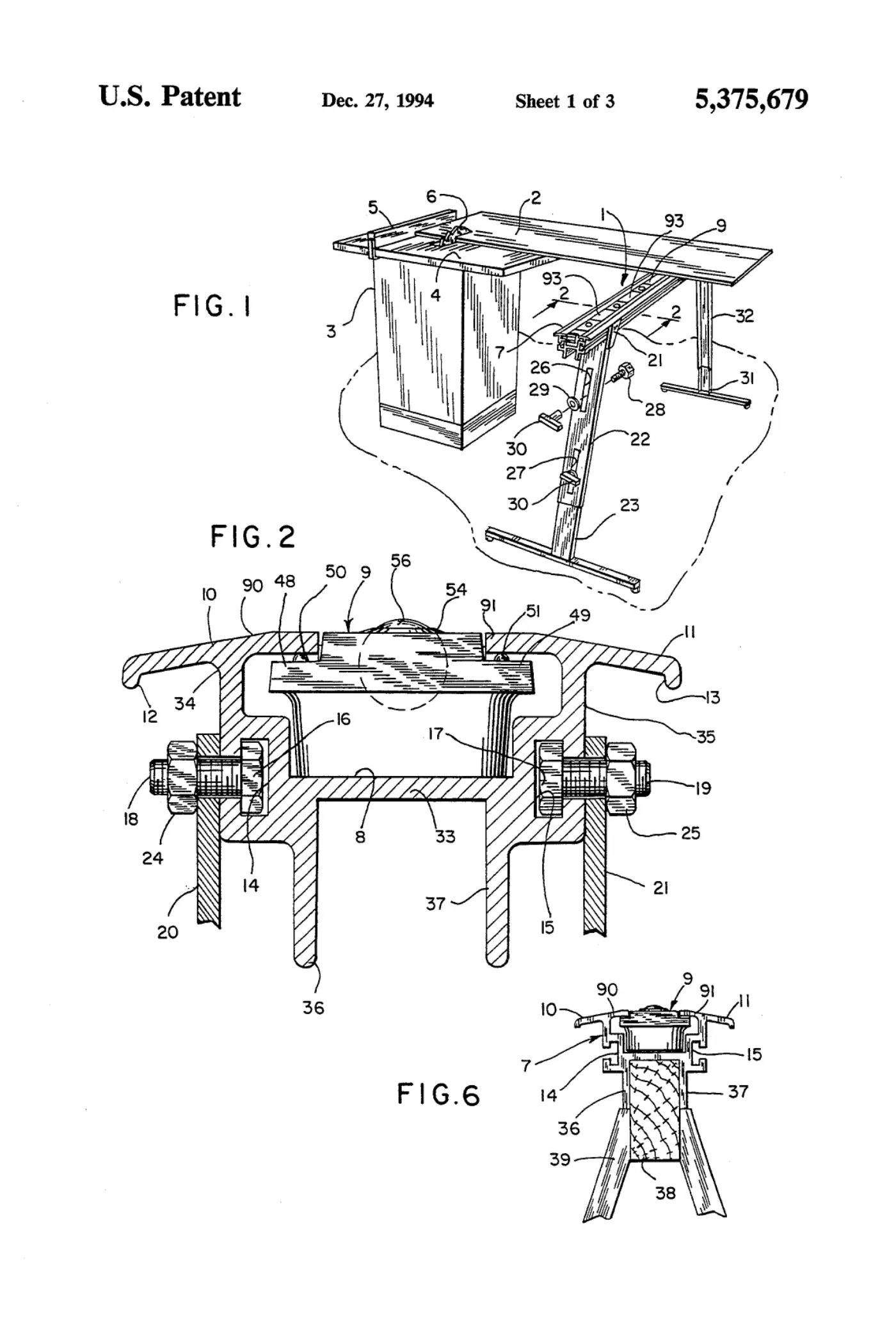

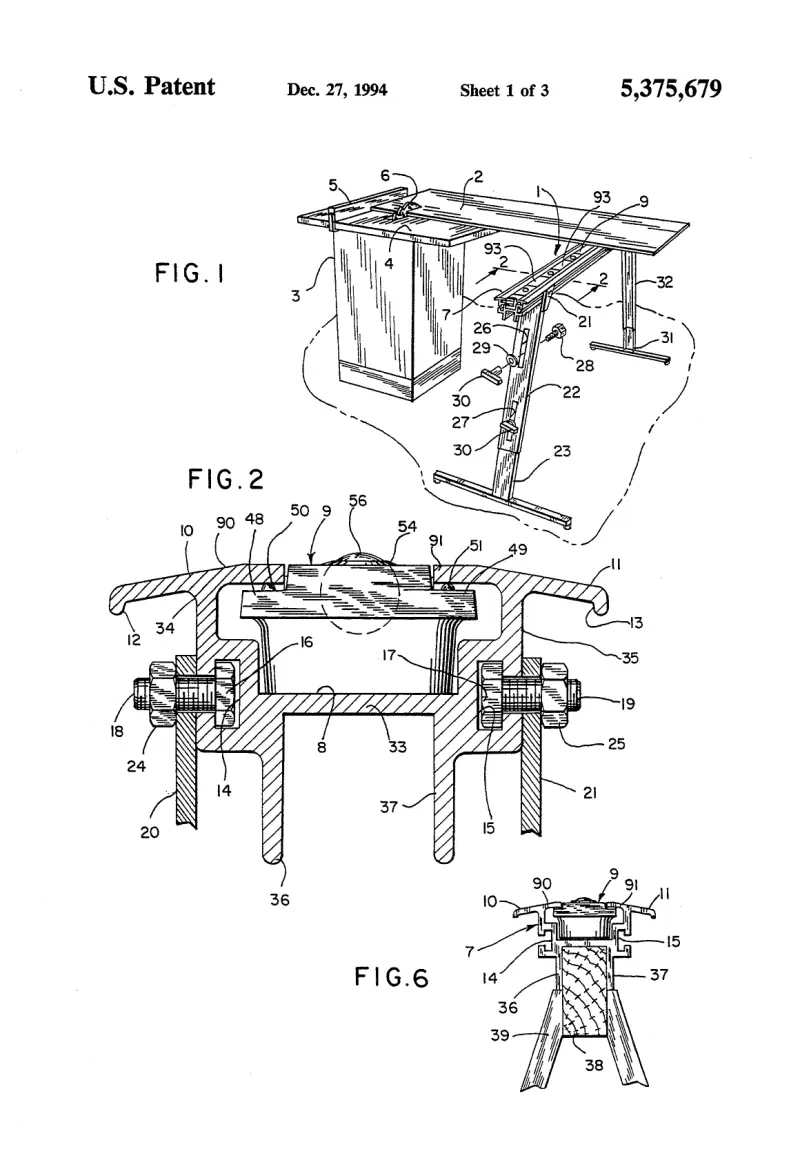

[0001]Sheet 1.

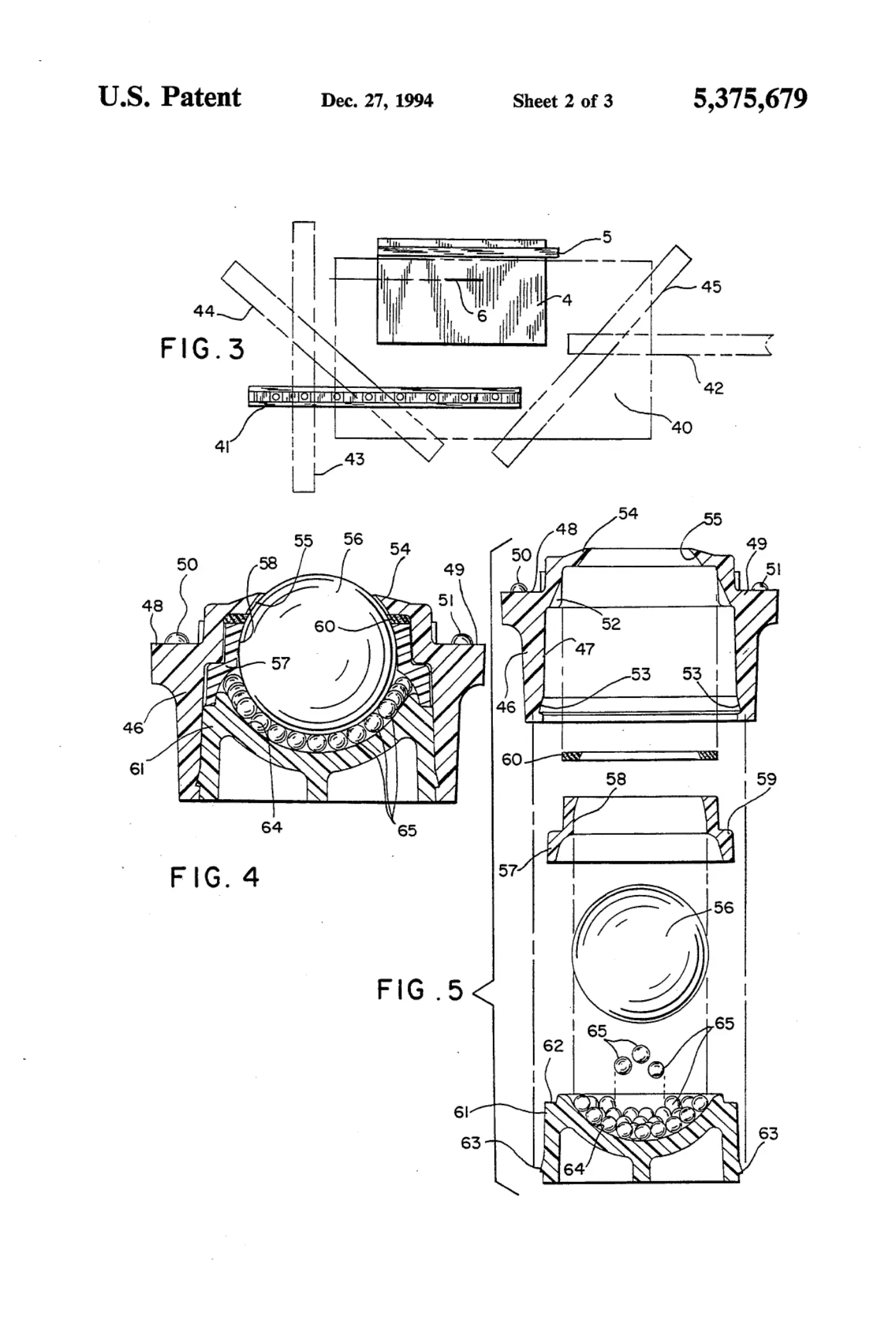

[0002]Sheet 2.

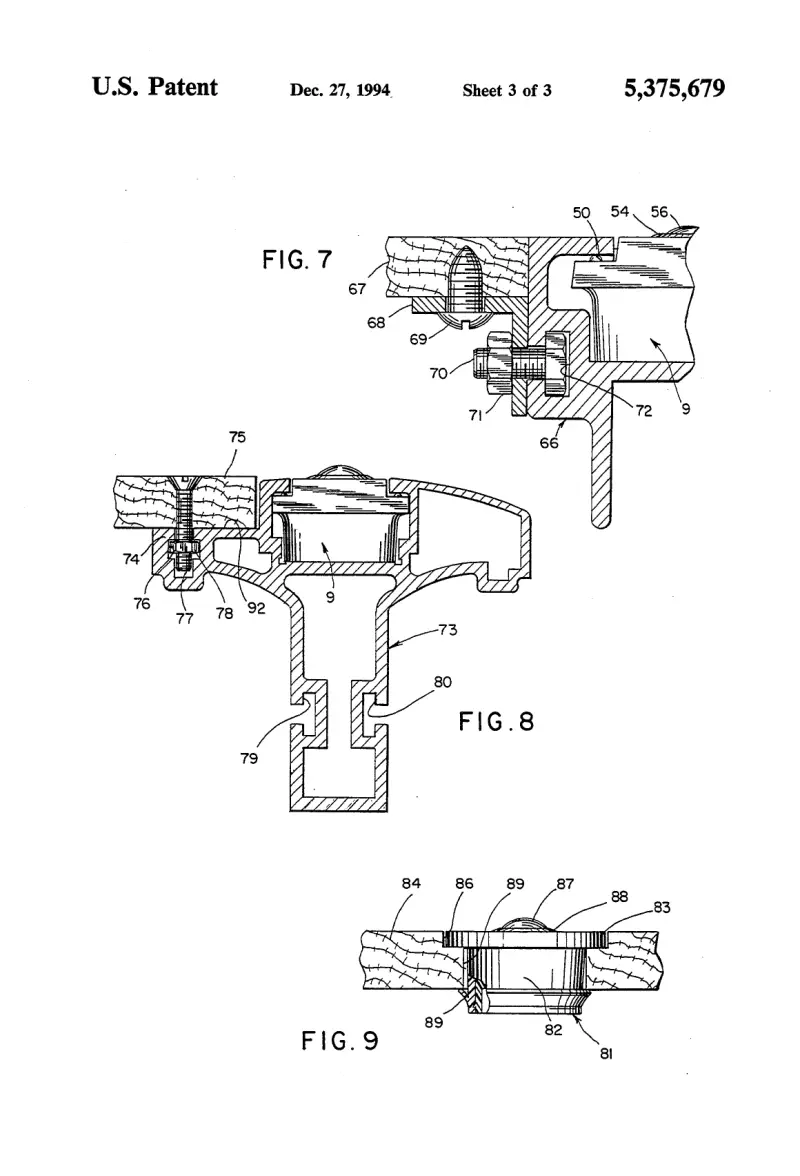

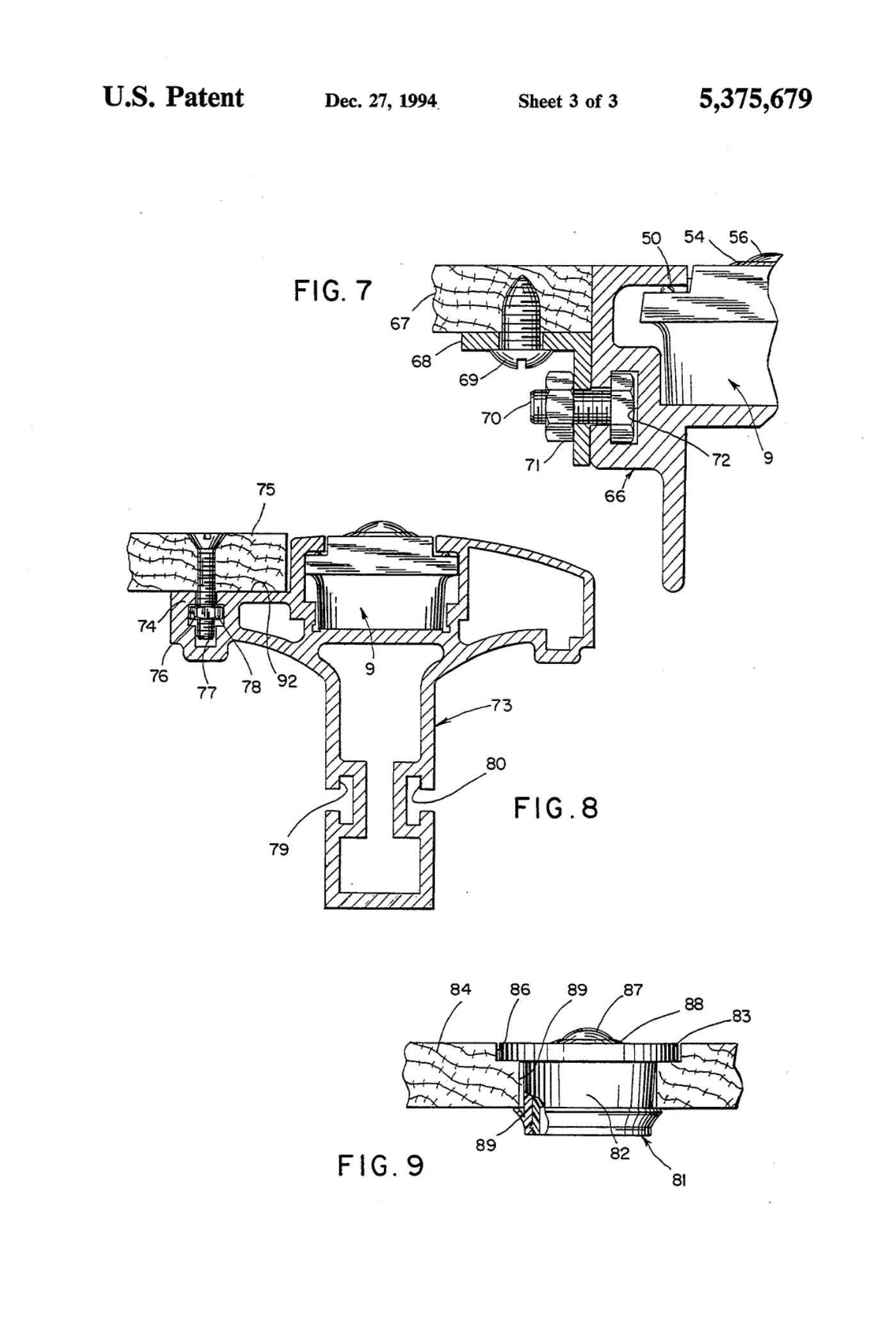

[0003]Sheet 3.
