Vacuum suction lifter

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
VOLKERT THOMAS
Assignee
SCHOTT GLASWERKE
Original source
US-5375895-A, the United States Patent and Trademark Office, 27 December 1994
Document SHA-256
5da4619fb384f795e966d1eef7564cf034463379b826fdc5863e977d328422de

A vacuum suction lifter for holding and transferring objects with a temperature of more than 400° C., in particular glass screens, is provided, the contact surface (4) of which is raised with respect to a central surface (6), and which is covered with a heat-resistant, sufficiently tight textile structure of poor thermal conductivity, preferably a glass fibre fabric, as the sealing element (16). The contact surface (4) matches the contour of the workpiece to be lifted.

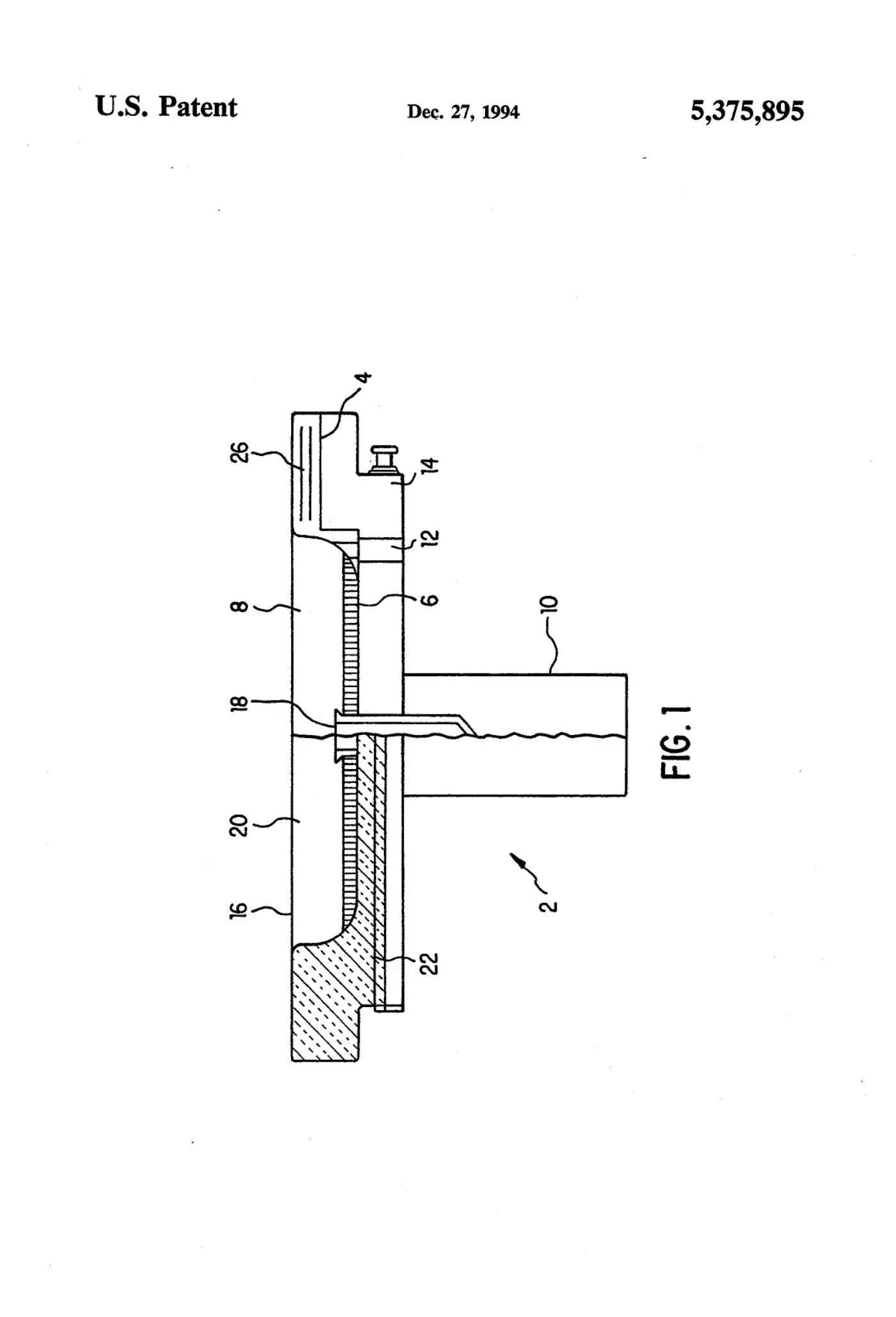

Sheet 1
Sheet 1

Abstract

A vacuum suction lifter for holding and transferring objects with a temperature of more than 400° C., in particular glass screens, is provided, the contact surface (4) of which is raised with respect to a central surface (6), and which is covered with a heat-resistant, sufficiently tight textile structure of poor thermal conductivity, preferably a glass fibre fabric, as the sealing element (16). The contact surface (4) matches the contour of the workpiece to be lifted.

1. Drawings

[0001]Sheet 1.
