Vacuum holder particulary useful as a vacuum table

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
KLEINMAN YOSSIE
Assignee
ORBOTECH LTD
Original source
US-5374021-A, the United States Patent and Trademark Office, 20 December 1994
Document SHA-256
9ba39d675180ee1730f4596bbf1dc44e04eb55d6486be46996640e02e015a22c

A vacuum holder for holding articles by suction includes a vacuum chamber divided into a plurality of interconnected sub-chambers each communicating via a control a passageway with a plurality of suction openings extending through an outer holding surface, and a valve member for each control passageway integrally formed with a mounting section mounted to the housing, and an elastic juncture section normally biassing the valve member to open its respective control passageway to permit the application of suction to its plurality of suction openings. Each valve member is displaceable by the suction force applied from its respective vacuum sub-chamber, when its plurality of suction openings are not covered by the article to be held by the holder, to thereby close the control passageway to its respective suction openings.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A vacuum holder for holding articles by suction includes a vacuum chamber divided into a plurality of interconnected sub-chambers each communicating via a control a passageway with a plurality of suction openings extending through an outer holding surface, and a valve member for each control passageway integrally formed with a mounting section mounted to the housing, and an elastic juncture section normally biassing the valve member to open its respective control passageway to permit the application of suction to its plurality of suction openings. Each valve member is displaceable by the suction force applied from its respective vacuum sub-chamber, when its plurality of suction openings are not covered by the article to be held by the holder, to thereby close the control passageway to its respective suction openings.

1. Drawings

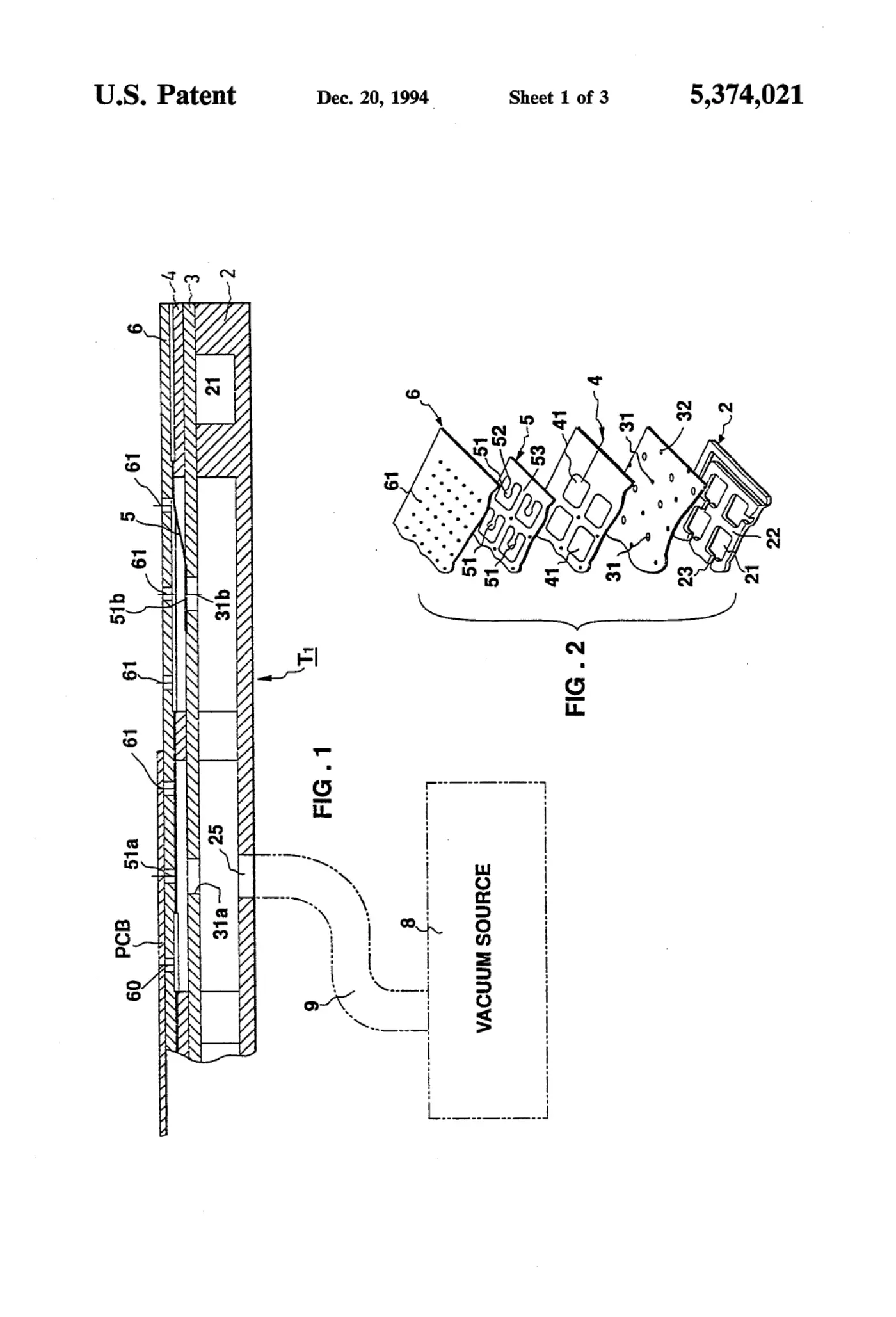

[0001]Sheet 1.

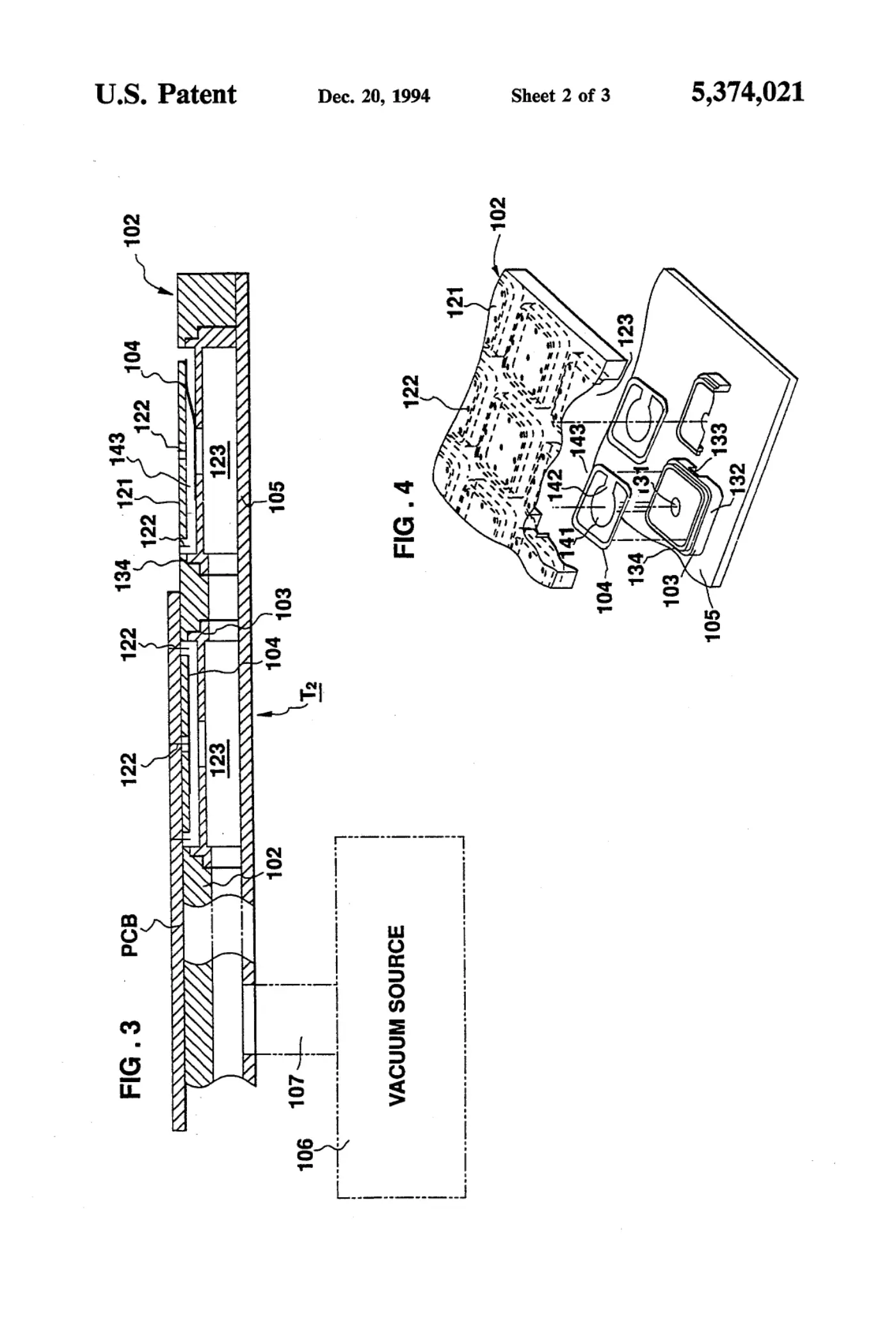

[0002]Sheet 2.

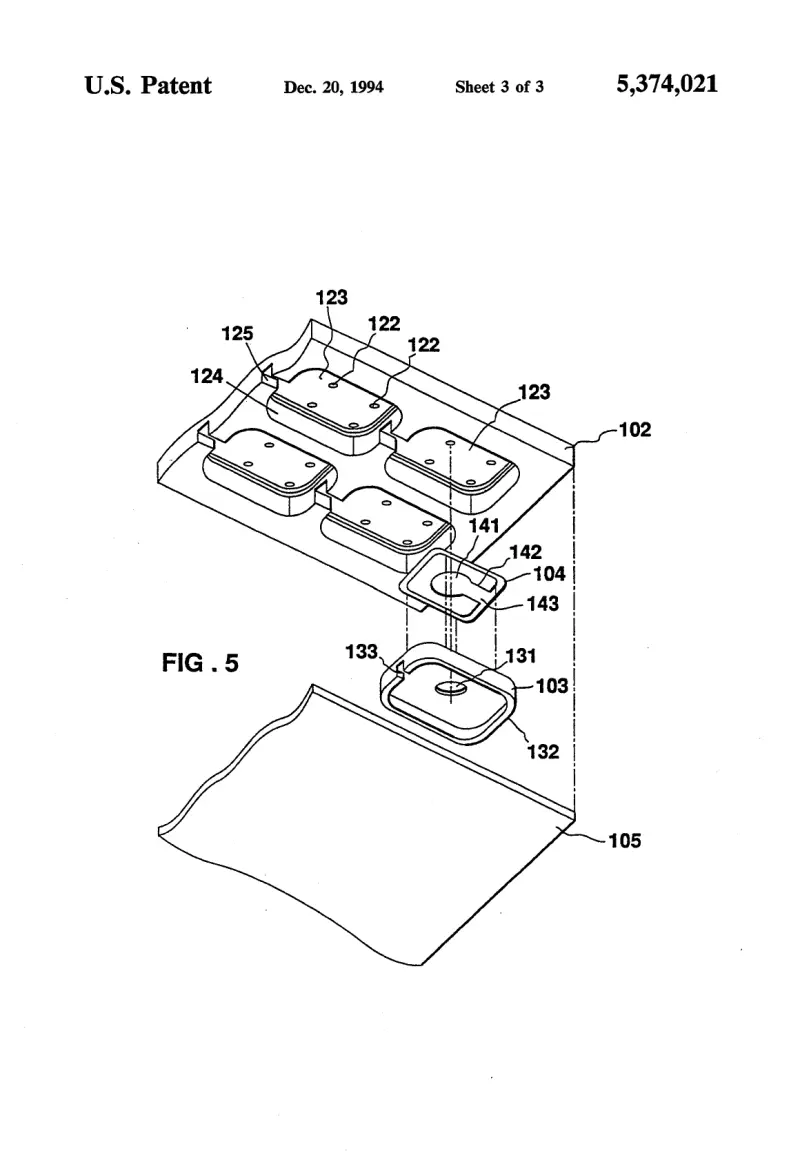

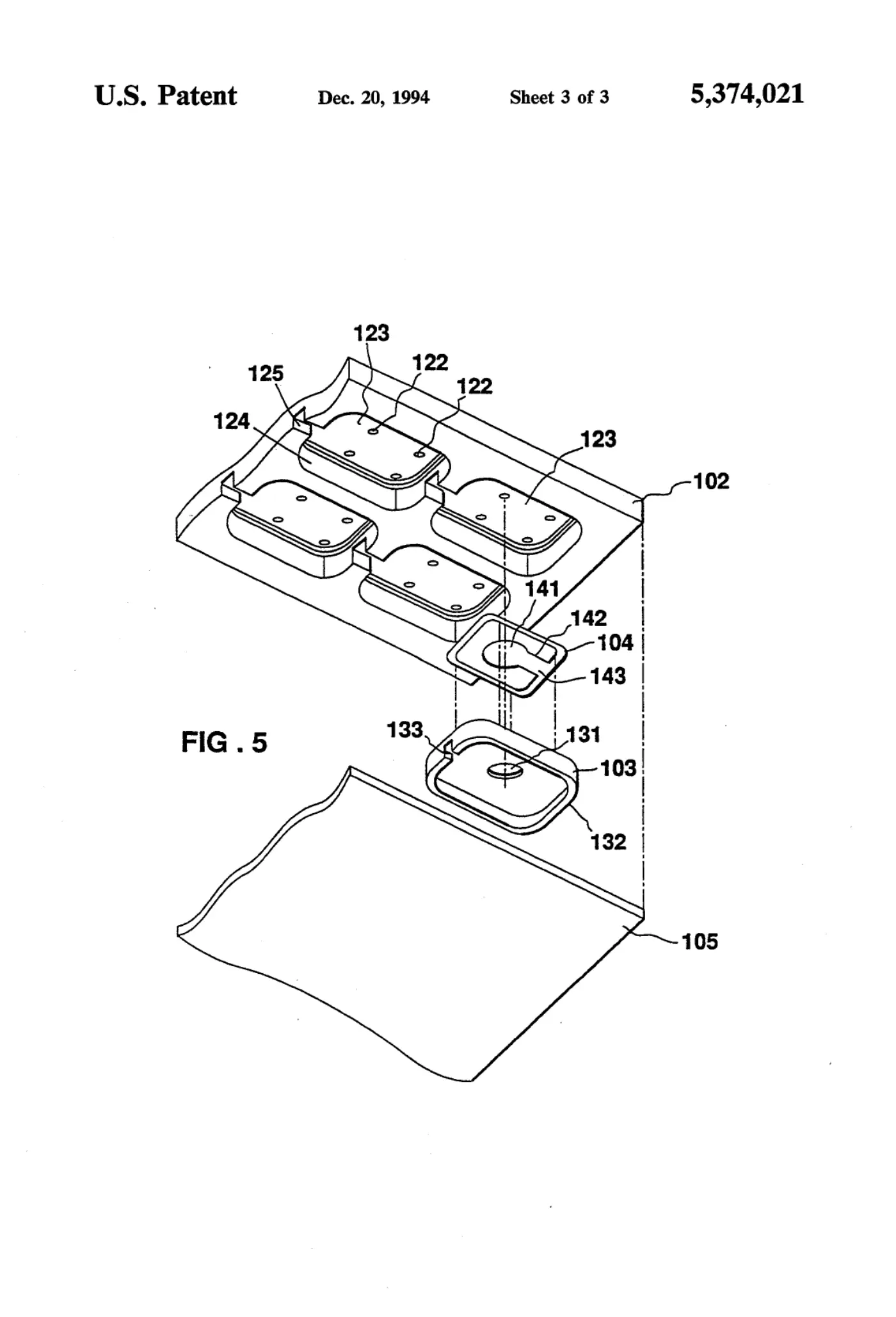

[0003]Sheet 3.
