Vertebral osteosynthesis device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
CARTOUX RENE, LALAIN JEAN-JACQUES, LESCUYER JEAN-PHILIPPE, MARTIN JEAN-JACQUES, MICHEL FREDERIC, SAMANI JACQUES
Assignee
FIXANO SA
Original source
US-5368594-A, the United States Patent and Trademark Office, 29 November 1994
Document SHA-256
c20031a3f2fe829dbf46291cd214bc719f333245b8e10e5729d3a92d4522e867

A vertebral osteosynthesis device employs outside faces of lateral walls of each hooking element which are inclined toward each other such that they converge from the side opposite hooking elements designed to be attached to the bone, while a gripping element in the shape of a clamp has side arms with inside faces inclined at slopes that match those of outside faces of lateral walls. At least two gripping means are disposed beyond the lateral walls and are provided to move the gripping element such that the inside faces of its lateral arms abut the lateral walls, bringing them toward each other and sliding on them upon gripping, to bring the lateral walls closer together to lock each hooking element onto a support rod.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A vertebral osteosynthesis device employs outside faces of lateral walls of each hooking element which are inclined toward each other such that they converge from the side opposite hooking elements designed to be attached to the bone, while a gripping element in the shape of a clamp has side arms with inside faces inclined at slopes that match those of outside faces of lateral walls. At least two gripping means are disposed beyond the lateral walls and are provided to move the gripping element such that the inside faces of its lateral arms abut the lateral walls, bringing them toward each other and sliding on them upon gripping, to bring the lateral walls closer together to lock each hooking element onto a support rod.

1. Drawings

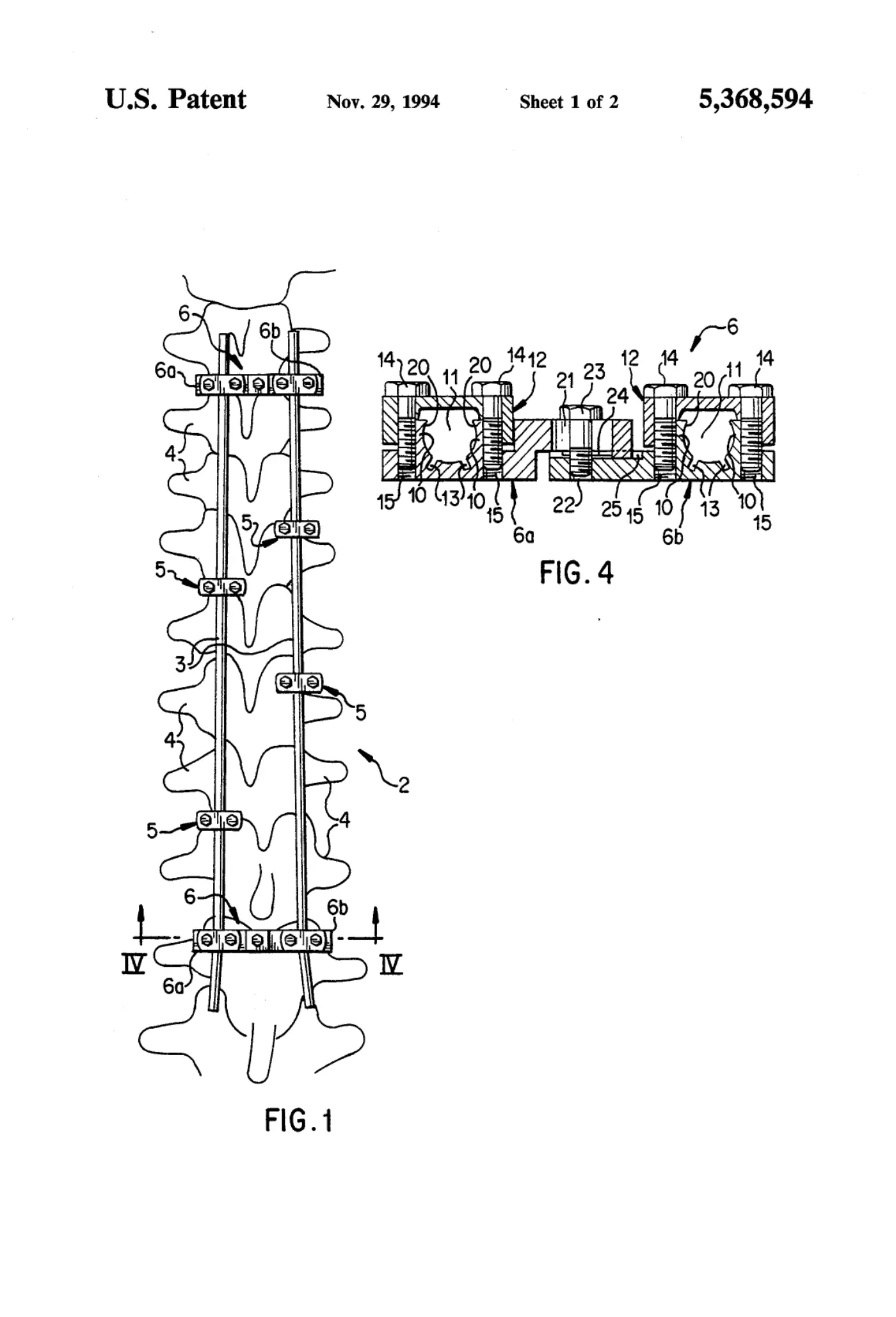

[0001]Sheet 1.

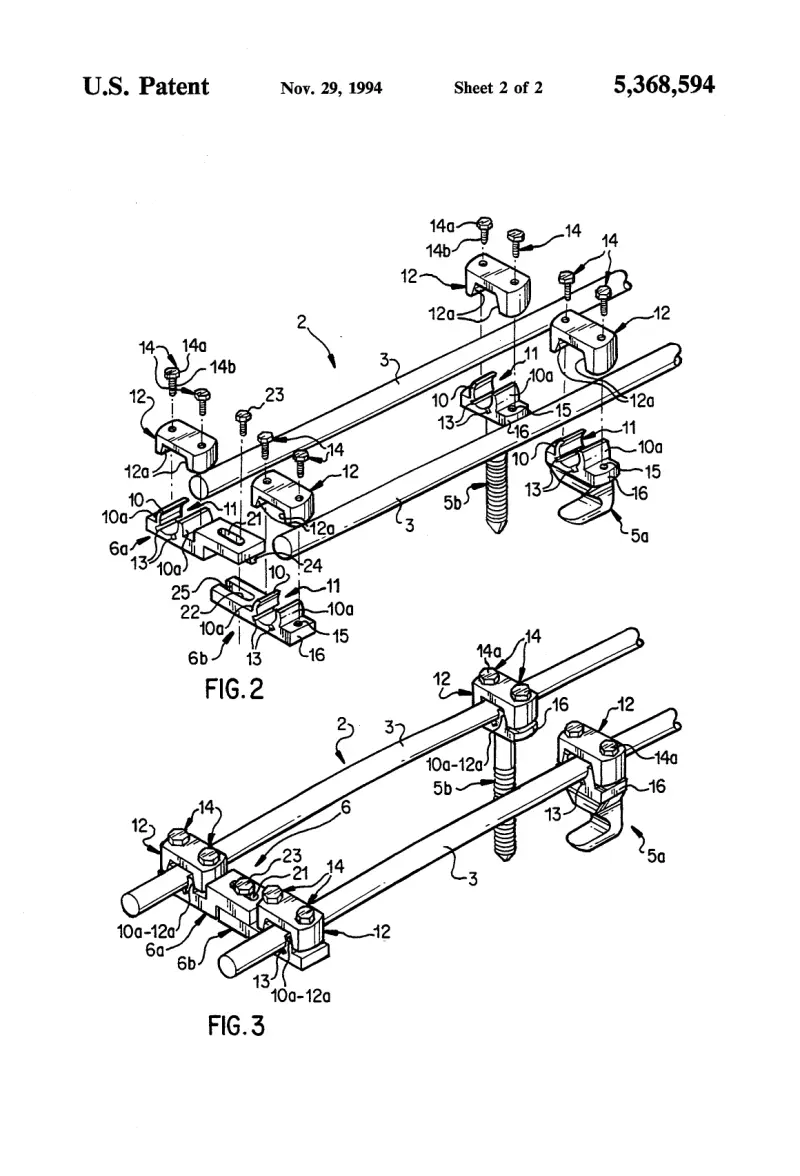

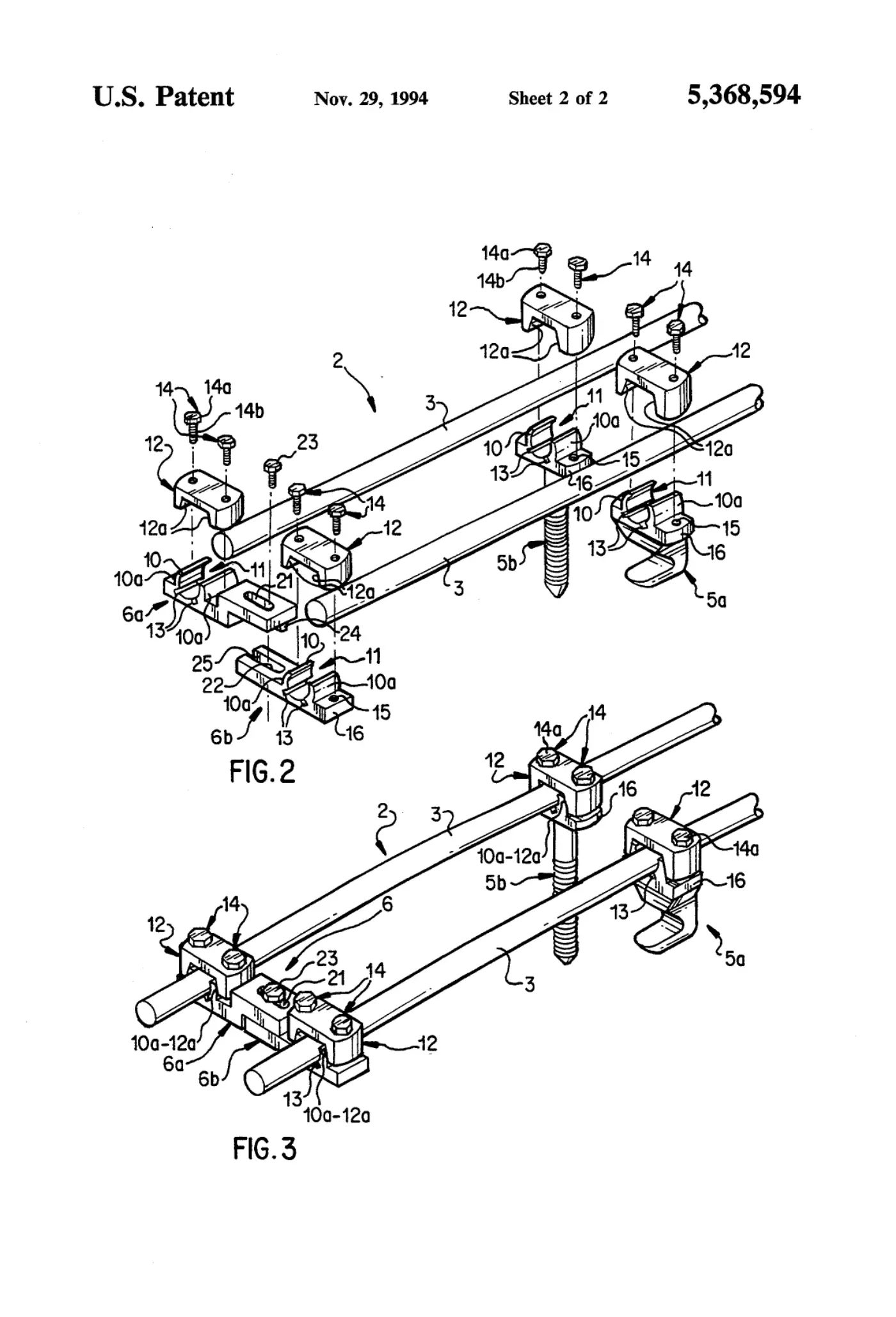

[0002]Sheet 2.
