Load bearing ball

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Inventors
CODATTO ANTONIO
Assignee
SAPIM AMADA SPA
Original source
US-5358337-A, the United States Patent and Trademark Office, 25 October 1994
Document SHA-256
f64dbf7ecefdea943e538e86adb1a64548847f177d8c81ec82a12f3a360a75e6

The load bearing ball of the type which has a main ball (1) of substantially high diameter on which the loads rest, in turn rests on a plurality of balls (2) of diameter substantially smaller than the diameter of ball (1), which are placed on the bottom (3) of a suitable container (4), the latter having a substantially hemispheric shape. A main feature of the invention consists of the particular structure capable of closing the container and capable of holding the several balls in the interior of the container. This structure serves also for the purpose of fastening the main large ball to the border of the opening (6) formed on the supporting plane (7) of the same load bearing ball.

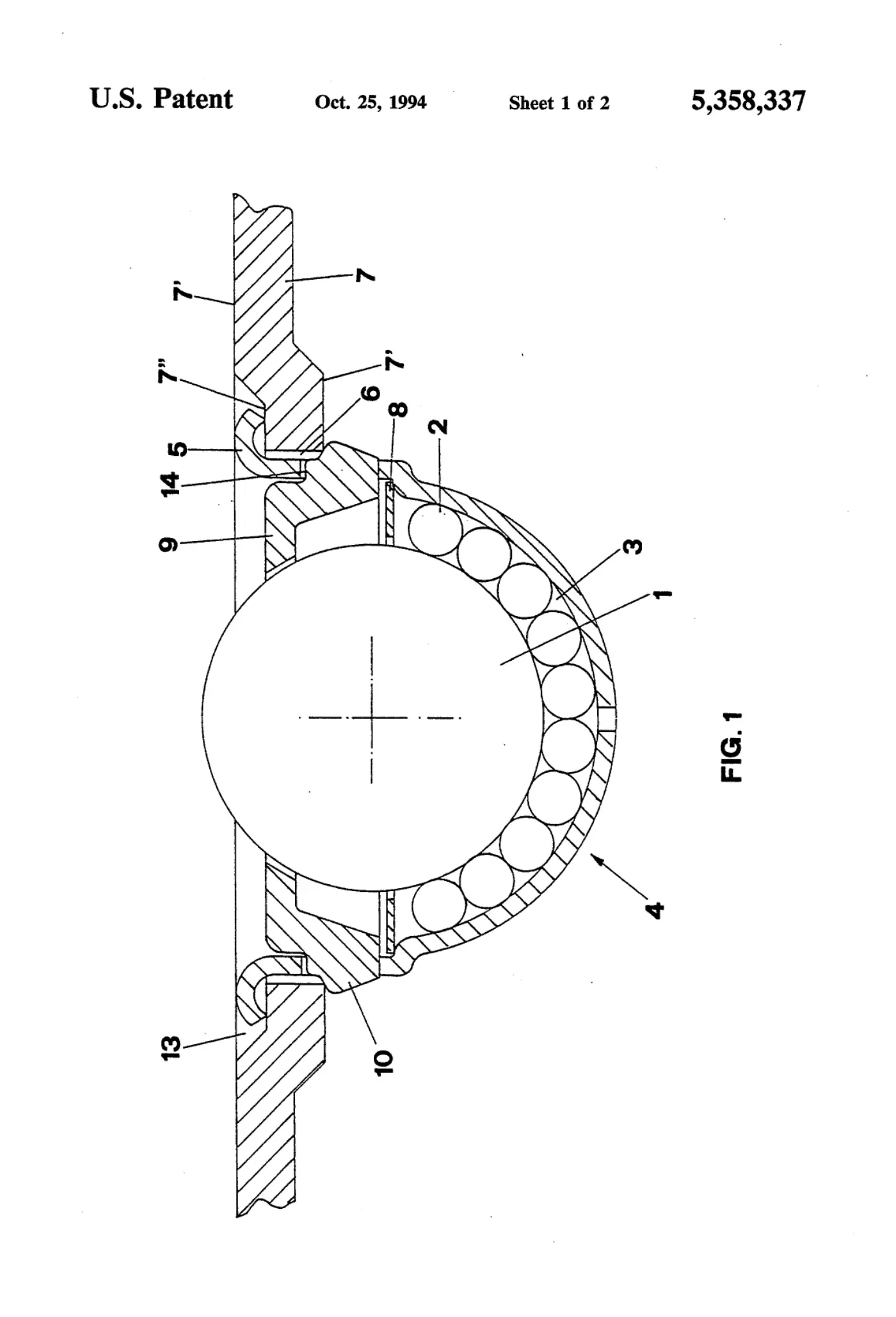

Sheet 1
Sheet 1

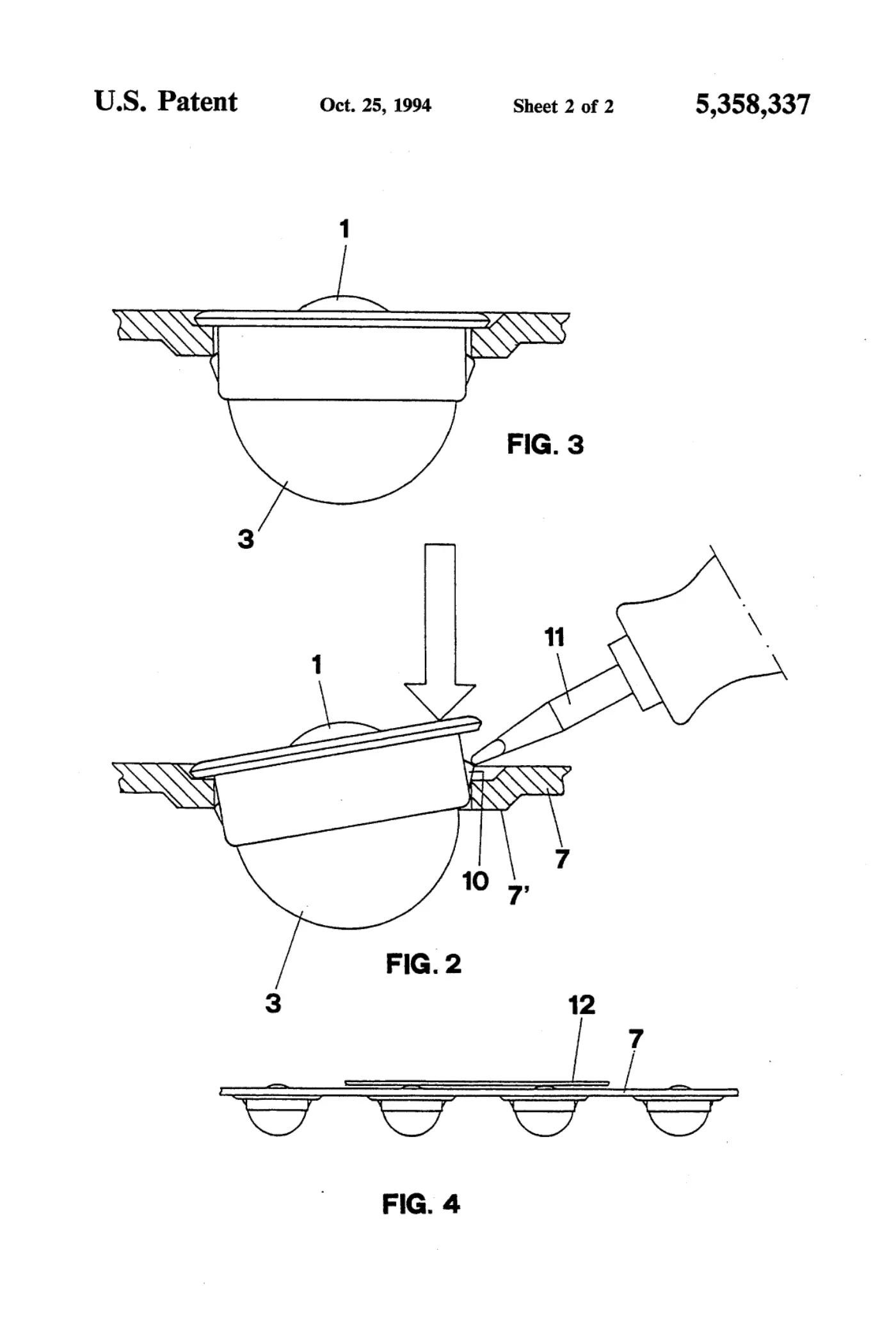

Sheet 2
Sheet 2

Abstract

The load bearing ball of the type which has a main ball (1) of substantially high diameter on which the loads rest, in turn rests on a plurality of balls (2) of diameter substantially smaller than the diameter of ball (1), which are placed on the bottom (3) of a suitable container (4), the latter having a substantially hemispheric shape. A main feature of the invention consists of the particular structure capable of closing the container and capable of holding the several balls in the interior of the container. This structure serves also for the purpose of fastening the main large ball to the border of the opening (6) formed on the supporting plane (7) of the same load bearing ball.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.
