Vacuum lifter

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Inventors
SCHMIDT ADOLF
Assignee
BARTHOLOMY & CO
Original source
US-5310232-A, the United States Patent and Trademark Office, 10 May 1994
Document SHA-256
bada2295bfdf06c2fc048ec1d31b98e0a49b9a433ffa57c8c49cda25e08700b3

The invention concerns a vacuum lifter to transport loads with an adhesion surface and comprises at least one suction head with at least one projecting annular seal on its suction side, where the vacuum chamber(s) enclosed by the annular seal(s) is (are) hooked up to a main vacuum source and where additionally a battery-fed emergency vacuum source is provided which can be started by an emergency switch. In order to avert as much as possible crashes when using such a vacuum lifter, a pressure pickup (67) is associated with the or at least one of the vacuum chambers (13) and is coupled in such a way with a malfunction alarm (69) that when a preset limit pressure is exceeded during vacuum operation, the malfunction alarm (69) shall be turned ON.

Sheet 1
Sheet 1

Abstract

The invention concerns a vacuum lifter to transport loads with an adhesion surface and comprises at least one suction head with at least one projecting annular seal on its suction side, where the vacuum chamber(s) enclosed by the annular seal(s) is (are) hooked up to a main vacuum source and where additionally a battery-fed emergency vacuum source is provided which can be started by an emergency switch. In order to avert as much as possible crashes when using such a vacuum lifter, a pressure pickup (67) is associated with the or at least one of the vacuum chambers (13) and is coupled in such a way with a malfunction alarm (69) that when a preset limit pressure is exceeded during vacuum operation, the malfunction alarm (69) shall be turned ON.

1. Drawings

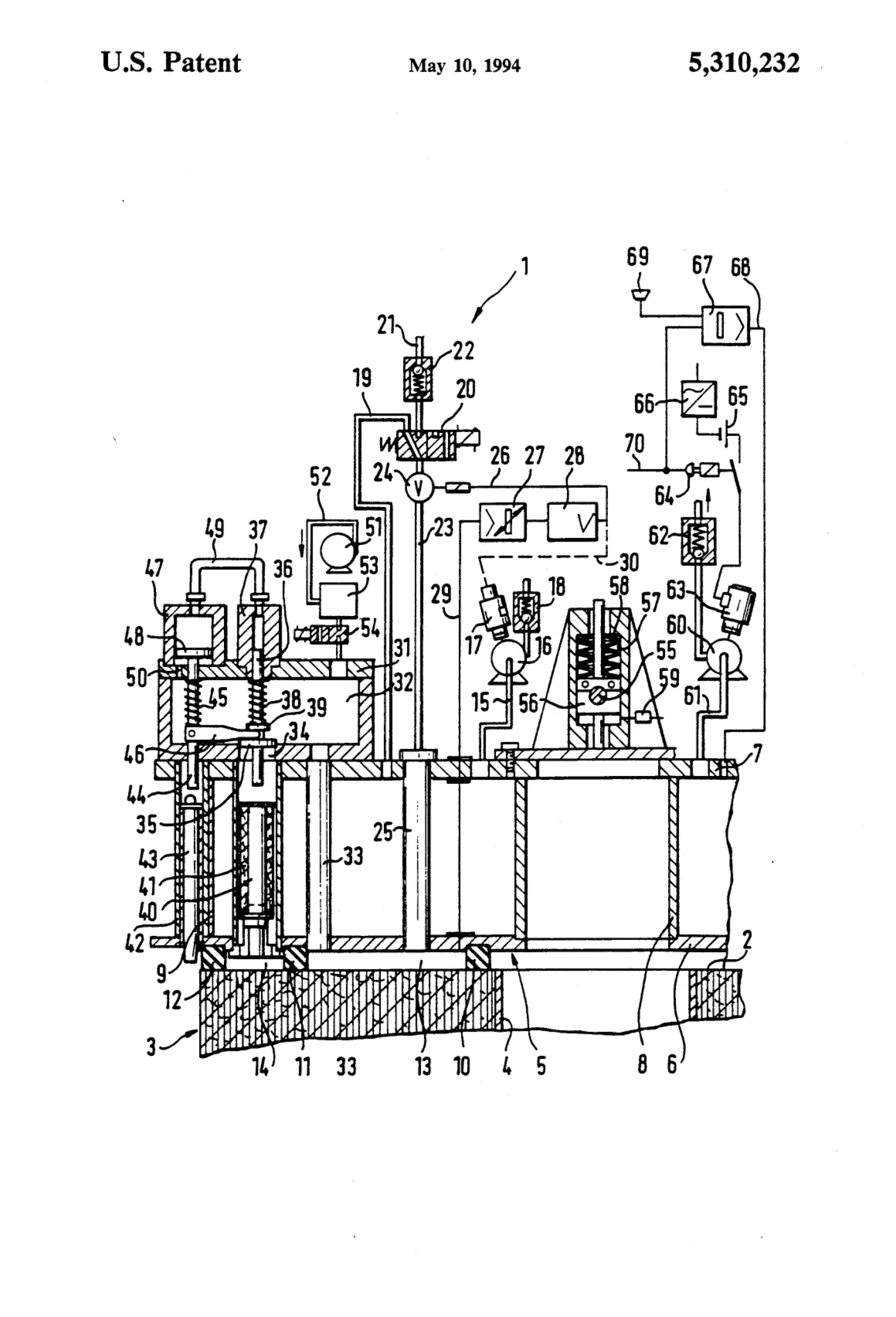

[0001]Sheet 1.
