Device for transferring flat articles, in particular blister packs, from a conveyor of tablets to a magazine and vice-versa

Published
Permanent URL
Classification
Material Handling › Package Handling
Assignee
IMA SPA
Original source
US-5299907-A, the United States Patent and Trademark Office, 5 April 1994
Document SHA-256
041c0d8f02eef7a7556ff8f5e68d7bf7bb2fd73de026491880381dd8baa092f0

The device is used in conjunction with a step-driven conveyor featuring an upper surface where seats for receiving blister packs are placed with transverse portions of each blister packs protruding symmetrically from the relative seat. At a station where these seats stop one after the other, there is a vertical magazine, open below, centered with respect to the station and containing a stack of blister packs supported by spring-operated retaining means. Below the magazine, there are two arms one on each side of the upper surface, equipped above with suction cups, and vertically movable in a synchronous manner. Actuation of the arms, combined with action of the suction cups, enables a blister pack to be transferred from a seat present at the station to the magazine, and vice versa.

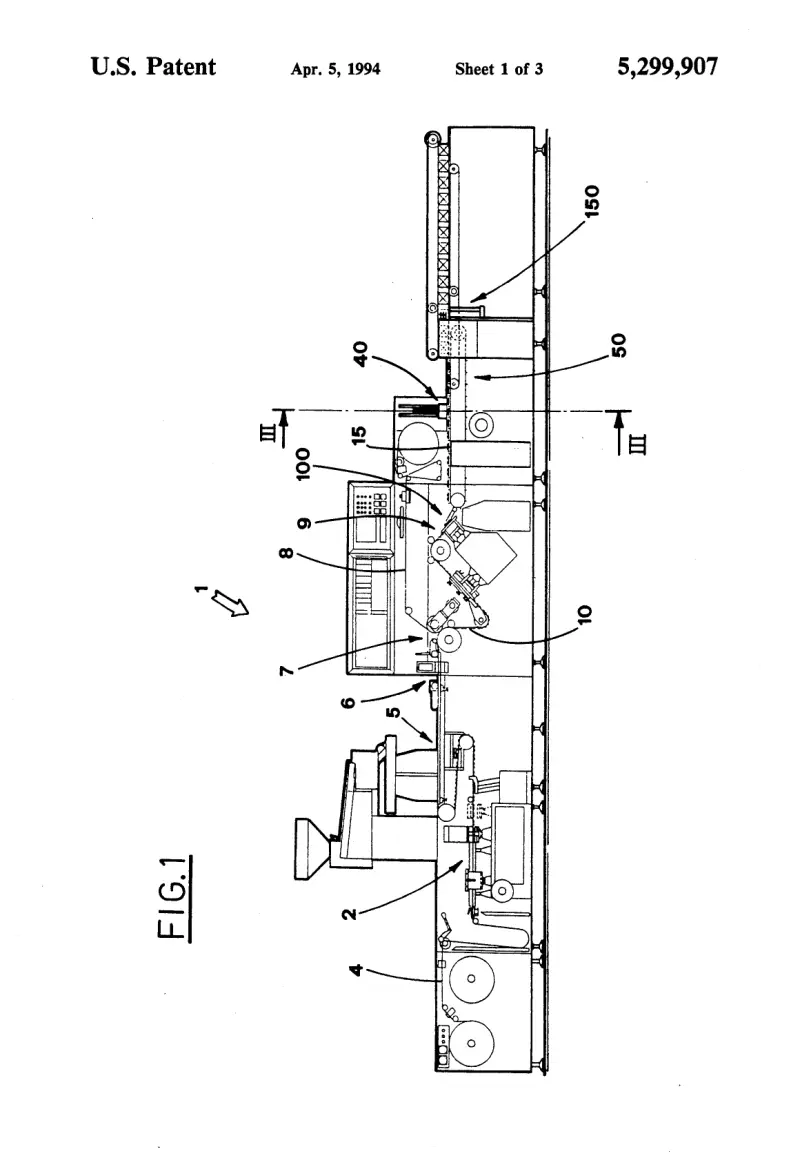

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

The device is used in conjunction with a step-driven conveyor featuring an upper surface where seats for receiving blister packs are placed with transverse portions of each blister packs protruding symmetrically from the relative seat. At a station where these seats stop one after the other, there is a vertical magazine, open below, centered with respect to the station and containing a stack of blister packs supported by spring-operated retaining means. Below the magazine, there are two arms one on each side of the upper surface, equipped above with suction cups, and vertically movable in a synchronous manner. Actuation of the arms, combined with action of the suction cups, enables a blister pack to be transferred from a seat present at the station to the magazine, and vice versa.

1. Drawings

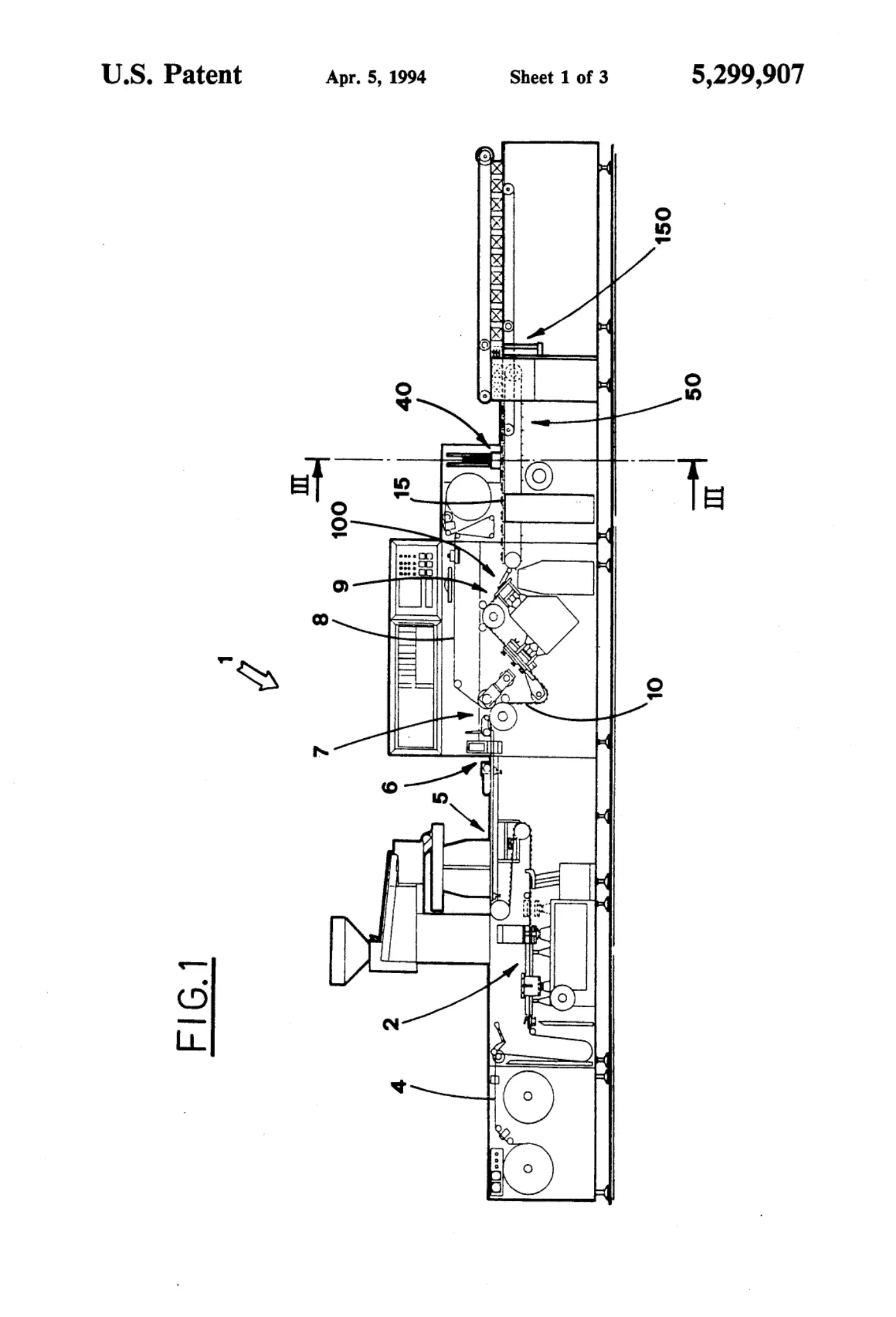

[0001]Sheet 1.

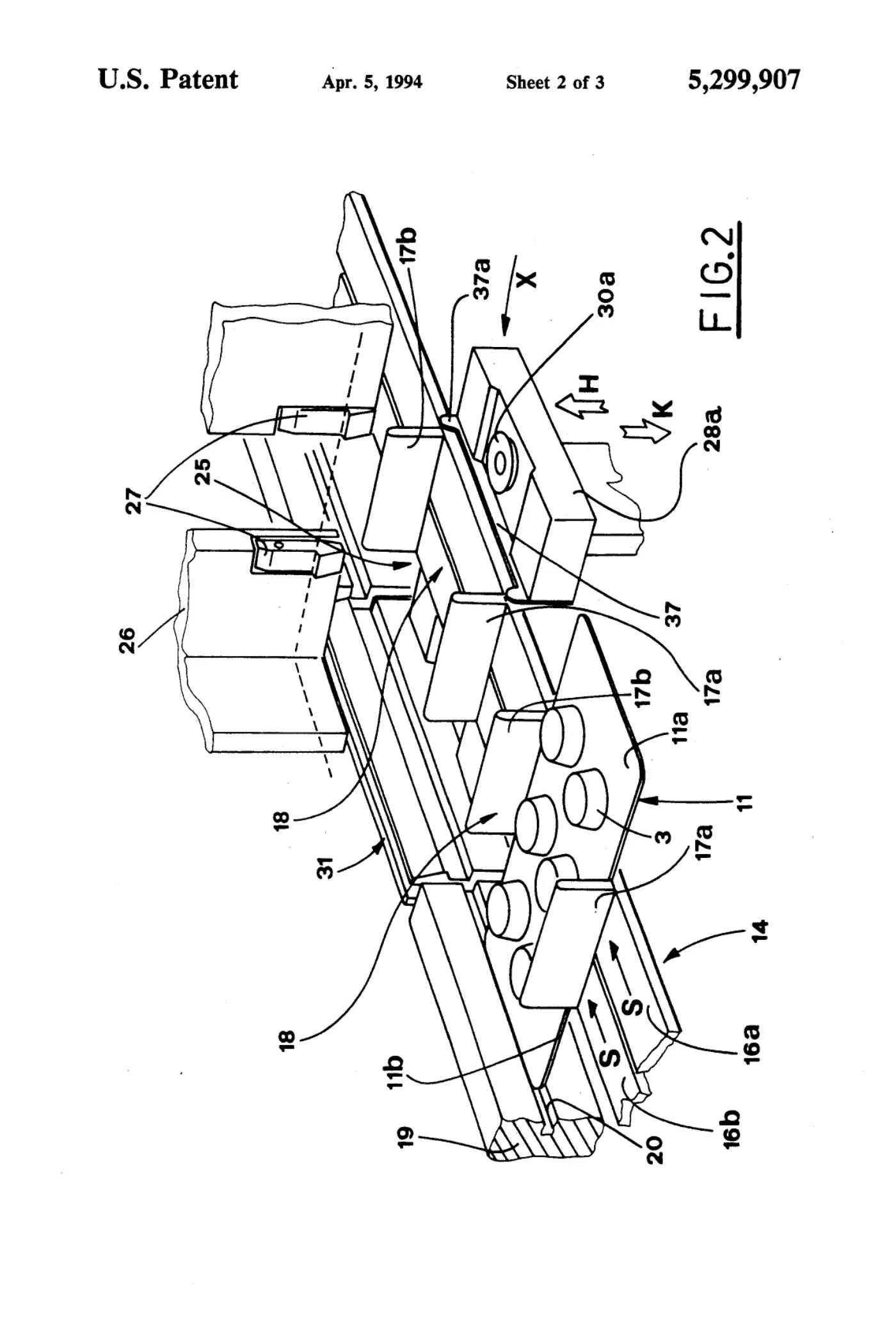

[0002]Sheet 2.

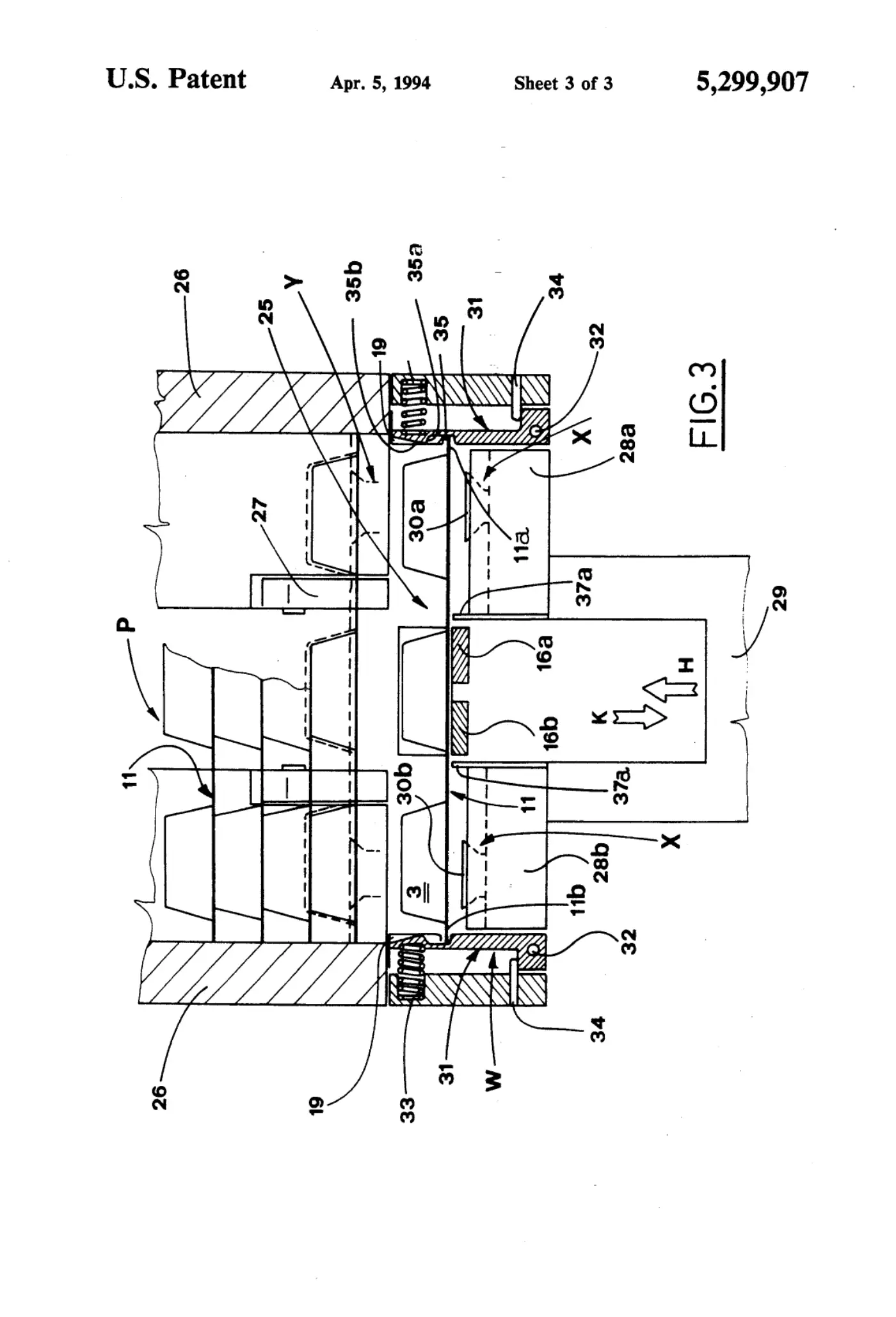

[0003]Sheet 3.
