Speaker support stand

Published
Permanent URL
Classification
Warehousing & Storage Systems › Racking and Shelving
Assignee
HEIJN ROLAND A
Original source
US-5298693-A, the United States Patent and Trademark Office, 29 March 1994
Document SHA-256
12b5ba9cdf1680ed530683eb8e1aede06b21051d4757596ec15725aef4667c9d

A vibration damping support stand for a loud speaker enclosure system wherein the enclosure defines bottom and top and opposite side walls. A framework includes a pair of oppositely-facing upstanding parallel standards movable toward and away from each other. A horizontally-extending inwardly-facing support arm projects inwardly from each standard toward the other arm for jointly supporting a base upon which the bottom wall of the enclosure may be seated. A side pad is mounted on the inboard face of each standard for embracing a respective enclosure side wall. An upper pad is adapted for bearing upon the enclosure top wall. Resilient tensioners are strategically located between each standard and the upper pad and between each standard and the base. The arrangement accomplishes reducing and draining off of any enclosure vibrations and allows speaker performance which is relatively free of confusing spurious resonances.

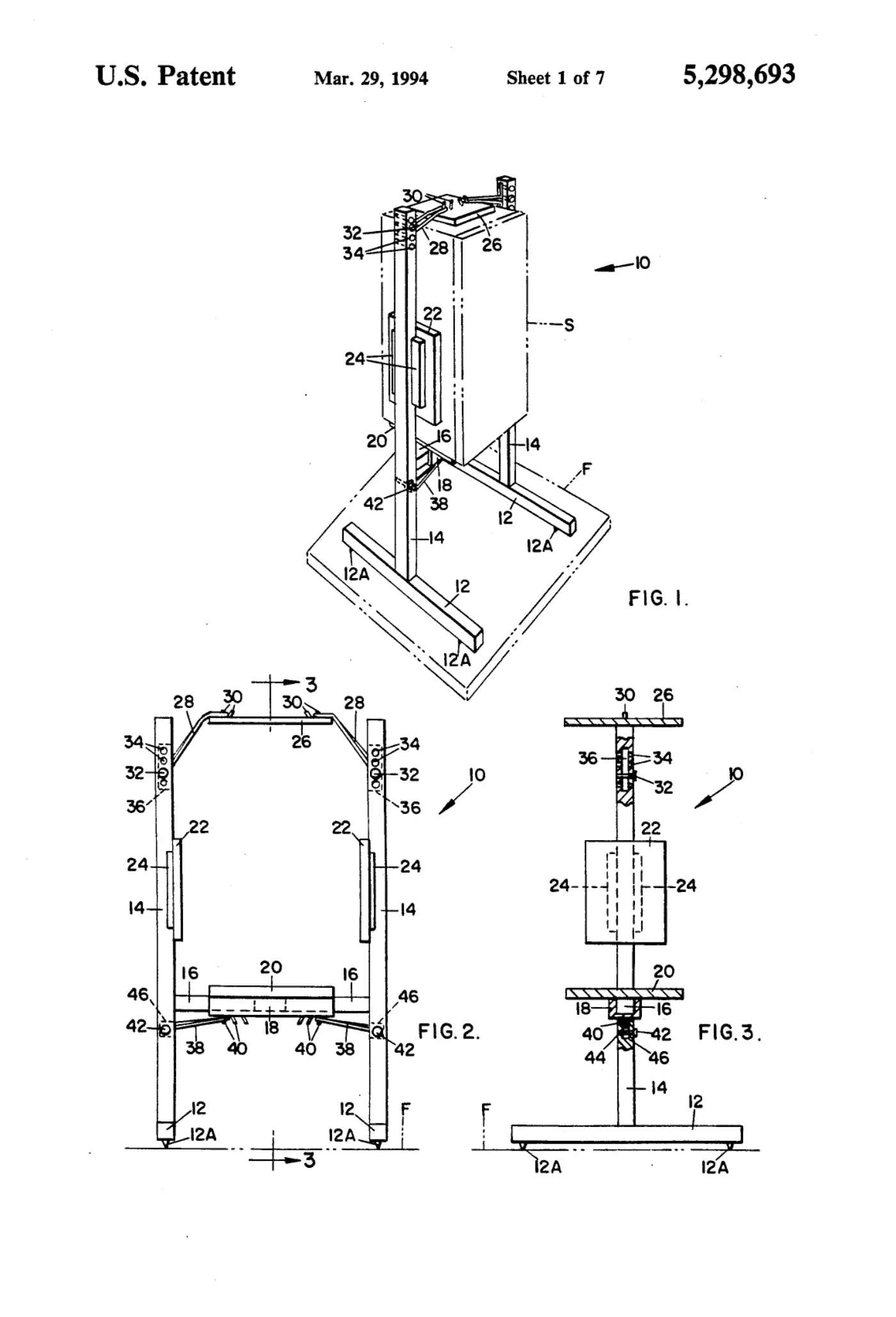

Sheet 1
Sheet 1

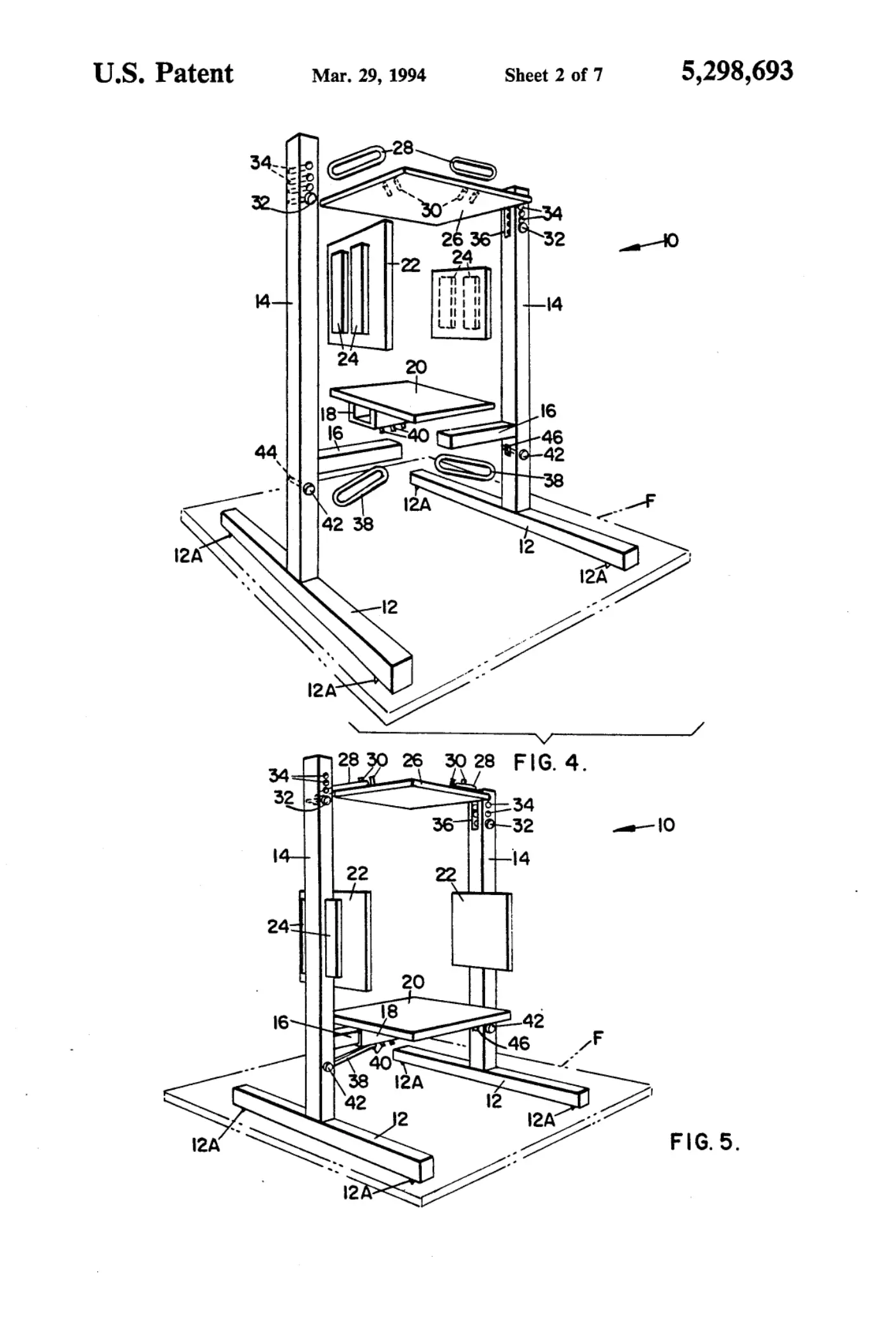

Sheet 2
Sheet 2

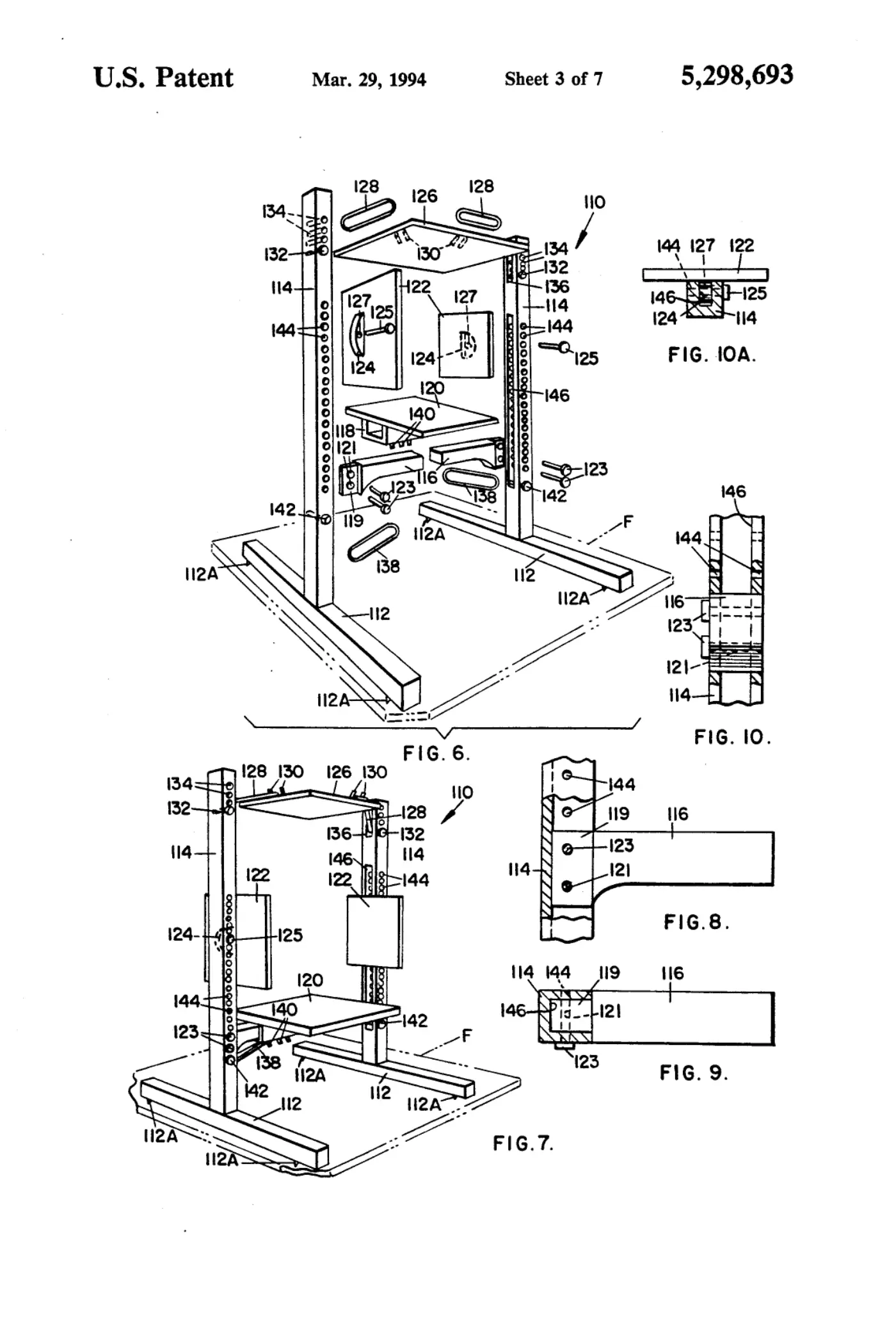

Sheet 3
Sheet 3

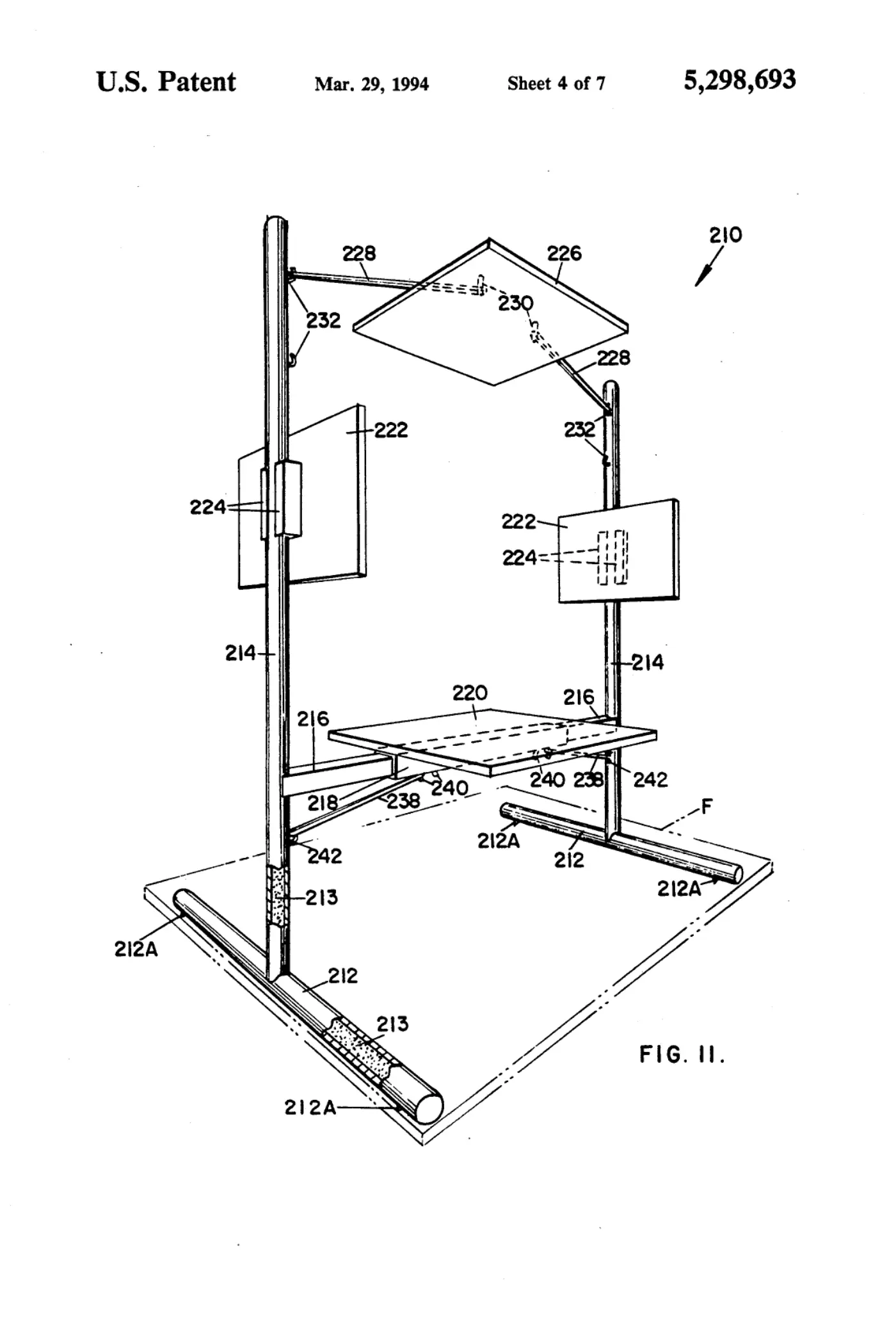

Sheet 4
Sheet 4

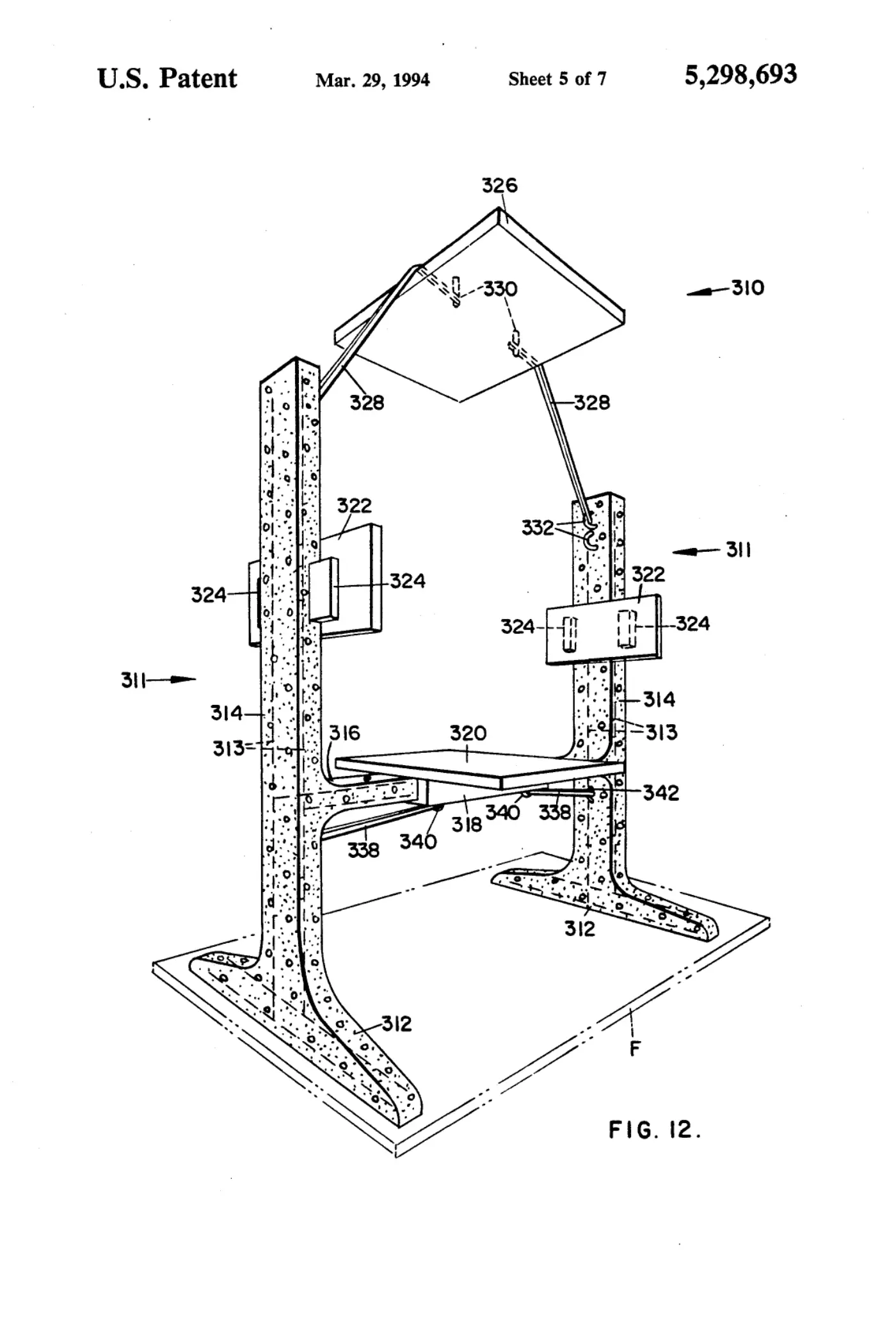

Sheet 5
Sheet 5

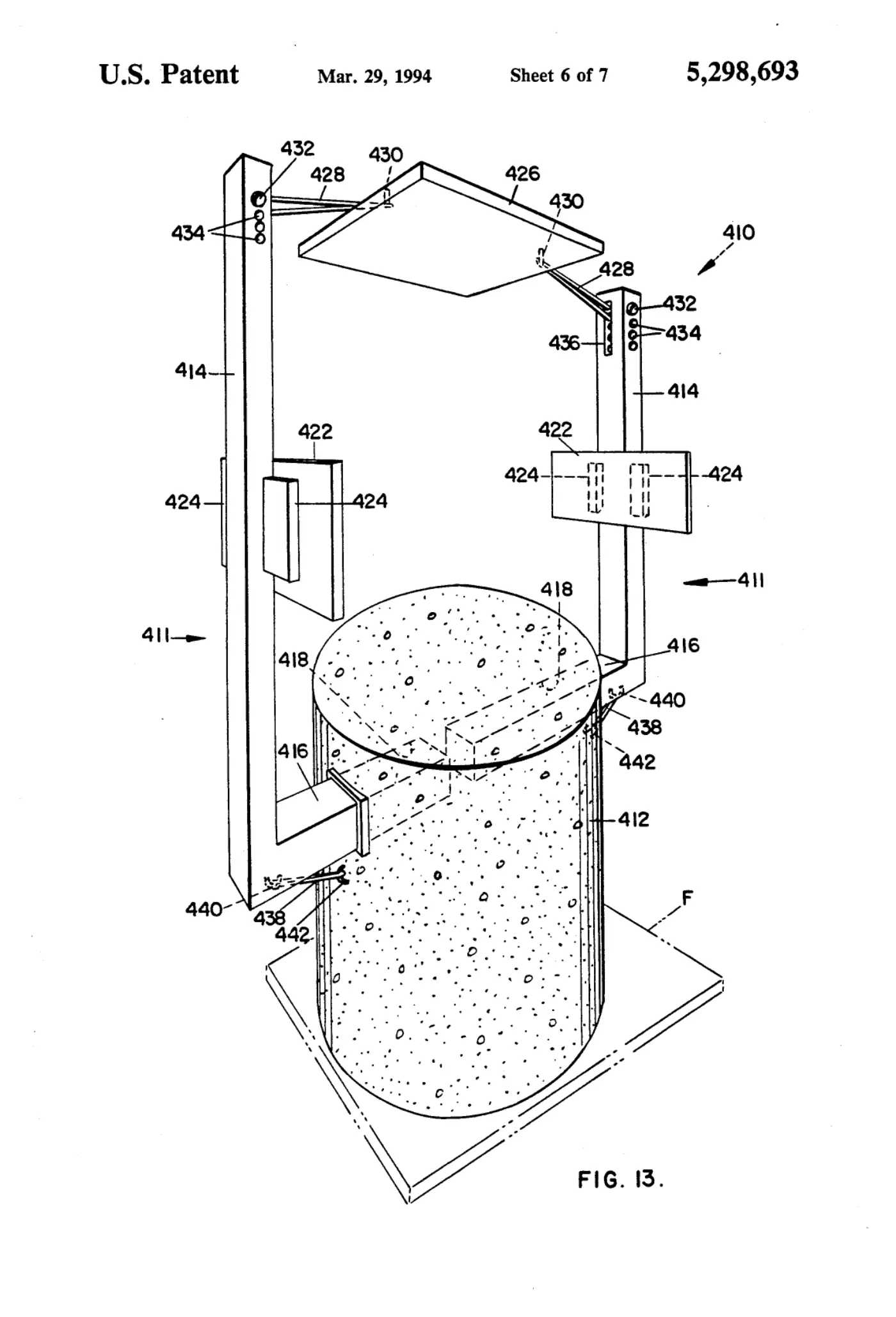

Sheet 6
Sheet 6

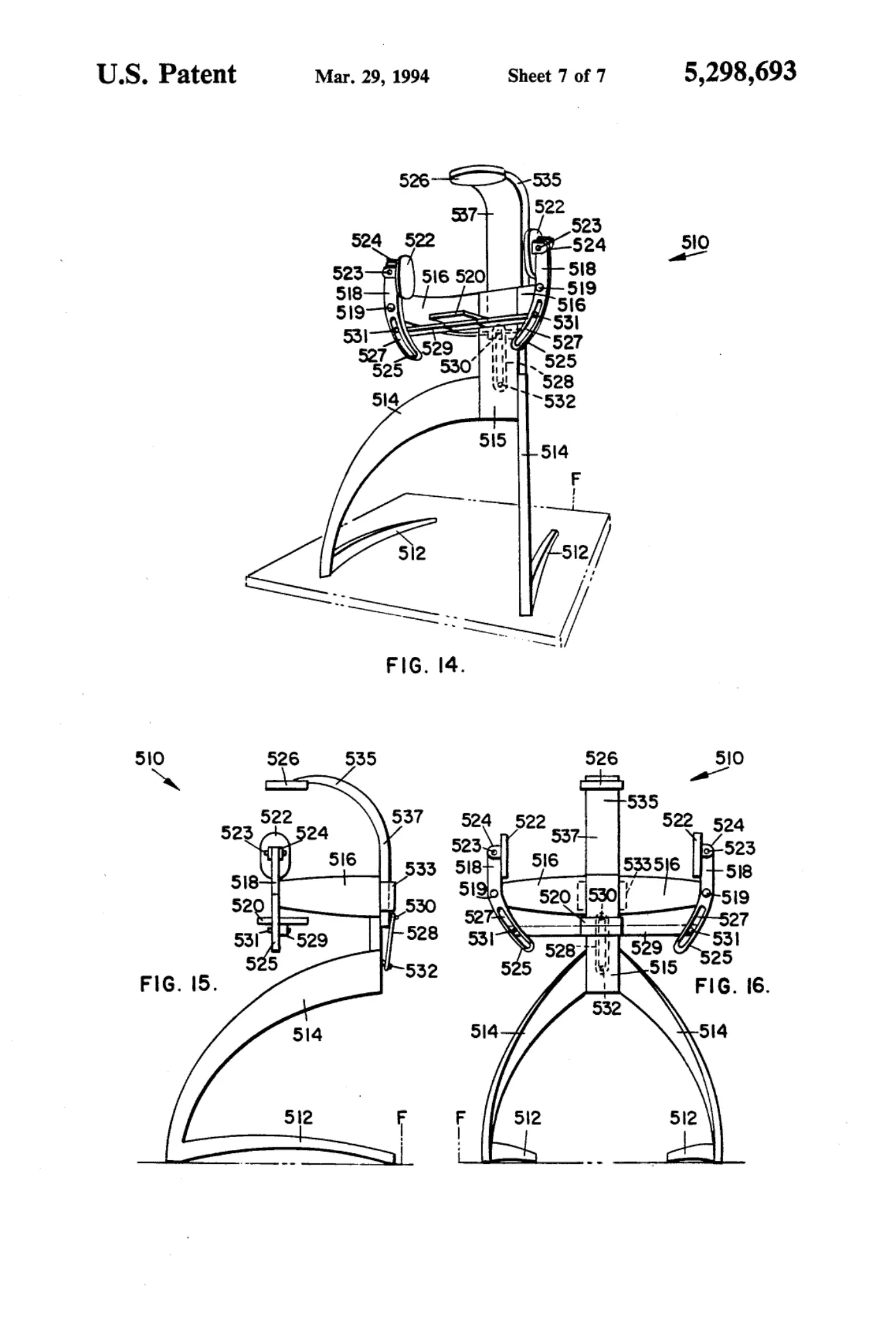

Sheet 7
Sheet 7

Abstract

A vibration damping support stand for a loud speaker enclosure system wherein the enclosure defines bottom and top and opposite side walls. A framework includes a pair of oppositely-facing upstanding parallel standards movable toward and away from each other. A horizontally-extending inwardly-facing support arm projects inwardly from each standard toward the other arm for jointly supporting a base upon which the bottom wall of the enclosure may be seated. A side pad is mounted on the inboard face of each standard for embracing a respective enclosure side wall. An upper pad is adapted for bearing upon the enclosure top wall. Resilient tensioners are strategically located between each standard and the upper pad and between each standard and the base. The arrangement accomplishes reducing and draining off of any enclosure vibrations and allows speaker performance which is relatively free of confusing spurious resonances.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

[0006]Sheet 6.

[0007]Sheet 7.
