Vacuum lifter

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
RECHENER KARL-HEINZ, SCHMIDT ADOLF
Assignee
RECHENER KARL HEINZ, SCHMIDT ADOLF
Original source
US-5284416-A, the United States Patent and Trademark Office, 8 February 1994
Document SHA-256
ad2fac33465b74605d3965372a60bca5a52a2eb88bebae8d265f433de136053b

The invention concerns a vacuum lifter to transport loads with an adhesion surface, comprising at least one suction head suspended from a hoist, said suction comprising at least one annular seal projecting from its suction side, the vacuum chamber(s) enclosed by the annular seal(s) communicating with a vacuum source, a valve furthermore being provided which can be switched between a suction position wherein the vacuum source communicates with the pressure chamber or vacuum chambers and a venting position wherein the communication with the vacuum source is interrupted and the vacuum chamber(s) is (are) vented or fed with compressed air. To assure venting or compressed-air supply immediately upon deposition of the load, the hoist is connected by a fitting 55 to the suction plate 5, said fitting being guided in vertically displaceable manner between two end positions, a sensor or a limit switch 59 being provided to detect the lower end position of the fitting 55 and so cooperating with a control means that following lowering of the fitting 55, the valve 20 shall be switched into the venting position if previously having been in the suction position.

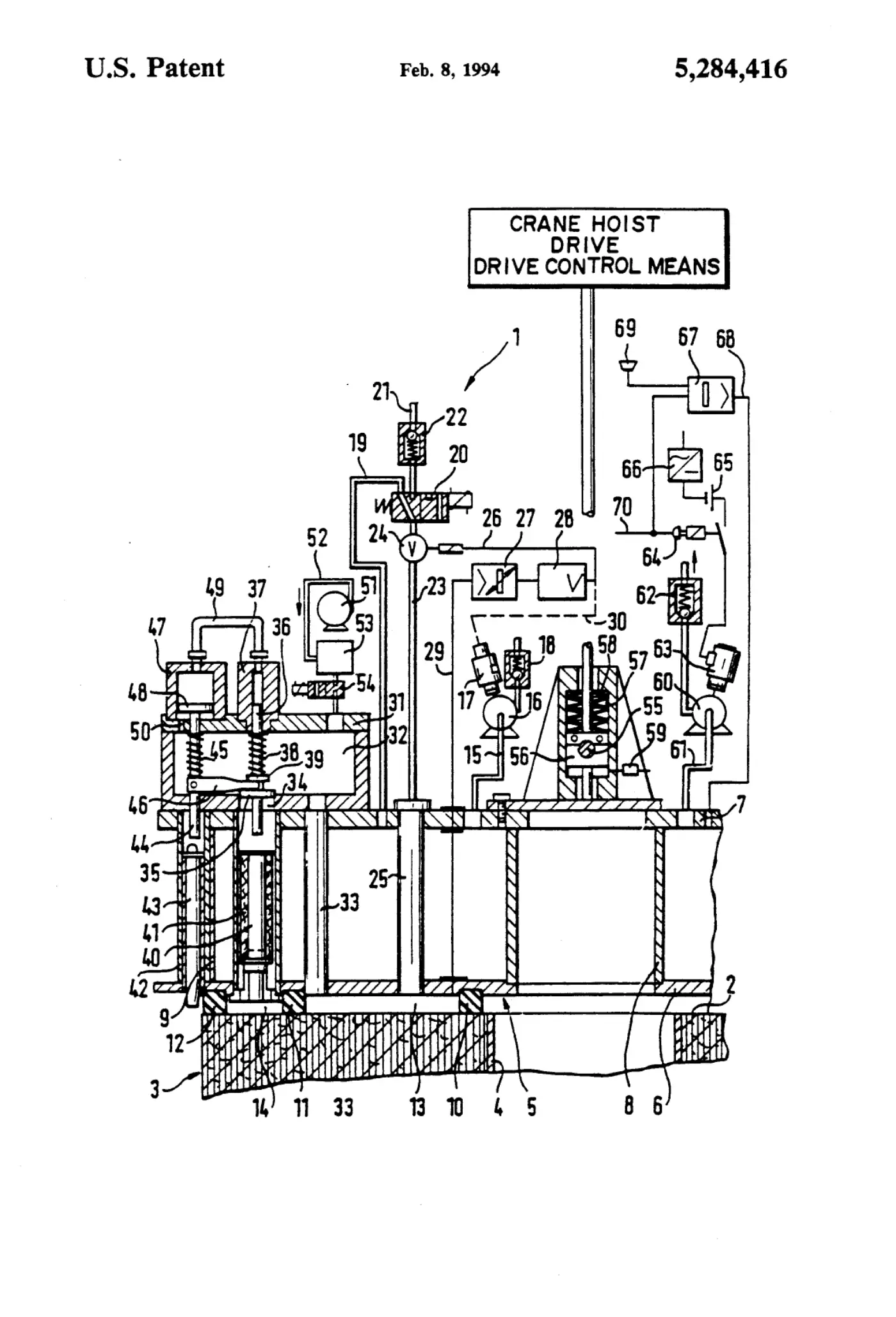

Sheet 1
Sheet 1

Abstract

The invention concerns a vacuum lifter to transport loads with an adhesion surface, comprising at least one suction head suspended from a hoist, said suction comprising at least one annular seal projecting from its suction side, the vacuum chamber(s) enclosed by the annular seal(s) communicating with a vacuum source, a valve furthermore being provided which can be switched between a suction position wherein the vacuum source communicates with the pressure chamber or vacuum chambers and a venting position wherein the communication with the vacuum source is interrupted and the vacuum chamber(s) is (are) vented or fed with compressed air. To assure venting or compressed-air supply immediately upon deposition of the load, the hoist is connected by a fitting 55 to the suction plate 5, said fitting being guided in vertically displaceable manner between two end positions, a sensor or a limit switch 59 being provided to detect the lower end position of the fitting 55 and so cooperating with a control means that following lowering of the fitting 55, the valve 20 shall be switched into the venting position if previously having been in the suction position.

1. Drawings

[0001]Sheet 1.
