Apparatus for holding by suction and conveying

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
KAWAMOTO TADASU, NAGAI SHIGEKAZU, SAKURAI SHUUZOU
Assignee
SMC KK
Original source
US-5211435-A, the United States Patent and Trademark Office, 18 May 1993
Document SHA-256
1b7e35298c6595cfe35de7096c33fba35595a9172c264b802e7ada20824fa4f5

Disclosed herein is an apparatus for holding by suction and conveying. The apparatus comprises a pipe joint connected to a vacuum and suction source through a tube; a cylindrical connector connected to a suction pad; and a connecting member through which the pipe joint is coupled to the connector. The connecting member includes a cylindrical member angularly movably surrounding the outer periphery of the connector, and between the cylindrical member and the connector, is provided structure inhibiting the movement of the cylindrical member in a direction of the longitudinal axis thereof.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7
Sheet 8
Sheet 8

Abstract

Disclosed herein is an apparatus for holding by suction and conveying. The apparatus comprises a pipe joint connected to a vacuum and suction source through a tube; a cylindrical connector connected to a suction pad; and a connecting member through which the pipe joint is coupled to the connector. The connecting member includes a cylindrical member angularly movably surrounding the outer periphery of the connector, and between the cylindrical member and the connector, is provided structure inhibiting the movement of the cylindrical member in a direction of the longitudinal axis thereof.

1. Drawings

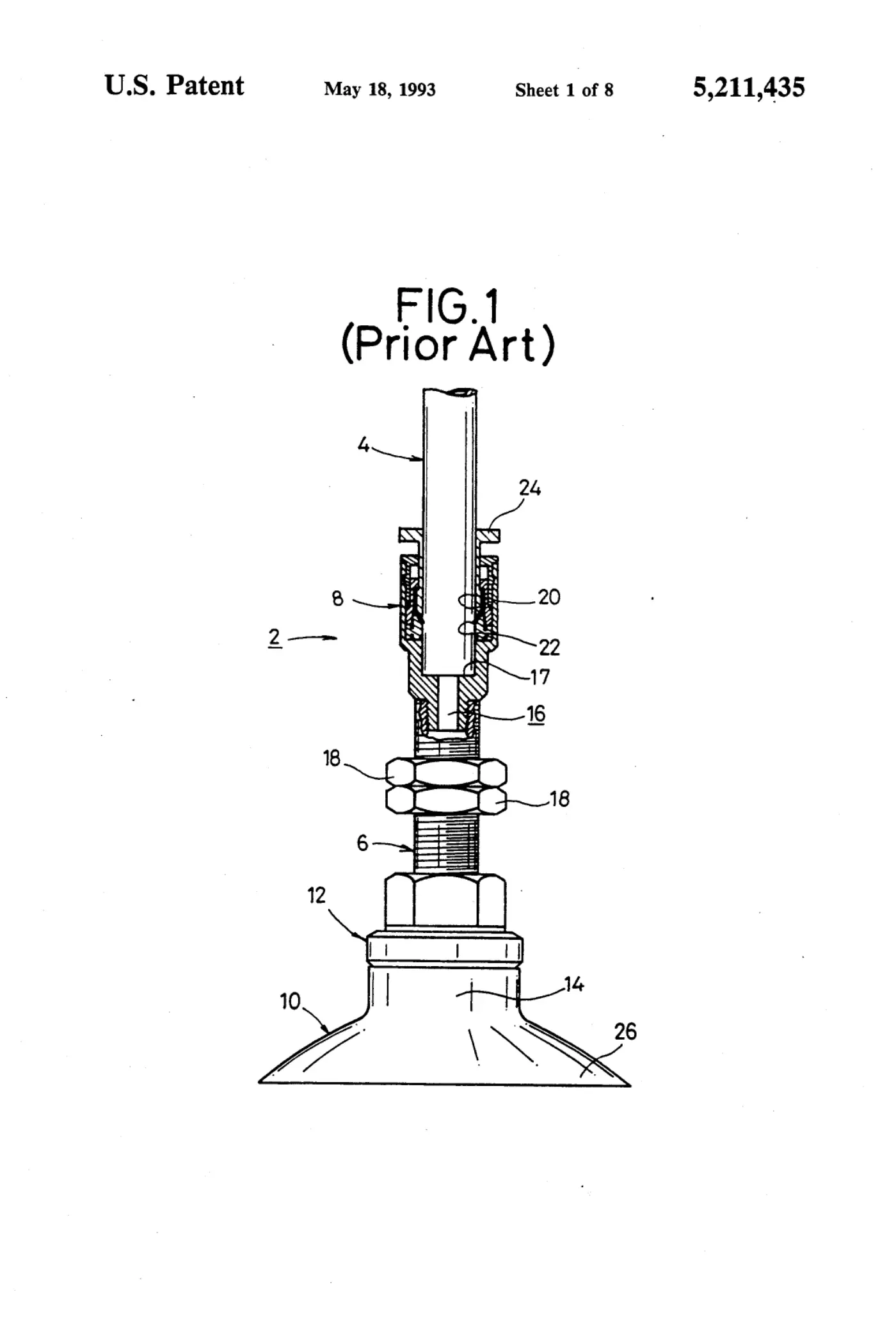

[0001]Sheet 1.

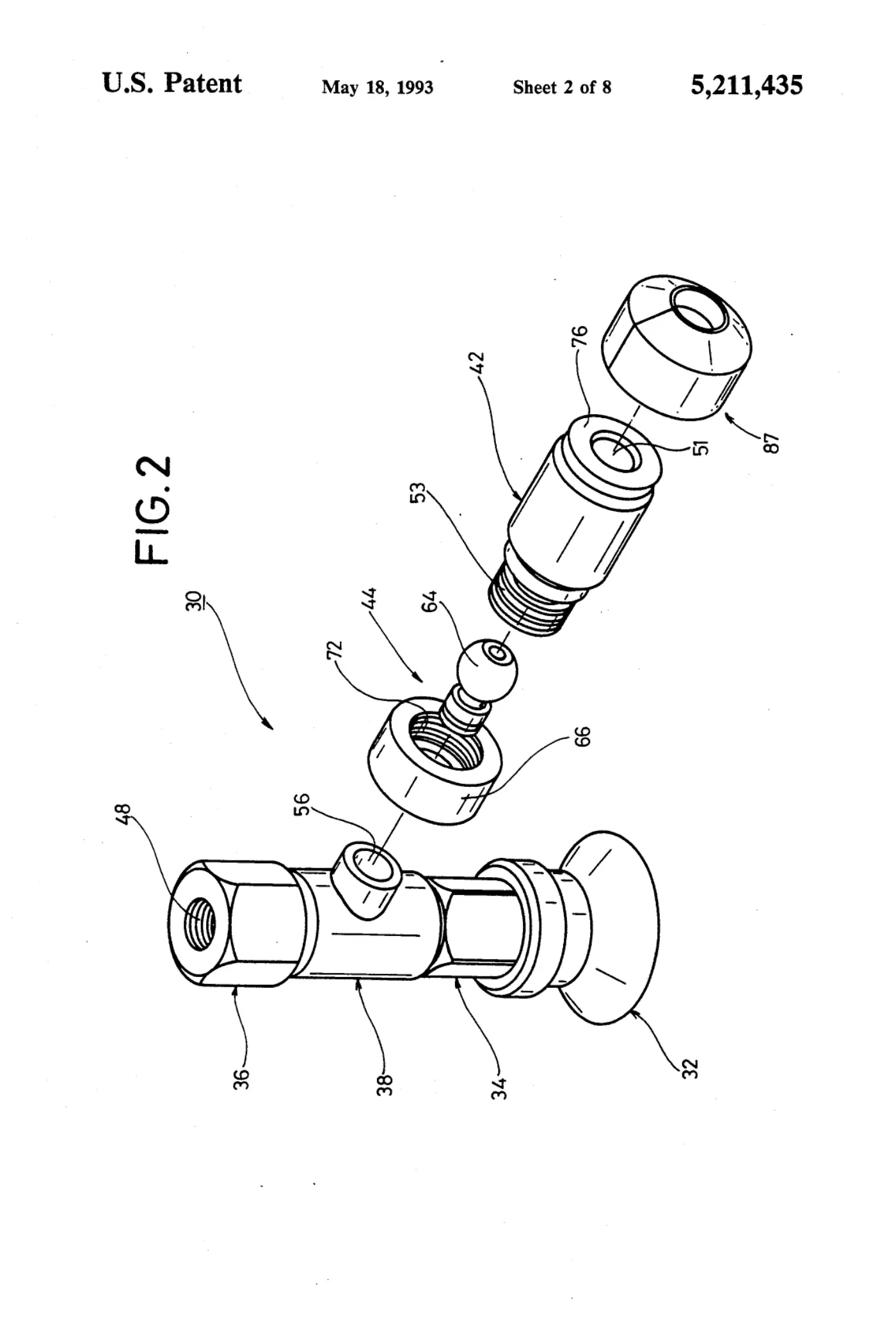

[0002]Sheet 2.

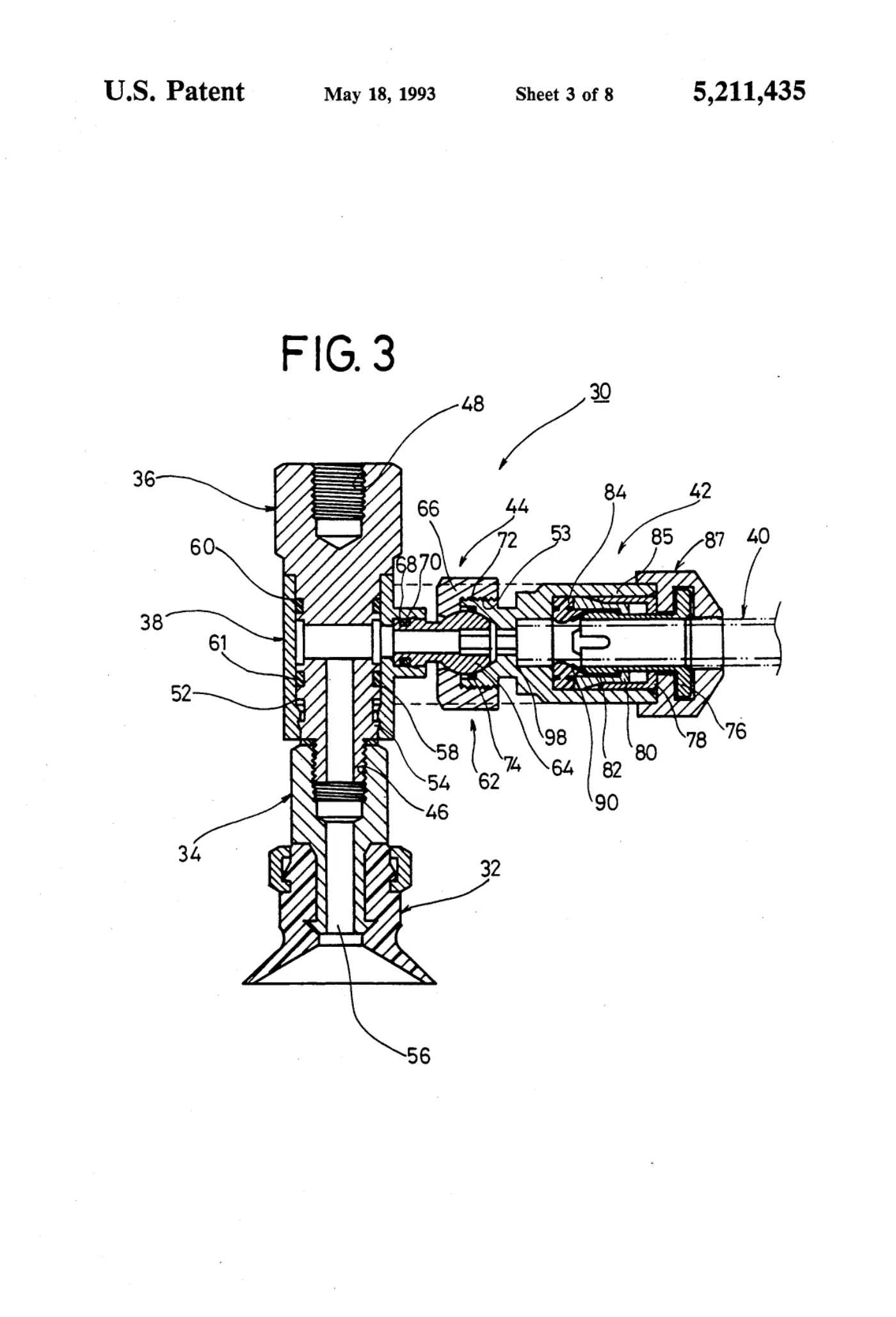

[0003]Sheet 3.

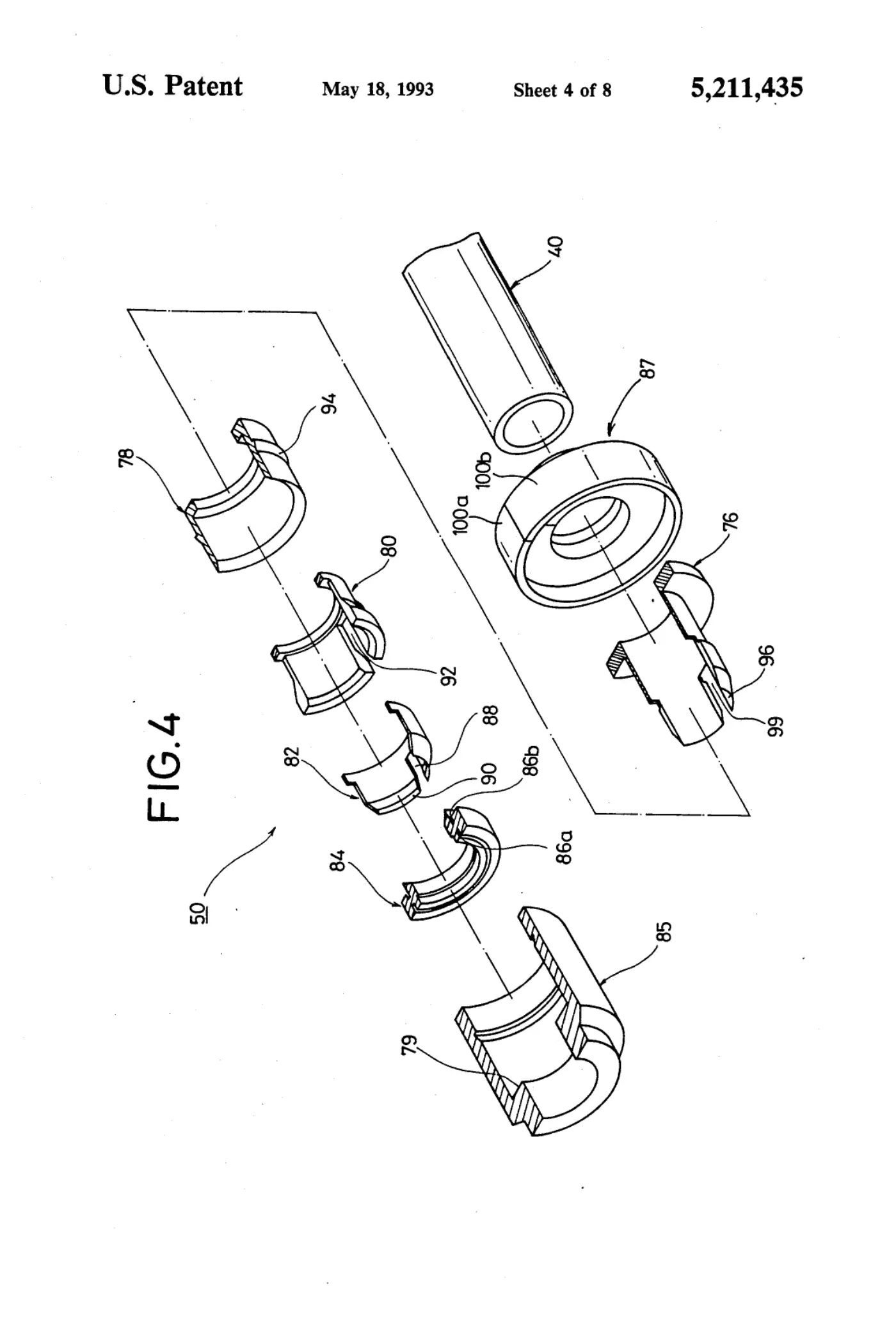

[0004]Sheet 4.

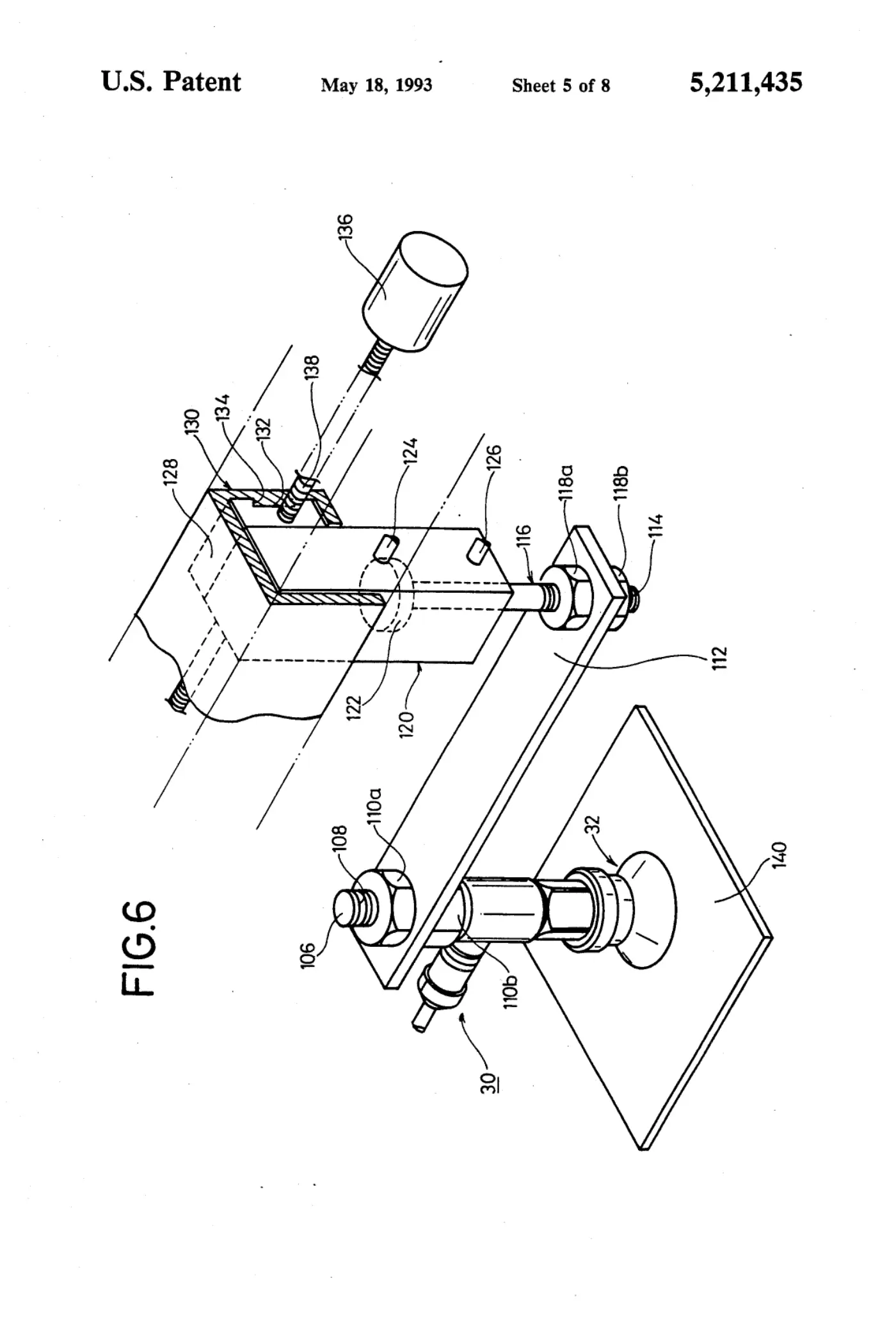

[0005]Sheet 5.

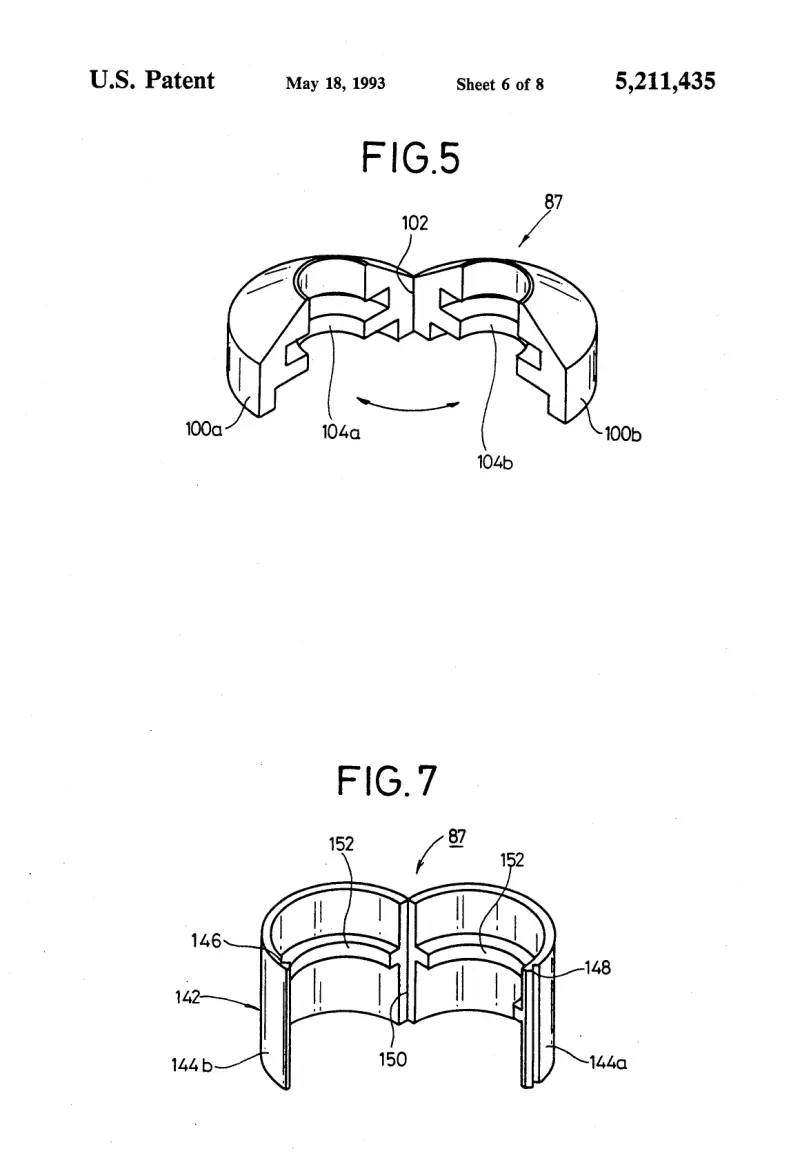

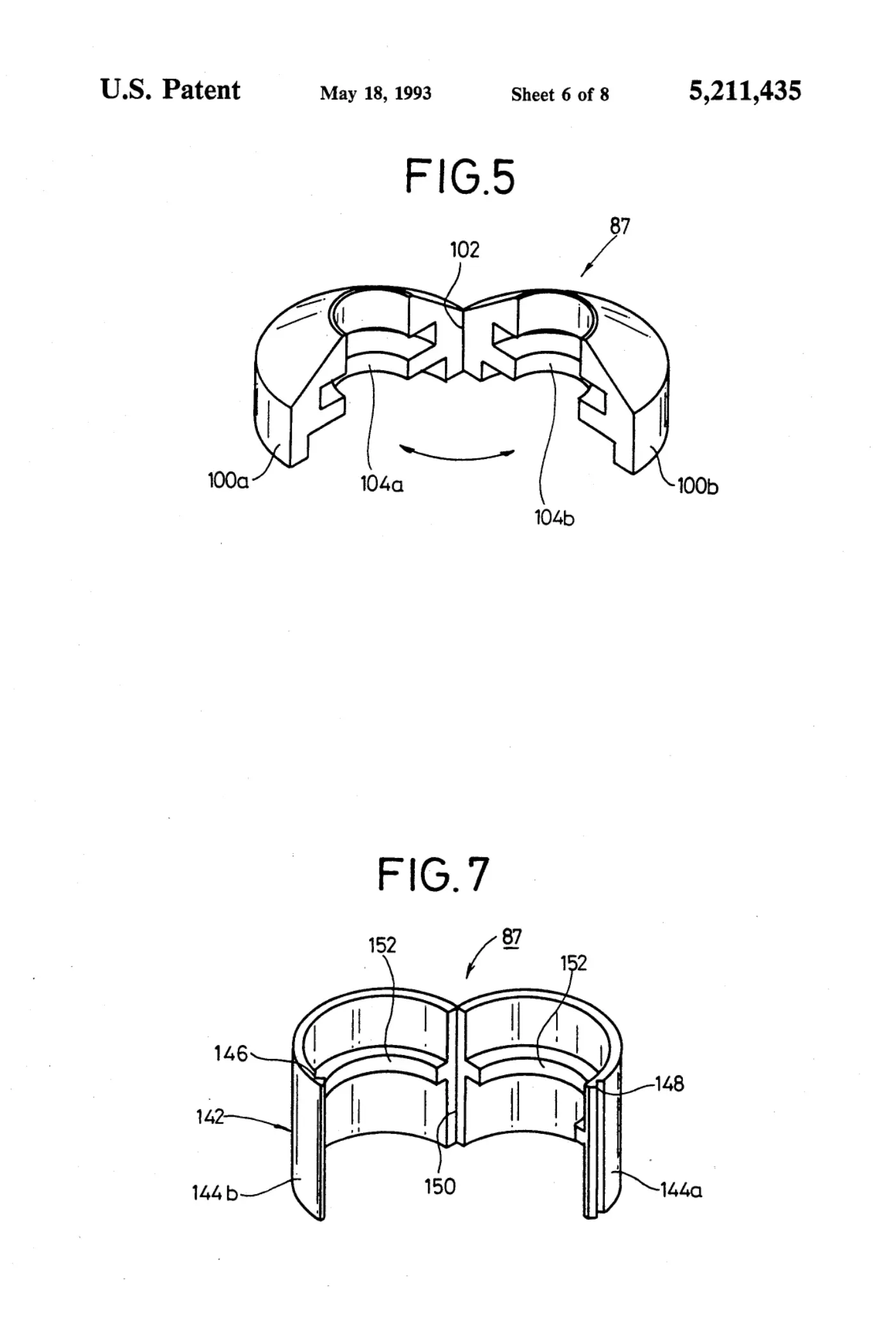

[0006]Sheet 6.

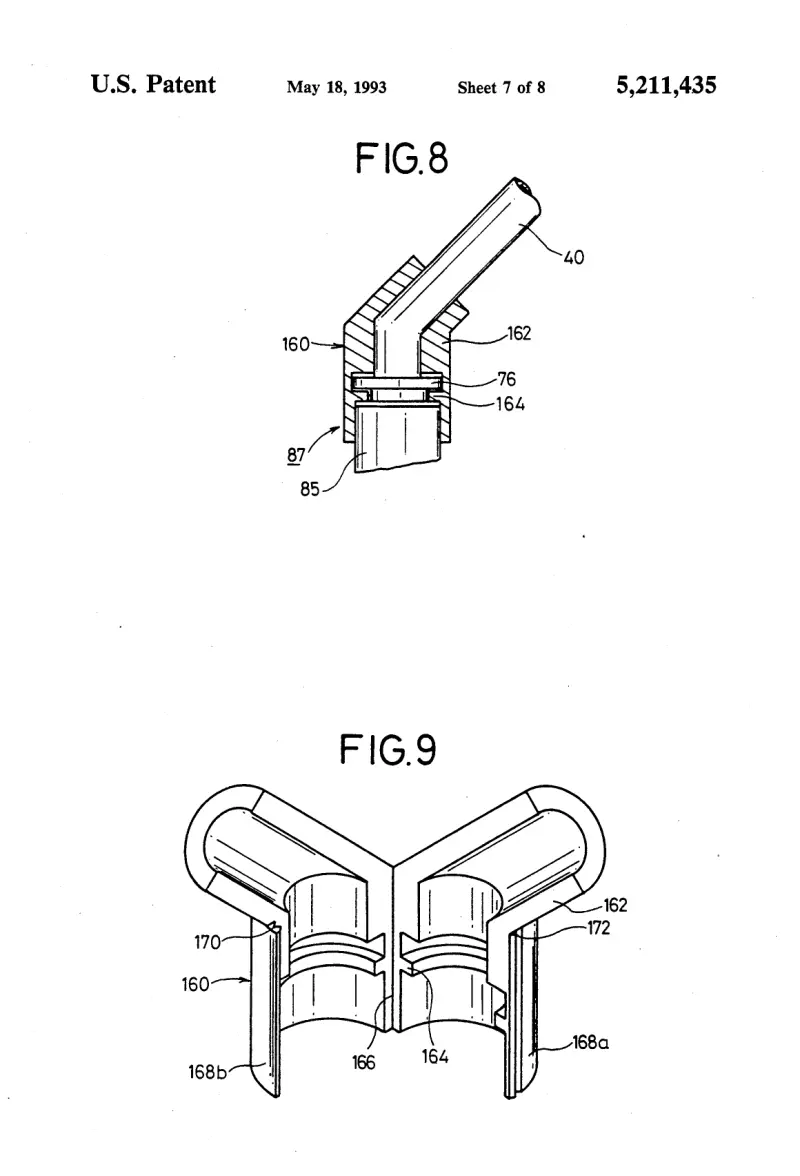

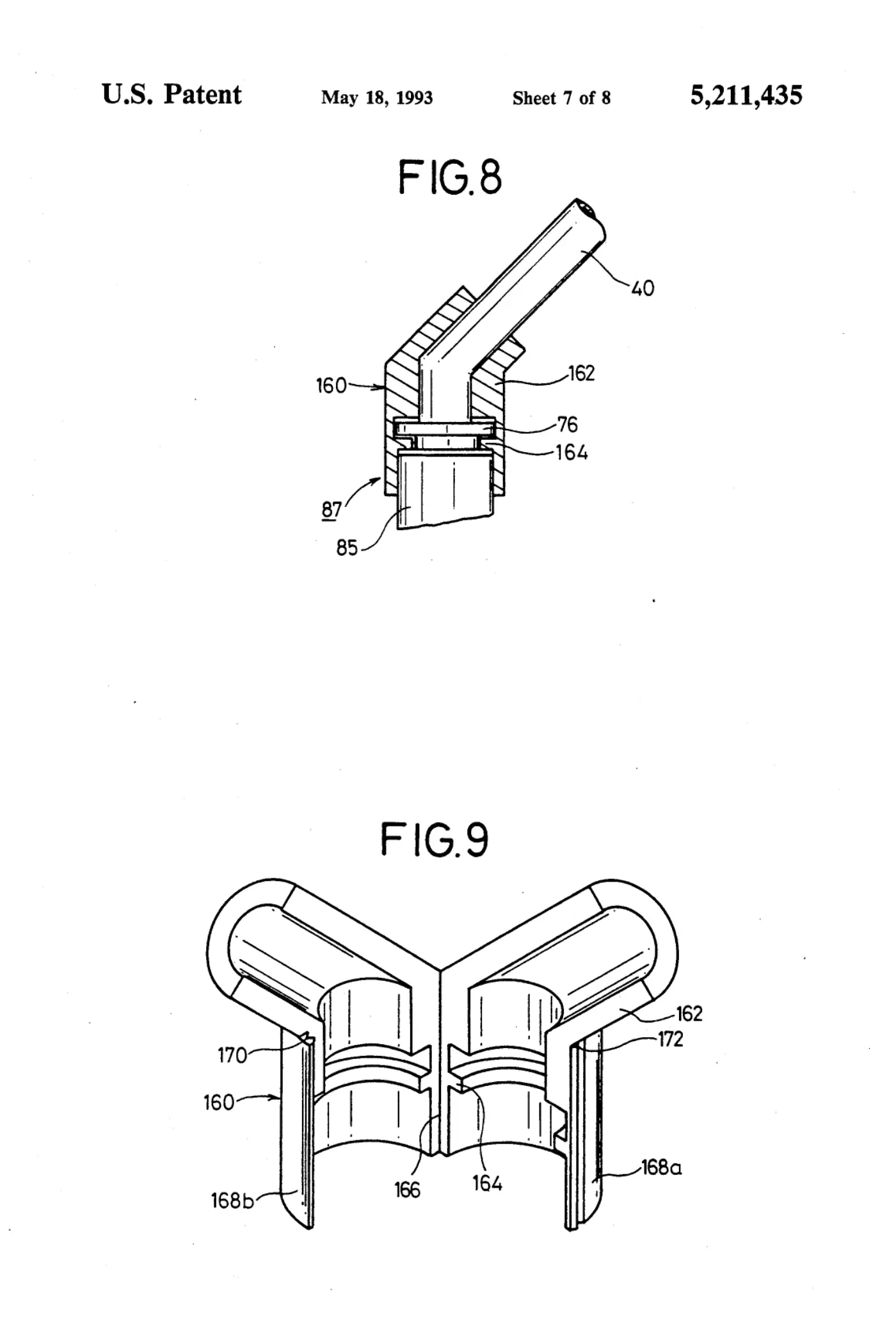

[0007]Sheet 7.
