Suction pad

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
KAWAMOTO TADASU, NAGAI SHIGEKAZU, SAKURAI SHUUZOU
Assignee
SMC KK
Original source
US-5192070-A, the United States Patent and Trademark Office, 9 March 1993
Document SHA-256
73146564b27482cdc9250432f1b1c4b9b6cb50a557492d9c1257001459f57fc4

Disclosed herein is a suction pad for attracting and holding a work, which comprises a suction base coupled via a connector to a vacuum suction source, a suction skirt integrally provided in continuation with the base, and a vacuum chamber which is defined inside the suction pad and communicates with the inside of the skirt. In addition, the suction pad includes a plurality of smaller-diameter through holes which cause the vacuum chamber to communicate with a suction surface of the skirt, and partition walls for surrounding the through holes. The partition walls define a number of small vacuum chambers.

Sheet 1

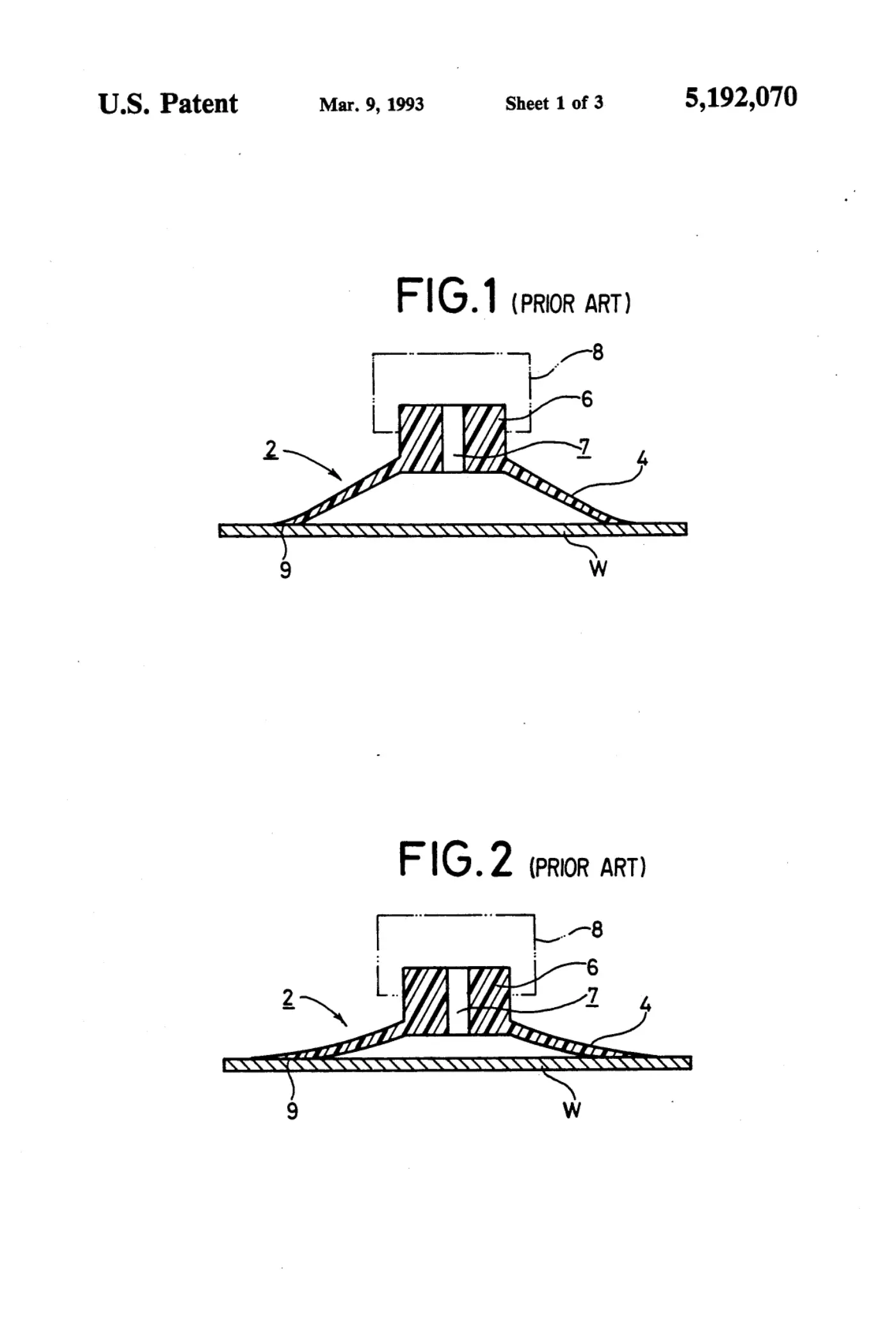

Sheet 1
Sheet 2

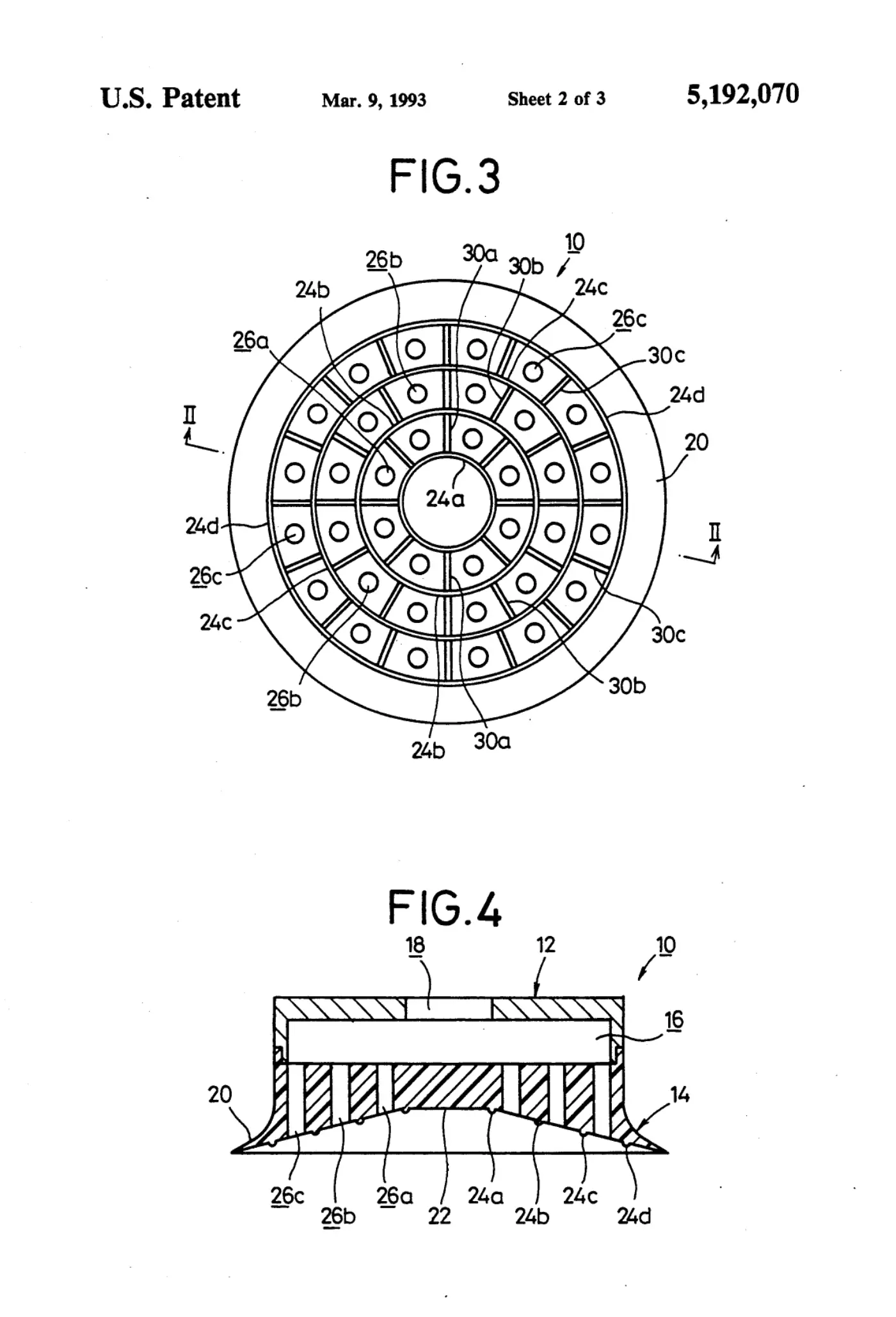

Sheet 2
Sheet 3

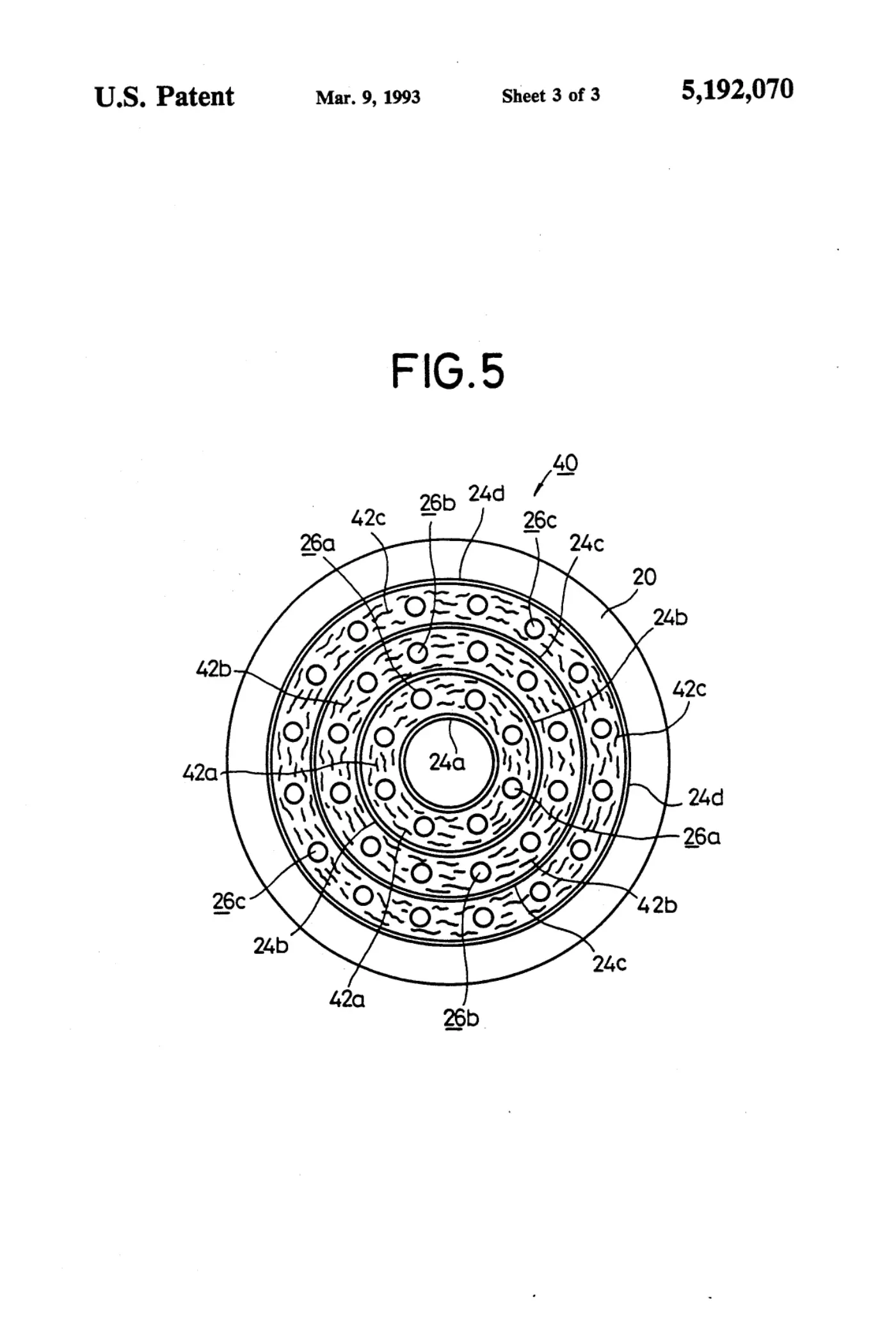

Sheet 3

Abstract

Disclosed herein is a suction pad for attracting and holding a work, which comprises a suction base coupled via a connector to a vacuum suction source, a suction skirt integrally provided in continuation with the base, and a vacuum chamber which is defined inside the suction pad and communicates with the inside of the skirt. In addition, the suction pad includes a plurality of smaller-diameter through holes which cause the vacuum chamber to communicate with a suction surface of the skirt, and partition walls for surrounding the through holes. The partition walls define a number of small vacuum chambers.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.
