Sucker for plate glass

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
ARAI TOSHIMITSU
Assignee
TOYO SANGYO CO LTD
Original source
US-5184858-A, the United States Patent and Trademark Office, 9 February 1993
Document SHA-256
334d6f0d0a3bca32136e2a9b6f41f84459639c1c1089d01d63aa4e0bc02c5747

A sucker for suctioning and lifting a sheet of plate glass has a sucker body defining a suction hole at a suction surface of the body. The sucker body carries a manual vacuum pump formed with a suction hole, a sensor for detecting the degree of vacuum and a sound generator. The sensor is provided in a suction channel connecting the suction hole at the suction surface of the sucker body with the suction hole in the vacuum pump. The sound generator is turned on when the sensor detects a predetermined degree of vacuum.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

A sucker for suctioning and lifting a sheet of plate glass has a sucker body defining a suction hole at a suction surface of the body. The sucker body carries a manual vacuum pump formed with a suction hole, a sensor for detecting the degree of vacuum and a sound generator. The sensor is provided in a suction channel connecting the suction hole at the suction surface of the sucker body with the suction hole in the vacuum pump. The sound generator is turned on when the sensor detects a predetermined degree of vacuum.

1. Drawings

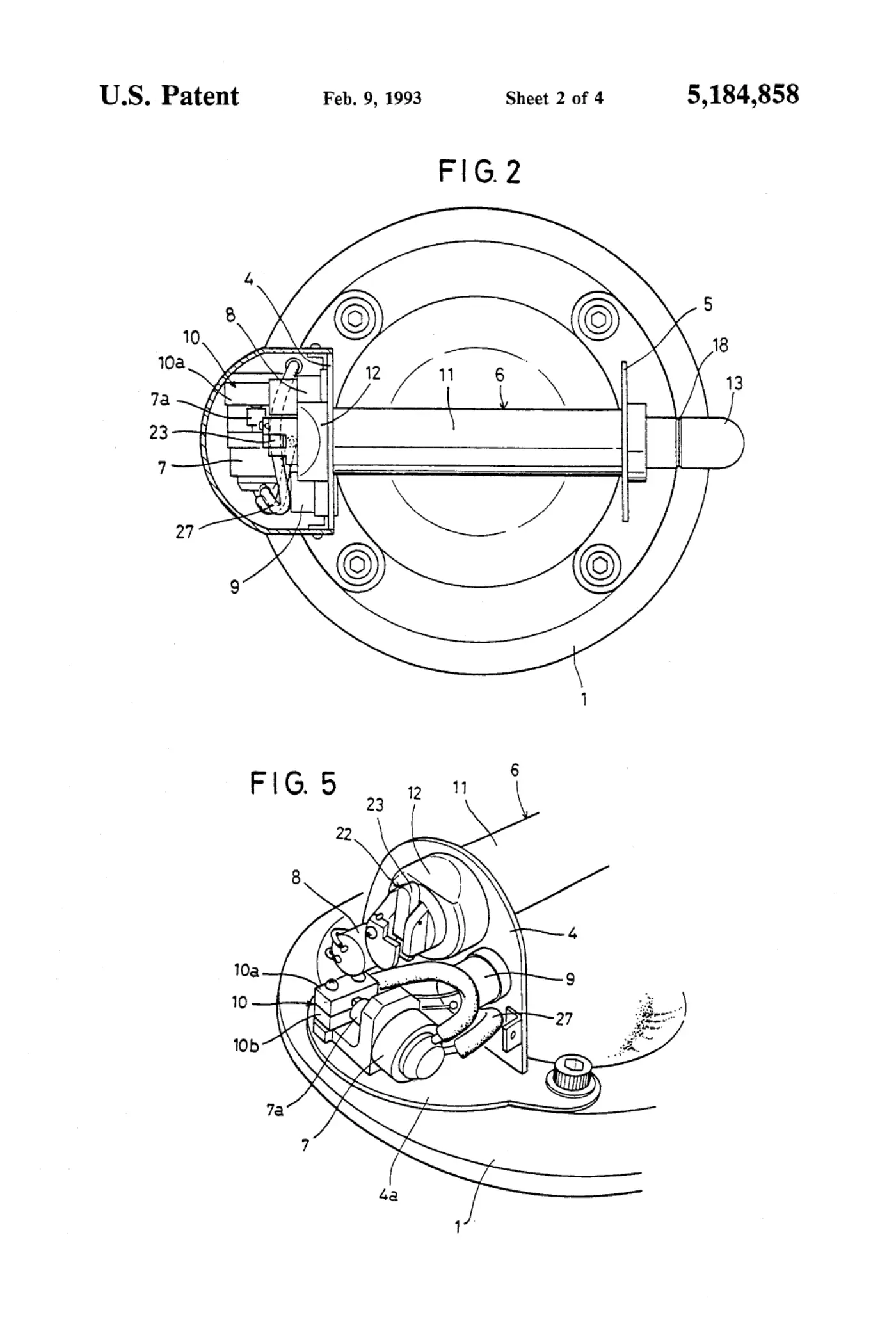

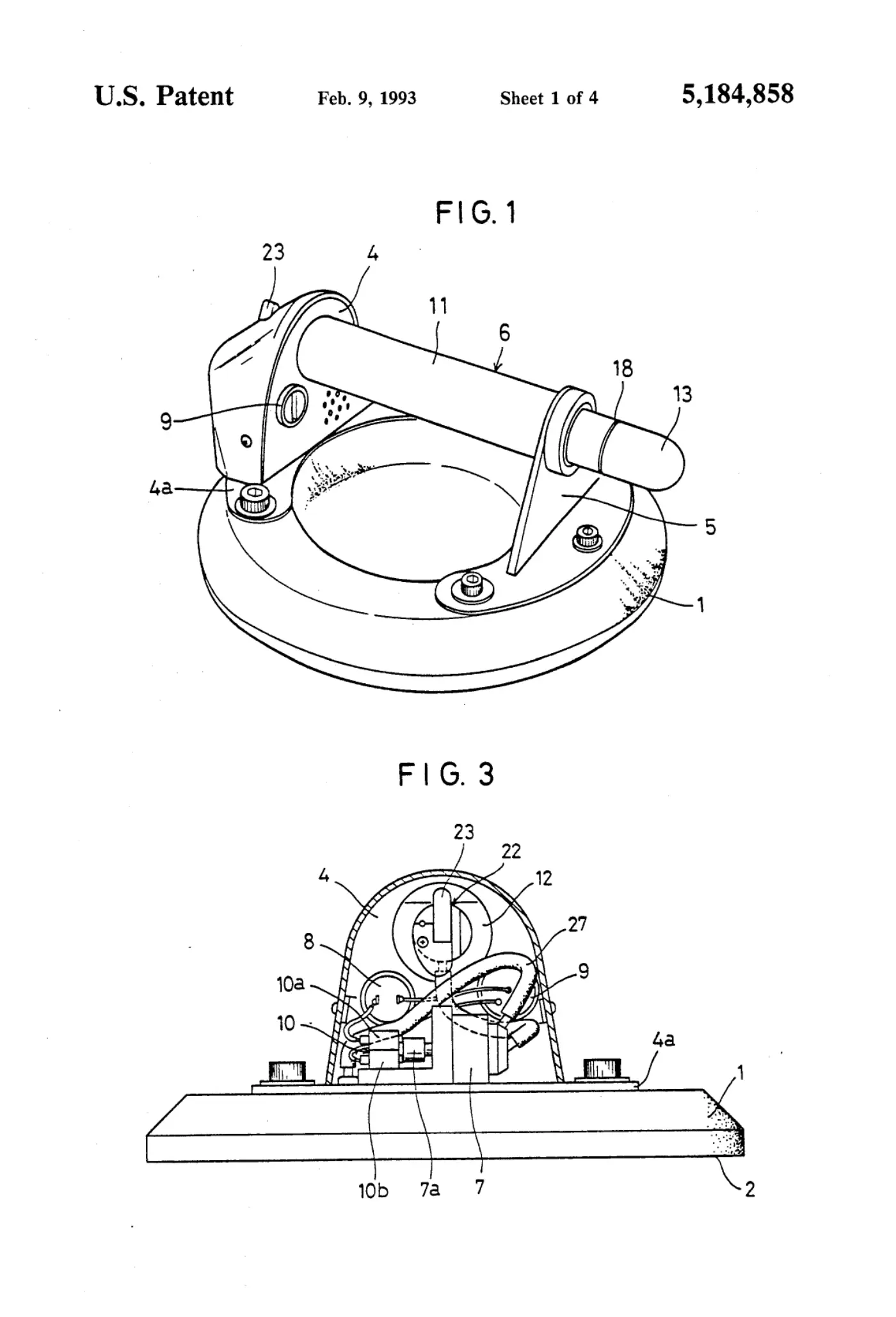

[0001]Sheet 1.

[0002]Sheet 2.

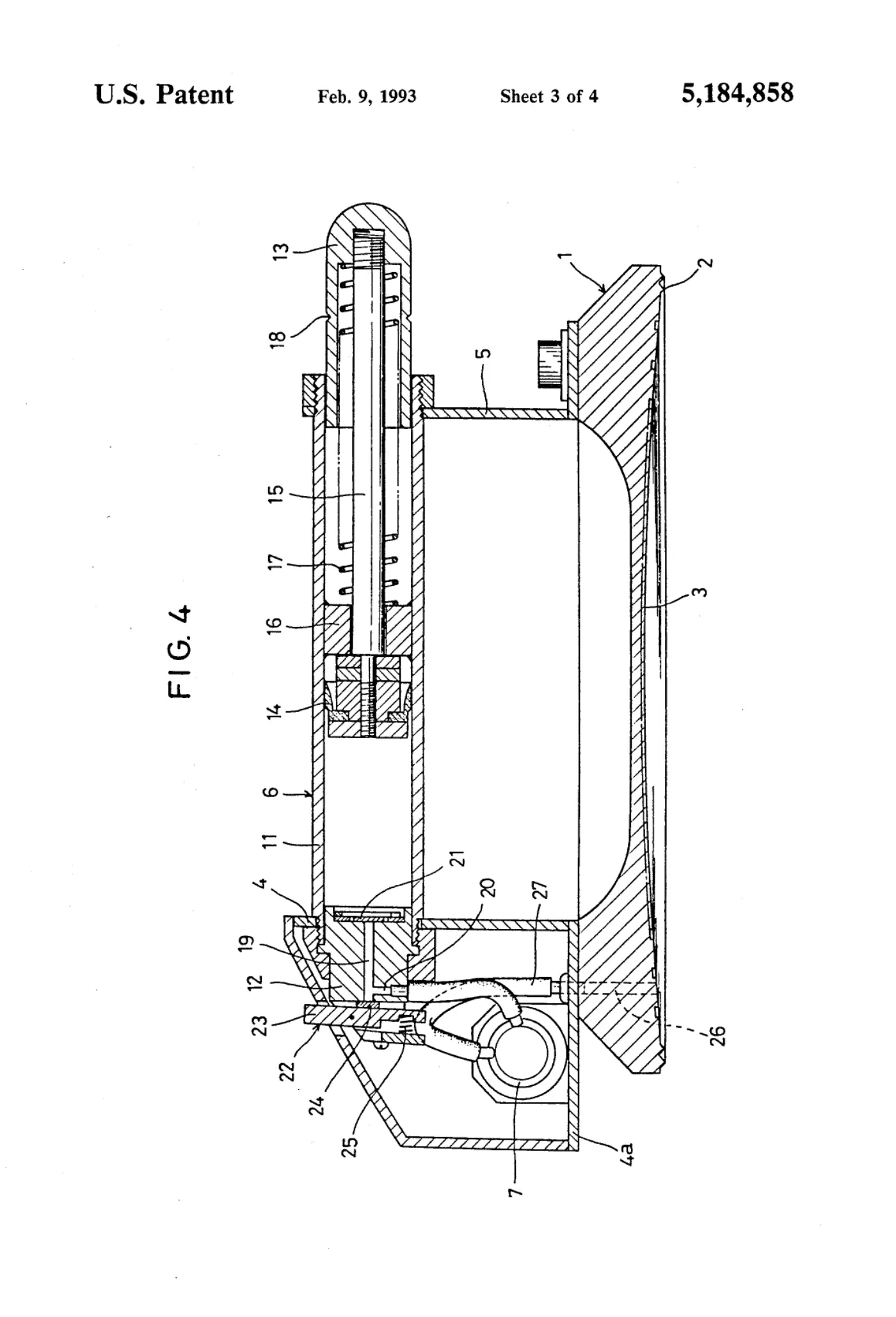

[0003]Sheet 3.

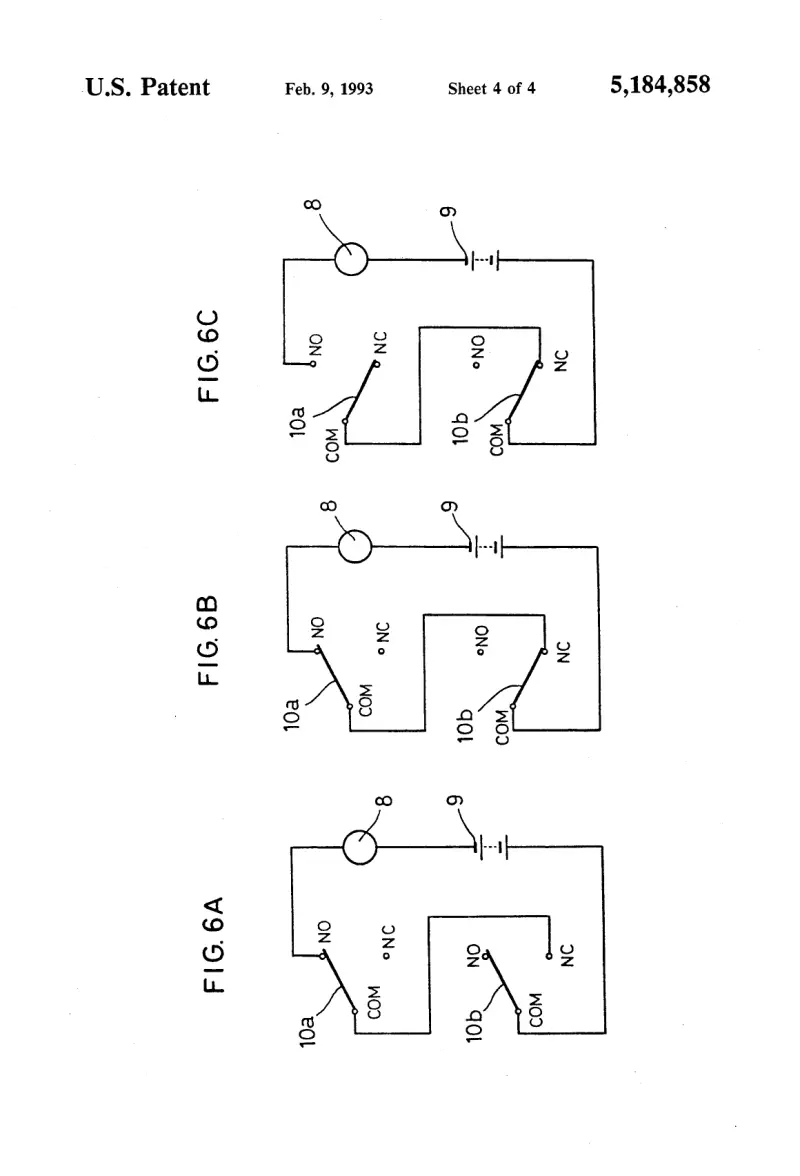

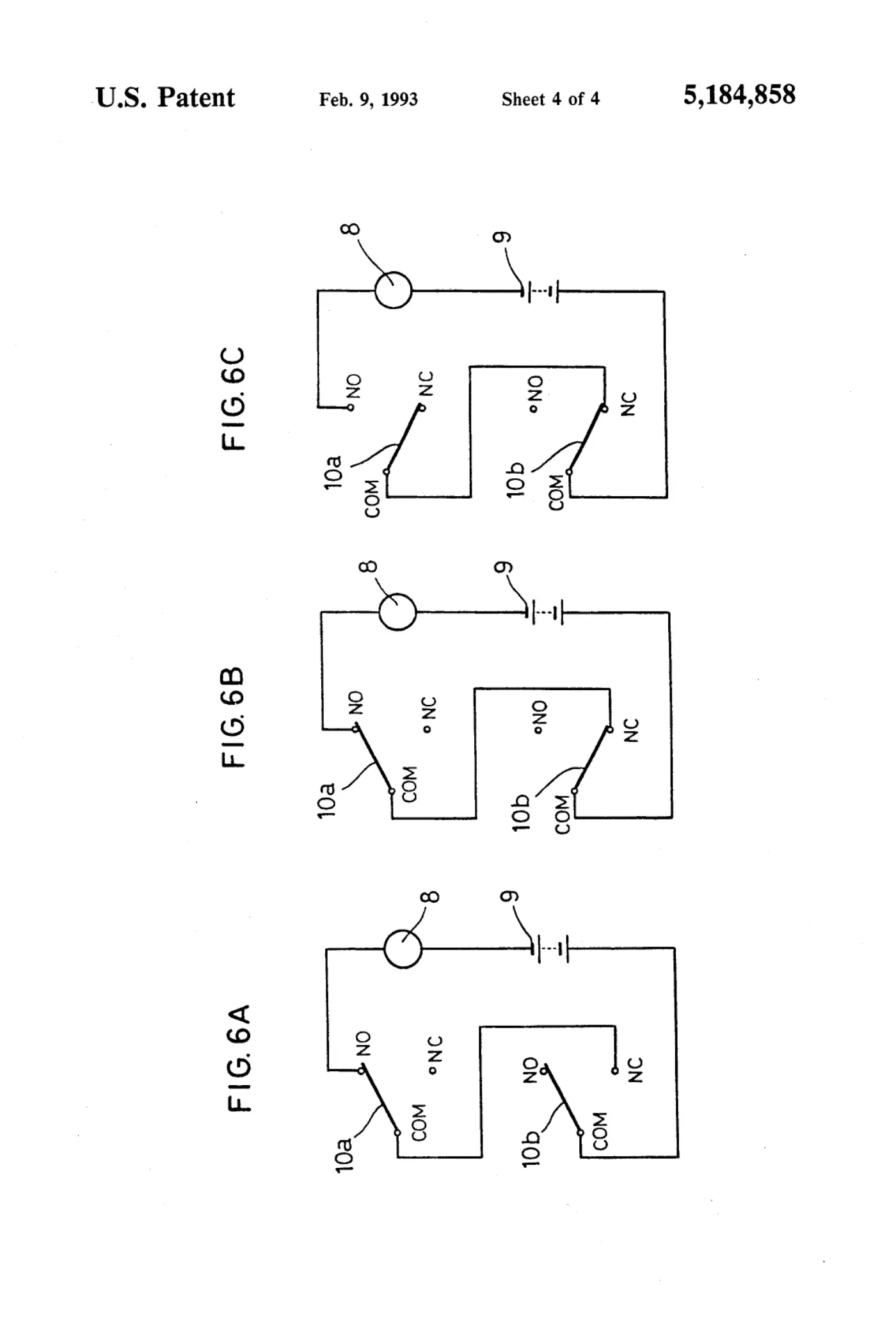

[0004]Sheet 4.
