Precision transport roller

Published
Permanent URL
Classification
Material Handling › Package Handling
Assignee
RUBBER EN KUNSTSTOFFABRIEK
Original source
US-5184383-A, the United States Patent and Trademark Office, 9 February 1993
Document SHA-256
8d41b2f4a48ba97a4fc648e4a0810893d00cead49f9ecbd17345a324fc7c15e3

A roller, and more particularly a precision transport roller formed of elastomeric material is disclosed. The roller is characterized in that the elastomeric material is formed into inner and outer concentric cylinders which are joined together and which encompass therebetween in co-axial relation a rigid cylindrical bushing. Preferably, the inner and outer cylinders are connected by bridges defined by holes formed in the bushing. The bushing may include beveled end faces for facilitating centering of the bushing in a mold.

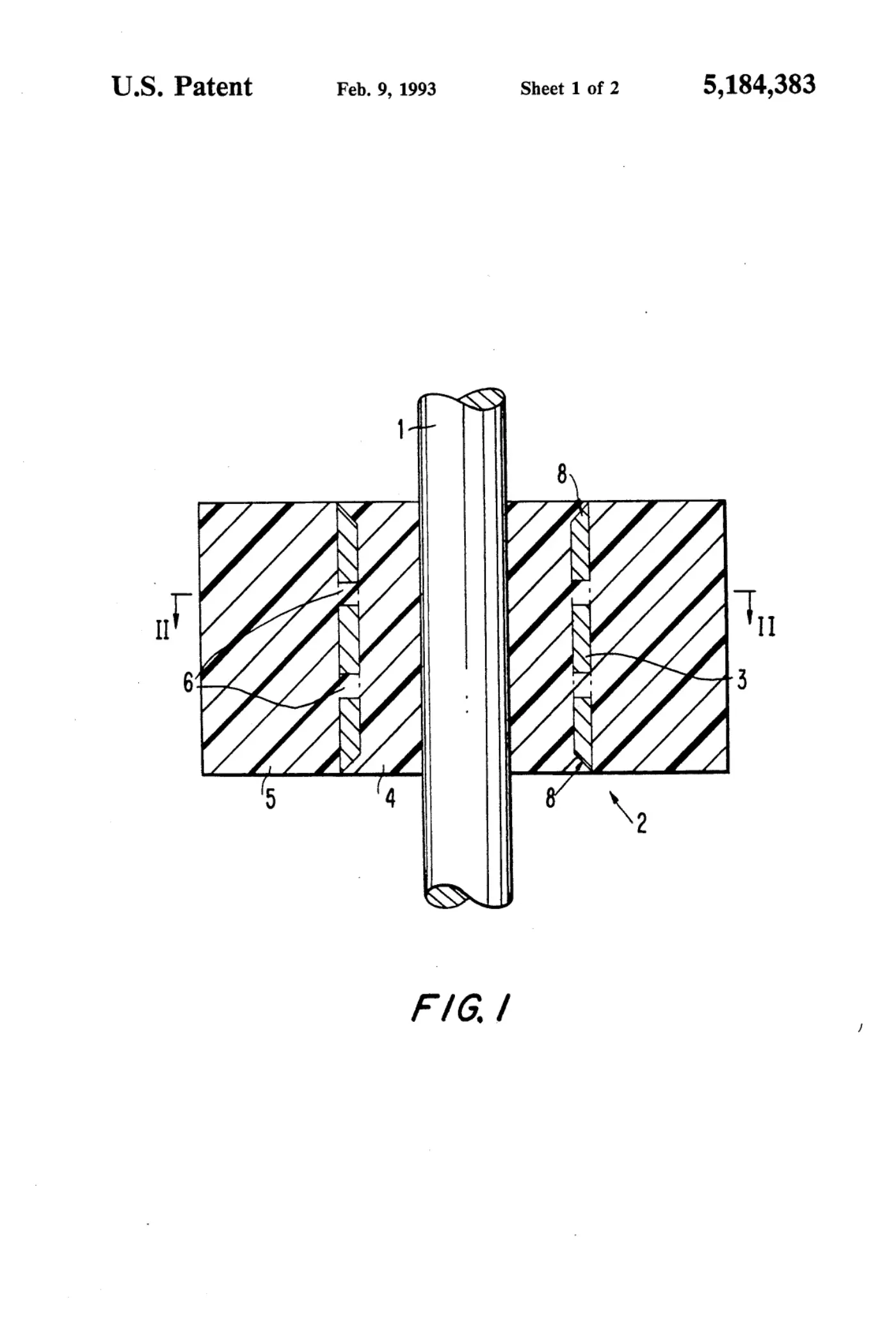

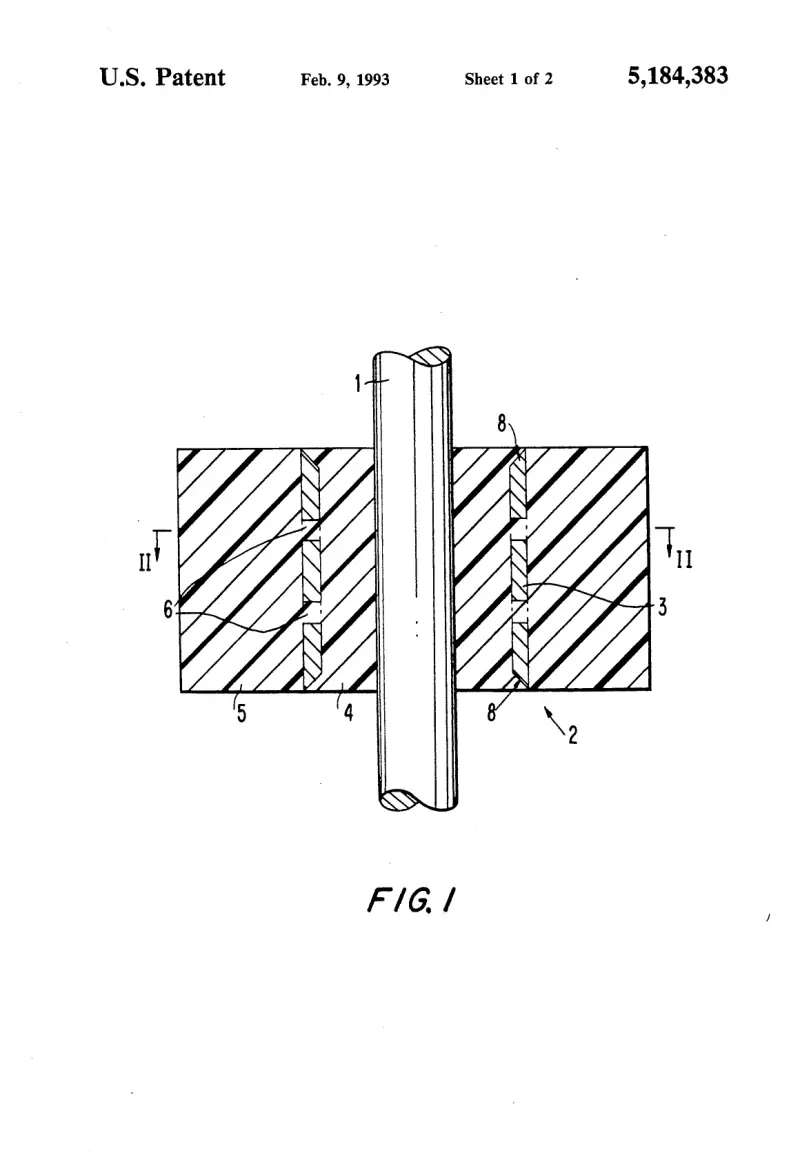

Sheet 1
Sheet 1

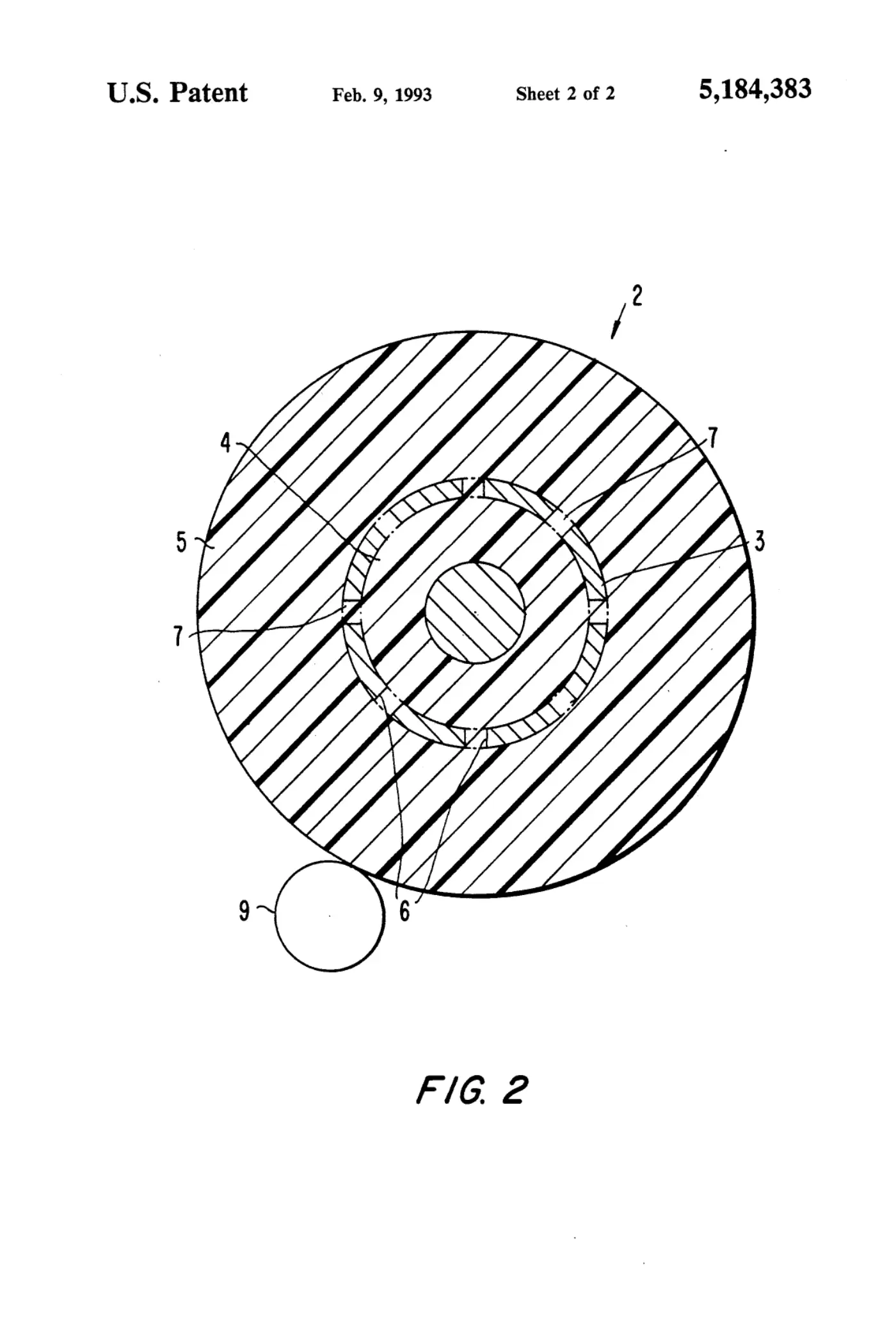

Sheet 2
Sheet 2

Abstract

A roller, and more particularly a precision transport roller formed of elastomeric material is disclosed. The roller is characterized in that the elastomeric material is formed into inner and outer concentric cylinders which are joined together and which encompass therebetween in co-axial relation a rigid cylindrical bushing. Preferably, the inner and outer cylinders are connected by bridges defined by holes formed in the bushing. The bushing may include beveled end faces for facilitating centering of the bushing in a mold.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.
