Hand-held pick-up device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
MEALEY THOMAS P, PALMER DAREN D, PALMER HAROLD D
Original source
US-5106139-A, the United States Patent and Trademark Office, 21 April 1992
Document SHA-256
3d5ac4c7fc5cd1253f1ca691a025464962003d4e23aabbcc36e3b40d5fb39ede

Light-weight items or components may be picked-up and moved from space restricted areas. The method of lifting and placing such items involves the use of a hand-held tool, comprising a hollow tube containing a suction creating device, which suction creating device may be engaged by pressing an actuator member located in a hole in the hollow tube. A tip is attached to an open end of the hollow tube, so that air is expelled from and drawn into the suction creating device in the hollow tube through the tip. A gripping member is removably attached to the tip. The gripping member comprises a suction cup, an extension tube, and a fitting by which the gripping member is attached to the tip. A variety of gripping members, with suction cups of varying sizes and extension tubes of differing angles, may be used with the pick-up device. After expelling air from the suction creating device by use of the actuator member, the pick-up tool is lowered onto the item to be picked up, so that the suction cup comes into contact with that item. The actuator member is then disengaged to allow air to be drawn into the suction creating device, causing the item to be held against the suction cup. In this way, the item may be moved to another location, and released by depressing the actuator member.

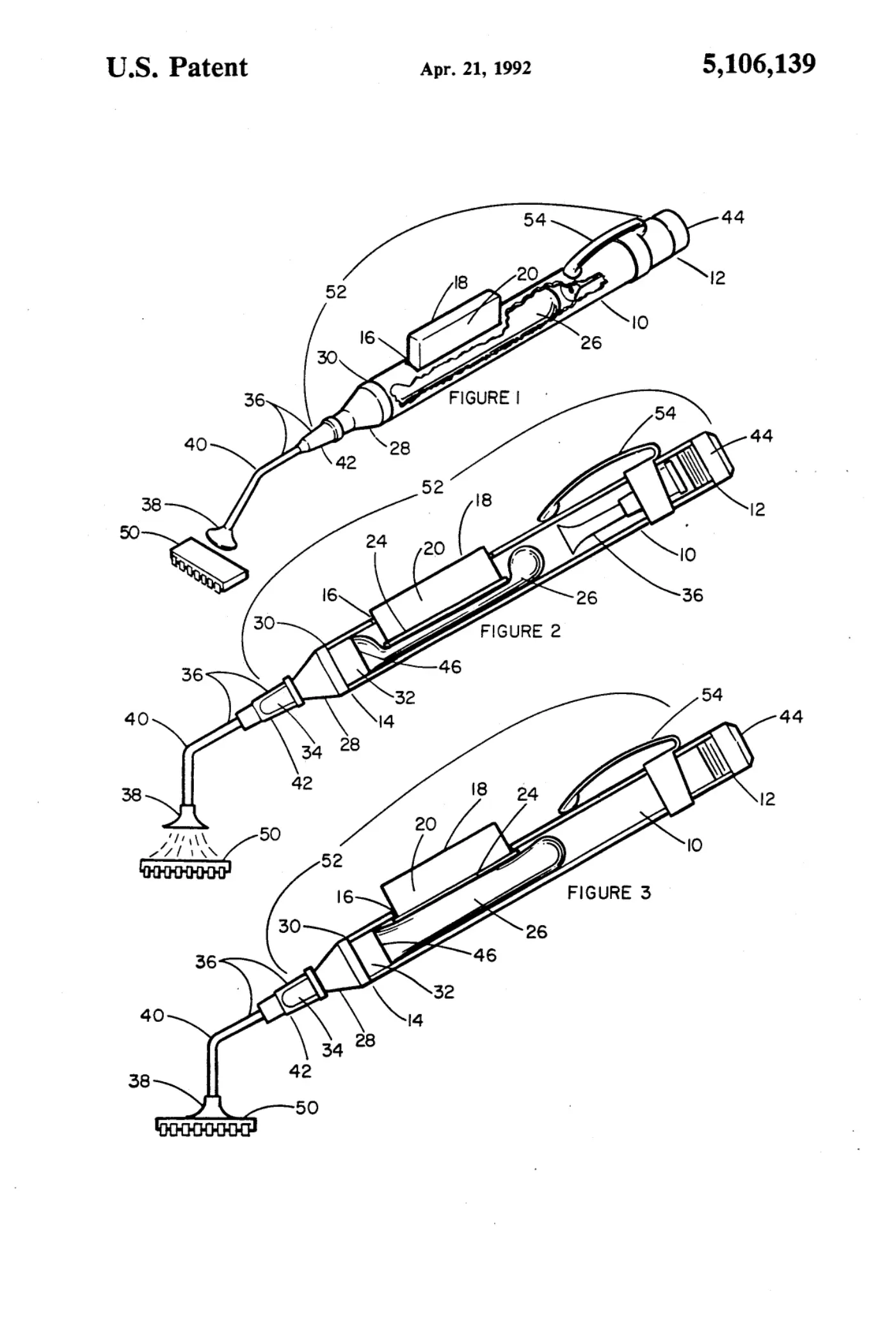

Sheet 1
Sheet 1

Abstract

Light-weight items or components may be picked-up and moved from space restricted areas. The method of lifting and placing such items involves the use of a hand-held tool, comprising a hollow tube containing a suction creating device, which suction creating device may be engaged by pressing an actuator member located in a hole in the hollow tube. A tip is attached to an open end of the hollow tube, so that air is expelled from and drawn into the suction creating device in the hollow tube through the tip. A gripping member is removably attached to the tip. The gripping member comprises a suction cup, an extension tube, and a fitting by which the gripping member is attached to the tip. A variety of gripping members, with suction cups of varying sizes and extension tubes of differing angles, may be used with the pick-up device. After expelling air from the suction creating device by use of the actuator member, the pick-up tool is lowered onto the item to be picked up, so that the suction cup comes into contact with that item. The actuator member is then disengaged to allow air to be drawn into the suction creating device, causing the item to be held against the suction cup. In this way, the item may be moved to another location, and released by depressing the actuator member.

1. Drawings

[0001]Sheet 1.
