Wheel for rolling drawer guides

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Assignee
LAUTENSCHLAEGER KG KARL
Original source
US-5090820-A, the United States Patent and Trademark Office, 25 February 1992
Document SHA-256
109a85fa5d8d6b2f5e36c0c124cf1248e39db840bc926f6719911a59a079517f

A wheel for guides for drawers and the like, having a wheel body journaled on an axle and made of a material of stable shape, in which at least one recess is provided, in which there is disposed a material, preferably an elastomeric plastic, that is softer in comparison to the wheel body and permits elastic deformation. The wheel body of stable shape has a hub (16) mounted on the wheel axle and a separate rim (18) surrounding the hub part concentrically and at a radial distance, the recess being formed by a circumferential interstice defined on the one hand by the radially outer circumferential surface of the hub (16) and on the other hand by the radially inner circumferential surface of the rim (18). The hub (16) and the rim (18) are held concentric with one another by an interlay (38) of the softer, resiliently deformable material disposed in the interstice.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A wheel for guides for drawers and the like, having a wheel body journaled on an axle and made of a material of stable shape, in which at least one recess is provided, in which there is disposed a material, preferably an elastomeric plastic, that is softer in comparison to the wheel body and permits elastic deformation. The wheel body of stable shape has a hub (16) mounted on the wheel axle and a separate rim (18) surrounding the hub part concentrically and at a radial distance, the recess being formed by a circumferential interstice defined on the one hand by the radially outer circumferential surface of the hub (16) and on the other hand by the radially inner circumferential surface of the rim (18). The hub (16) and the rim (18) are held concentric with one another by an interlay (38) of the softer, resiliently deformable material disposed in the interstice.

1. Drawings

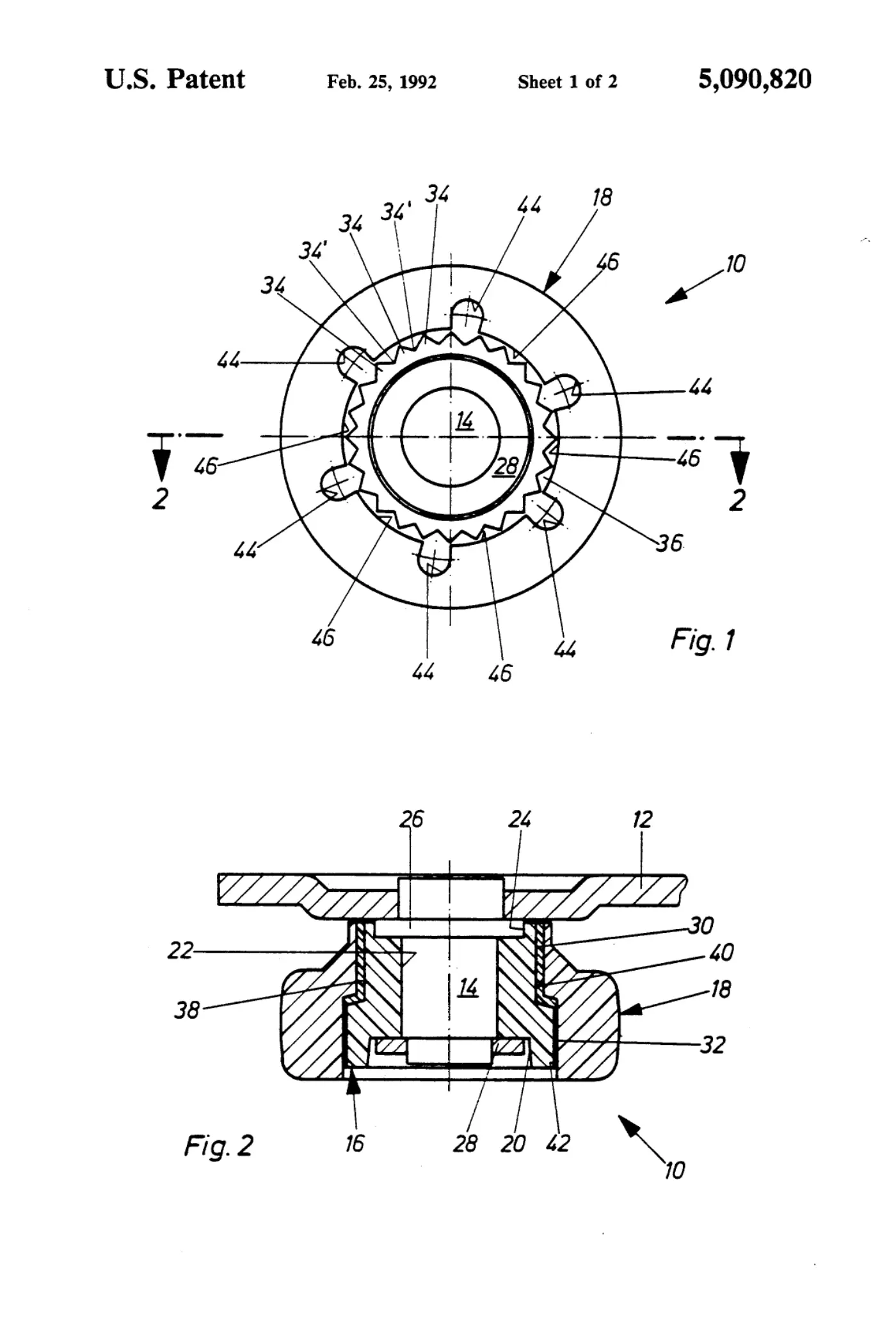

[0001]Sheet 1.

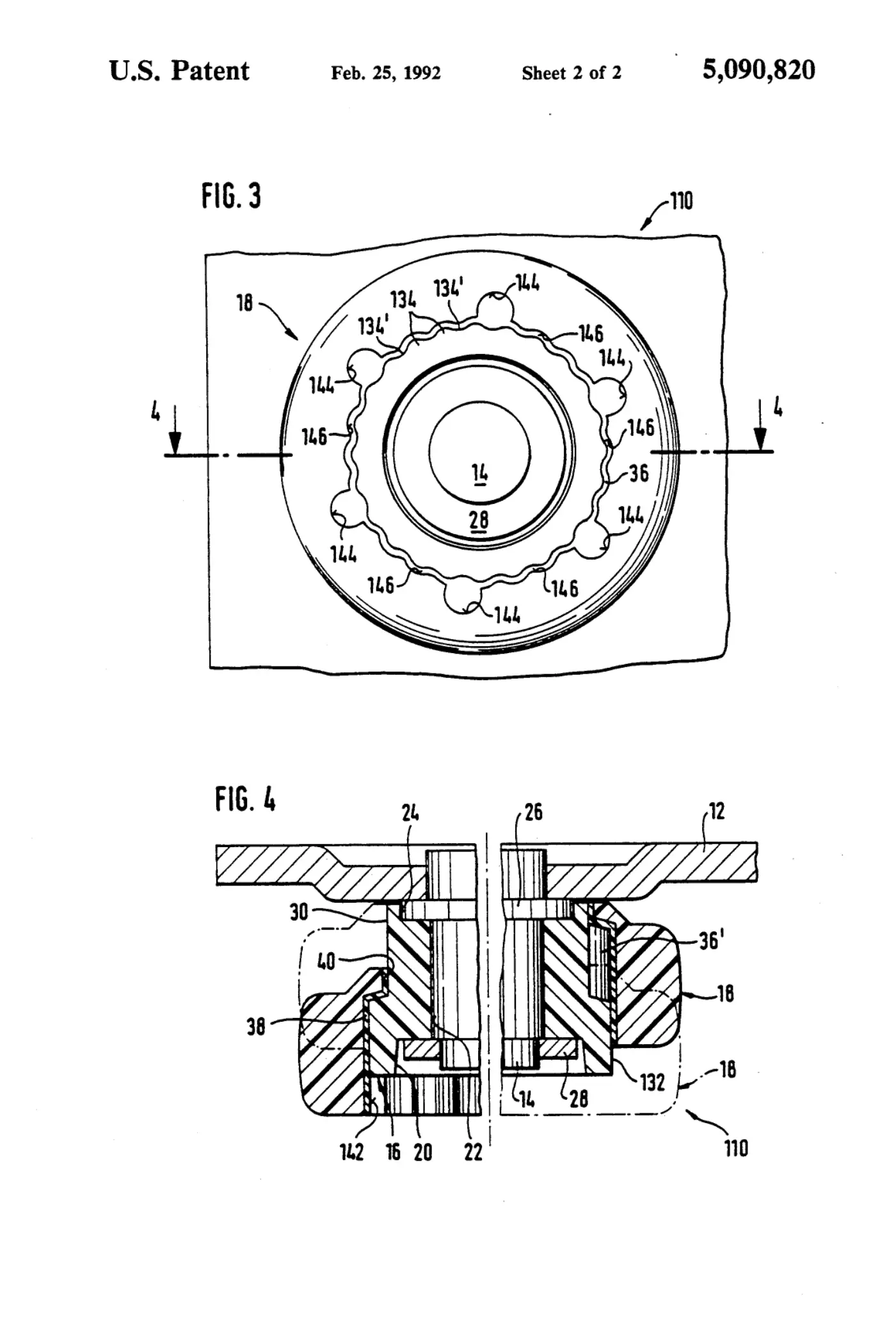

[0002]Sheet 2.
