Device for changing flow paths in a pneumatic conveying system

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
CALDWELL LAWRENCE G
Assignee
CALDWELL LAWRENCE G
Original source
US-5069583-A, the United States Patent and Trademark Office, 3 December 1991
Document SHA-256
46d55b7a06633f68d6e7e0f38c82fb9d54fcda980d44823fbcc4c77e0434ea86

The present invention is an apparatus for directing a fluid stream from a source tube to a selected one of a plurality of outlet tubes in fluid flow communication with the source tube. Disposed within the source tube is an elongated sleeve, the sleeve having an inlet port and a single outlet port, the inlet port being in fluid flow communication with the source tube and the outlet port. The sleeve is longitudinally movable and rotatable within the source tube for selectively closing all of the outlet tubes and directing the fluid stream to a desired one of the outlet tubes. Apparatus is provided for rotating the longitudinally moving the sleeve.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

The present invention is an apparatus for directing a fluid stream from a source tube to a selected one of a plurality of outlet tubes in fluid flow communication with the source tube. Disposed within the source tube is an elongated sleeve, the sleeve having an inlet port and a single outlet port, the inlet port being in fluid flow communication with the source tube and the outlet port. The sleeve is longitudinally movable and rotatable within the source tube for selectively closing all of the outlet tubes and directing the fluid stream to a desired one of the outlet tubes. Apparatus is provided for rotating the longitudinally moving the sleeve.

1. Drawings

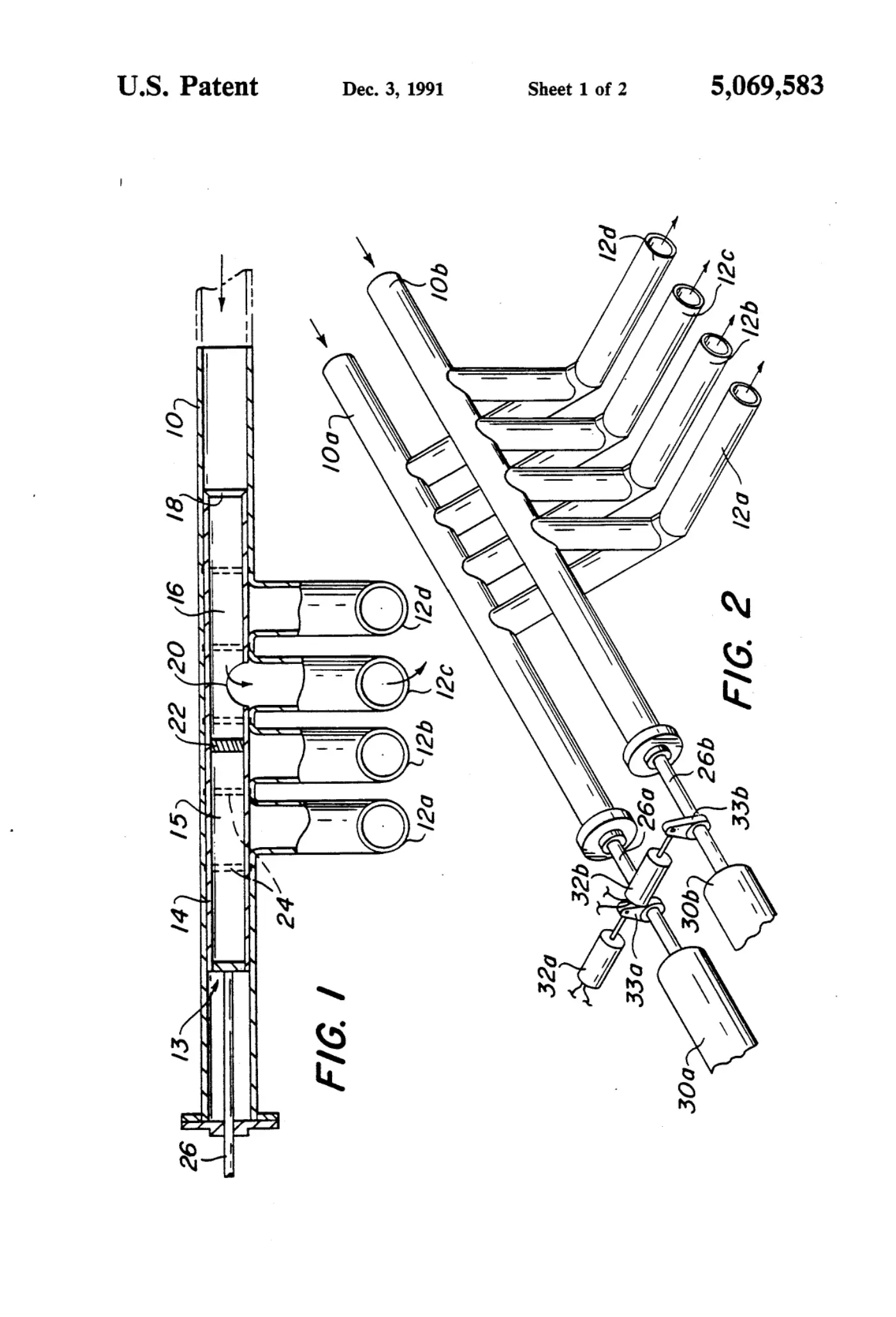

[0001]Sheet 1.

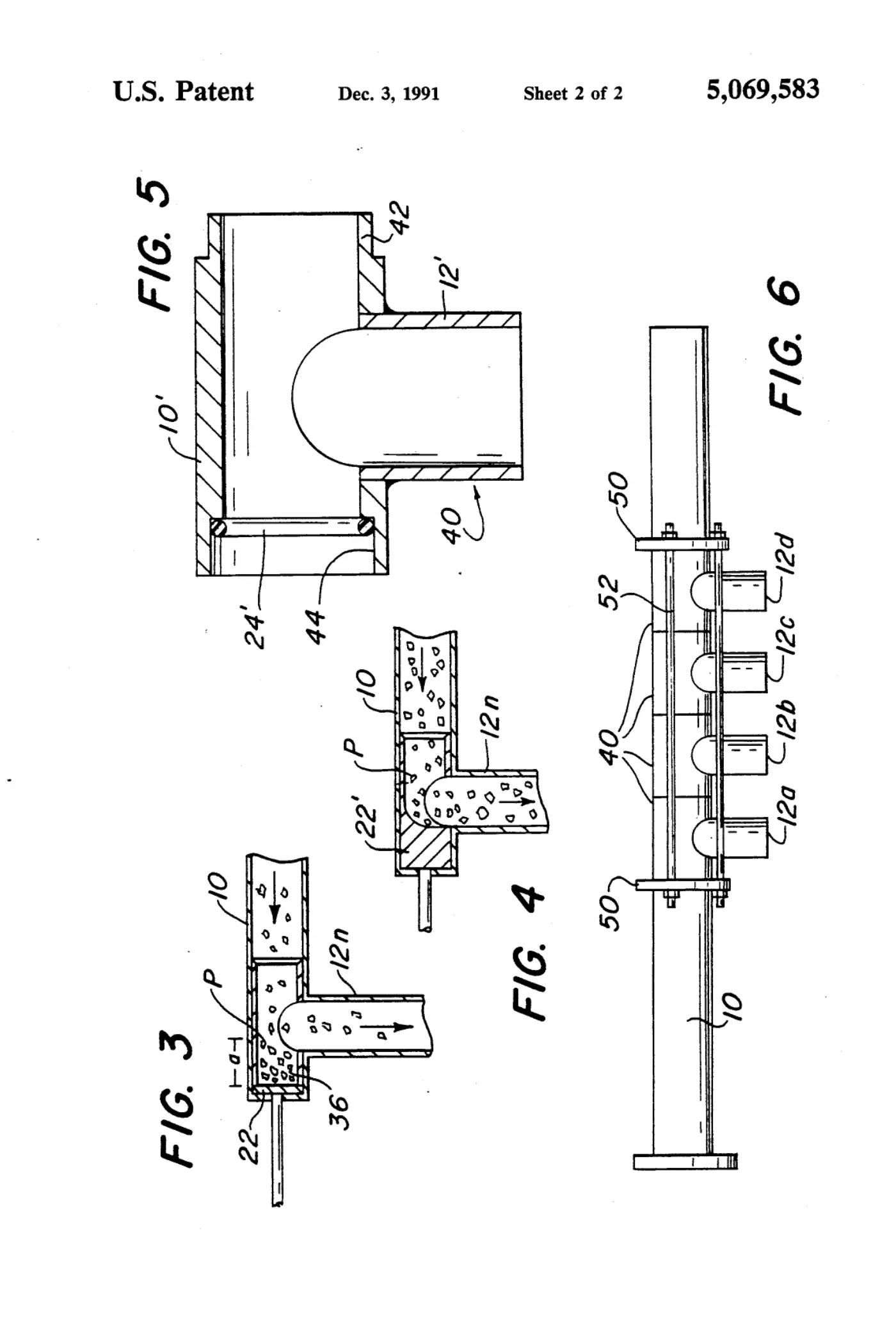

[0002]Sheet 2.
