Tool for handling a heavy elongate article

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
MASSEY CHARLES E
Original source
US-5024476-A, the United States Patent and Trademark Office, 18 June 1991
Document SHA-256
dd5cd642aa94d8f7cd75f43a1b8672157b41b4dd6824e2b60ccaaadf258e2f53

A tool for assisting in manually raising a heavy elongate article off a firm surface, comprises a handle having a pair of co-acting part-cyclindrical jaw members disposed at one end for gripping the article to be raised. A fulcrum member projects from one of the jaws on which the tool can be pivoted to raise the article off the surface. During the raising process the jaws are held together by a second handle pivoted to the first in a scissors-like manner, or by a pair of pivoted locking arms.

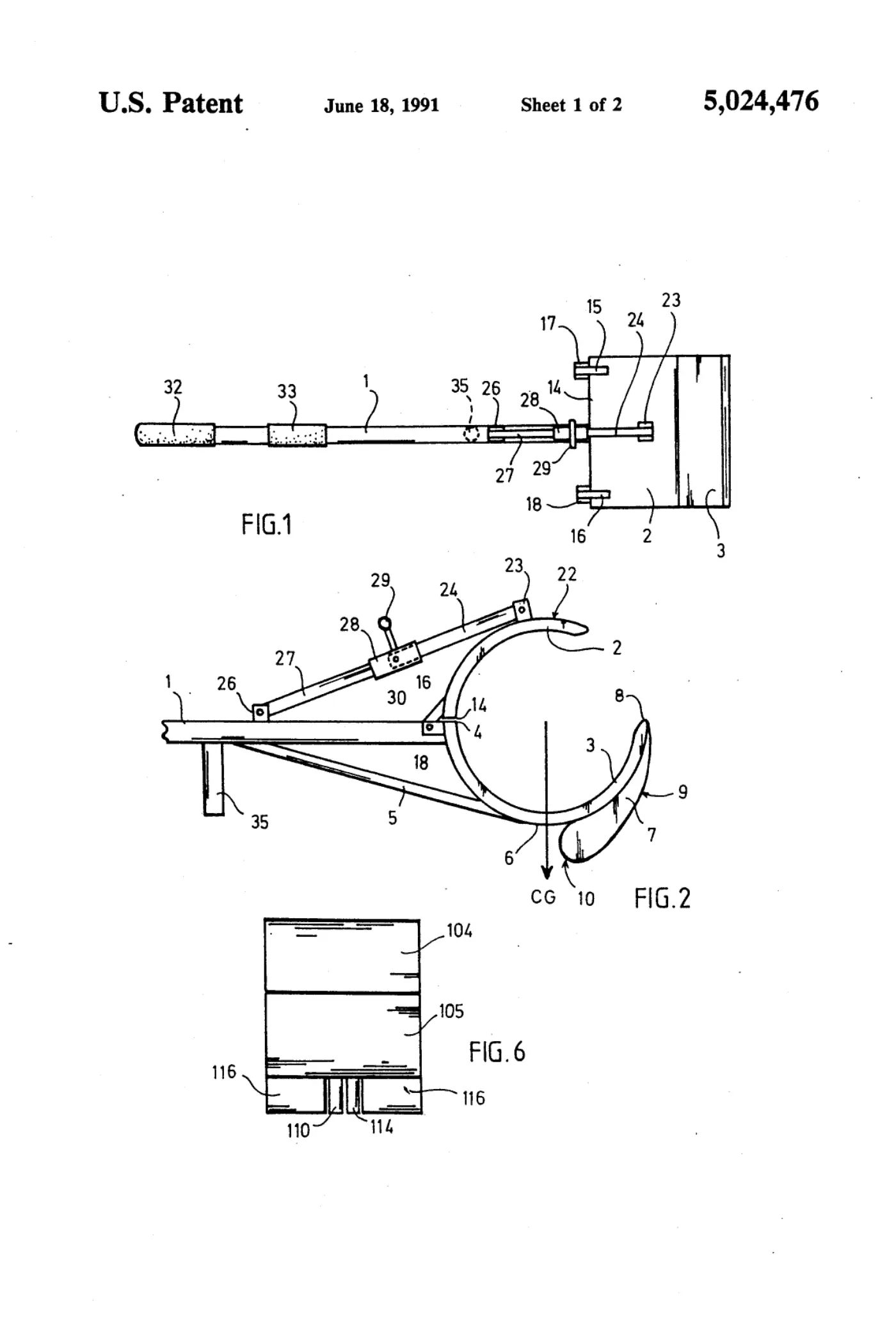

Sheet 1
Sheet 1

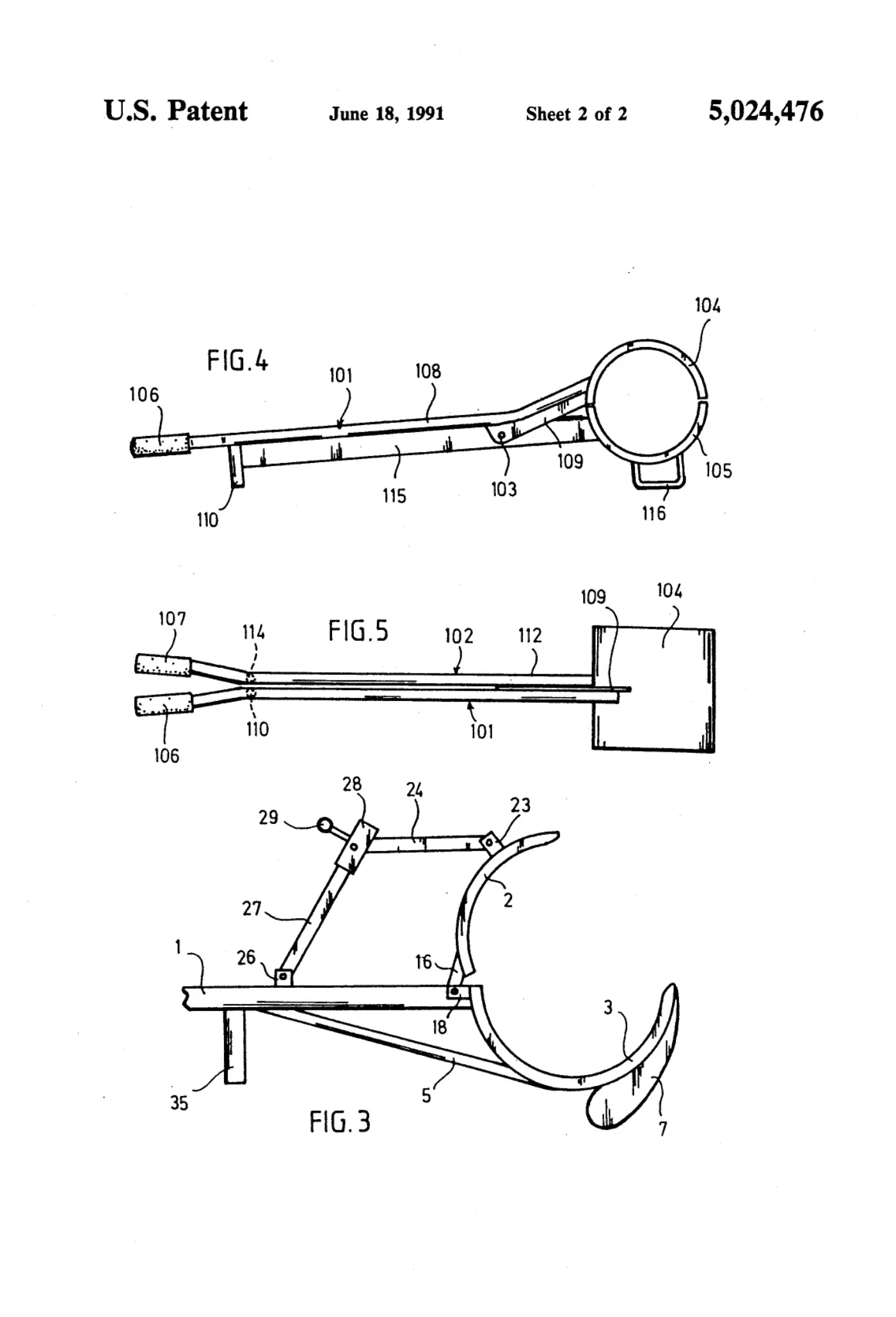

Sheet 2
Sheet 2

Abstract

A tool for assisting in manually raising a heavy elongate article off a firm surface, comprises a handle having a pair of co-acting part-cyclindrical jaw members disposed at one end for gripping the article to be raised. A fulcrum member projects from one of the jaws on which the tool can be pivoted to raise the article off the surface. During the raising process the jaws are held together by a second handle pivoted to the first in a scissors-like manner, or by a pair of pivoted locking arms.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.
