Device for fixation of part on a support, especially of an implant on a bone

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
SURER PATRICK
Assignee
SURER PATRICK
Original source
US-5013313-A, the United States Patent and Trademark Office, 7 May 1991
Document SHA-256
a63afeed2d0705cef392353e7644b508d9439e1f058ca71eef8cdaeee613ee8e

This invention relates, in particular, to a device for attachment of a part (10) on a support (12) with the aid of at least one fixation member such as a screw (14) comprising a head (18) and a rod (16) anchored in the substance constituting the support, the part (10) comprising a passage (34) through which passes the rod (16) and a support surface for the head (18). The device is completed by a supplementary locking member (46) threaded externally and cooperating with a complementary threading provided in the part (10) in order to lock the head of the fixation member relative to the said part and to apply it against the support surface. Application in particular for the fixation of implants or ancillary material on bones.

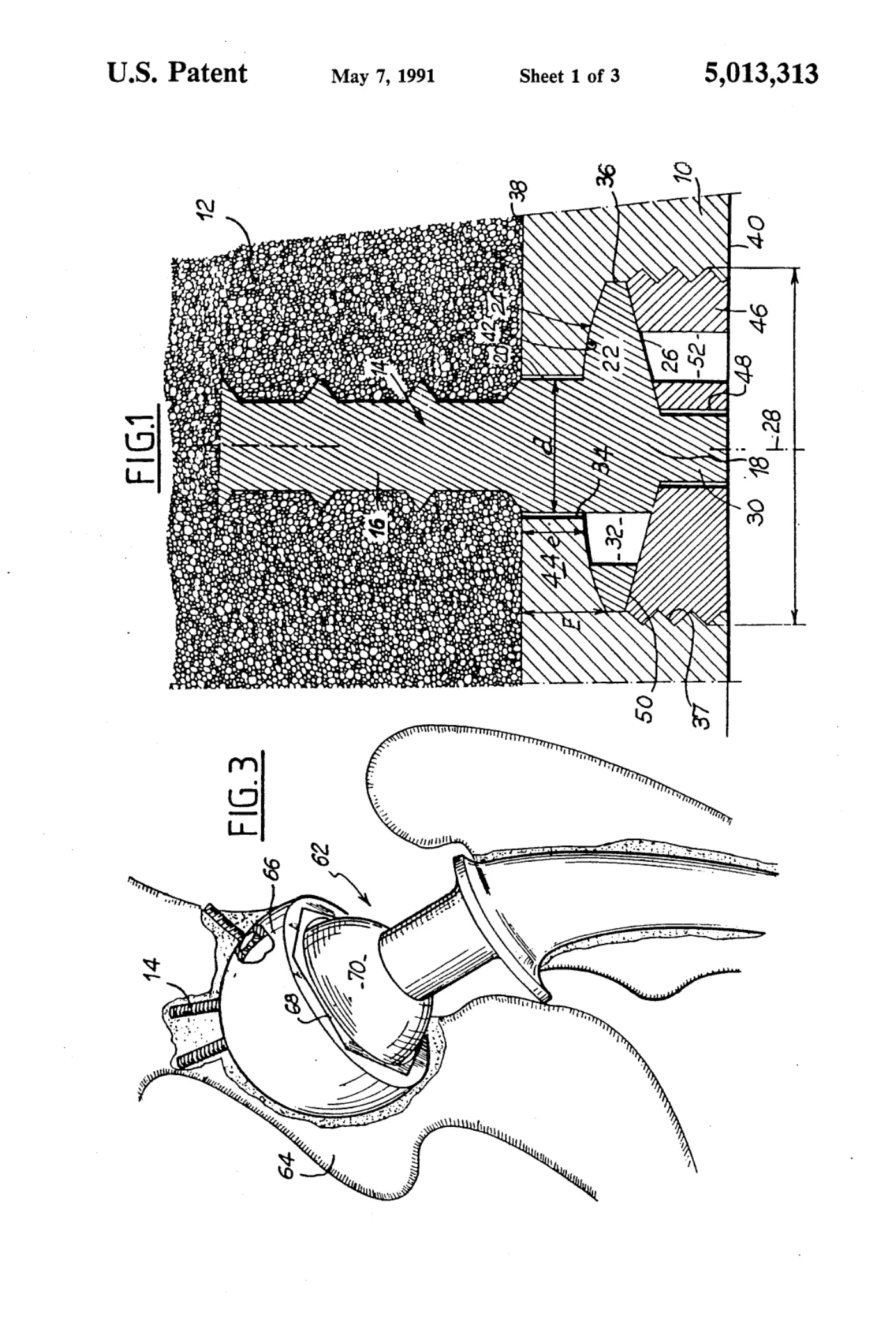

Sheet 1
Sheet 1

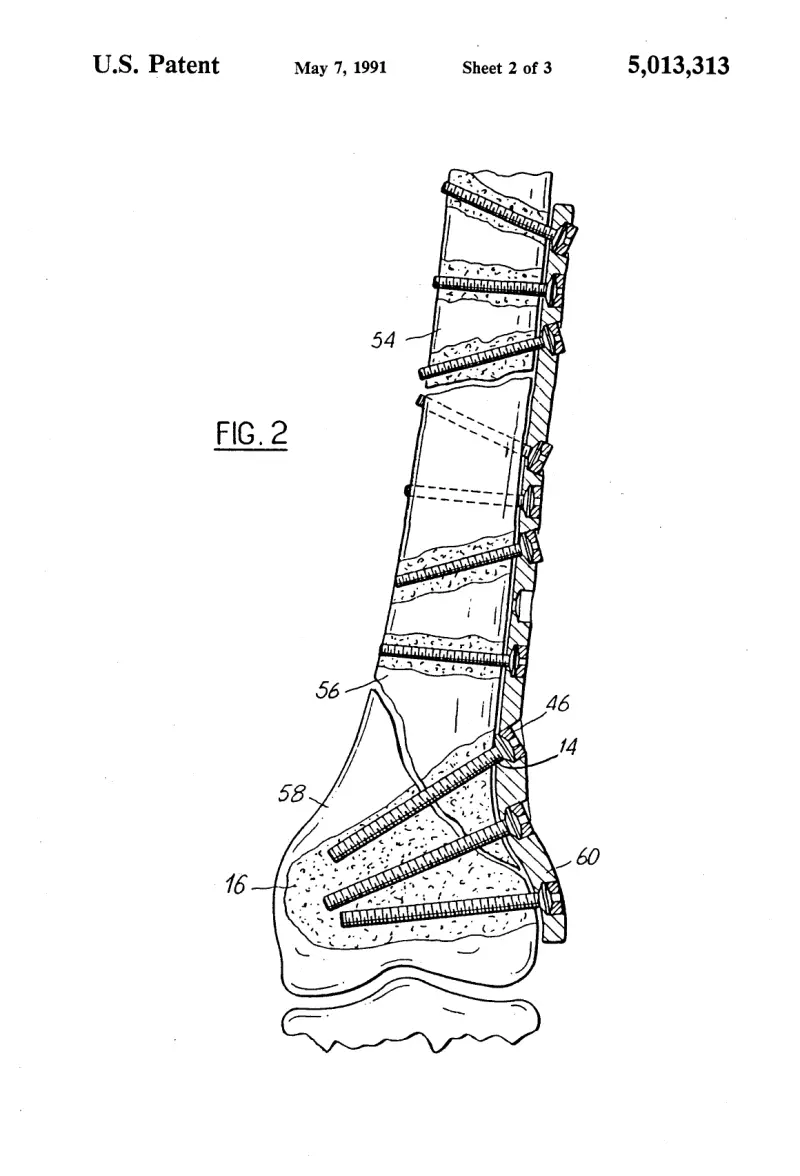

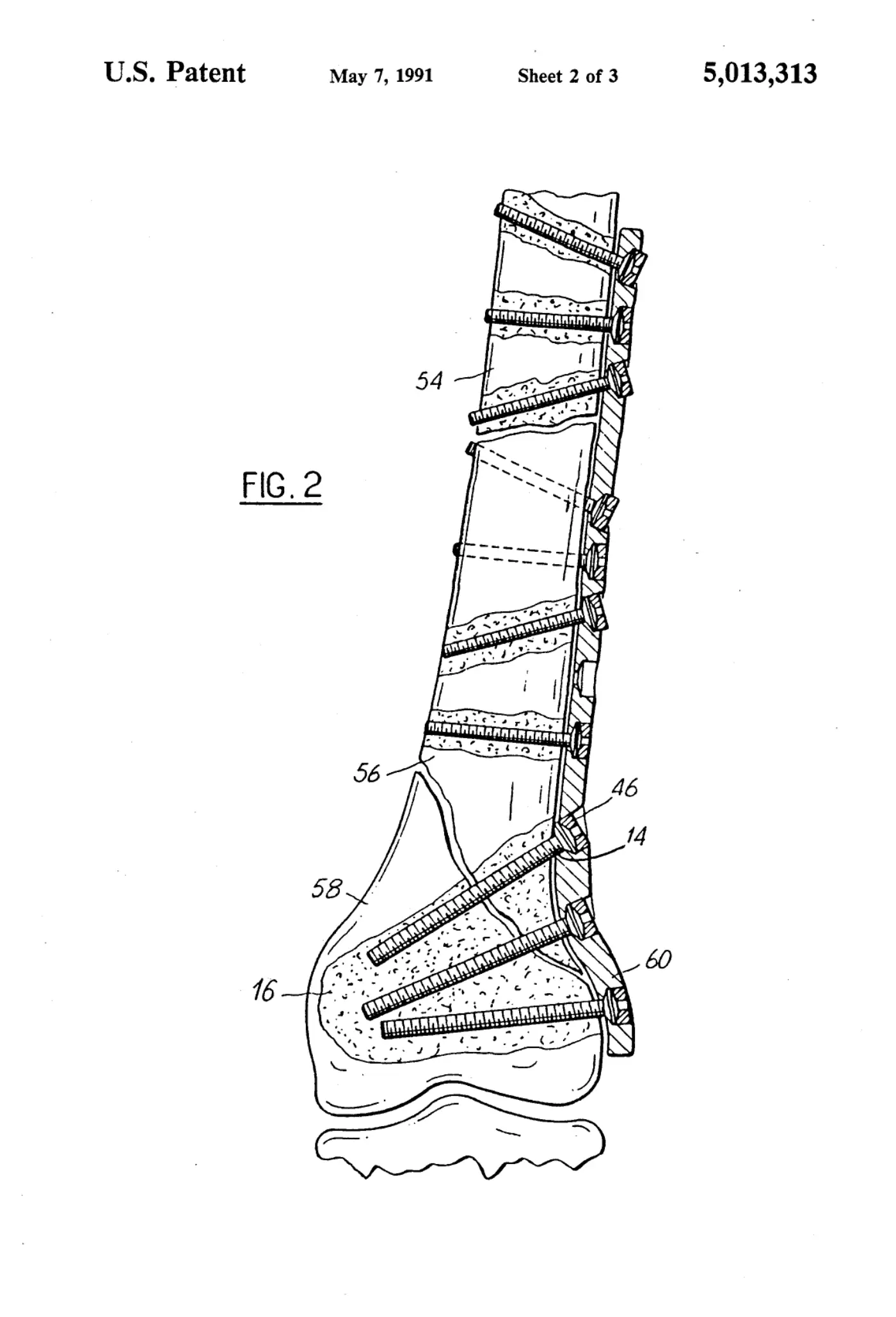

Sheet 2
Sheet 2

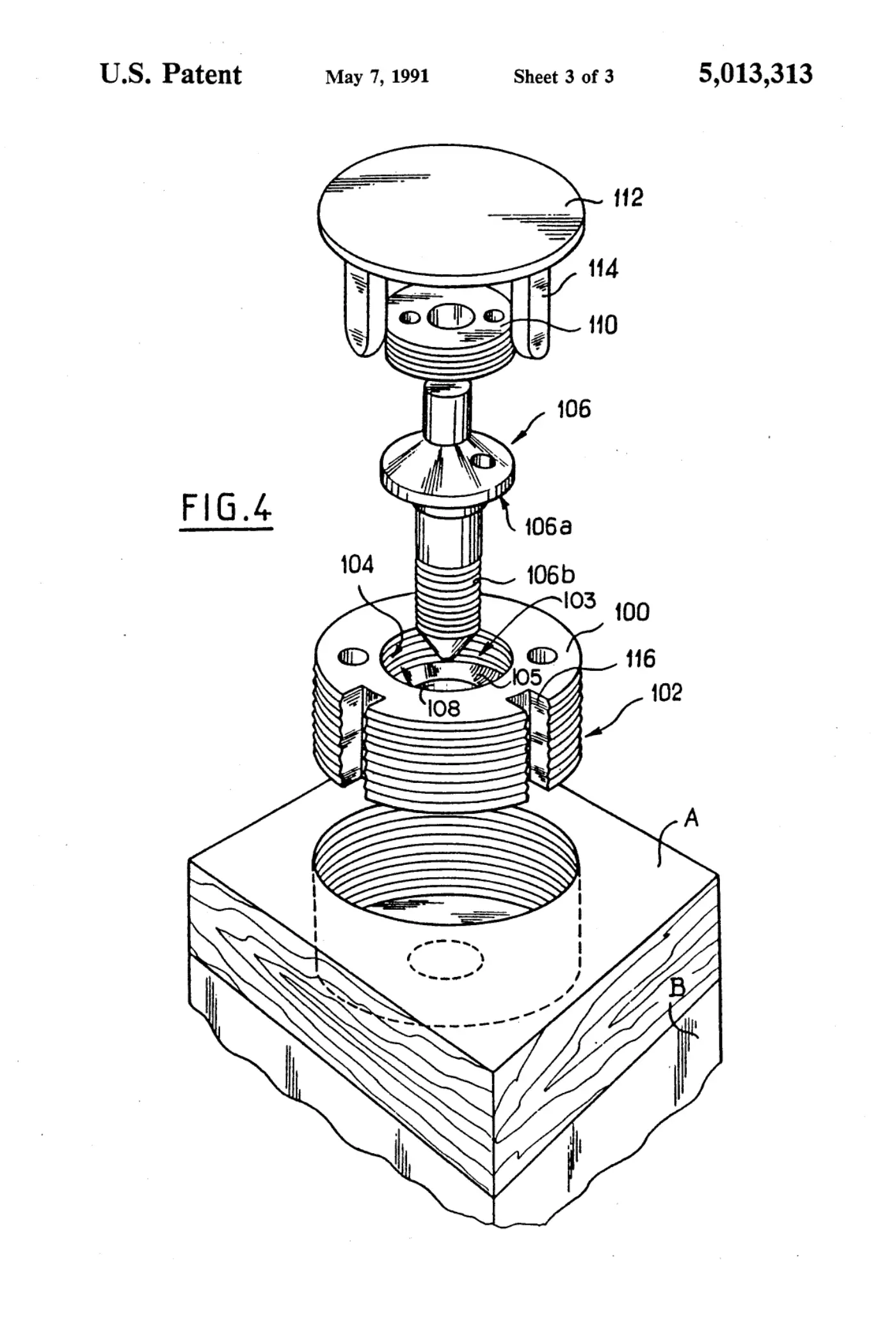

Sheet 3
Sheet 3

Abstract

This invention relates, in particular, to a device for attachment of a part (10) on a support (12) with the aid of at least one fixation member such as a screw (14) comprising a head (18) and a rod (16) anchored in the substance constituting the support, the part (10) comprising a passage (34) through which passes the rod (16) and a support surface for the head (18). The device is completed by a supplementary locking member (46) threaded externally and cooperating with a complementary threading provided in the part (10) in order to lock the head of the fixation member relative to the said part and to apply it against the support surface. Application in particular for the fixation of implants or ancillary material on bones.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.
