Machine for handling modular building components

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Assignee
SEARLE GREGORY P
Original source
US-4969789-A, the United States Patent and Trademark Office, 13 November 1990
Document SHA-256
8b2b9550bad9dbda1d6bdbc1518ceb42fa16b05d43a8472c81454c507c4b2835

An apparatus for handling and positioning building components of the type which are used in retaining walls or the like includes a vehicular support having an articulatable boom extending therefrom, and a gripper assembly at the end of the boom. The vehicle and boom are operatable through a remote control assembly by a worker who may be standing near the structure which is being constructed. Several species of gripping assemblies are included for attachment to the boom.

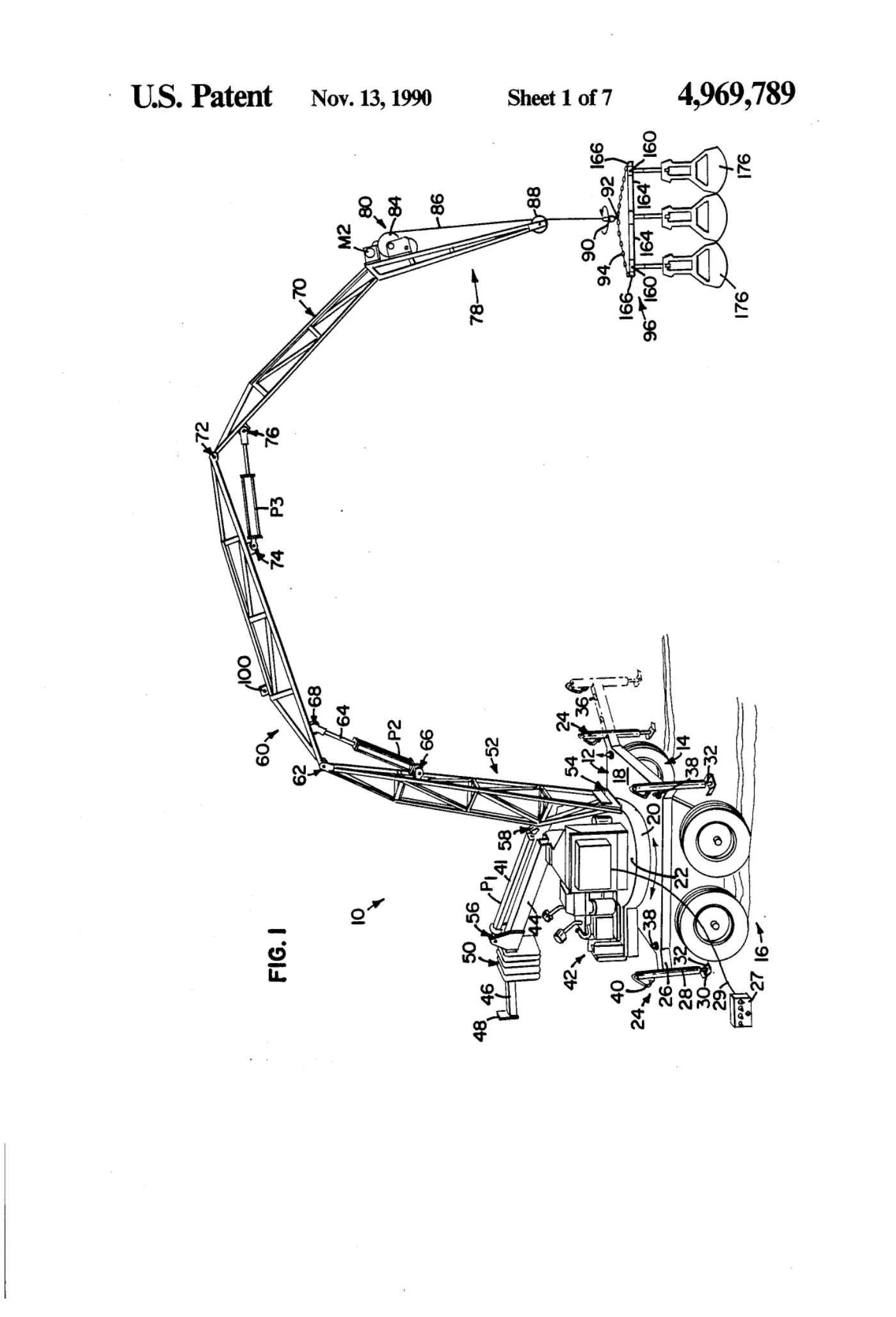

Sheet 1
Sheet 1
Sheet 2

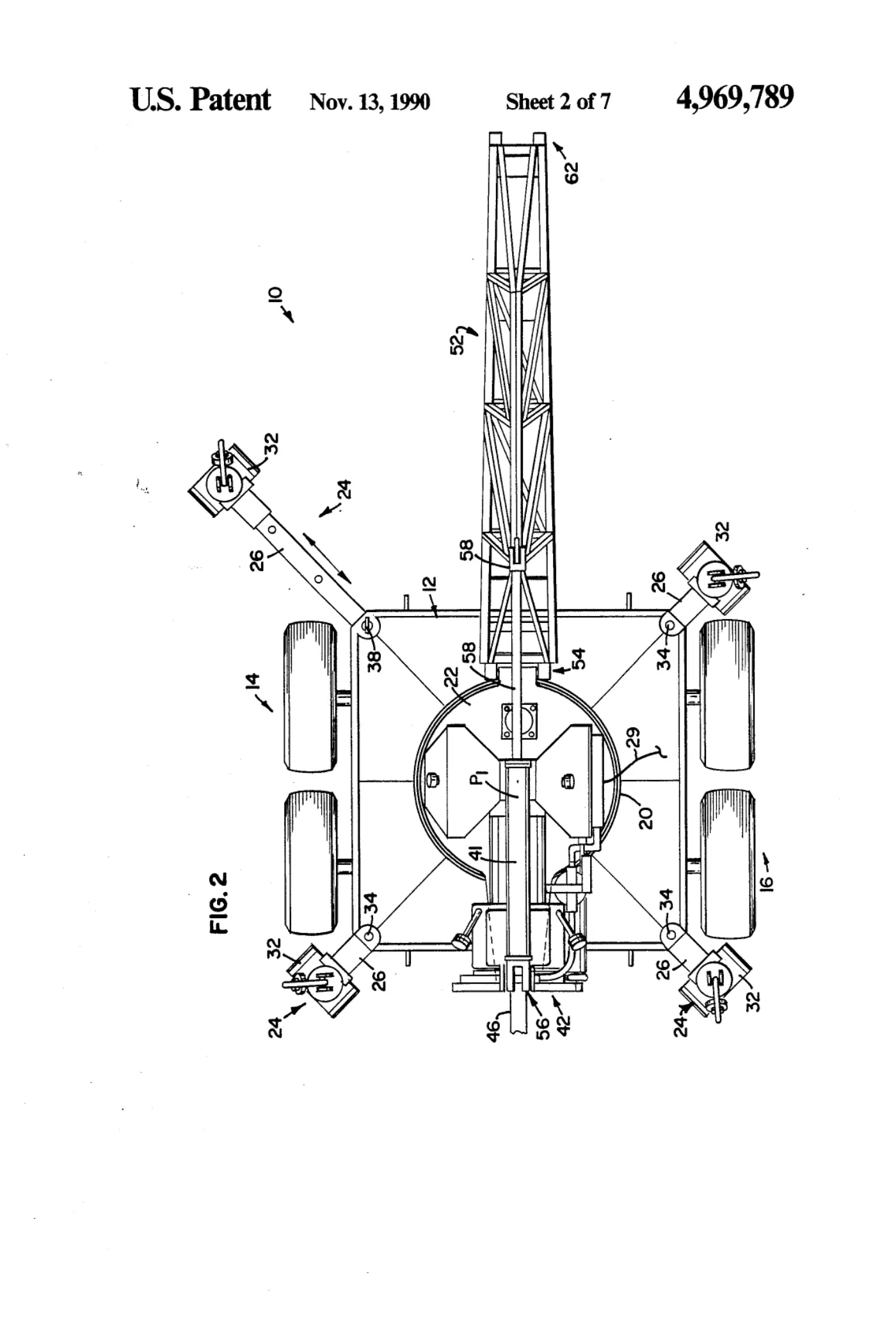

Sheet 2

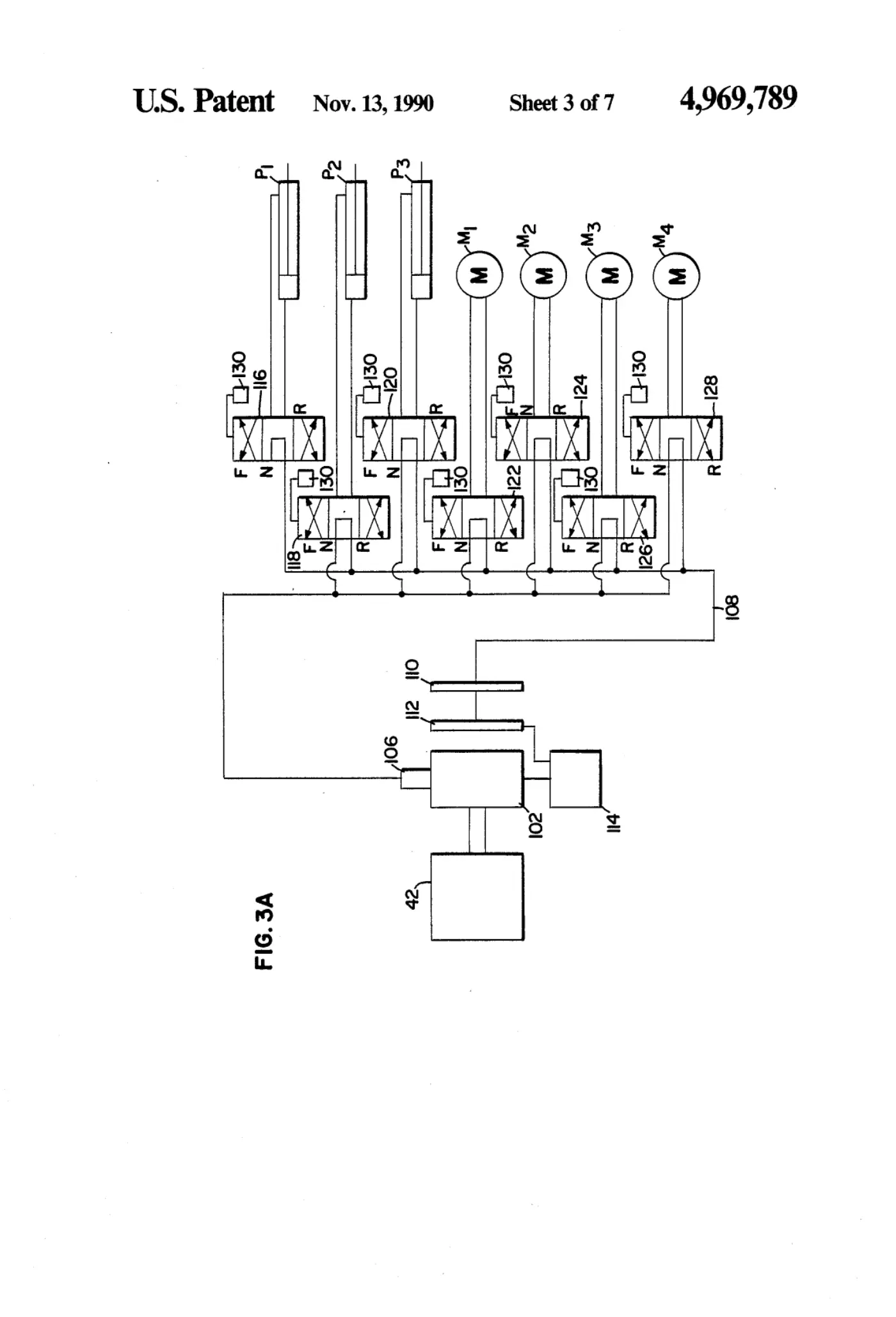

Sheet 3
Sheet 3

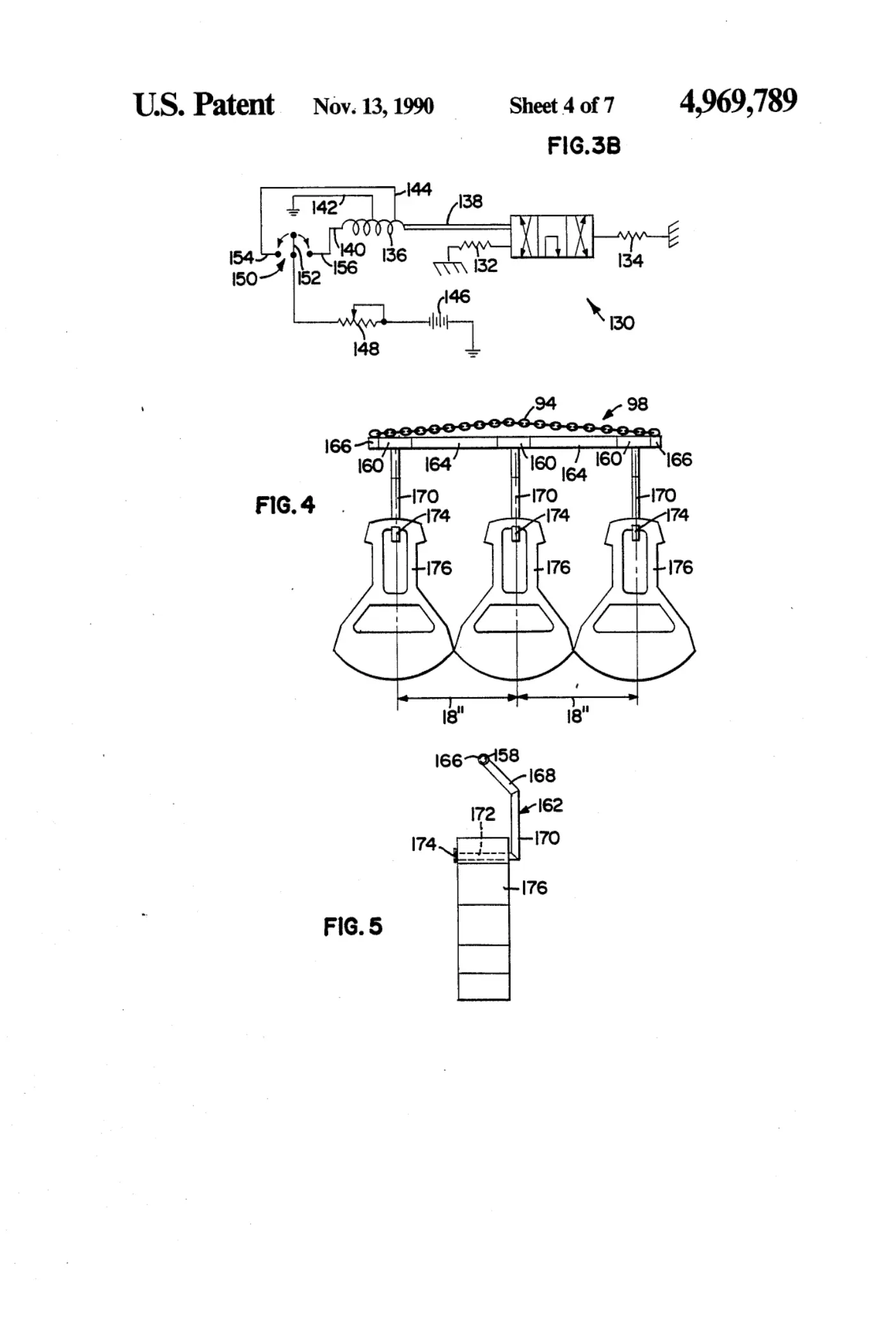

Sheet 4
Sheet 4

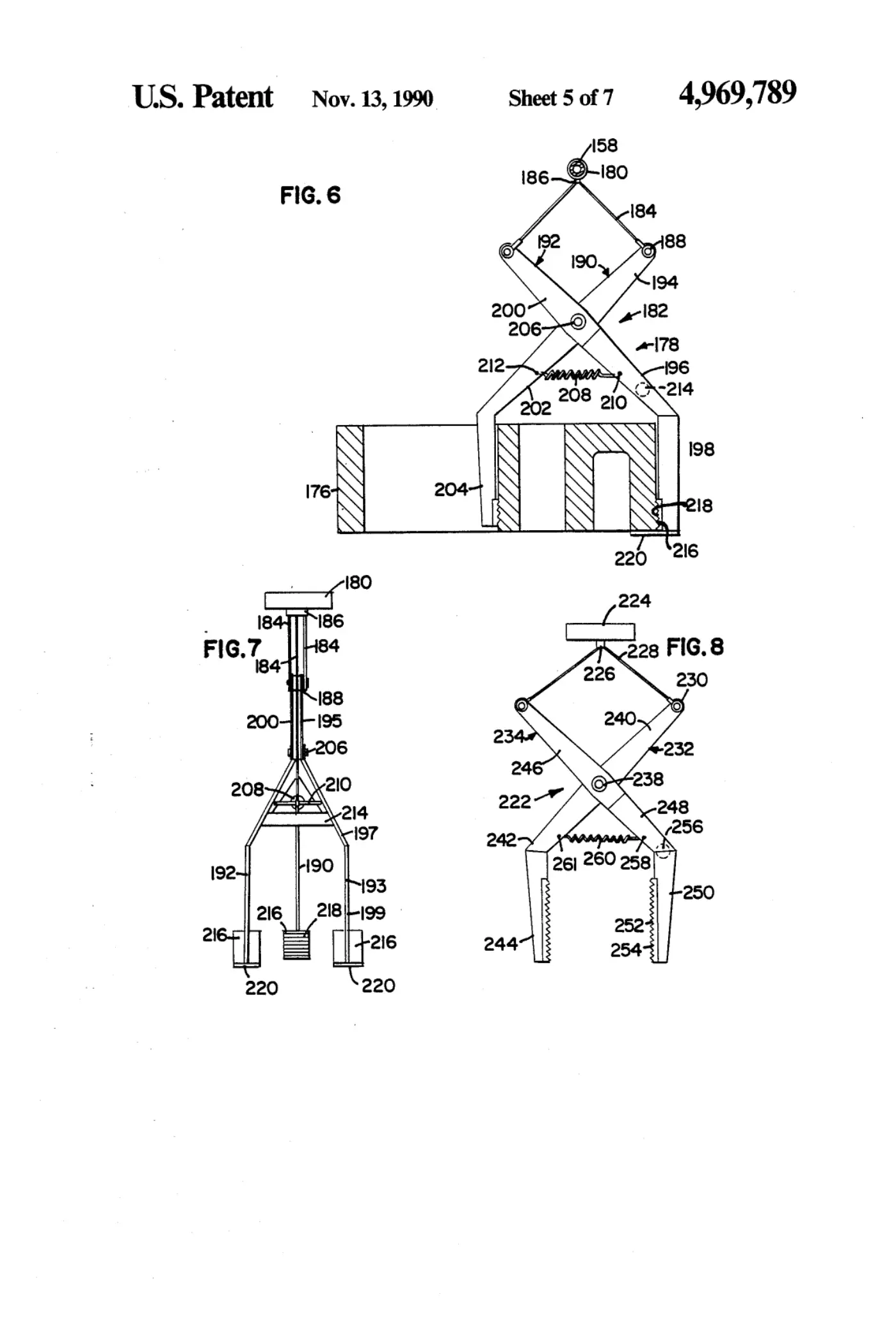

Sheet 5
Sheet 5

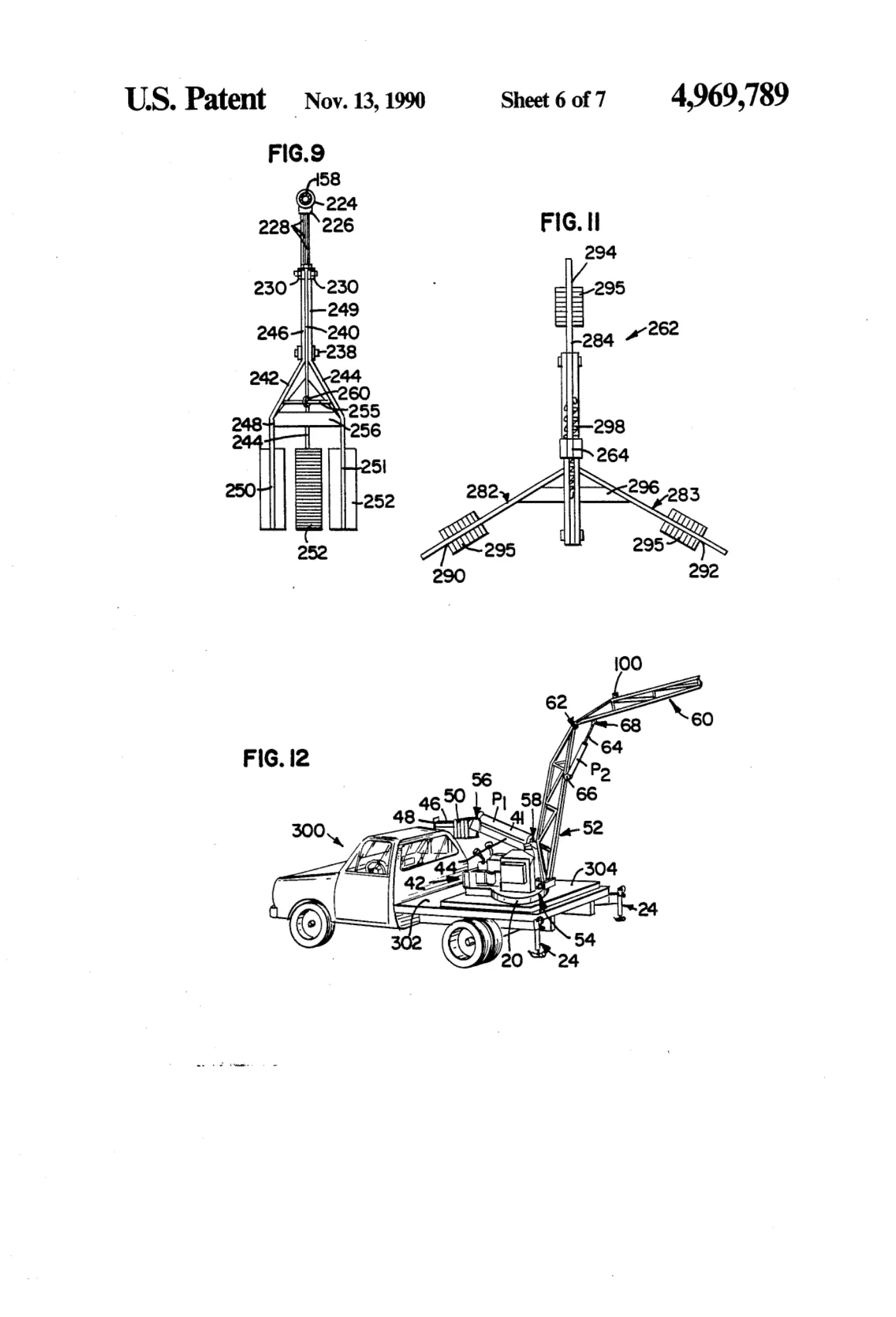

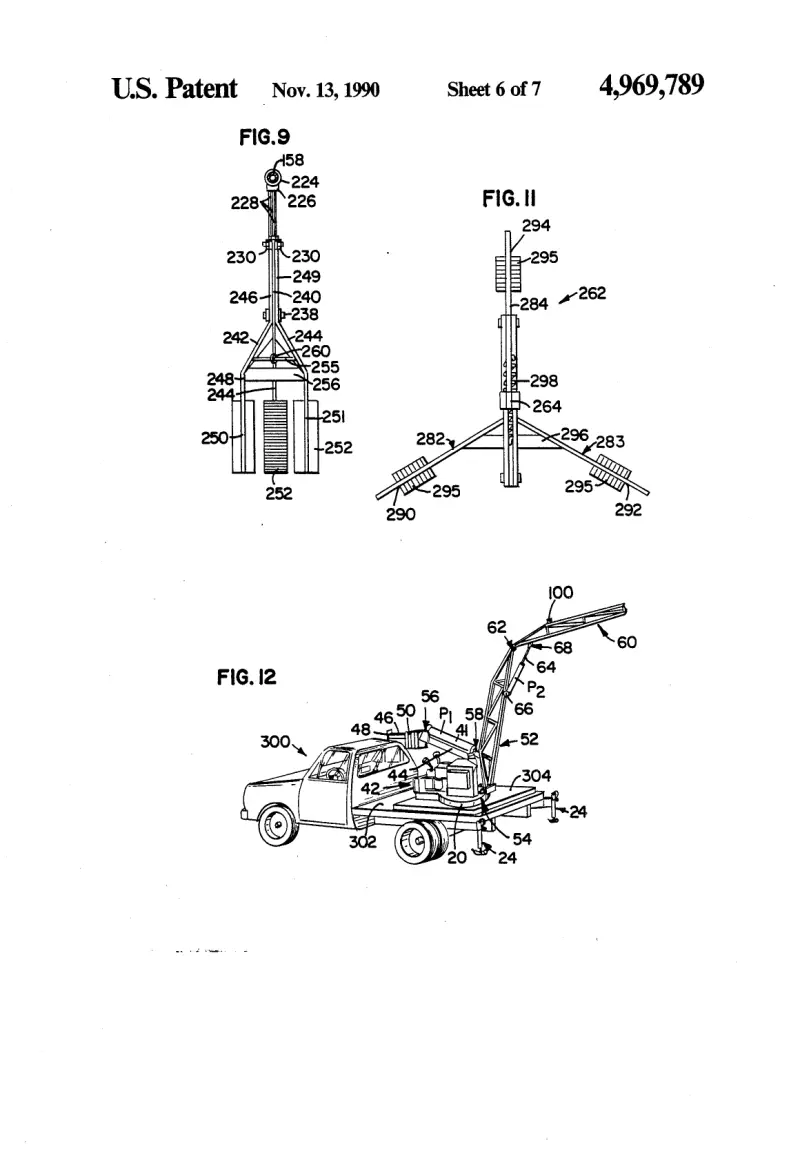

Sheet 6
Sheet 6

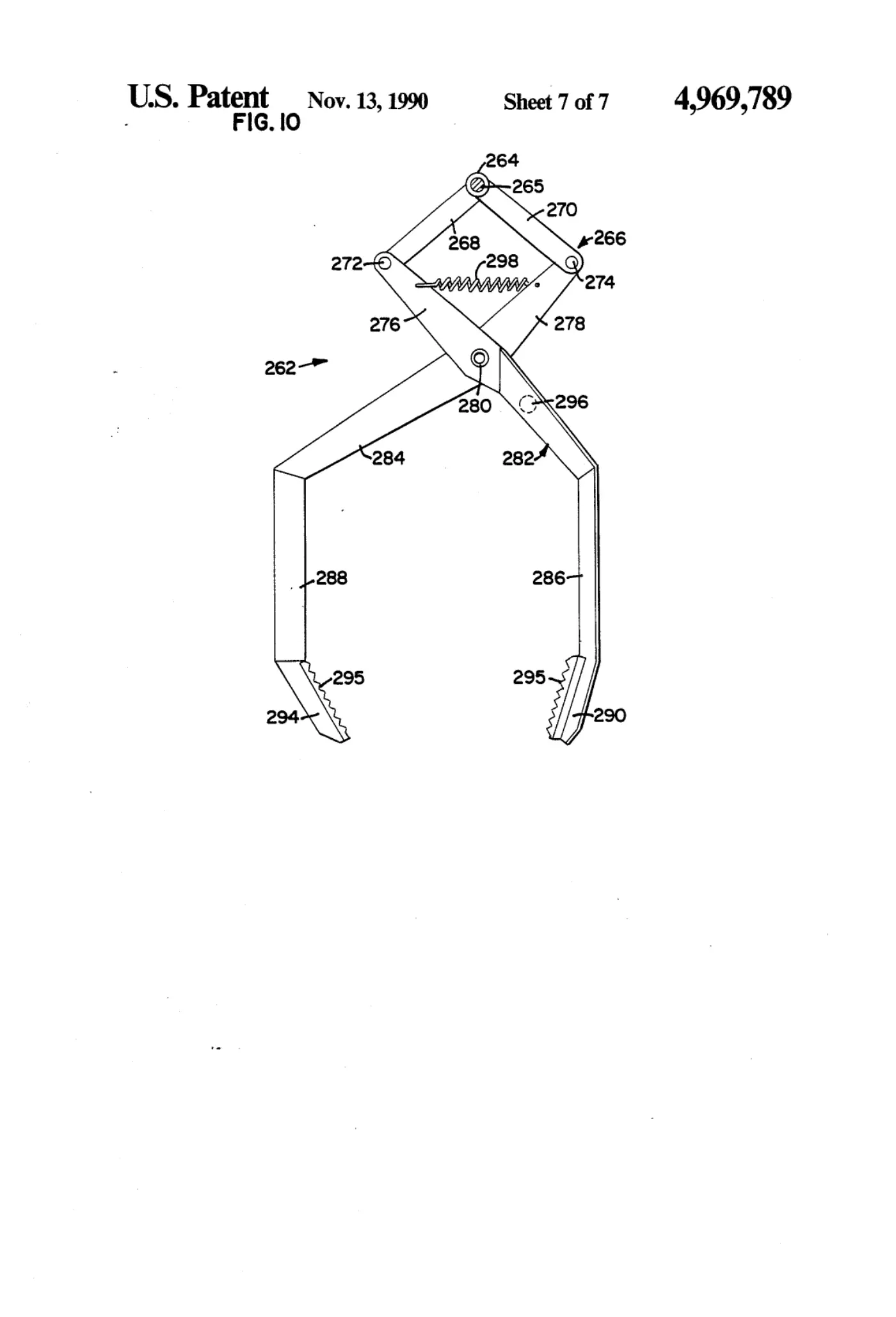

Sheet 7
Sheet 7
Sheet 8
Sheet 8

Abstract

An apparatus for handling and positioning building components of the type which are used in retaining walls or the like includes a vehicular support having an articulatable boom extending therefrom, and a gripper assembly at the end of the boom. The vehicle and boom are operatable through a remote control assembly by a worker who may be standing near the structure which is being constructed. Several species of gripping assemblies are included for attachment to the boom.
