Suction lifting device

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Inventors
KING JAMES F, WINBORNE BRODIE T
Assignee
WINBORNE COMPANY LTD
Original source
US-4946335-A, the United States Patent and Trademark Office, 7 August 1990
Document SHA-256
b2ad0fc5bd12aabfce7cb42fcdb93a1152bd0934356aabc01f4778aba17e48b6

A suction lifting device for lifting and laying a layered plurality of individual slabs, bricks, stones and the like in unison to provide an exterior paved surface of a road, walk, roof or the like. A plurality of vacuum pucks are supported by the vacuum plenum of a frame through flexible tubular members which operably engage a similar number of slabs or bricks and move them in unison to a preselected and configured location. The frame is carried by a supporting means and a load-bearing member which can be mounted on a self-propelled apparatus.

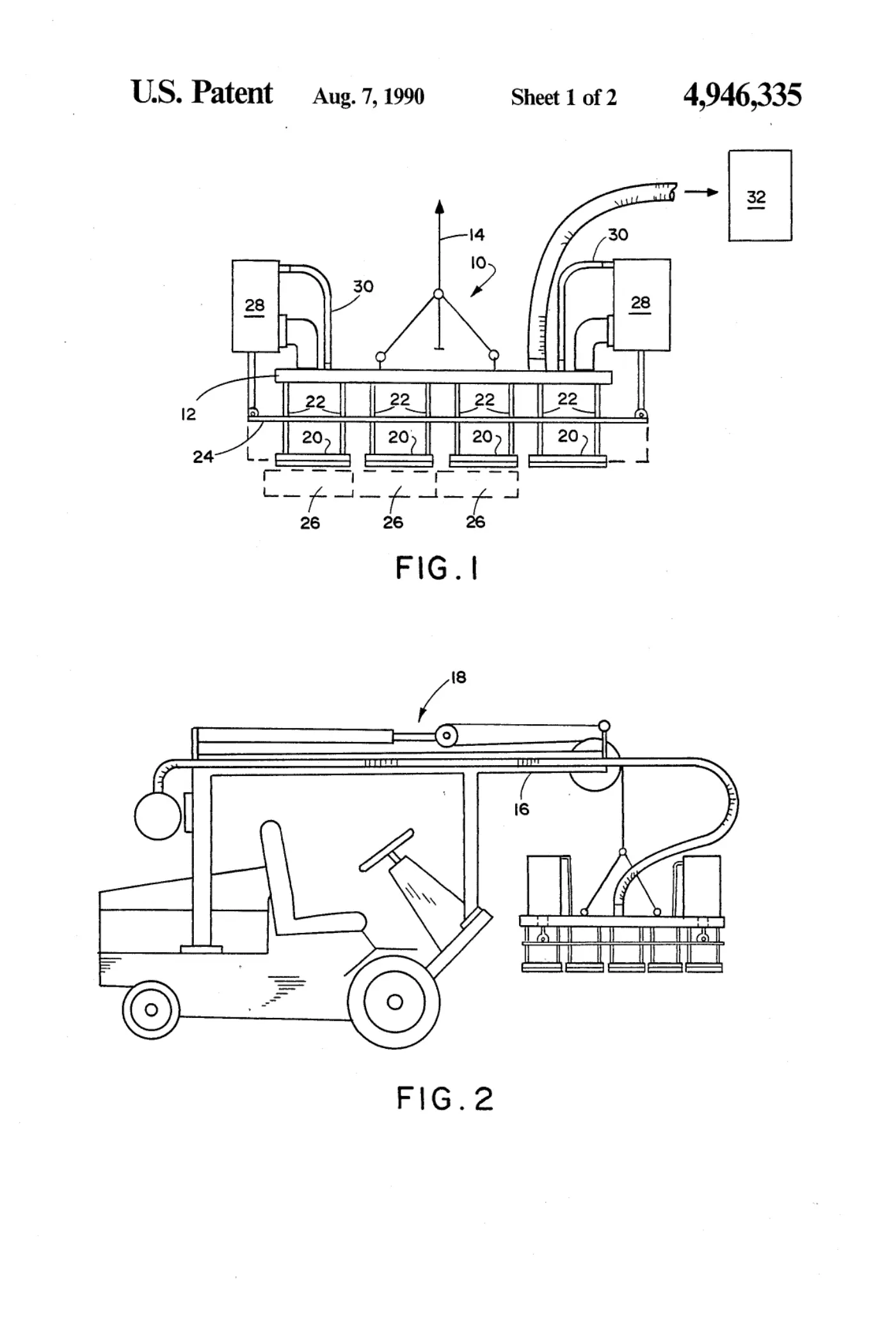

Sheet 1
Sheet 1

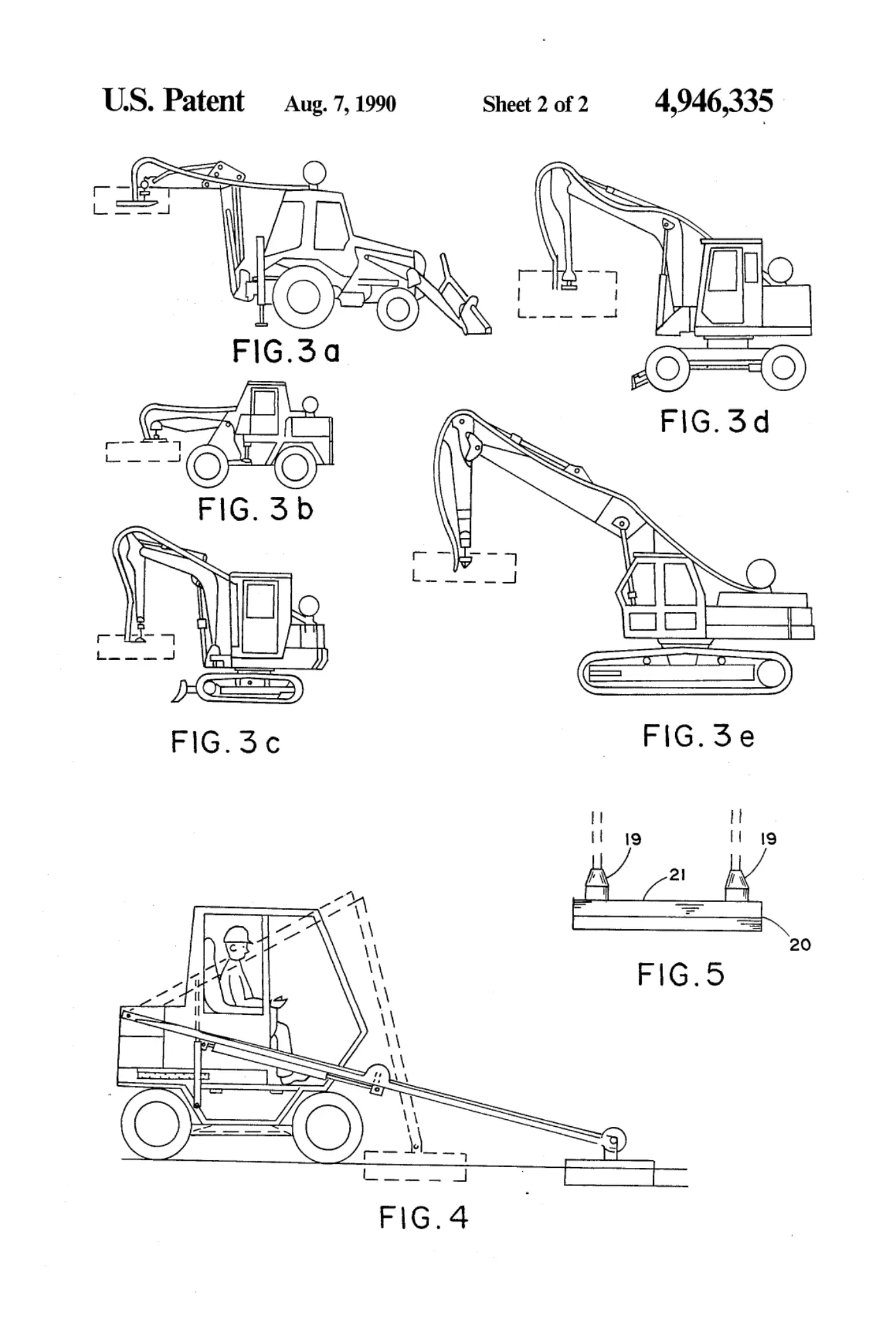

Sheet 2
Sheet 2

Abstract

A suction lifting device for lifting and laying a layered plurality of individual slabs, bricks, stones and the like in unison to provide an exterior paved surface of a road, walk, roof or the like. A plurality of vacuum pucks are supported by the vacuum plenum of a frame through flexible tubular members which operably engage a similar number of slabs or bricks and move them in unison to a preselected and configured location. The frame is carried by a supporting means and a load-bearing member which can be mounted on a self-propelled apparatus.
