Rotatable, self-aligning lobe coupling

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Inventors
MATIJICK ROBERT E, NGUYEN PHUSON
Assignee
WRIGHT BARRY CORP
Original source
US-4938731-A, the United States Patent and Trademark Office, 3 July 1990
Document SHA-256
9b82beb0d23806b2651676c2a6e2c7299dff853c716ef565d8068eddc9bbe370

A rotatable coupling having a male member (2) and a female member (4) each rotatable about central axes α and β. The male member has lobes (16) and the female member cavities (50) for mutual engagement. The male lobes terminate in wedge-shaped portions (18), the edges of which lie in a common plane. The female terminates in a flat bottom surface (40).

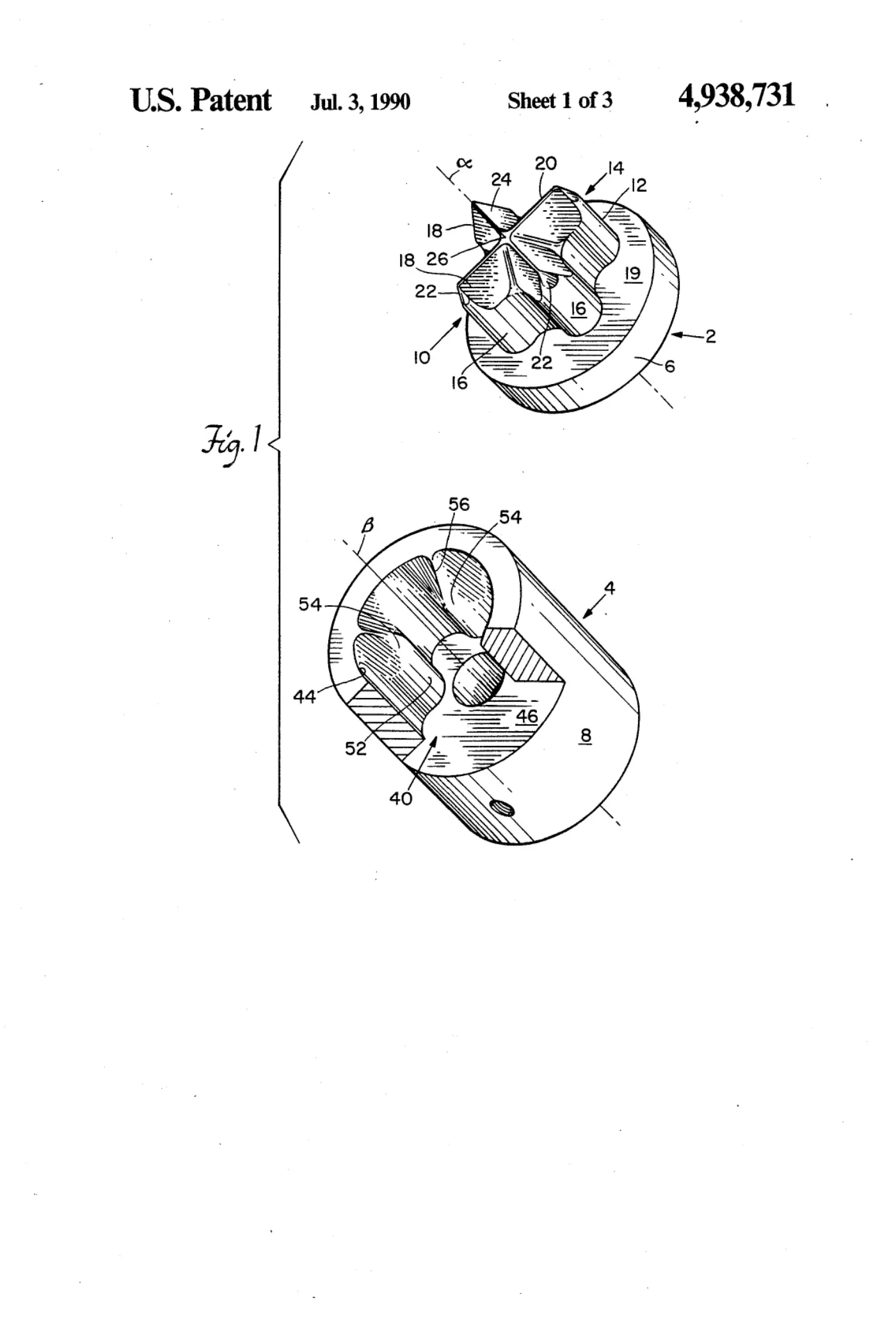

Sheet 1
Sheet 1

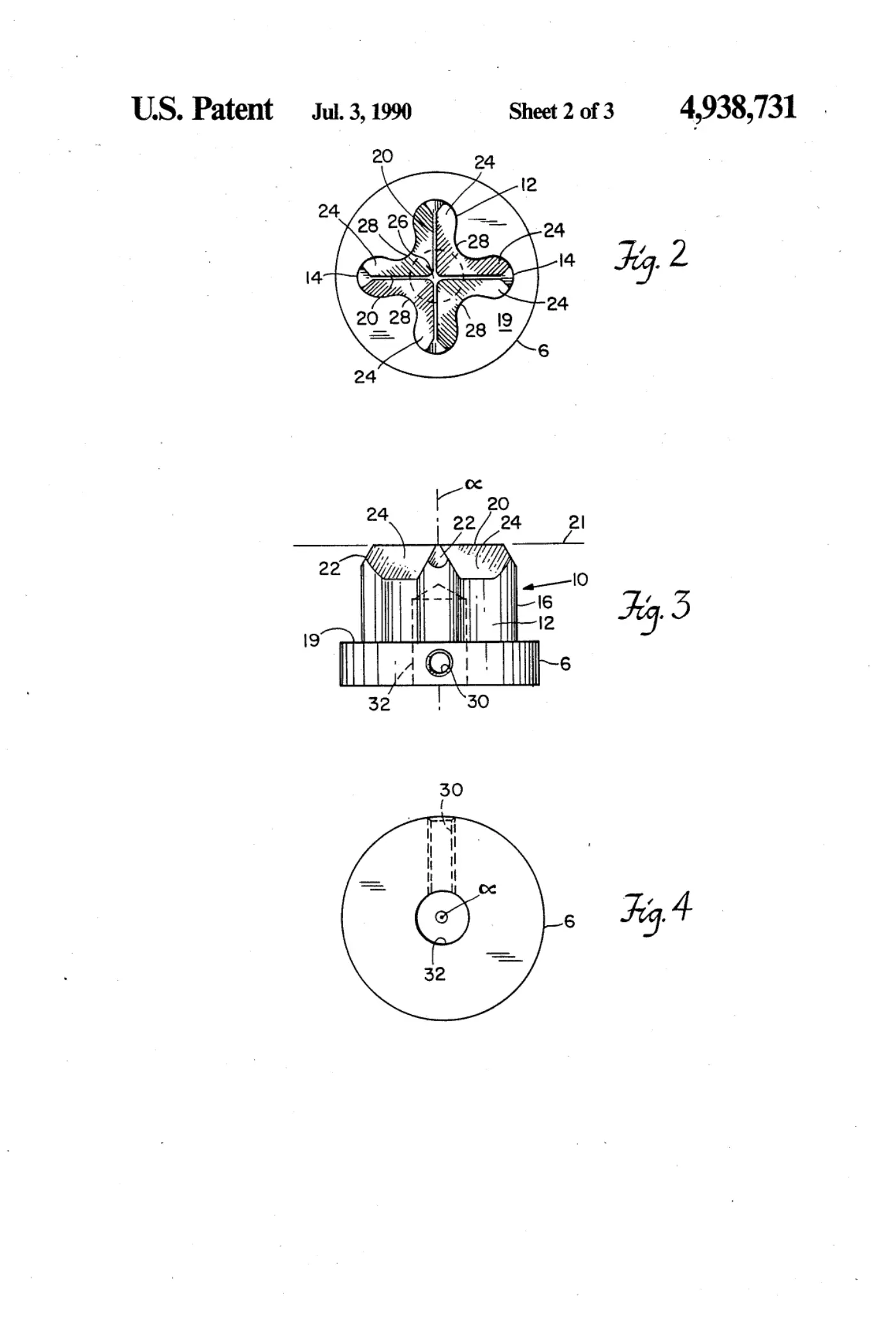

Sheet 2
Sheet 2

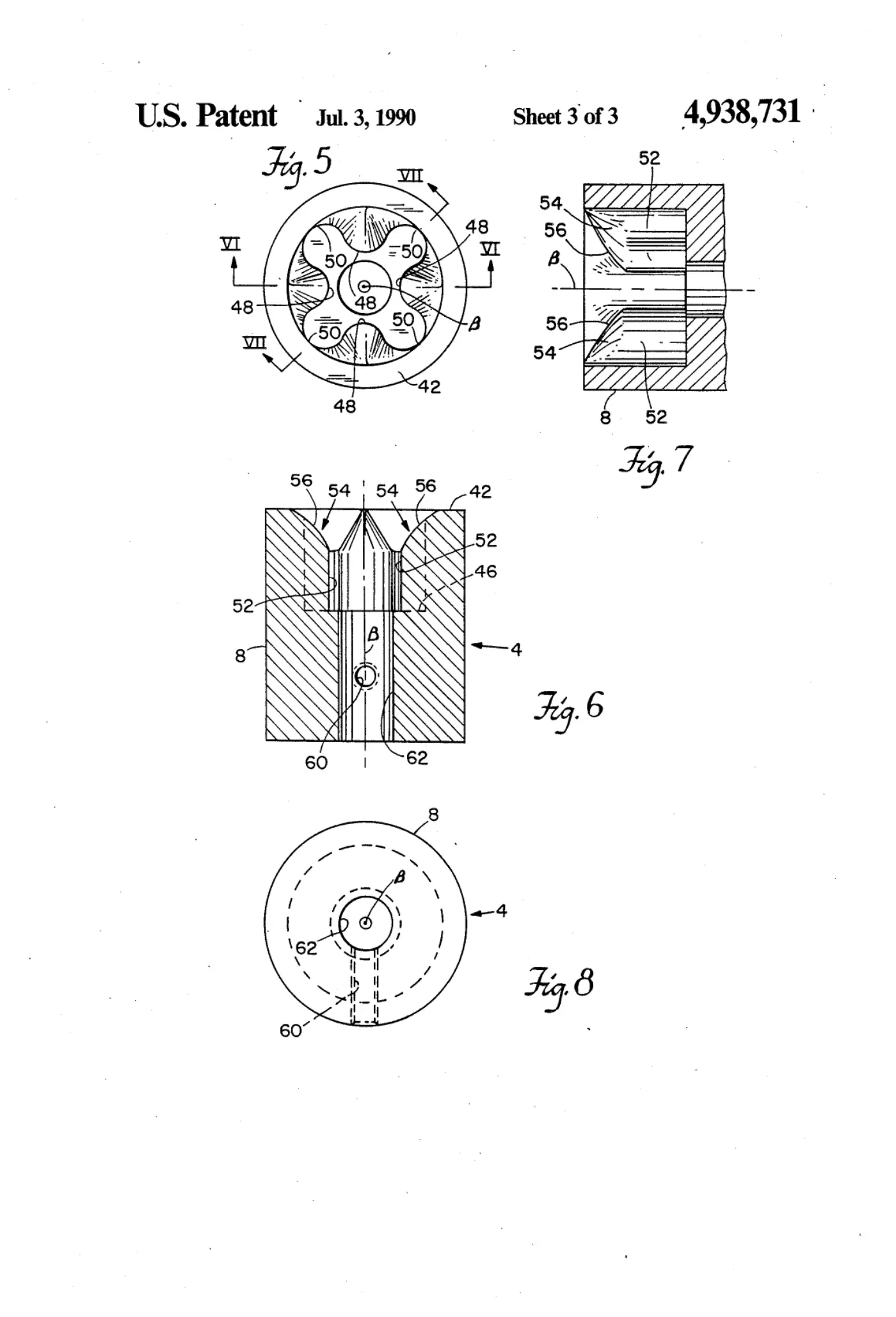

Sheet 3
Sheet 3

Abstract

A rotatable coupling having a male member (2) and a female member (4) each rotatable about central axes α and β. The male member has lobes (16) and the female member cavities (50) for mutual engagement. The male lobes terminate in wedge-shaped portions (18), the edges of which lie in a common plane. The female terminates in a flat bottom surface (40).
