Device for determining the inclination of a plane with respect to theoretical horizontal plane

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
TERRAGNI EZIO
Original source
US-4922620-A, the United States Patent and Trademark Office, 8 May 1990
Document SHA-256
102a4d7ab77a6d31759155bca6b064984db5f987967ca9e9598ff4a8b7867d19

The present invention relates to a device for determining the inclination of a plane with respect to a theoretical horizontal plane, including a box-like body defining a base plane. An inclination detector element is rotatably associated with the box-like body; light detectors determine the position of the detector element with respect to the base plane; a display indicates the inclination of the base plane relatively to a theoretical horizontal plane. The light detector and the display are powered by batteries and operated by a switch.

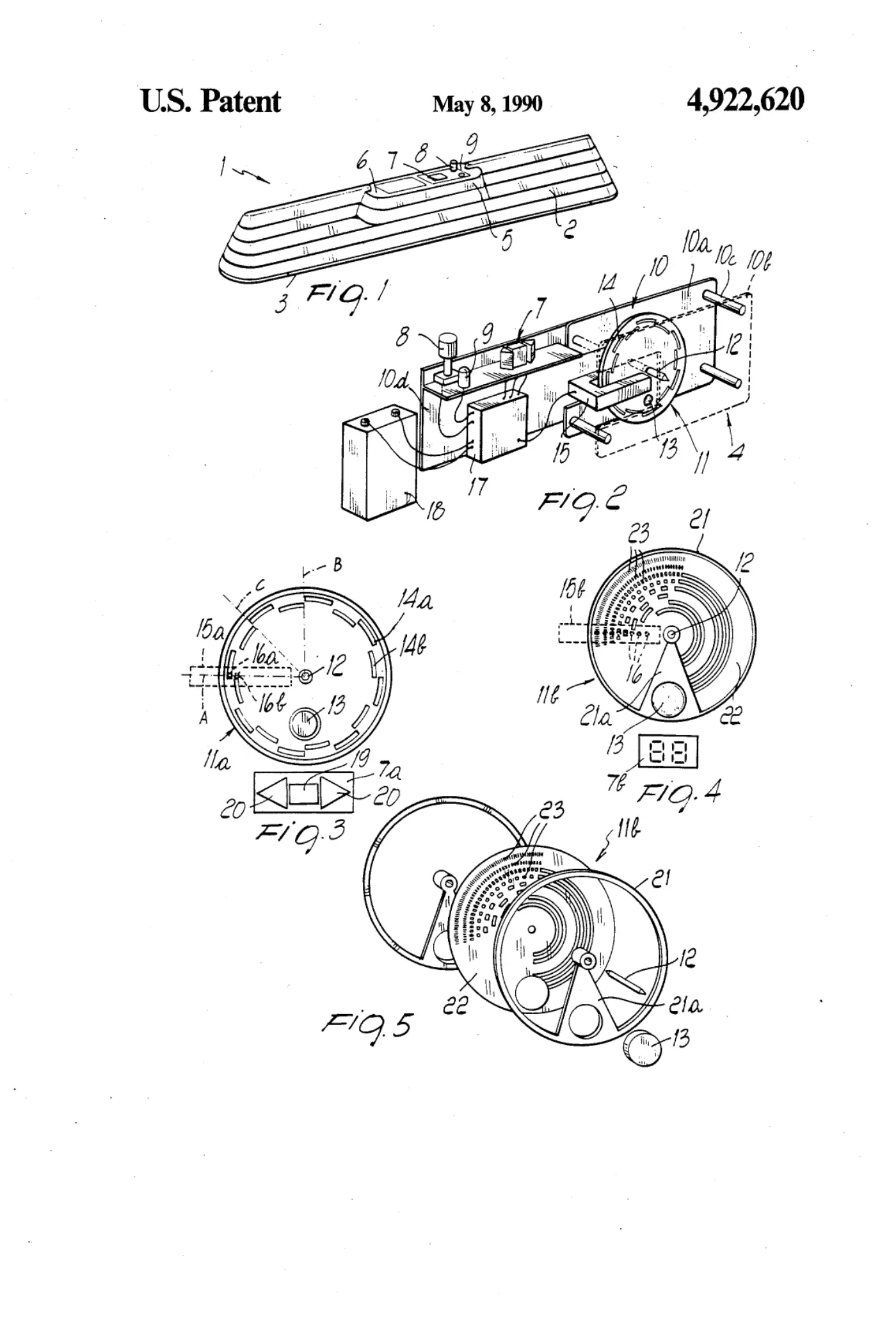

Sheet 1
Sheet 1

Abstract

The present invention relates to a device for determining the inclination of a plane with respect to a theoretical horizontal plane, including a box-like body defining a base plane. An inclination detector element is rotatably associated with the box-like body; light detectors determine the position of the detector element with respect to the base plane; a display indicates the inclination of the base plane relatively to a theoretical horizontal plane. The light detector and the display are powered by batteries and operated by a switch.

1. Drawings

[0001]Sheet 1.
