Shock absorbing rotary gear coupling

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Assignee
GREEN PAUL C
Original source
US-4913681-A, the United States Patent and Trademark Office, 3 April 1990
Document SHA-256
c720c34f6973896e214230eebc8fb4996cf992bcca153c27d4502e128f84c1b3

A gear coupling adapted to be capable of absorbing torsional shock loads between a power driven shaft 1 and a power drive shaft 2 comprises a drive member 3 and driven member 4 which extend from two sides into, and engage with, hollow intermediate member 5 so that the three members rotate in unison. The driven member 3 and preferably also the drive member 4 engage the intermediate member 5 by helical gear teeth 3B, 5A, 4B, 5B and a resilient member 6 such as a bank of disc springs is present between the drive member and the intermediate member. The coupling is arranged do that under the influence of a torsional shock load, the resultant axial separating force urges the intermediate member against the bias of the springs, to thereby reduce any damaging effects of the shock load.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A gear coupling adapted to be capable of absorbing torsional shock loads between a power driven shaft 1 and a power drive shaft 2 comprises a drive member 3 and driven member 4 which extend from two sides into, and engage with, hollow intermediate member 5 so that the three members rotate in unison. The driven member 3 and preferably also the drive member 4 engage the intermediate member 5 by helical gear teeth 3B, 5A, 4B, 5B and a resilient member 6 such as a bank of disc springs is present between the drive member and the intermediate member. The coupling is arranged do that under the influence of a torsional shock load, the resultant axial separating force urges the intermediate member against the bias of the springs, to thereby reduce any damaging effects of the shock load.

1. Drawings

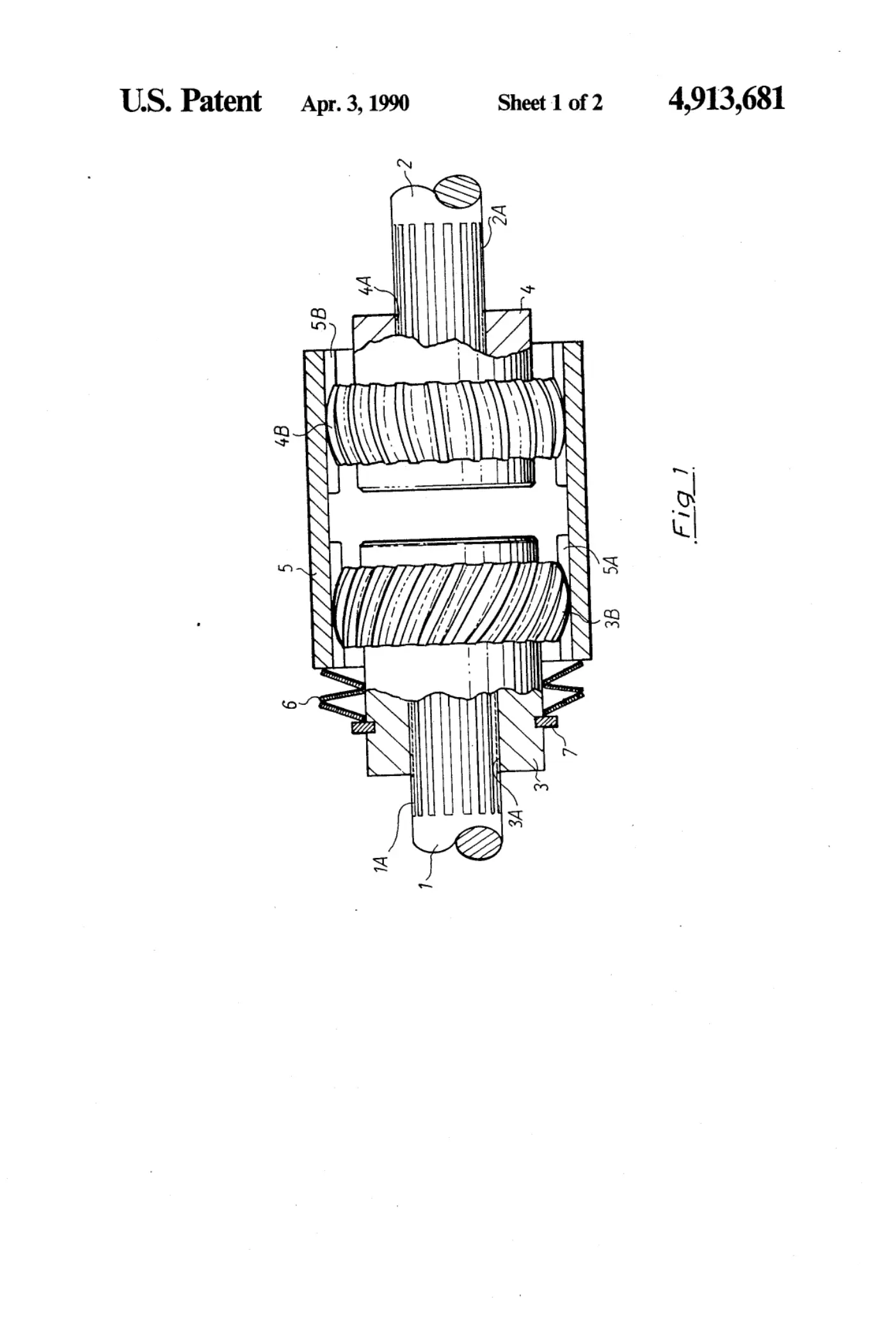

[0001]Sheet 1.

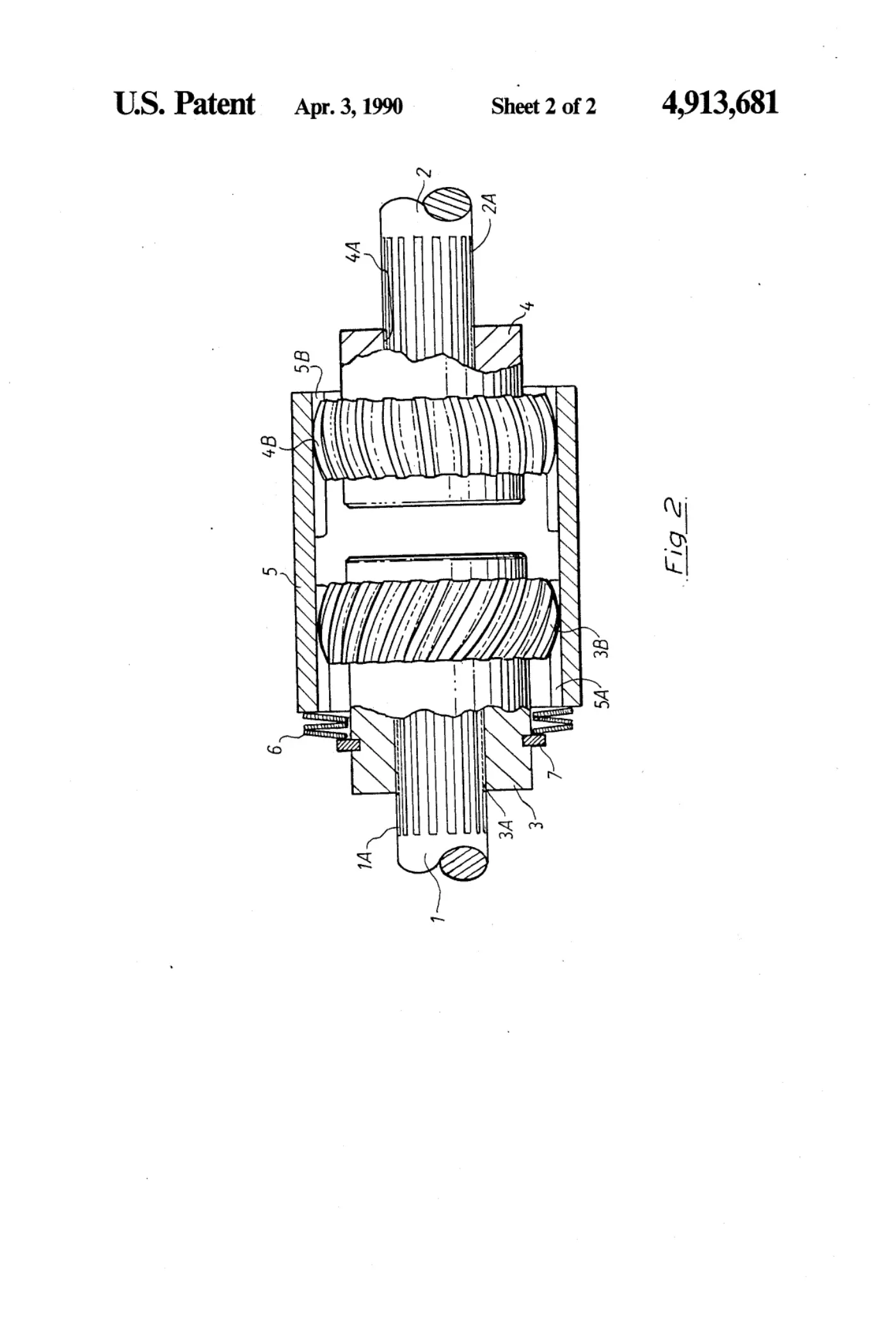

[0002]Sheet 2.
