Structure of first arm of industrial robot having articulated horizontal arms

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Assignee
FANUC LTD
Original source
US-4907467-A, the United States Patent and Trademark Office, 13 March 1990
Document SHA-256
30ea2c458e65879367c94787d1acb1ebb5d3a96db40aec0fb6b01d8f5f7d5e33

Provided is a compact first arm (12) of an industrial robot having articulated horizontal arms, which first arm has a direct drive motor (19), an electromagnetic brake (25), and a rotary encoder (34, 36) disposed close to each other concentrically between the first arm (12) and a base post (10) supporting the first arm (12), and has another direct drive motor (39), another electromagnetic brake (45), and another rotary encoder (54, 56) disposed close to each other concentrically between the first arm (12) and a second arm (14) rotatably supported by the first arm (12).

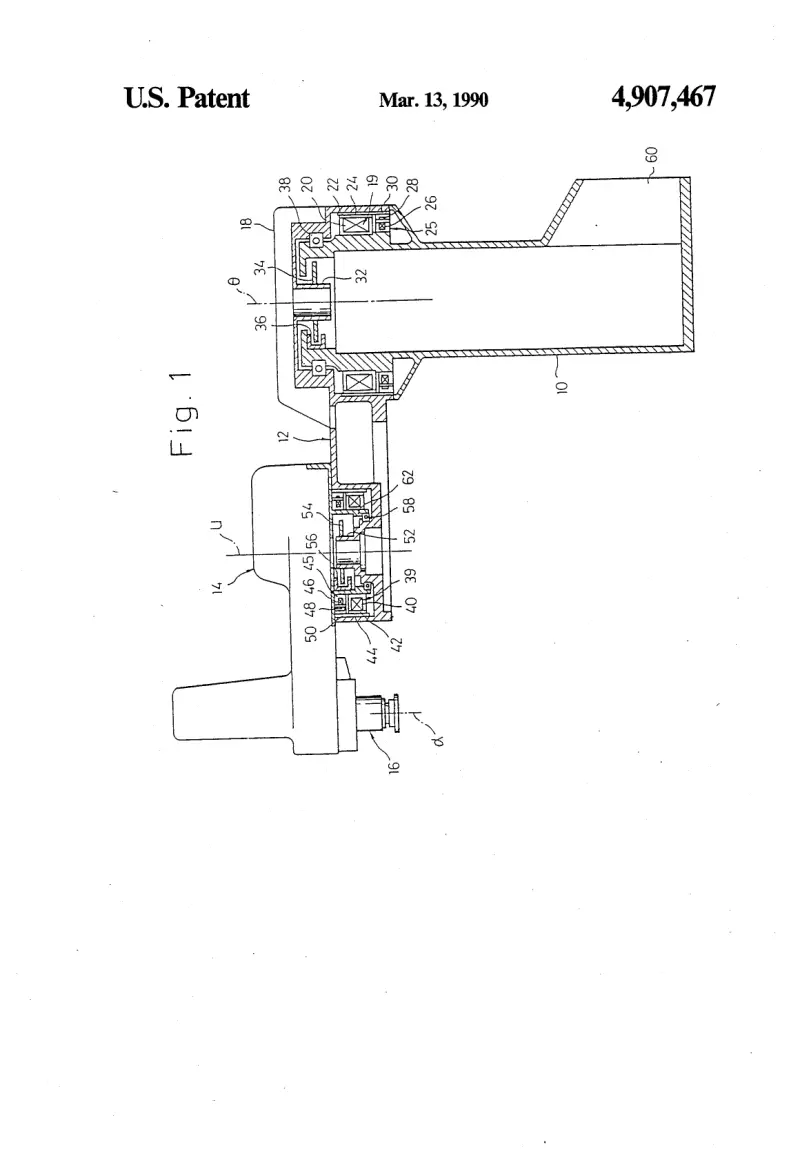

Sheet 1
Sheet 1

Abstract

Provided is a compact first arm (12) of an industrial robot having articulated horizontal arms, which first arm has a direct drive motor (19), an electromagnetic brake (25), and a rotary encoder (34, 36) disposed close to each other concentrically between the first arm (12) and a base post (10) supporting the first arm (12), and has another direct drive motor (39), another electromagnetic brake (45), and another rotary encoder (54, 56) disposed close to each other concentrically between the first arm (12) and a second arm (14) rotatably supported by the first arm (12).

1. Drawings

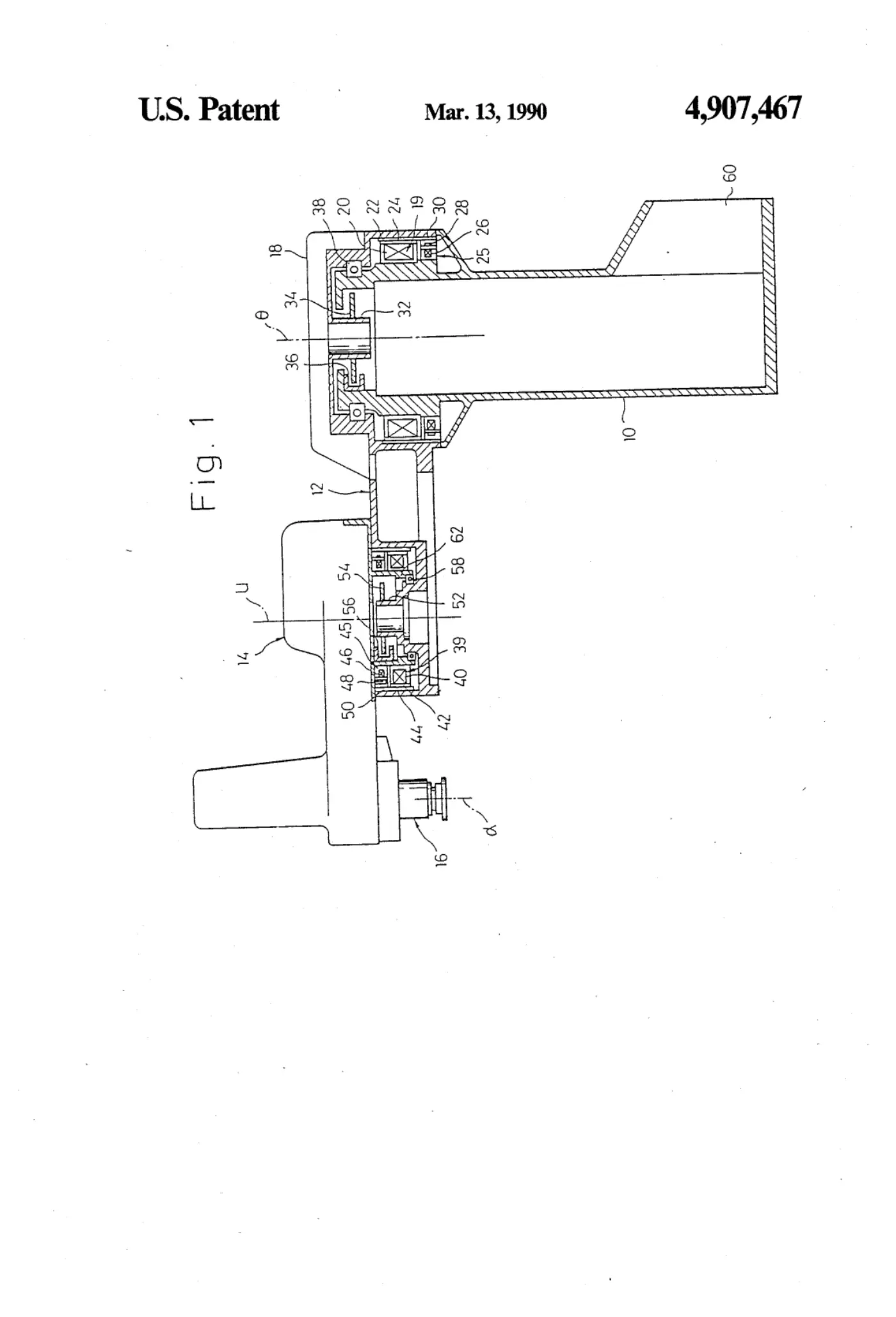

[0001]Sheet 1.
