Gauge for measuring a cross-sectional dimension deviation on an elongate object

Published
Permanent URL
Classification
Tools & Tooling › Measurement Tools
Original source
US-4895449-A, the United States Patent and Trademark Office, 23 January 1990
Document SHA-256
1f46b6849d0b3b5fc2e522e8da2424685d55dfad177d7385952e86e2be0a9a58

An apparatus and method for measuring a cross-sectional dimension or deviation from a predetermined shape of an elongated moving object. The apparatus is rotated about the object and includes a light source and photo-diode array. By continuous rotation of the apparatus about the object, deviations in the cross-sectional dimension are determined.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

An apparatus and method for measuring a cross-sectional dimension or deviation from a predetermined shape of an elongated moving object. The apparatus is rotated about the object and includes a light source and photo-diode array. By continuous rotation of the apparatus about the object, deviations in the cross-sectional dimension are determined.

1. Drawings

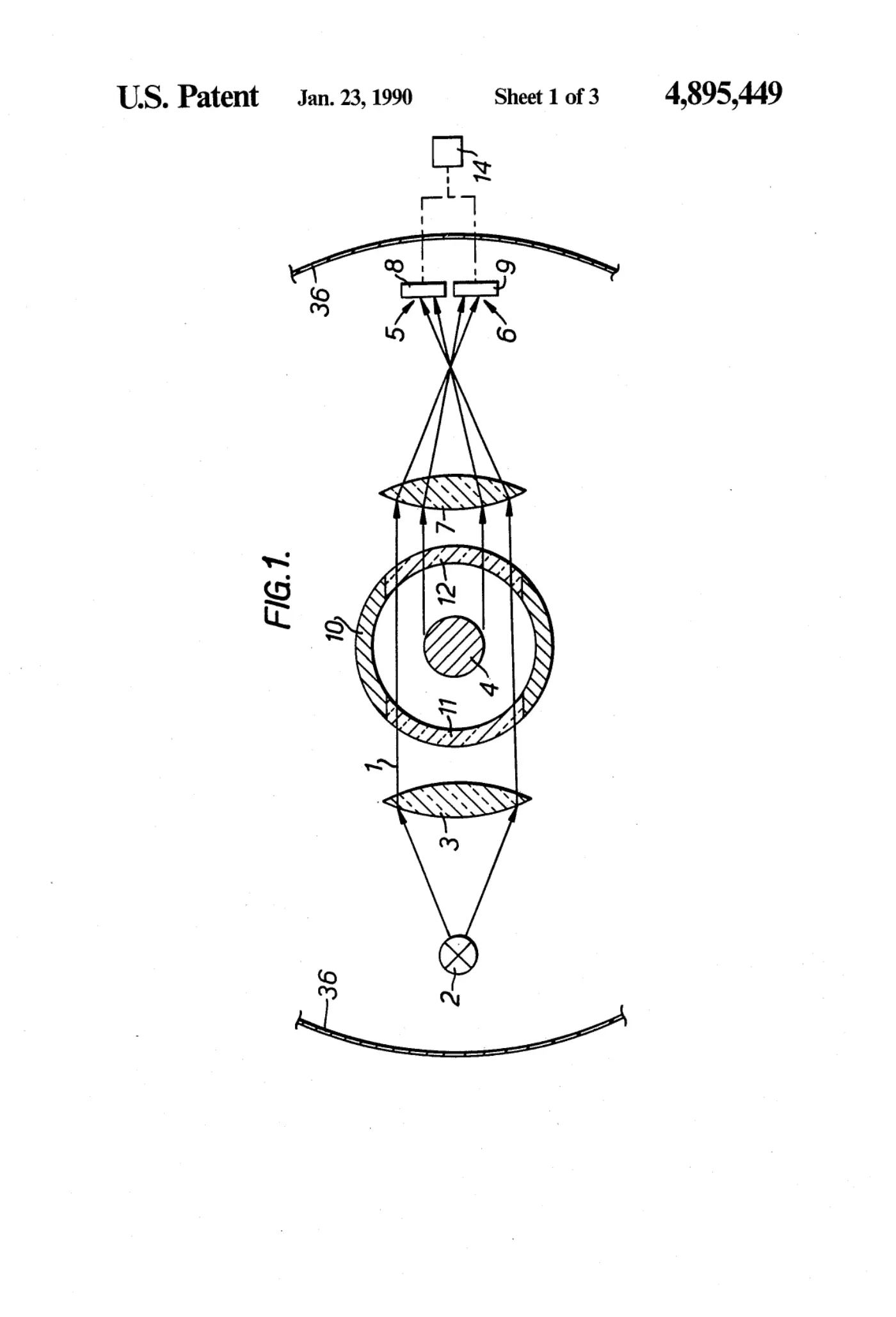

[0001]Sheet 1.

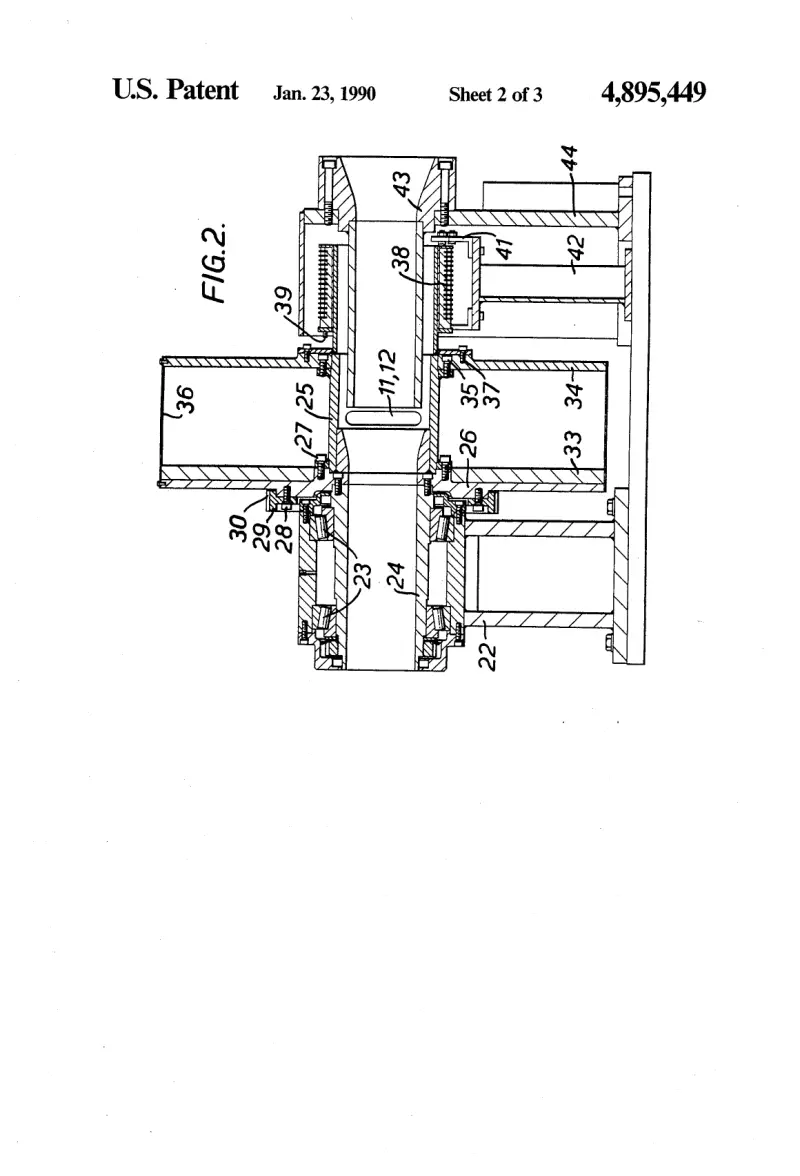

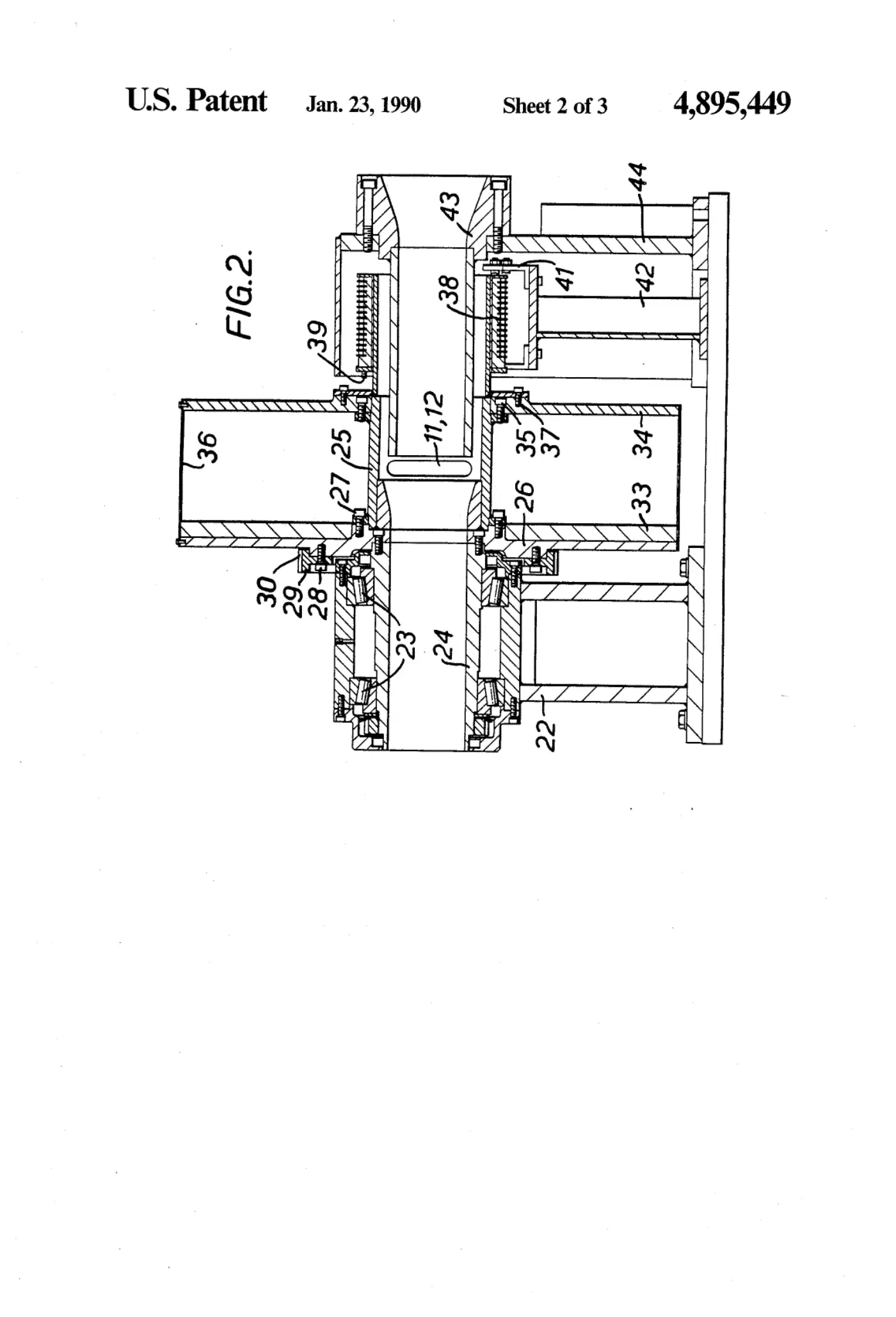

[0002]Sheet 2.

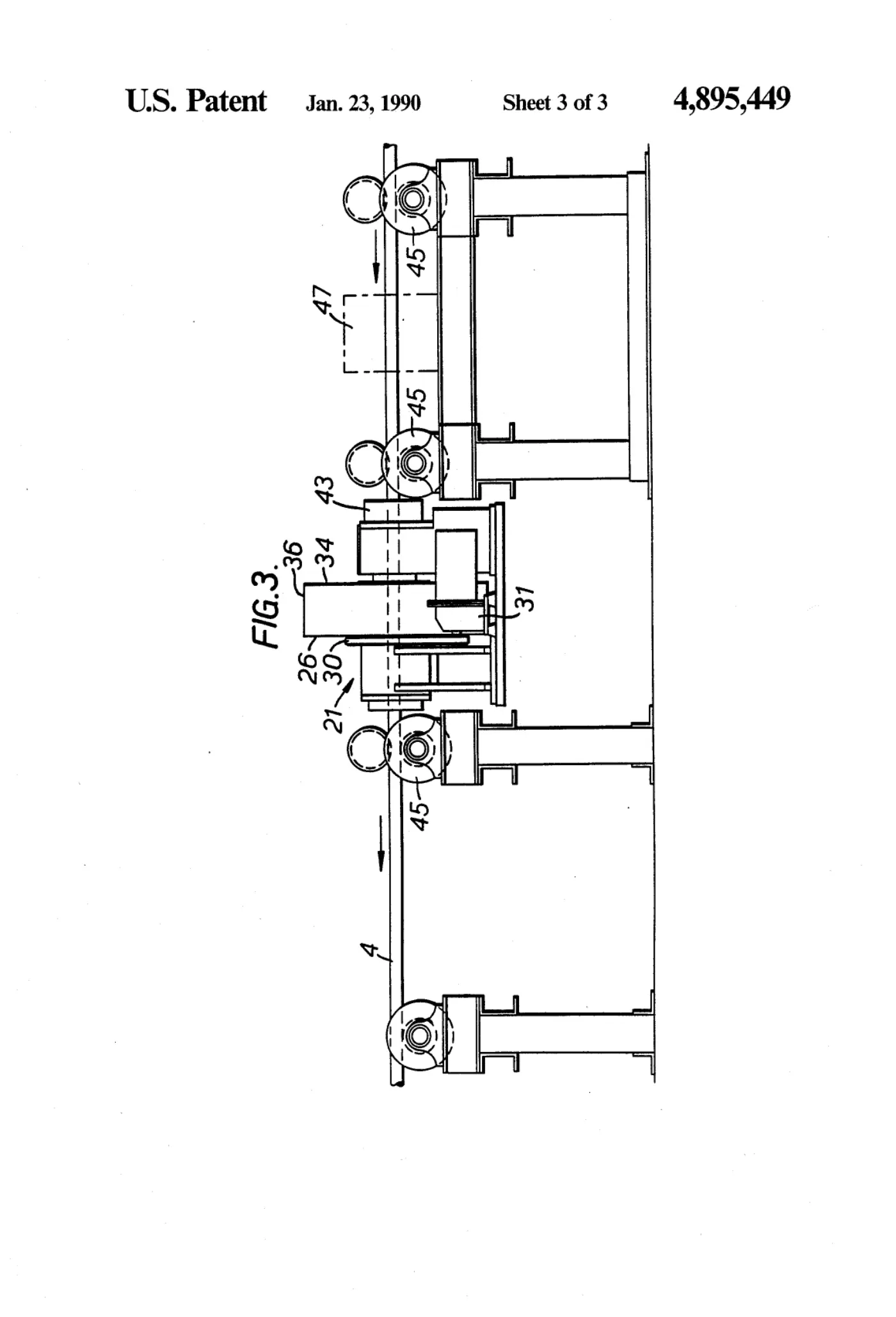

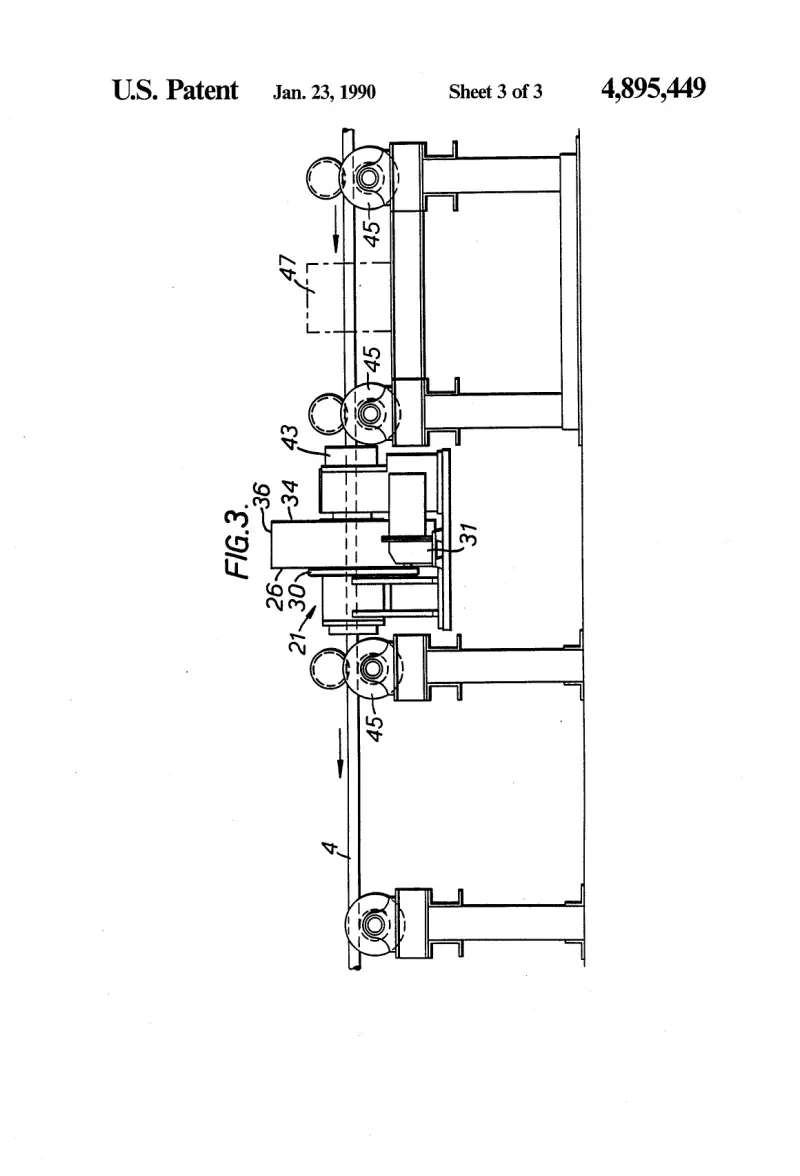

[0003]Sheet 3.

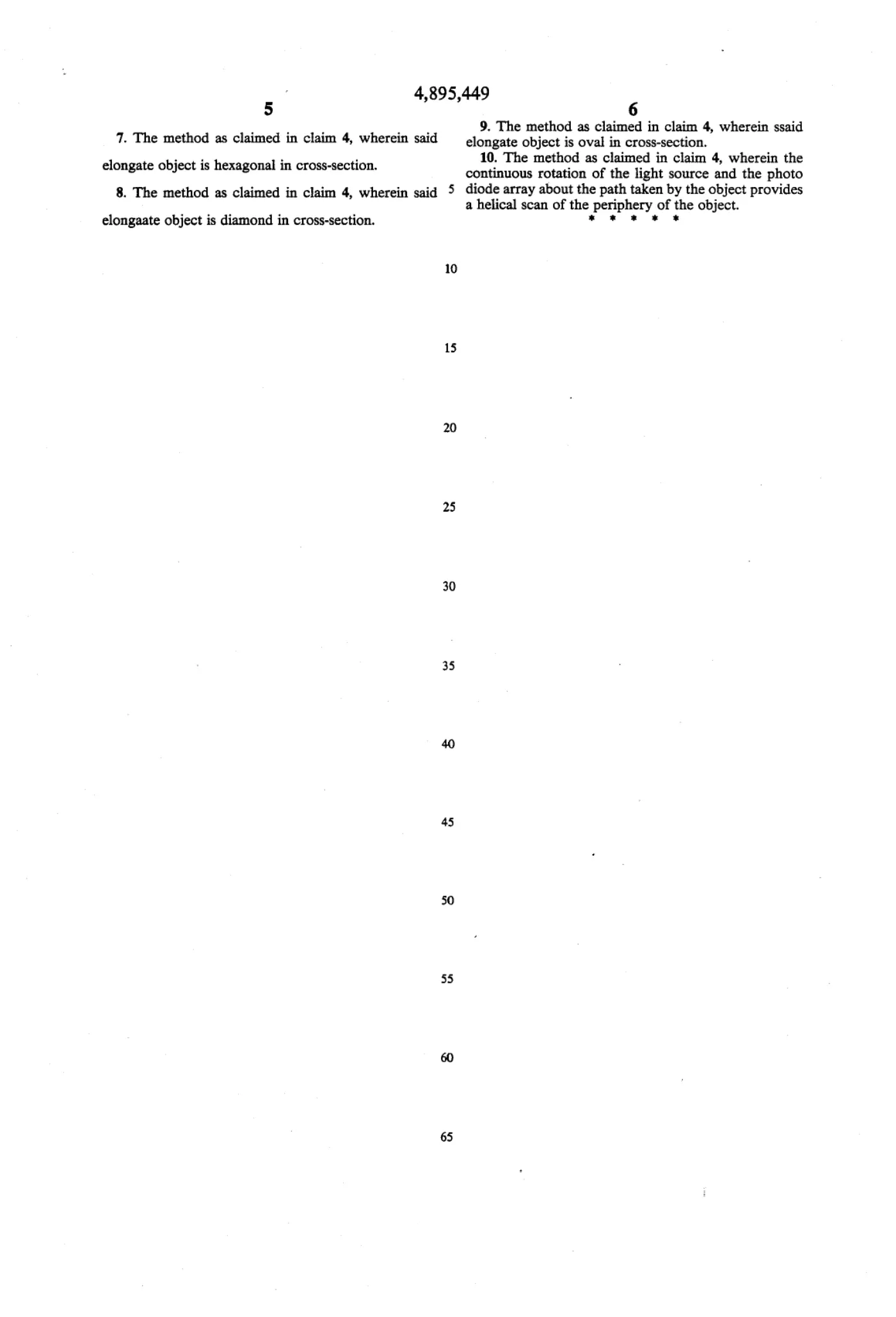

[0004]Sheet 4.
