Spring-urged shelf divider system

Published
Permanent URL
Classification
Warehousing & Storage Systems › Racking and Shelving
Assignee
RTC IND INC
Original source
US-4830201-A, the United States Patent and Trademark Office, 16 May 1989
Document SHA-256
9fc1718d74c9242f1756370c2e64a2a2d635cf814bae0992f95ffe07665a8ddb

A shelf divider system comprising a divider wall mountable in a channel member secured to the front of a shelf. A spring-urged pusher member is slidably mounted on a track having a pair of rails integral with the divider shaft. In one embodiment, the operationally mounted divider wall is vertically oriented and the pusher member extends horizontally therefrom so that displayed merchandise resets directly on the shelf surface but is automatically urged forwardly by the retracted pusher member. In another embodiment, the track provides the supporting surface for displayed merchandise and a vertical divider wall is integrally formed with the track.

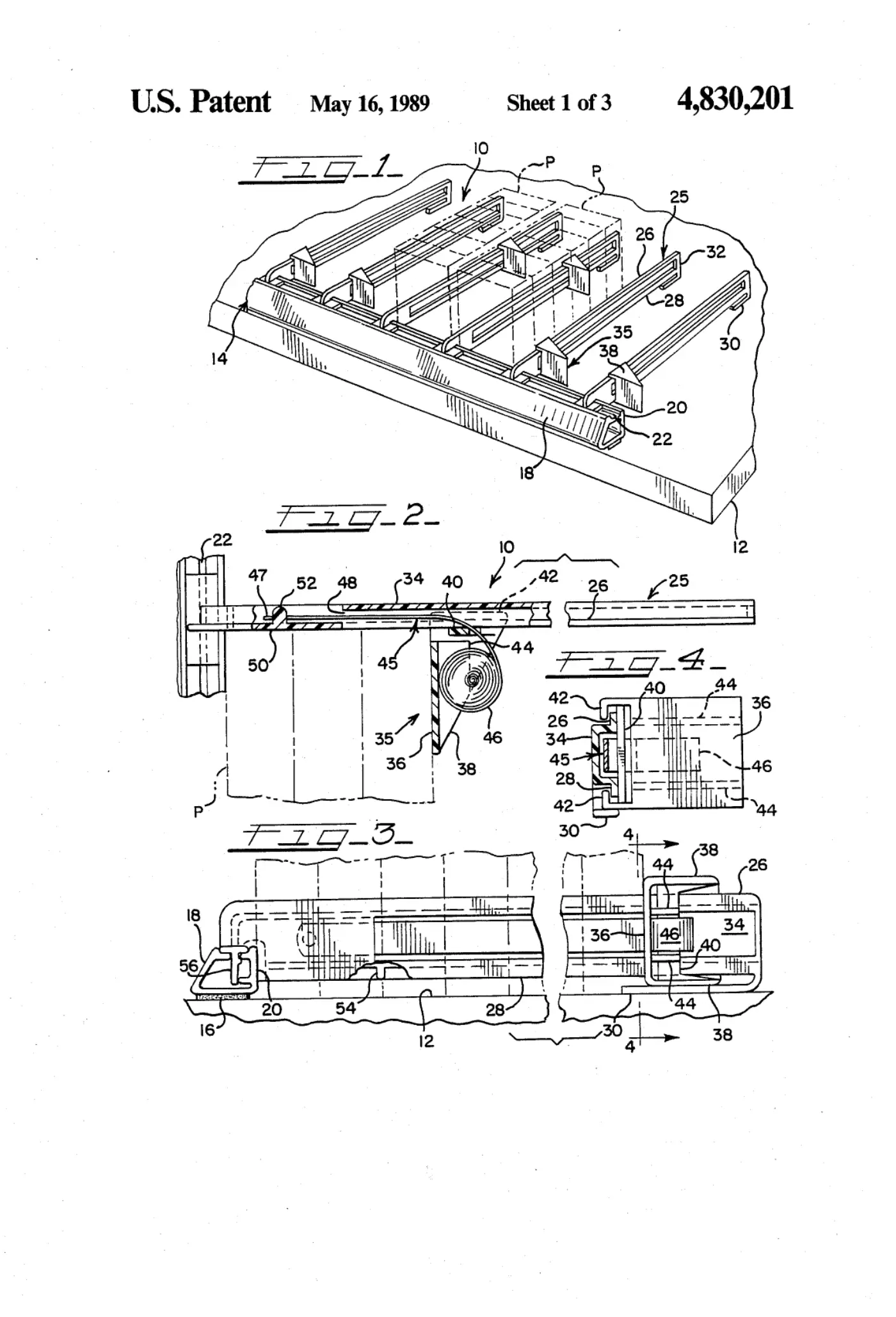

Sheet 1
Sheet 1

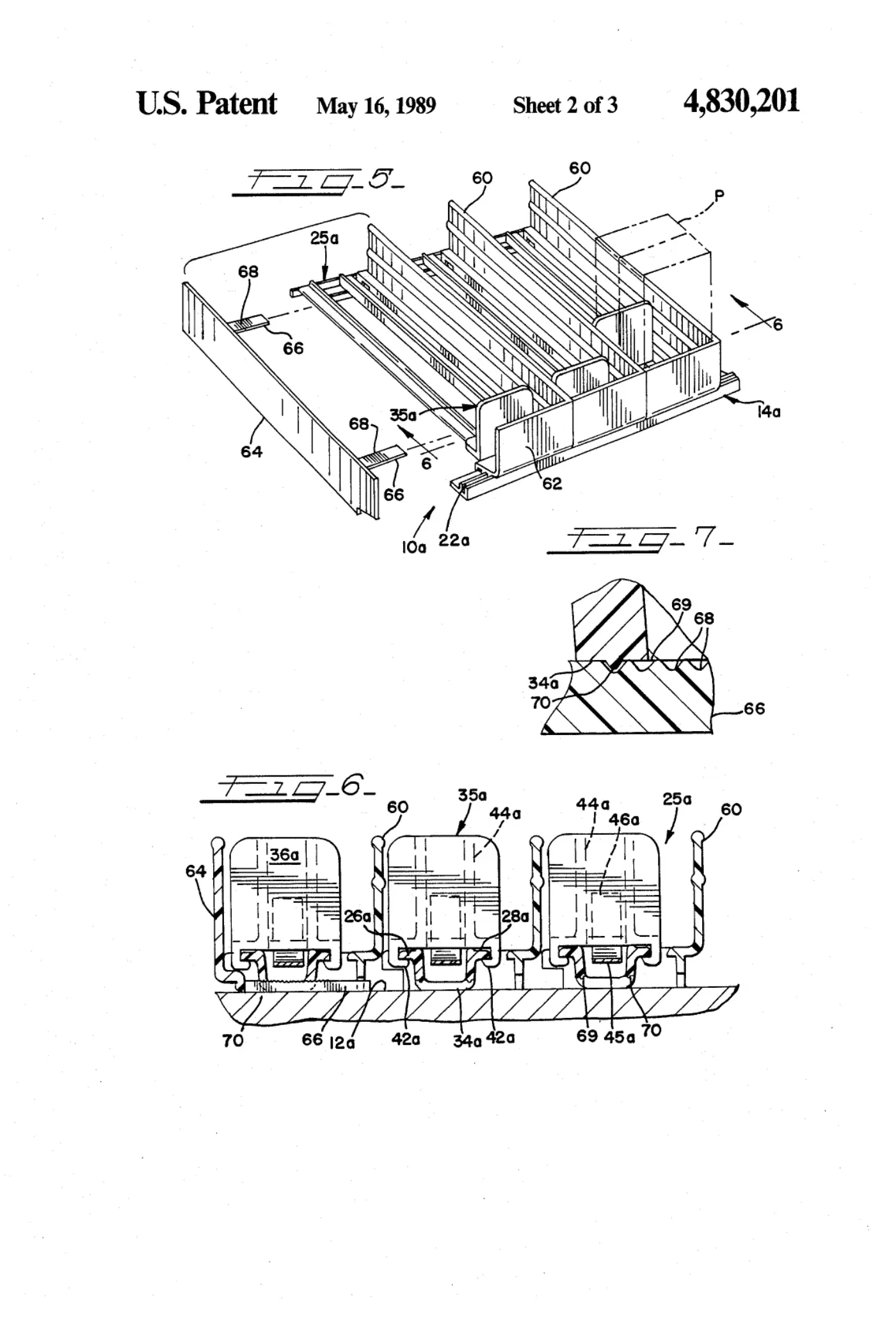

Sheet 2
Sheet 2

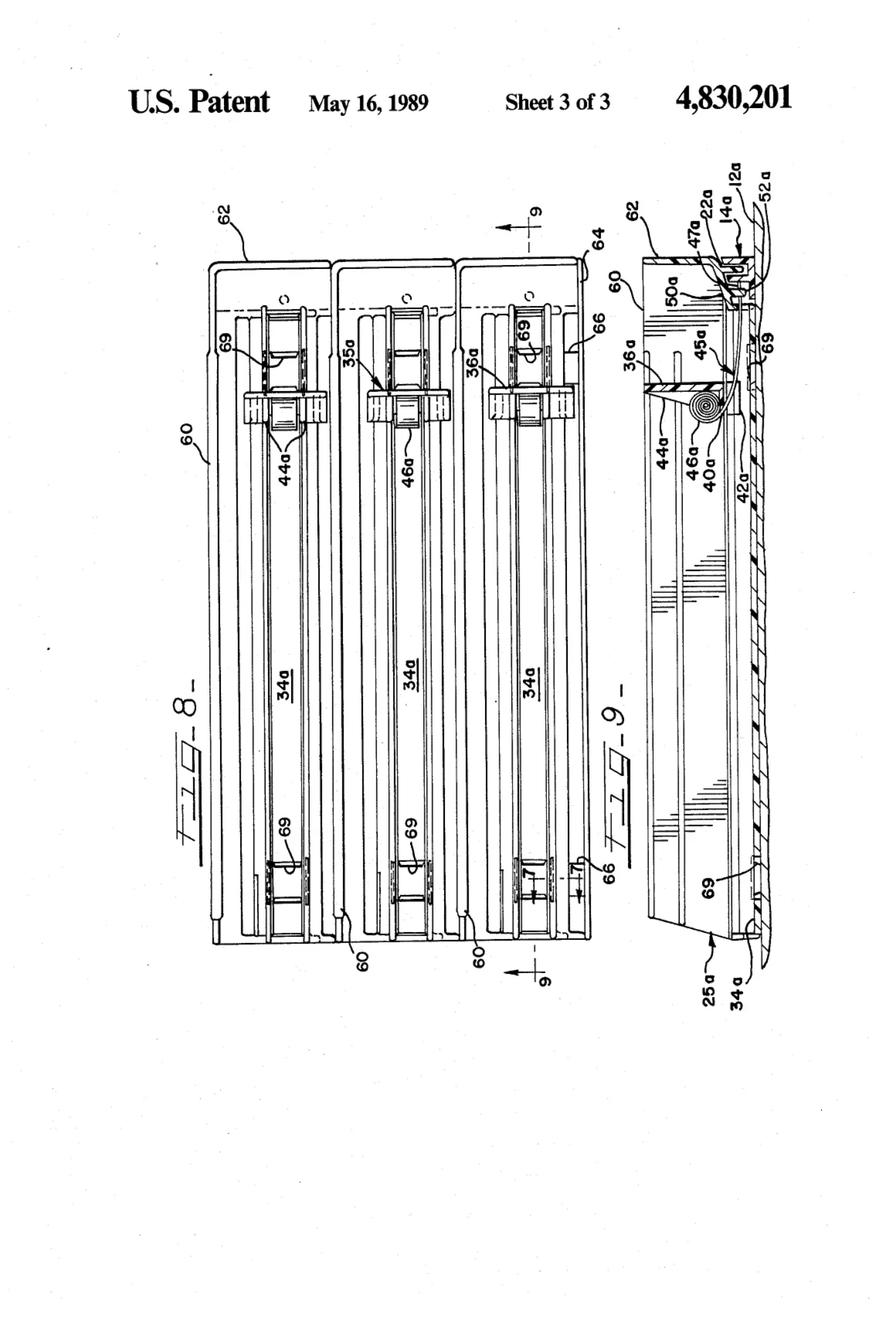

Sheet 3
Sheet 3

Abstract

A shelf divider system comprising a divider wall mountable in a channel member secured to the front of a shelf. A spring-urged pusher member is slidably mounted on a track having a pair of rails integral with the divider shaft. In one embodiment, the operationally mounted divider wall is vertically oriented and the pusher member extends horizontally therefrom so that displayed merchandise resets directly on the shelf surface but is automatically urged forwardly by the retracted pusher member. In another embodiment, the track provides the supporting surface for displayed merchandise and a vertical divider wall is integrally formed with the track.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.
