Rotary and sealed connection for pressurized fluids

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Original source
US-4824124-A, the United States Patent and Trademark Office, 25 April 1989
Document SHA-256
f3e570d5ad6e51b91a6792bd5b17107454d36af2cd60e8e7d2c18a53d75a3644

A rotary and sealed connection for pressurized fluids is provided, including a first part that is secured, for example, to a fixed source of pressurized fluid and has a recess for communication therewith and through a second part, with a fluid-using rotary apparatus of revolution rotating about a shaft and extending through the first part through a passage, said second part having a degree of radial freedom and being held in position without play by a seal serving as a bearing. The annular space in the passage may thus be extremely reduced, thus avoiding any risk of extrusion of the seal.

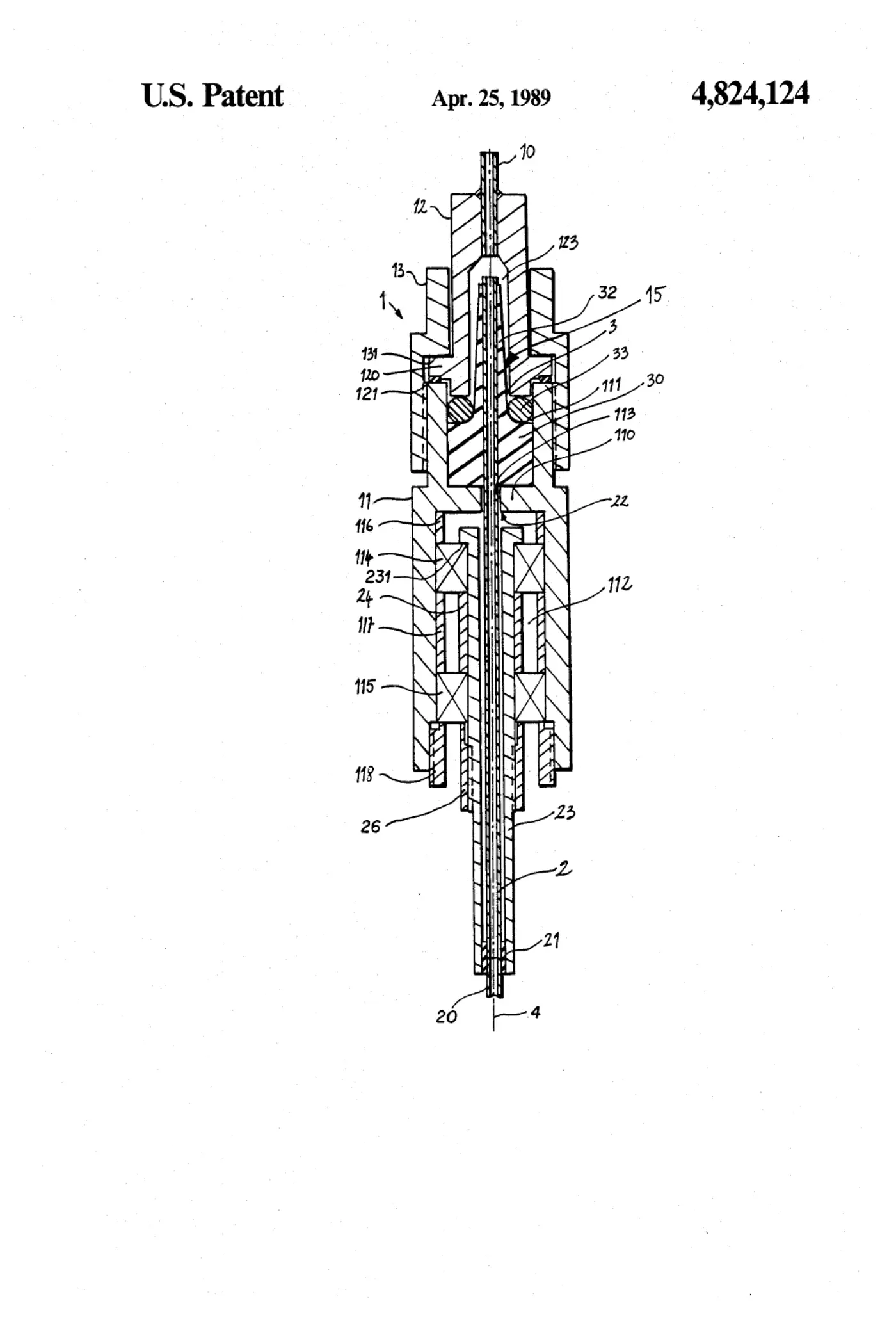

Sheet 1
Sheet 1

Abstract

A rotary and sealed connection for pressurized fluids is provided, including a first part that is secured, for example, to a fixed source of pressurized fluid and has a recess for communication therewith and through a second part, with a fluid-using rotary apparatus of revolution rotating about a shaft and extending through the first part through a passage, said second part having a degree of radial freedom and being held in position without play by a seal serving as a bearing. The annular space in the passage may thus be extremely reduced, thus avoiding any risk of extrusion of the seal.

1. Drawings

[0001]Sheet 1.
