Dual active selector valve

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Fluid Power
Assignee
ANDERSON GREENWOOD & CO
Original source
US-4821772-A, the United States Patent and Trademark Office, 18 April 1989
Document SHA-256
ca66359be903a21fafb6165c1ba63f22fc5e14664f67dc0195781e6581eb451c

A dual active selector valve is set forth. In the preferred and illustrated embodiment, a flange supporting a manifold body is attached to a pressure vessel. The passage through the flange has a selected diameter and the manifold body opens out to a larger diameter, sufficient to enable two valves to be connected side by side, having inlet passages equal in diameter to about one half the selected diameter. A rotatable conduit member is mounted within the manifold body having a centrally located pin for rotation, the rotatable portion incorporating separate flow passages selectively connecting to one of the two alternately deployed valves, and also supporting a valve closure plate to plug the passageway into the valve not being used.

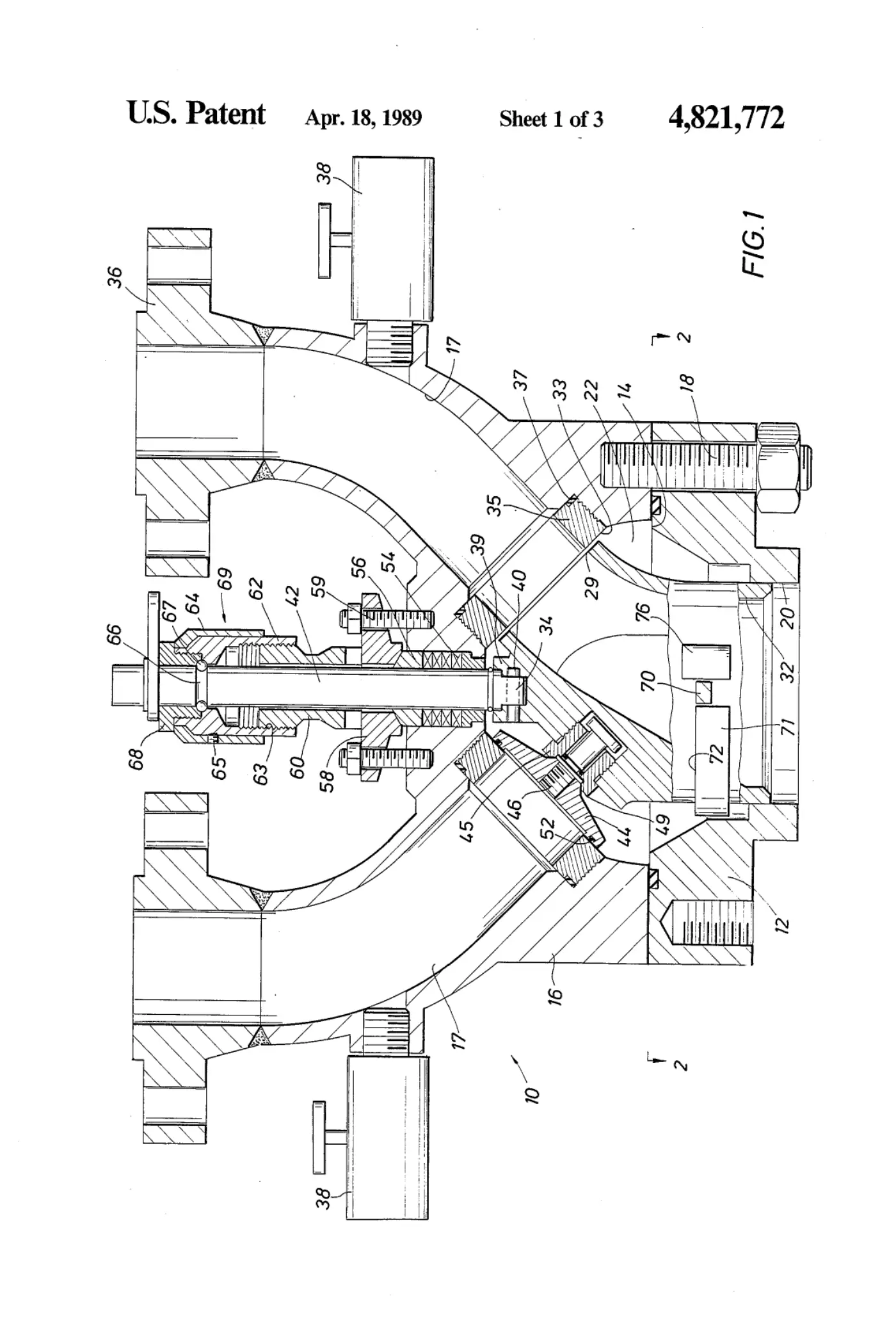

Sheet 1
Sheet 1

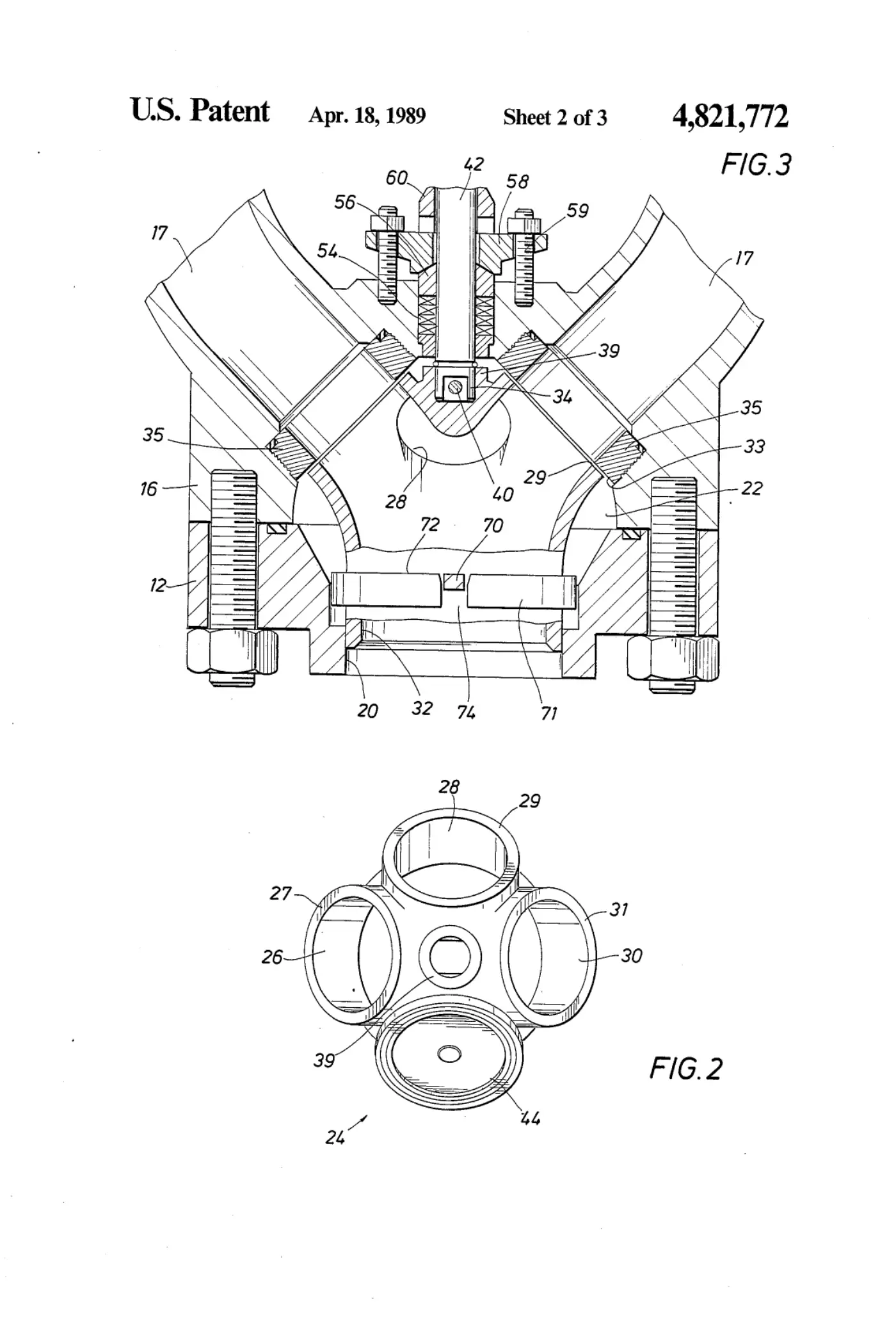

Sheet 2
Sheet 2

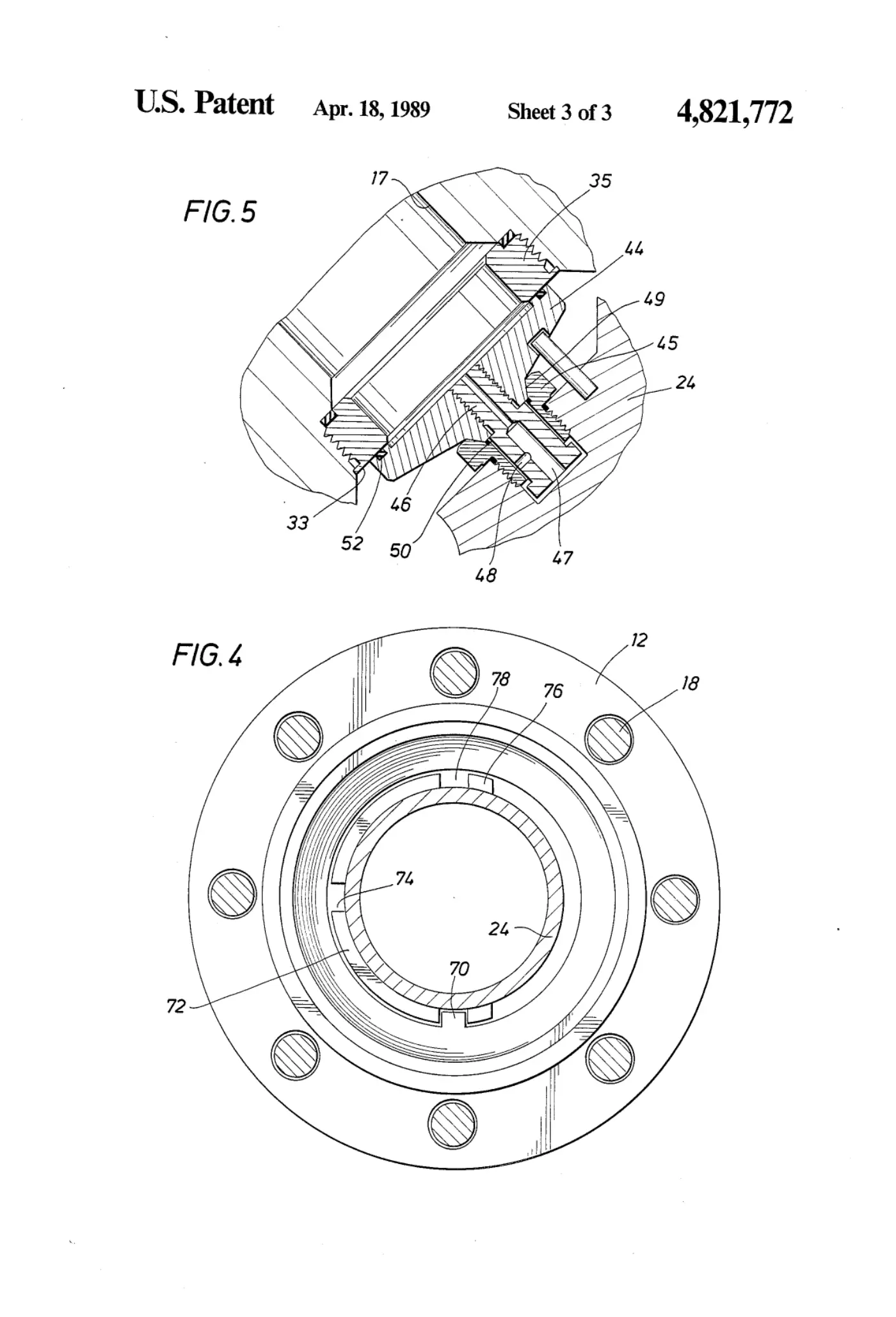

Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

A dual active selector valve is set forth. In the preferred and illustrated embodiment, a flange supporting a manifold body is attached to a pressure vessel. The passage through the flange has a selected diameter and the manifold body opens out to a larger diameter, sufficient to enable two valves to be connected side by side, having inlet passages equal in diameter to about one half the selected diameter. A rotatable conduit member is mounted within the manifold body having a centrally located pin for rotation, the rotatable portion incorporating separate flow passages selectively connecting to one of the two alternately deployed valves, and also supporting a valve closure plate to plug the passageway into the valve not being used.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.
