Windshield repair device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
ANDERSON DOUGLAS B
Original source
US-4820148-A, the United States Patent and Trademark Office, 11 April 1989
Document SHA-256
9fc605fd752632a5c34c84687c6b8f597c615f736918a4cdbcb72410318aa5a3

A windshield repair device for repairing imperfections, in the form of bull's eyes, chips or cracks, induced by road hazards. The device comprises a first vacuum device for repairing relatively large imperfections, a second vacuum device for repairing relatively small imperfections adjacent the windshield periphery, and a platen to secure the second vacuum device to the windshield. The first vacuum device evacuates a relatively large area over a chip or crack and injects ultra-violet light-settable polymer resins into the evacuated imperfection. The second vacuum device is essentially the inner portion of the first vacuum device and is capable of evacuating a much smaller area. The second vacuum device is primarily useful either at the periphery of the windshield, or on areas of windshields having a high degree of curvature. The platen assists in holding the second vacuum device to the windshield.

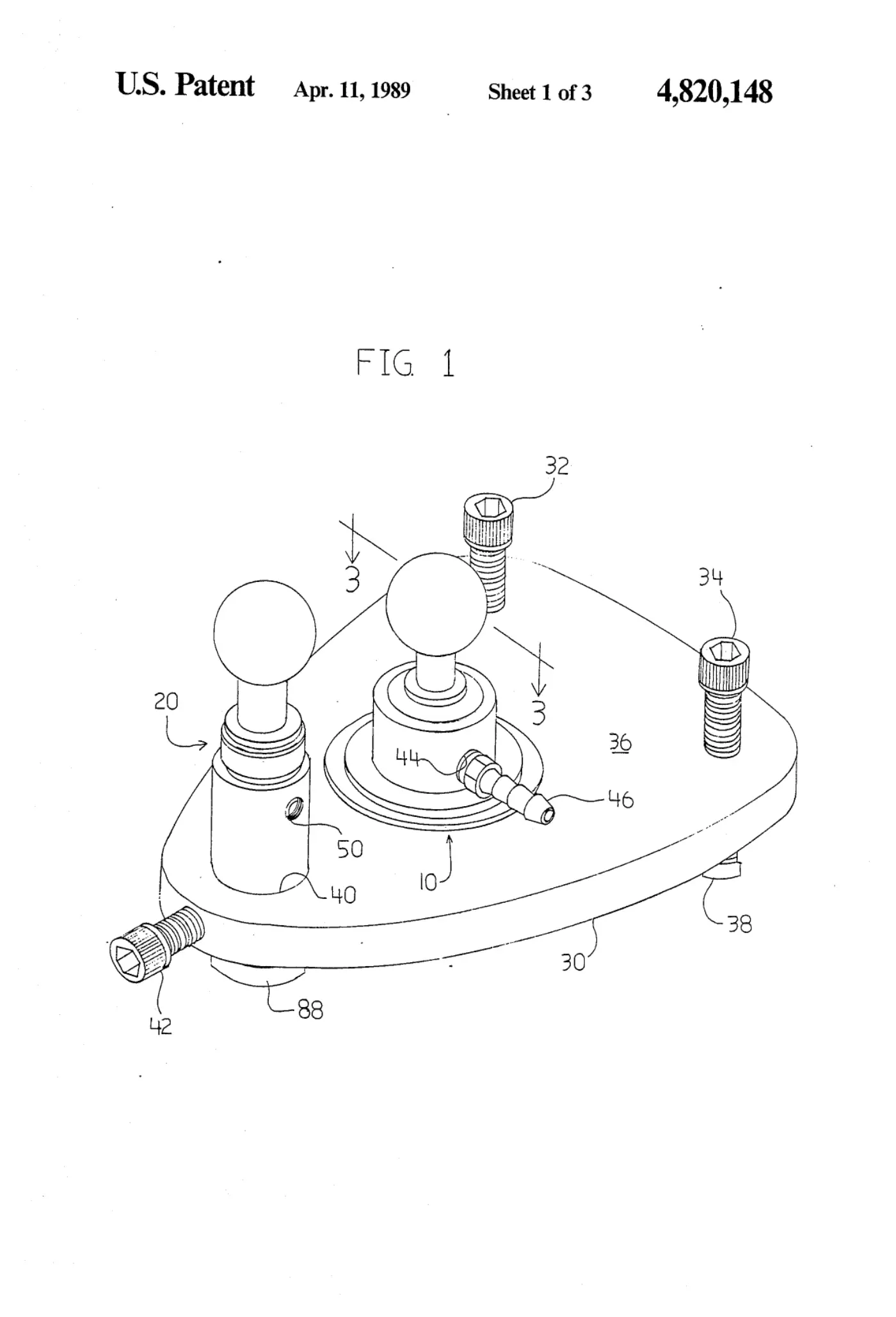

Sheet 1
Sheet 1

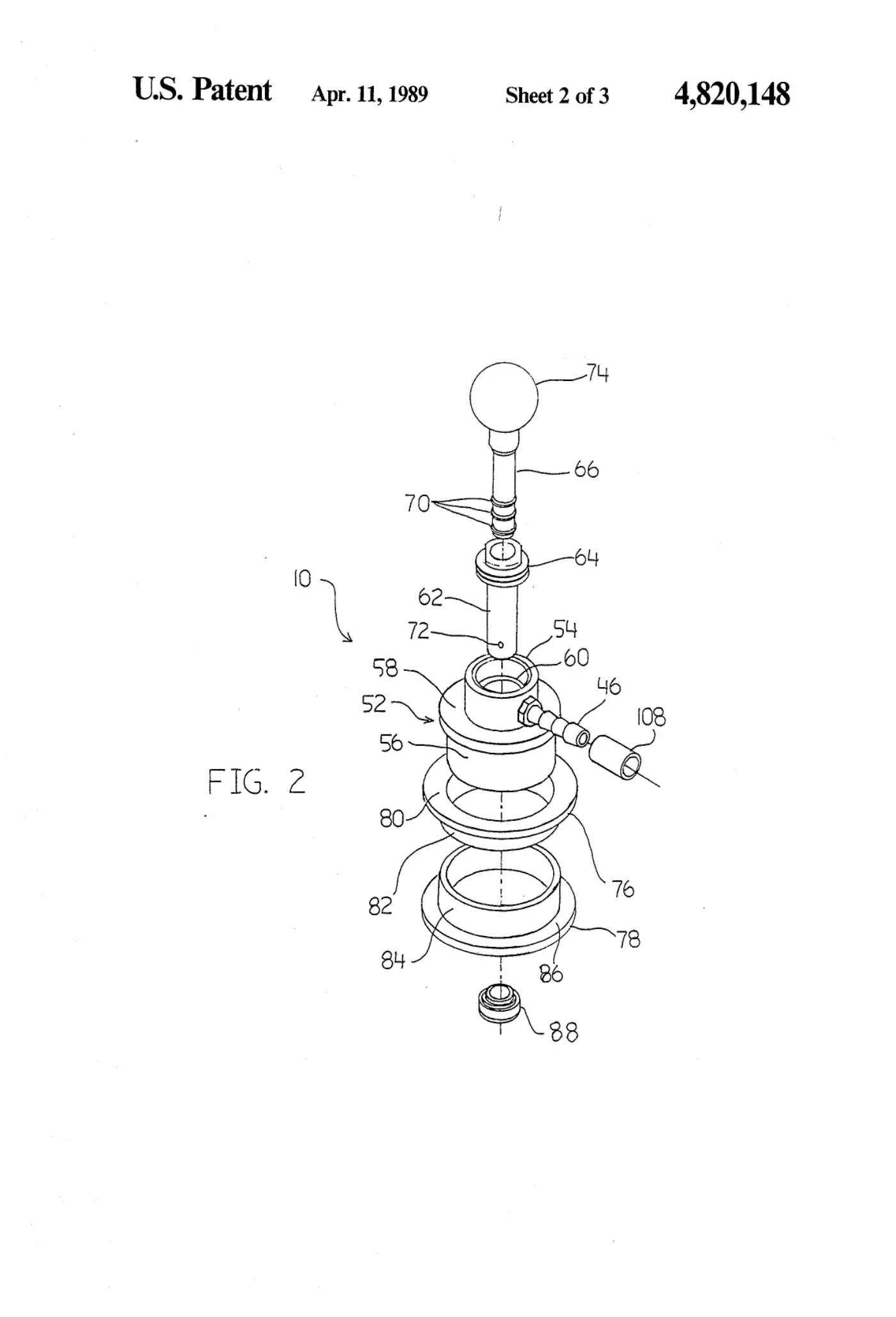

Sheet 2
Sheet 2

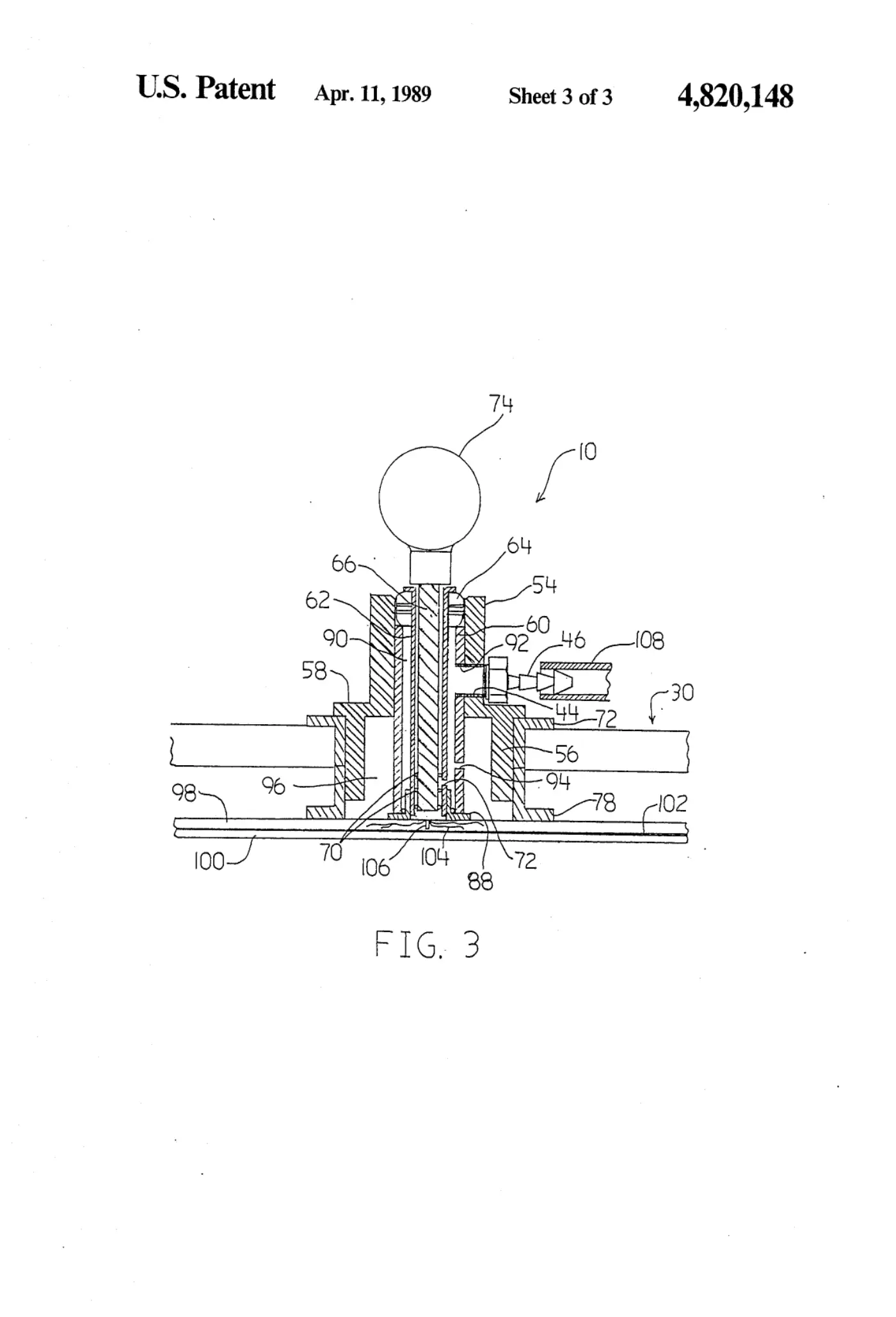

Sheet 3
Sheet 3

Abstract

A windshield repair device for repairing imperfections, in the form of bull's eyes, chips or cracks, induced by road hazards. The device comprises a first vacuum device for repairing relatively large imperfections, a second vacuum device for repairing relatively small imperfections adjacent the windshield periphery, and a platen to secure the second vacuum device to the windshield. The first vacuum device evacuates a relatively large area over a chip or crack and injects ultra-violet light-settable polymer resins into the evacuated imperfection. The second vacuum device is essentially the inner portion of the first vacuum device and is capable of evacuating a much smaller area. The second vacuum device is primarily useful either at the periphery of the windshield, or on areas of windshields having a high degree of curvature. The platen assists in holding the second vacuum device to the windshield.
