Torque driving tool and retainer for driven member

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
KRIVEC BERT
Assignee
SNAP ON TOOLS CORP
Original source
US-4970922-A, the United States Patent and Trademark Office, 20 November 1990
Document SHA-256
19319eb82dd7042064f3beab1f7f16c7d7867836a5d8a10c4b269511b0c189b7

A rotatable driving tool for imparting torque to a driven member, such as a threaded fastener having an axial recess in the head thereof, comprises a circularly cylindrical body with a plurality of substantially circularly helical driving portions projecting laterally therefrom and equiangularly spaced about the cylindrical axis, each of the driving portions having a small helix angle, preferably between one and three degress. The driving portions mate with lobes of the fastener recess but are slightly inclined with respect thereto to provide a wedge fit to retain the fastener in engagement with the tool body.

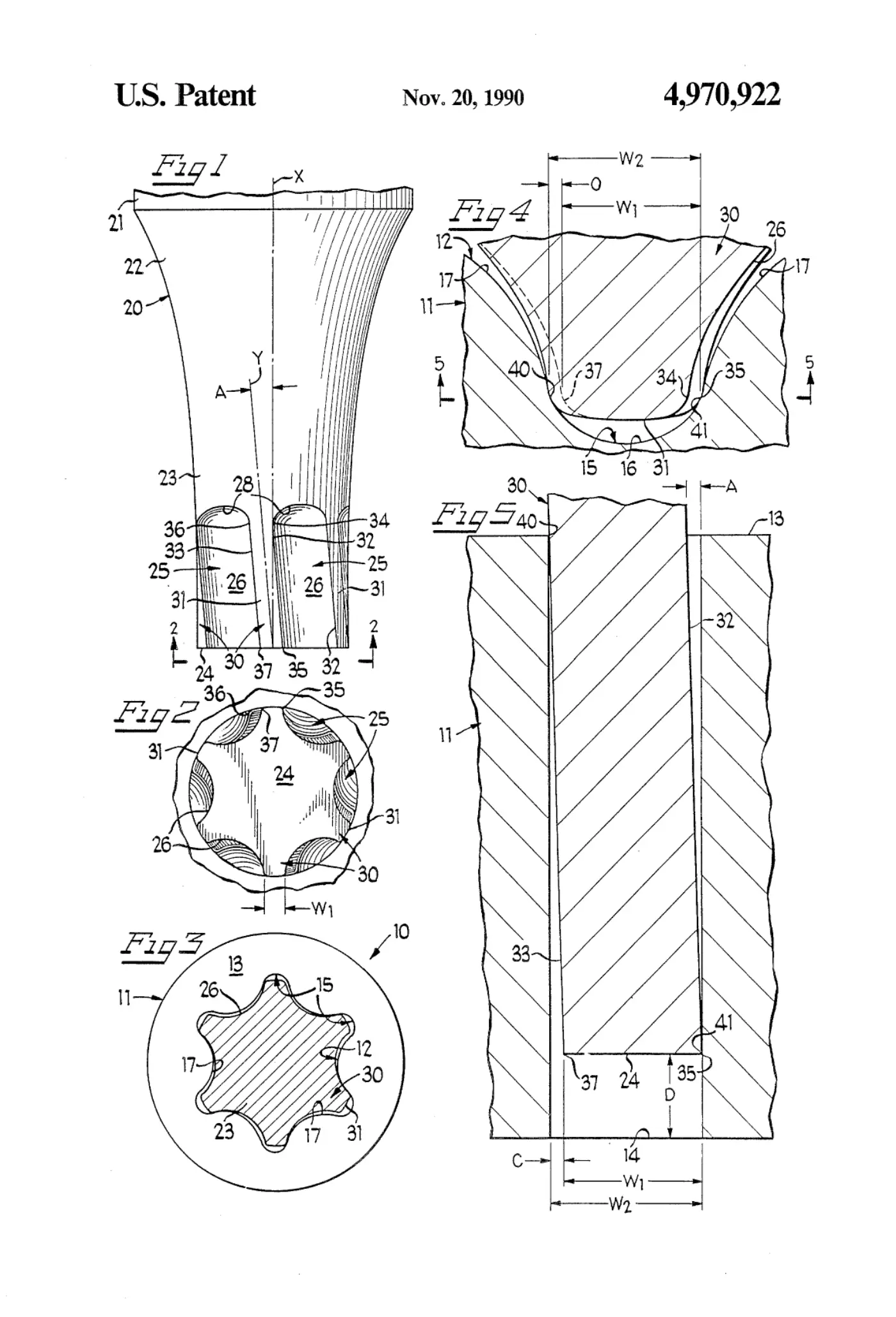

Sheet 1
Sheet 1

Abstract

A rotatable driving tool for imparting torque to a driven member, such as a threaded fastener having an axial recess in the head thereof, comprises a circularly cylindrical body with a plurality of substantially circularly helical driving portions projecting laterally therefrom and equiangularly spaced about the cylindrical axis, each of the driving portions having a small helix angle, preferably between one and three degress. The driving portions mate with lobes of the fastener recess but are slightly inclined with respect thereto to provide a wedge fit to retain the fastener in engagement with the tool body.

1. Drawings

[0001]Sheet 1.
