Vacuum chuck apparatus for wet processing wafers

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
OGAWA TSUTOMU
Assignee
FUJITSU LTD
Original source
US-4858975-A, the United States Patent and Trademark Office, 22 August 1989
Document SHA-256
7ab8aca2f22f12eef674e95fc76b73fd8d4849a41b8e71fc2f14d826c153270b

A vacuum chuck apparatus operable in both gas and liquid includes a liquid-gas separating membrane which allows passage of gas molecules but prevents passage of liquid. The liquid-gas separating membrane is disposed between an inlet hole of the chuck and a manifold which is connected to a pneumatic system. The pneumatic system includes an aspirator, a compressor and a switching valve. The vacuum chuck is immersed into a liquid, compressed gas purges the liquid in the inlet hole, then the switching valve is switched to the aspirator. An object, such as a semiconductor wafer, is vacuumed quickly to the chuck, and the inlet hole is closed by the object. If a small quantity of liquid intrudes into the chuck, it is stopped by the liquid-gas separating membrane.

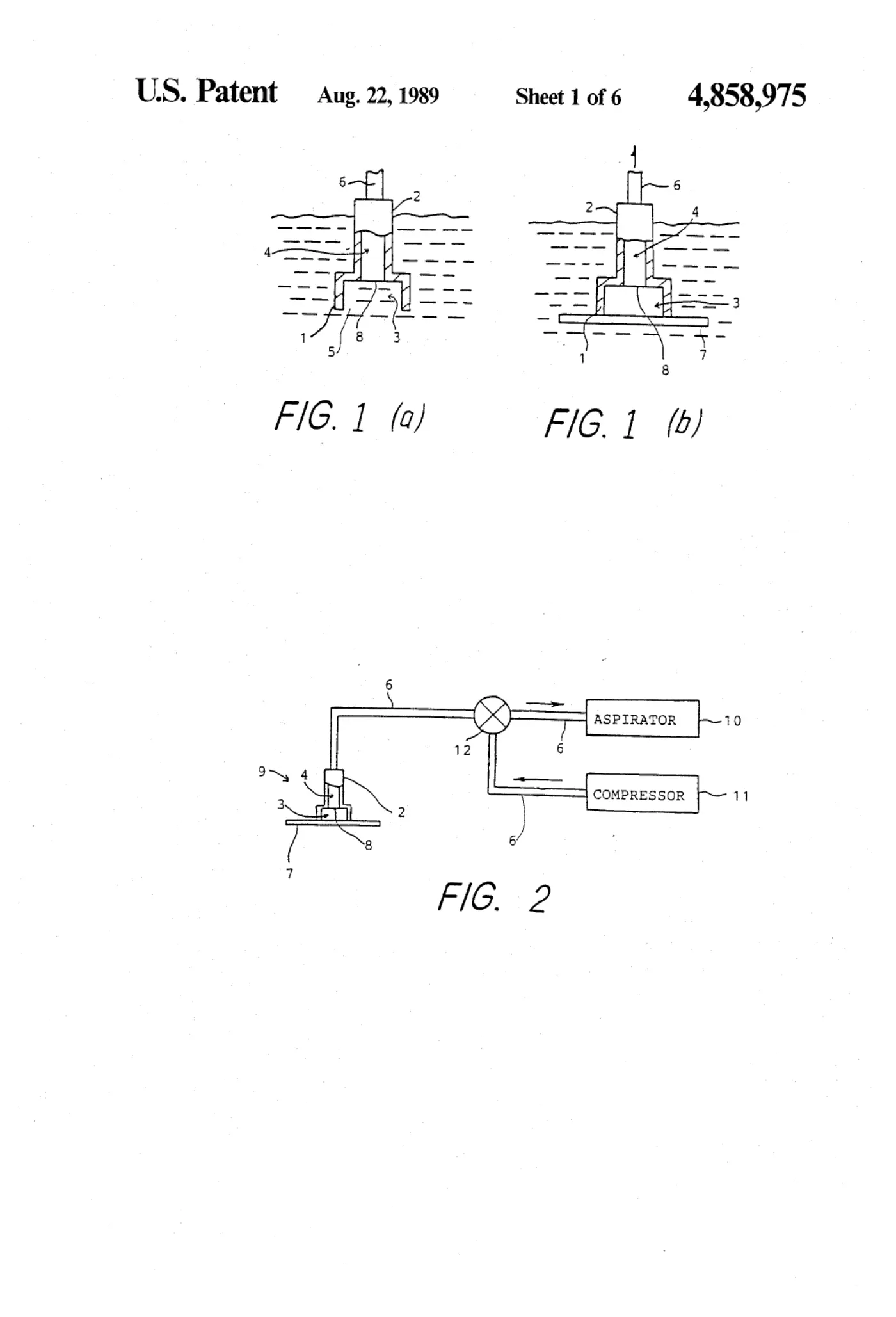

Sheet 1
Sheet 1

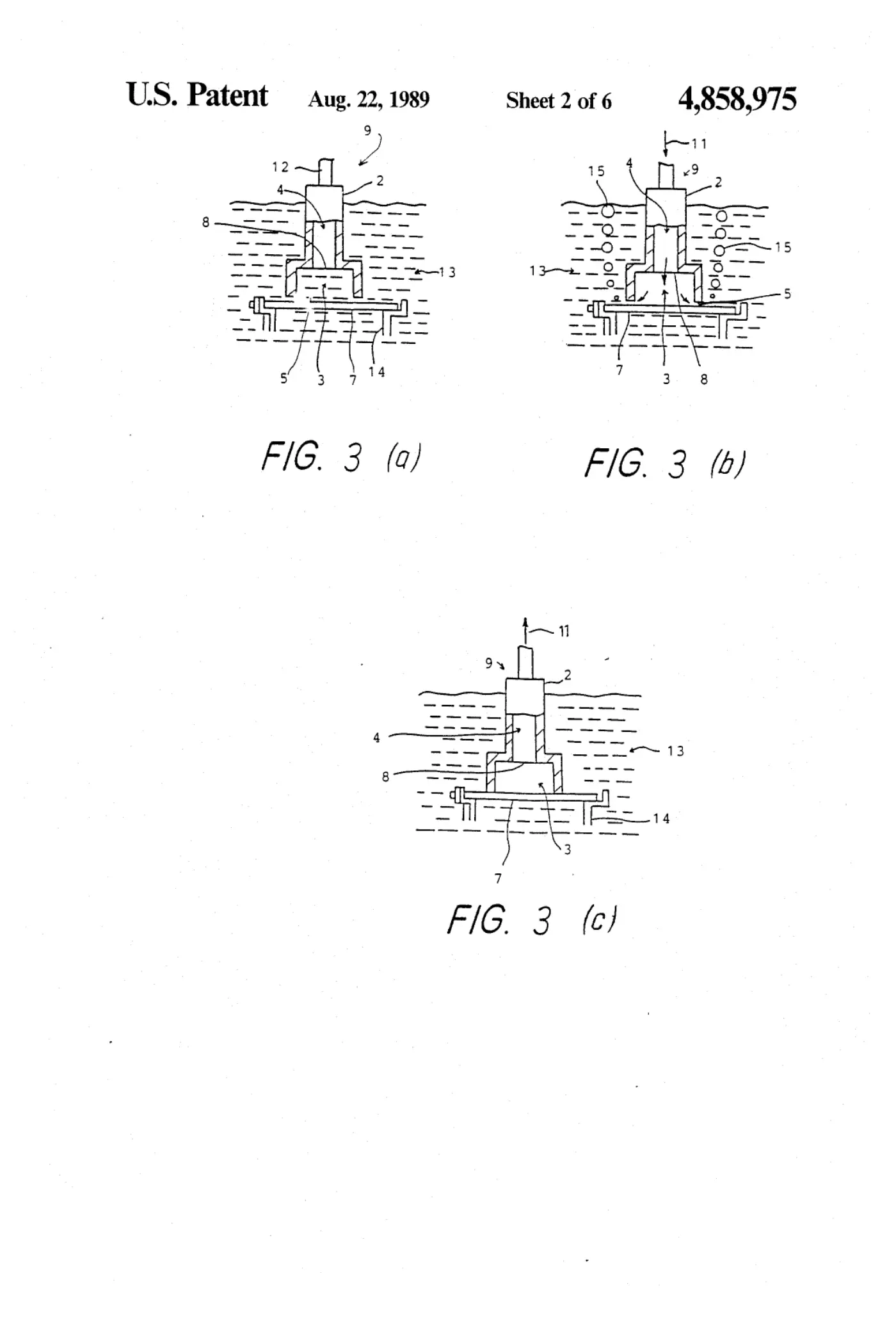

Sheet 2
Sheet 2

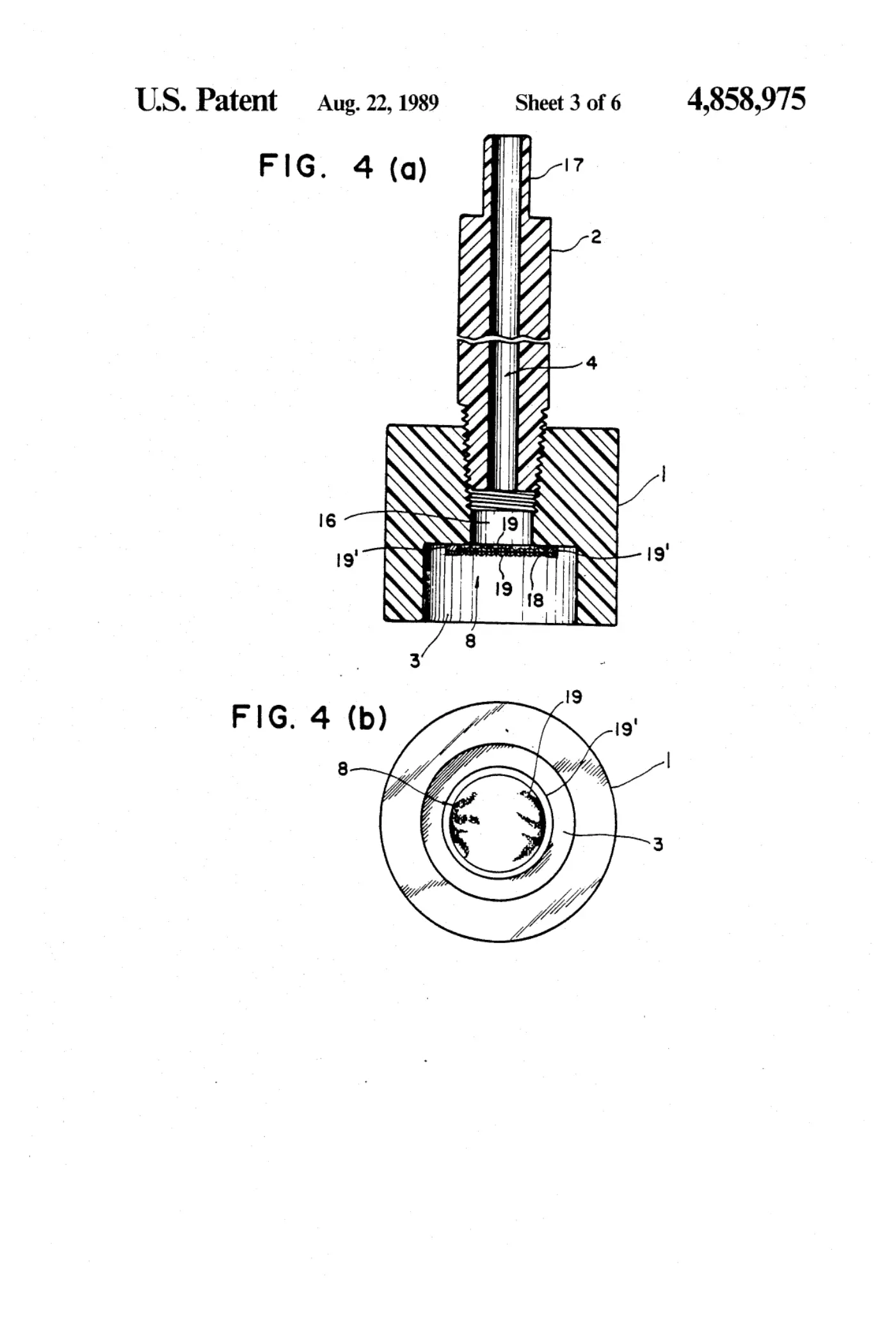

Sheet 3
Sheet 3

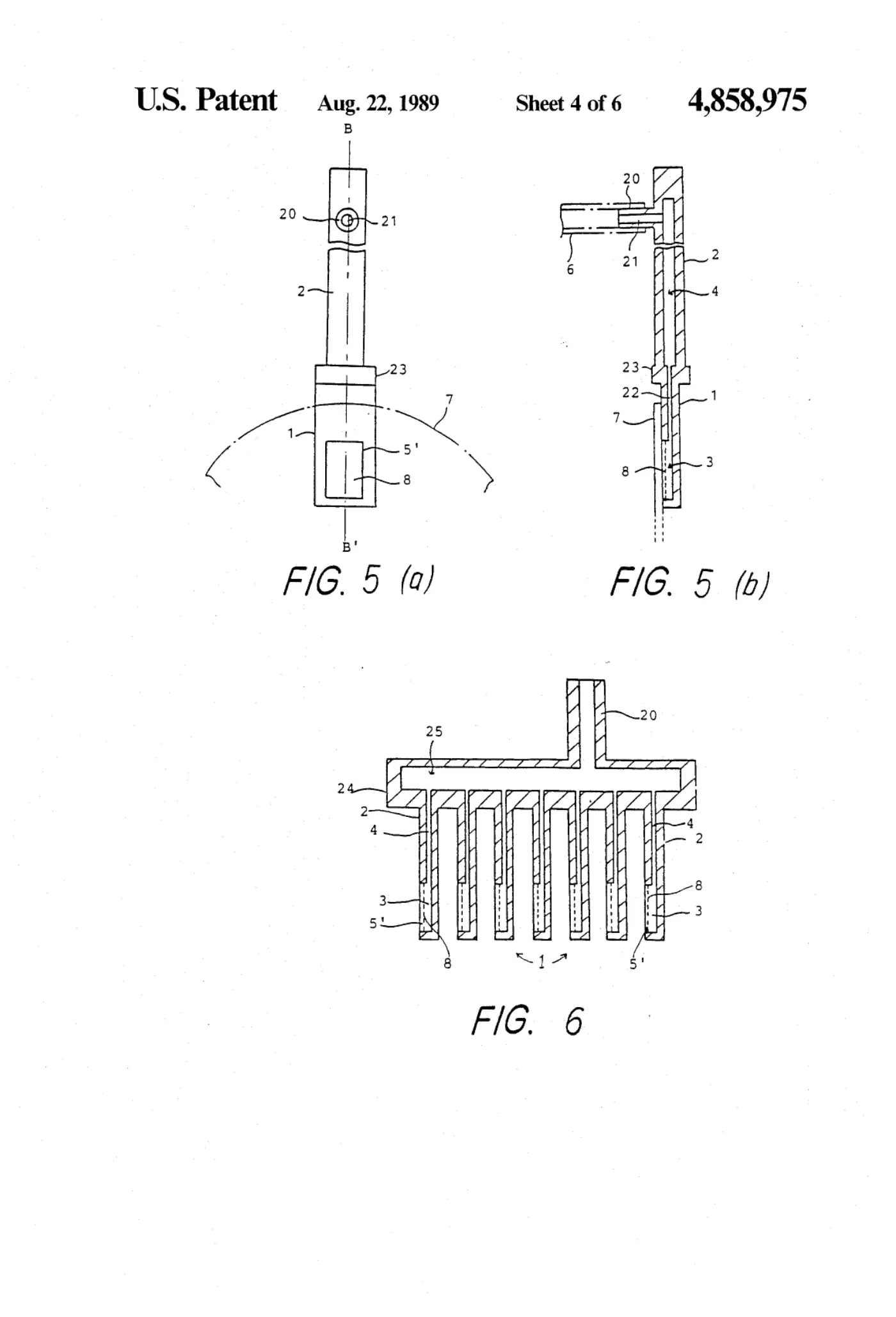

Sheet 4
Sheet 4

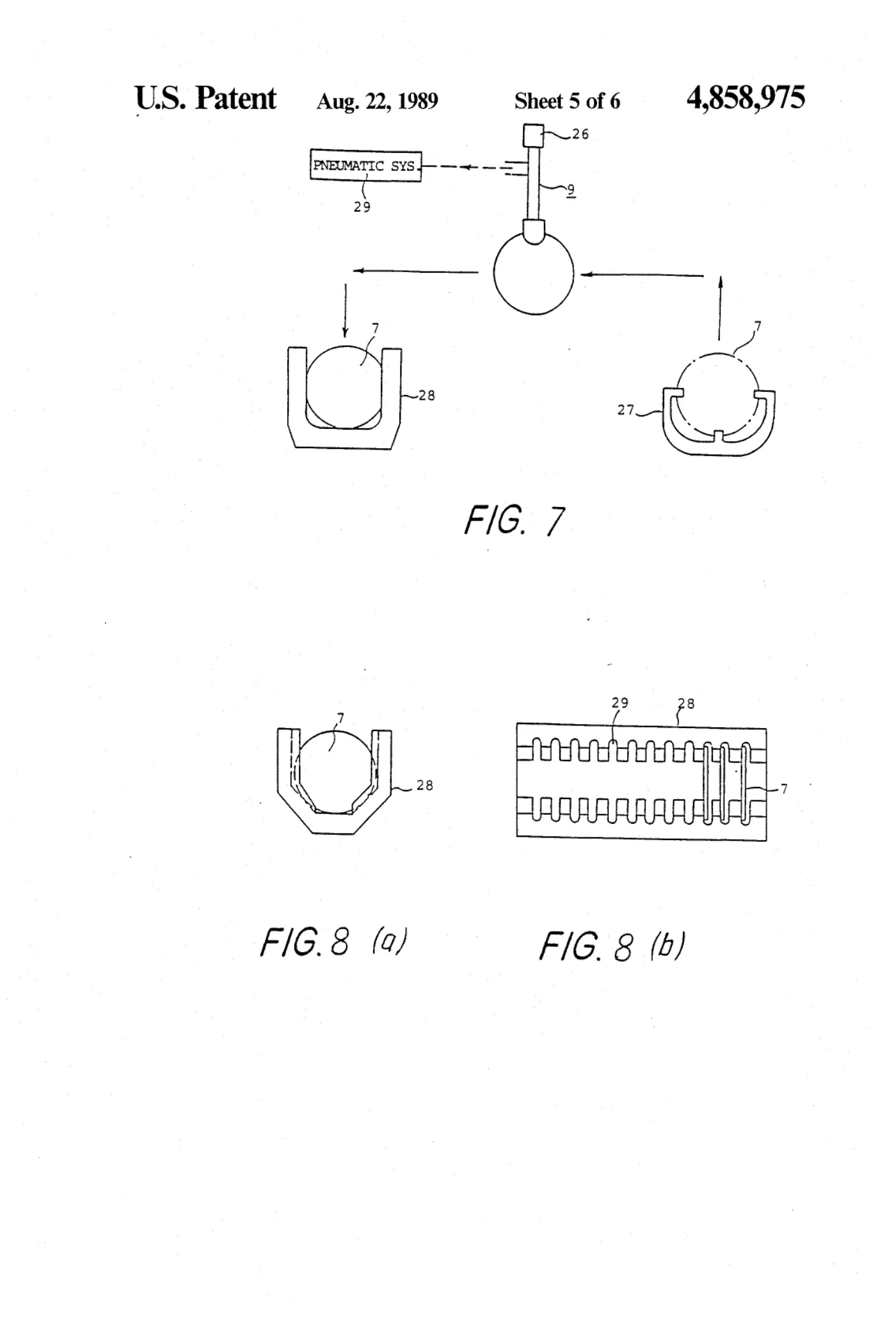

Sheet 5
Sheet 5

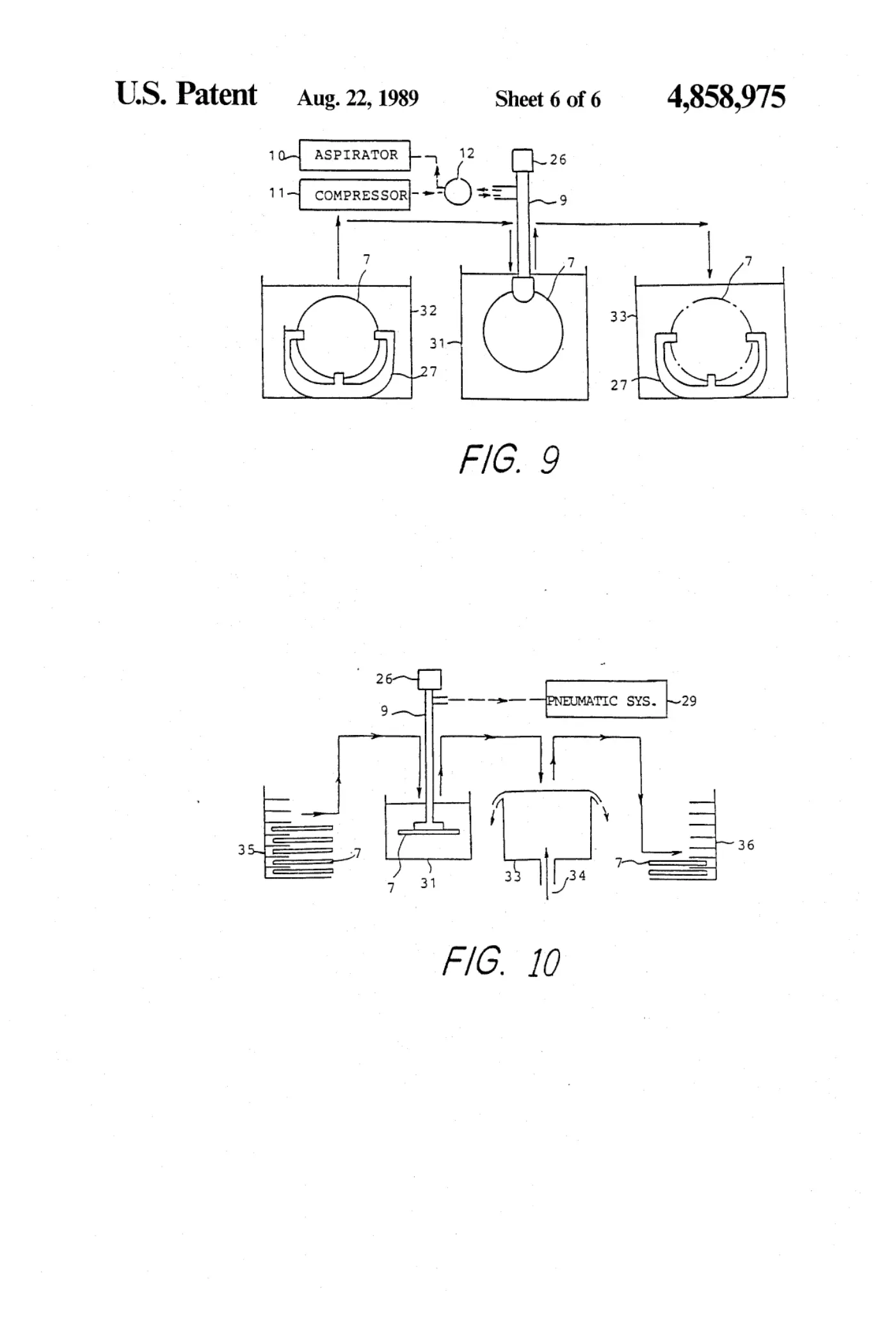

Sheet 6
Sheet 6

Abstract

A vacuum chuck apparatus operable in both gas and liquid includes a liquid-gas separating membrane which allows passage of gas molecules but prevents passage of liquid. The liquid-gas separating membrane is disposed between an inlet hole of the chuck and a manifold which is connected to a pneumatic system. The pneumatic system includes an aspirator, a compressor and a switching valve. The vacuum chuck is immersed into a liquid, compressed gas purges the liquid in the inlet hole, then the switching valve is switched to the aspirator. An object, such as a semiconductor wafer, is vacuumed quickly to the chuck, and the inlet hole is closed by the object. If a small quantity of liquid intrudes into the chuck, it is stopped by the liquid-gas separating membrane.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

[0006]Sheet 6.
