Flexible vacuum pick-up device

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
CHEN Y H, LEE C H
Assignee
TAIWAN SEMICONDUCTOR MFG
Original source
US-5746462-A, the United States Patent and Trademark Office, 5 May 1998
Document SHA-256
ef6a898bf312fbd965adf24321b6f2db176454b238ae03a3f440eecb71b8e5d5

The present invention discloses a flexible vacuum pick-up device for use in wafer processing that includes a handle portion adapted for holding by a human hand, the handle portion has a passage therein for fluid communication, a flexible conduit for providing a connection between the handle portion and a pick-up head and for providing a vacuum passage therethrough, and a vacuum pick-up head that has an extended planar surface adapted for making intimate contact with a substantially flat wafer.

Sheet 1
Sheet 1

Abstract

The present invention discloses a flexible vacuum pick-up device for use in wafer processing that includes a handle portion adapted for holding by a human hand, the handle portion has a passage therein for fluid communication, a flexible conduit for providing a connection between the handle portion and a pick-up head and for providing a vacuum passage therethrough, and a vacuum pick-up head that has an extended planar surface adapted for making intimate contact with a substantially flat wafer.

1. Drawings

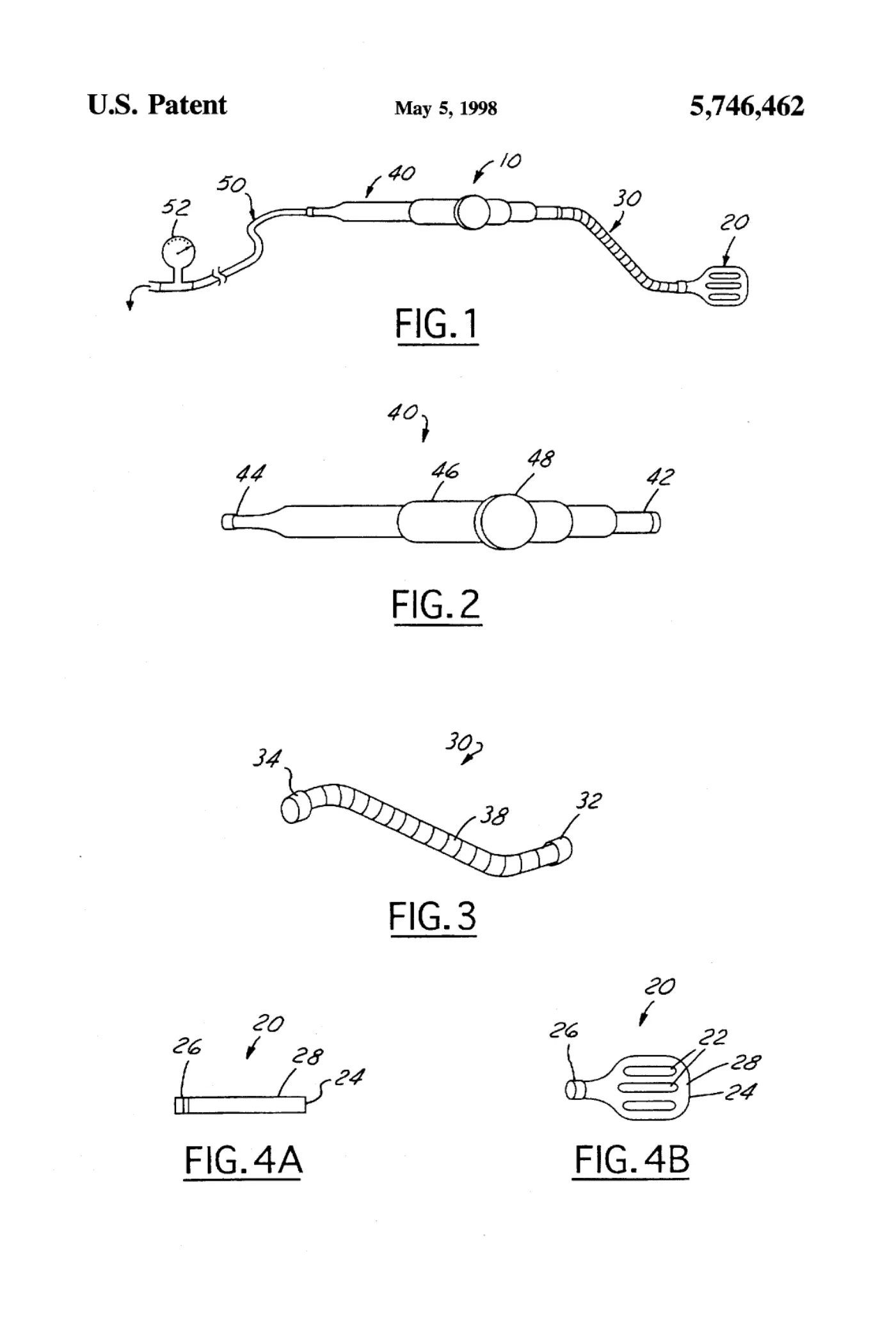

[0001]Sheet 1.
